000432 - MÄGERLE FD 7
Special Price
CHF 7 000
Special offer machines are sold as-is, without any warranty or inspection from us.
Need Assistance? Just WhatsApp Us!

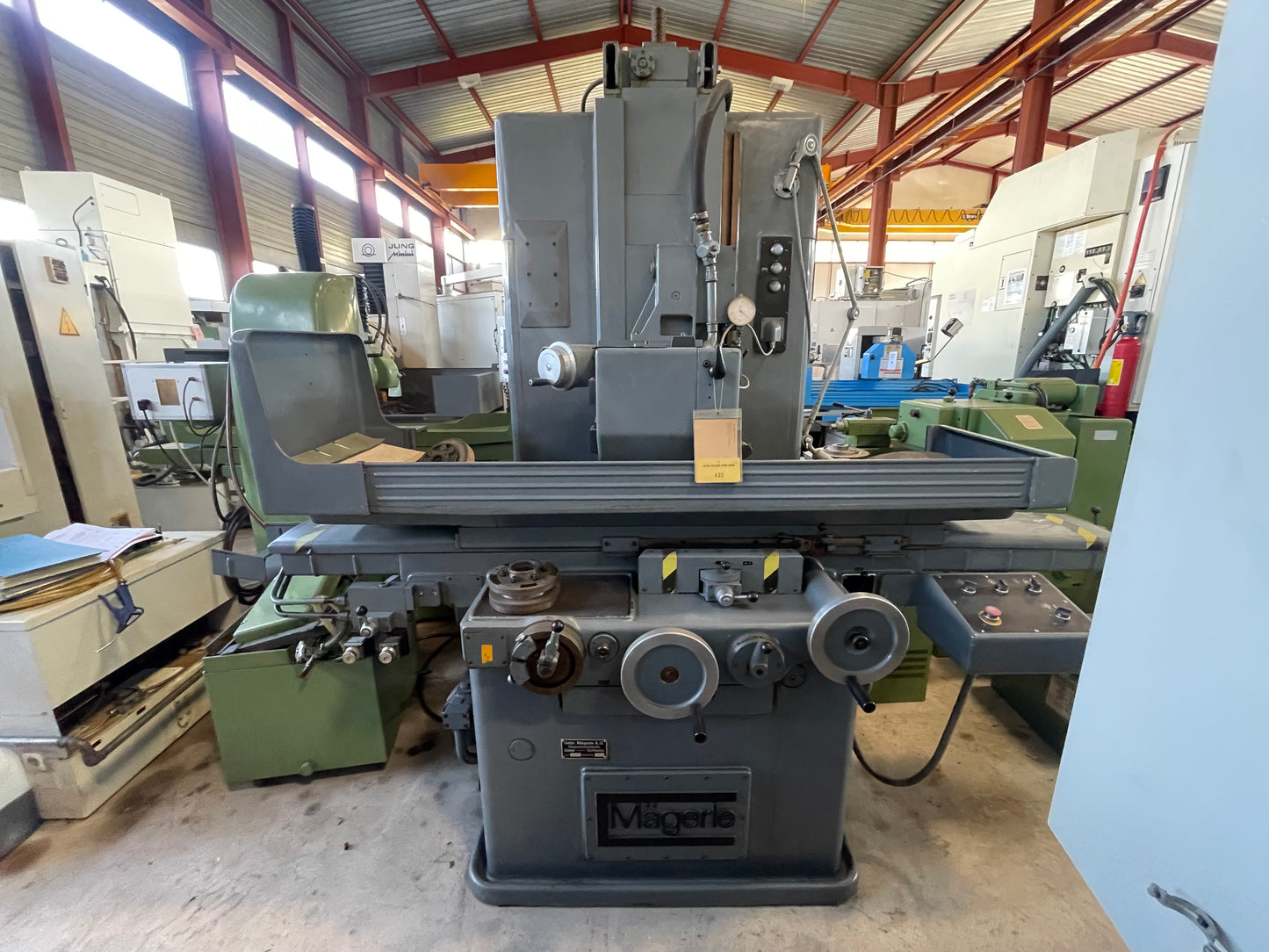

MÄGERLE FD 7 is a surface grinder, synonymous with precision, high accuracy and reliability. Capacities: table 750×240 mm, grinding length 700 mm, grinding width 300 mm, max distance table to spindle centre 600 mm, transverse travel 270 mm. Specs: table speeds stepless 3-30 m/min, automatic cross-feed stepless up to 7 m/min, grinding wheel Ø400 mm width 500 mm, up to 2200 t/min, spindle motor 5.00 CV, total power 20.00 CV, 3×380 V 50 Hz, vertical rapid traverse 0.30 m/min, weight ≈3000 kg. Accessories: coolant system, magnetic plate 700×250 mm. Enables tight tolerances; suited to automotive, aerospace, watchmaking, machine tools and medical sectors.
| Table length | 750 mm |
| Table width | 240 mm |
| Grinding length | 700 mm |
| Grinding width | 300 mm |
| Execution: | |
| hydraulic | |
| Max. distance from table | |
| to spindle-centreline | 600 mm |
| Transversal travel (y axis) | 270 mm |
| Automatic cross-feed: | |
| stepless | |
| from | m/min |
| up to | 7 m/min |
| Table speeds: | |
| stepless | |
| from | 3.00 m/min |
| up to | 30 m/min |
| Automatic vertical feed: | |
| from | mm |
| up to | mm |
| Vertical rapid traverse | 0.30 m/min |
| Diameter of grinding wheel | 400 mm |
| Width of the grinding wheel | 500 mm |
| Grinding wheel speeds: | |
| number (steps) | |
| up to | 2200 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Grinding spindle motor | 5.00 CV |
| Total power required | 20.00 CV |
| Machine's weight about | 3000 kg |
| Various accessories: | |
| Coolant system | |

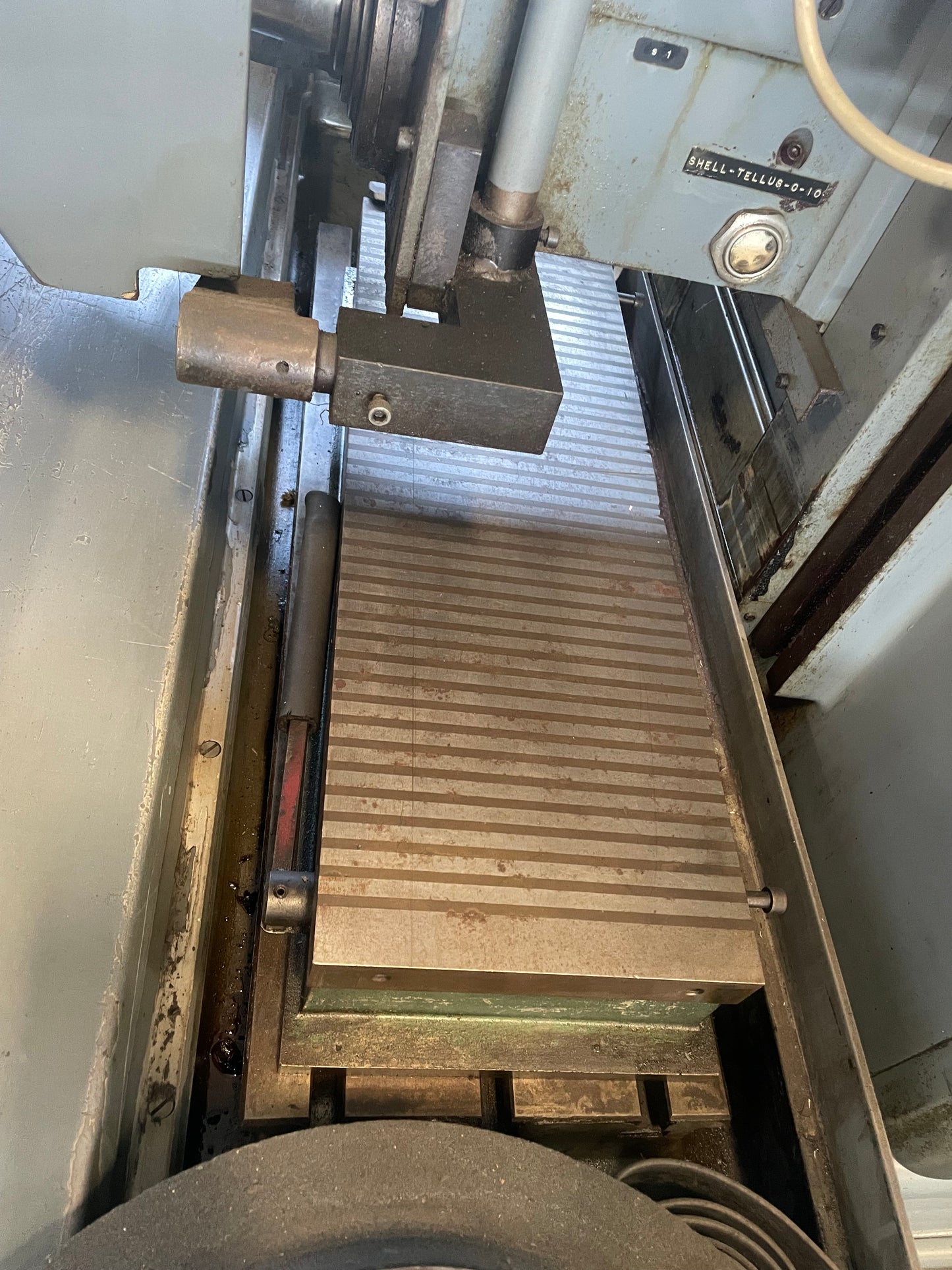

| Magnetic plate: | |
| Length | 700 mm |
| Width | 250 mm |
