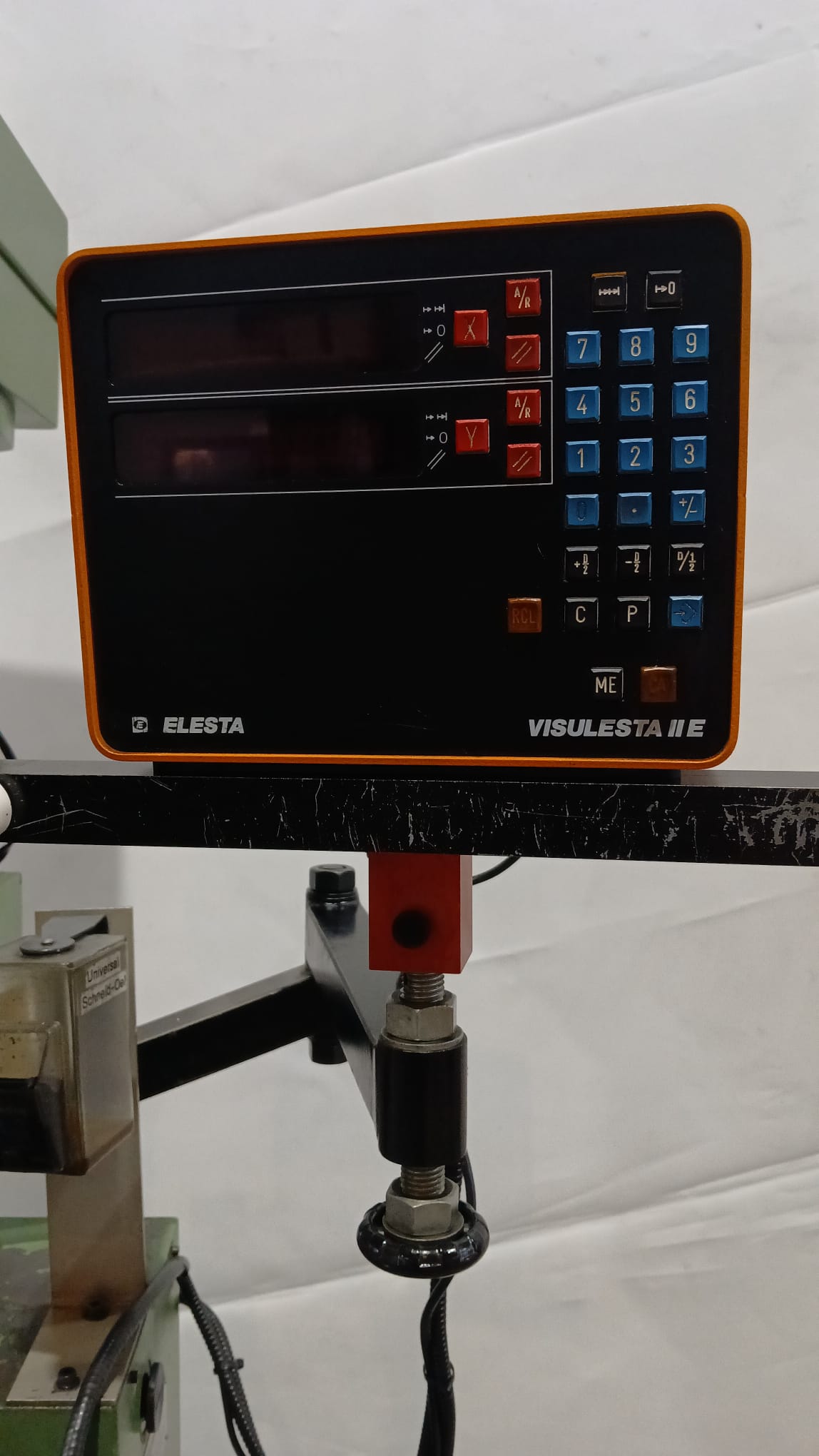

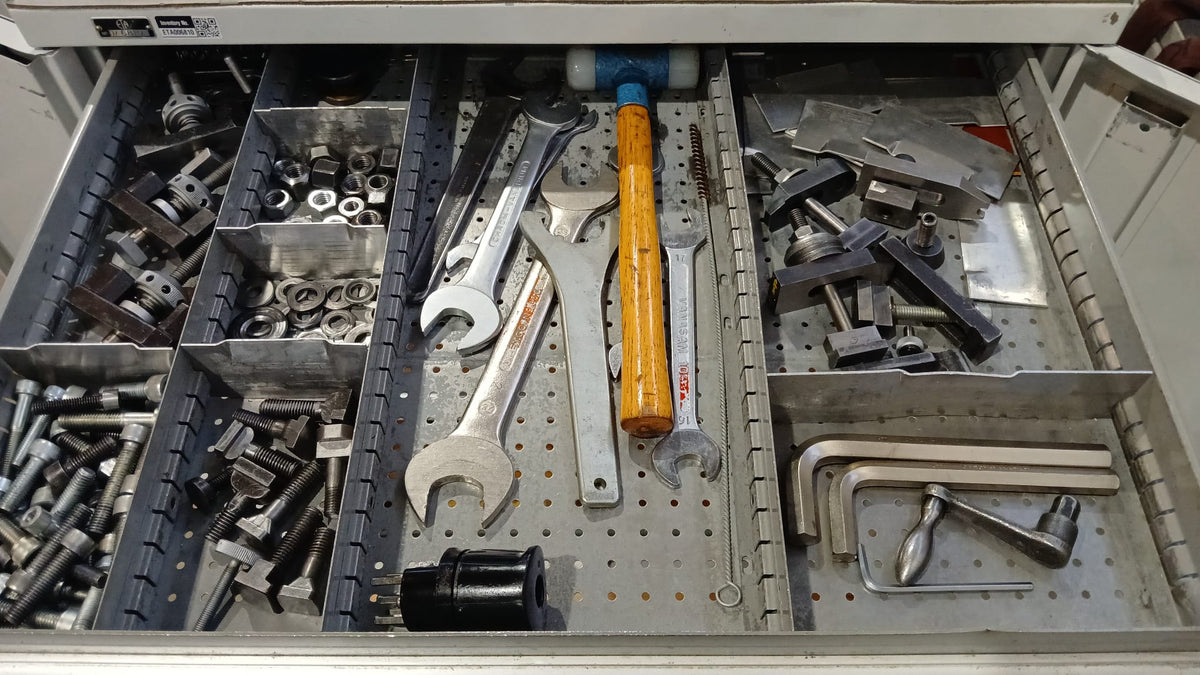

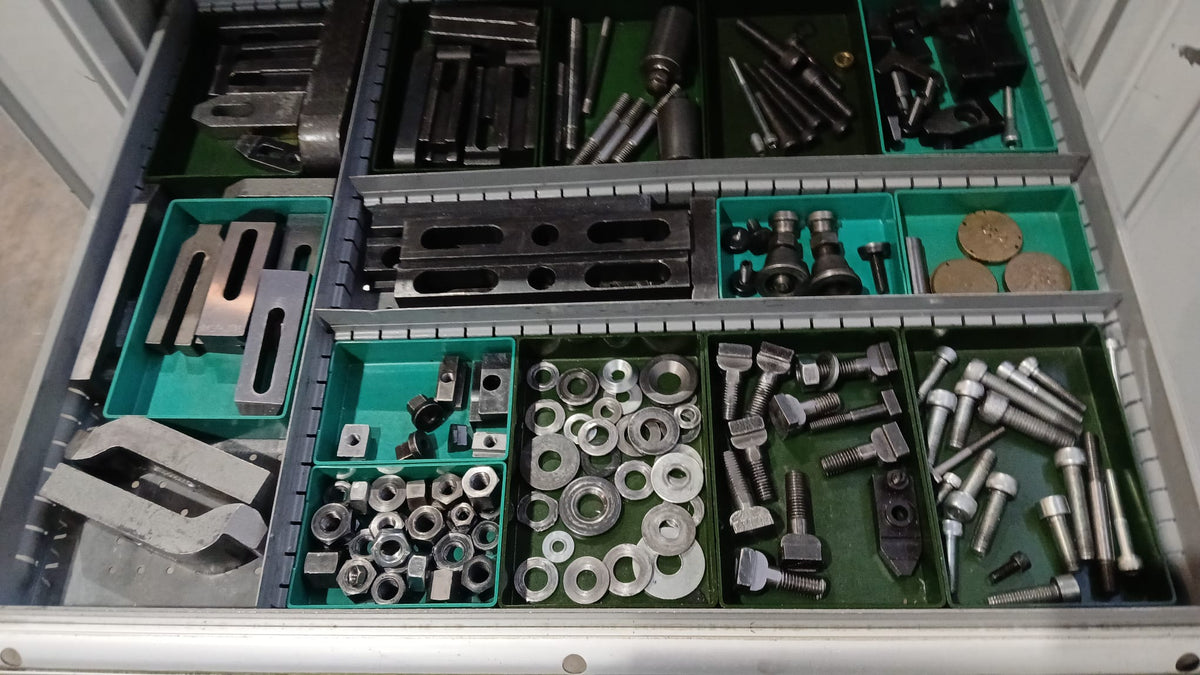

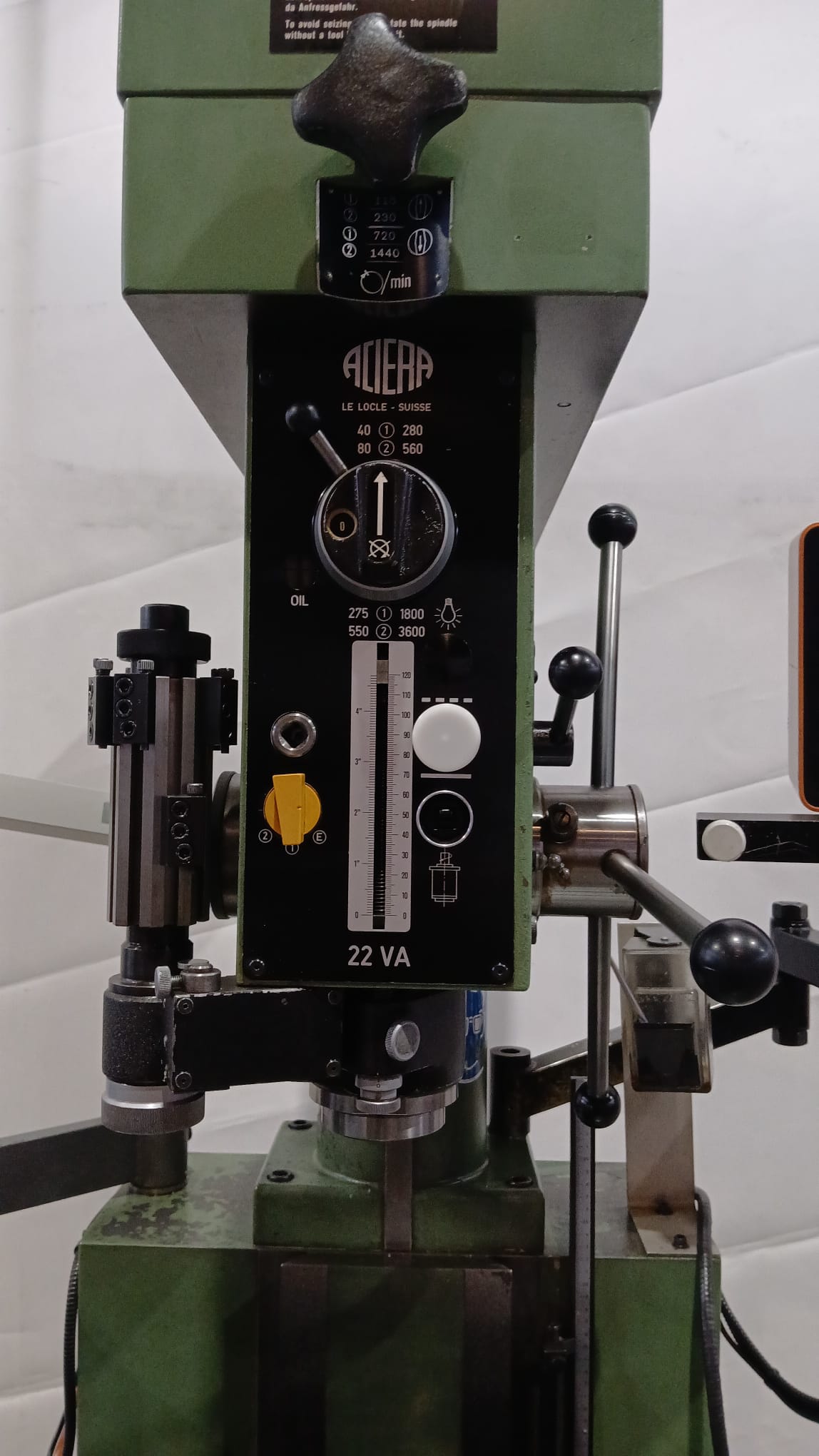

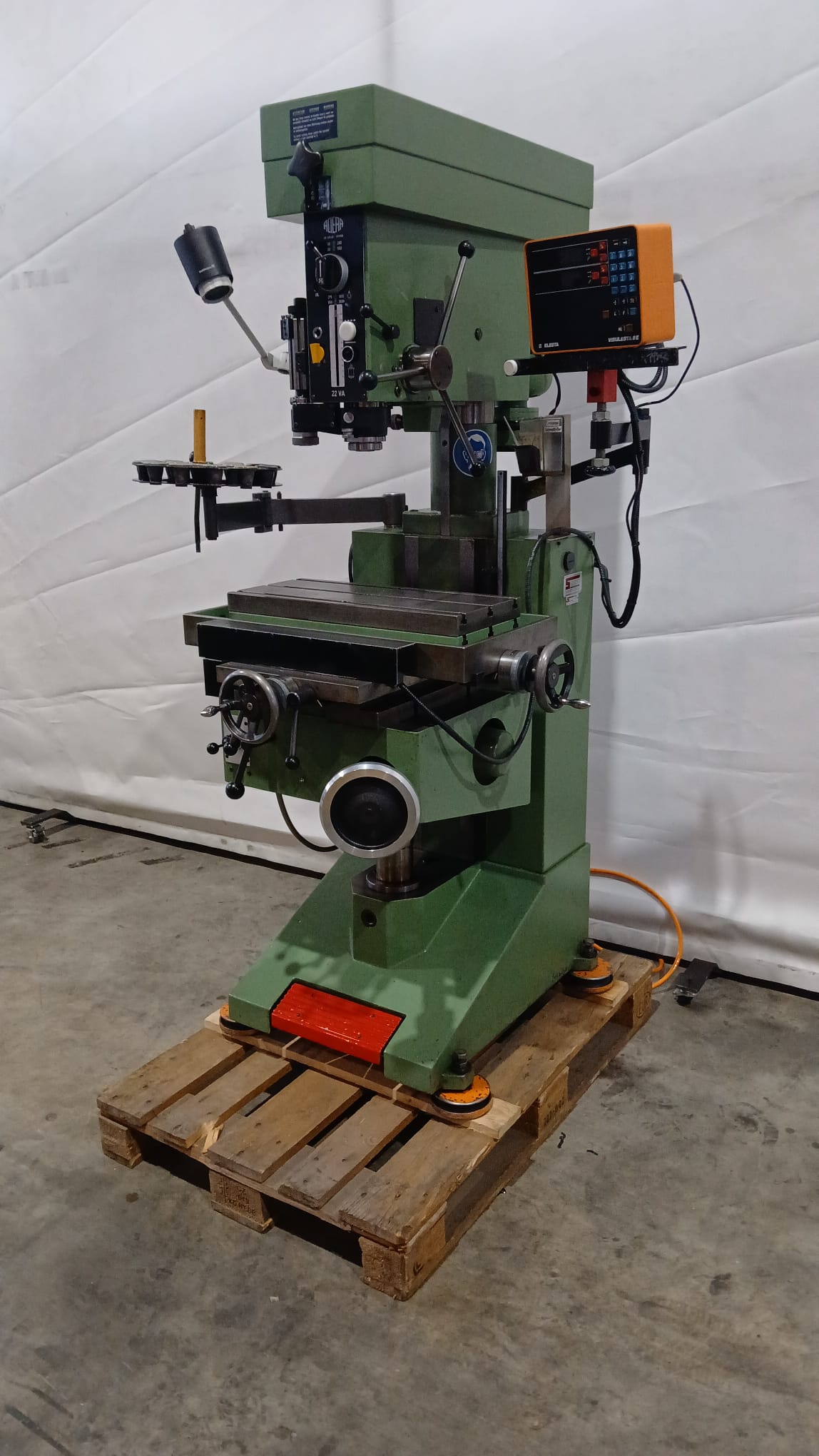

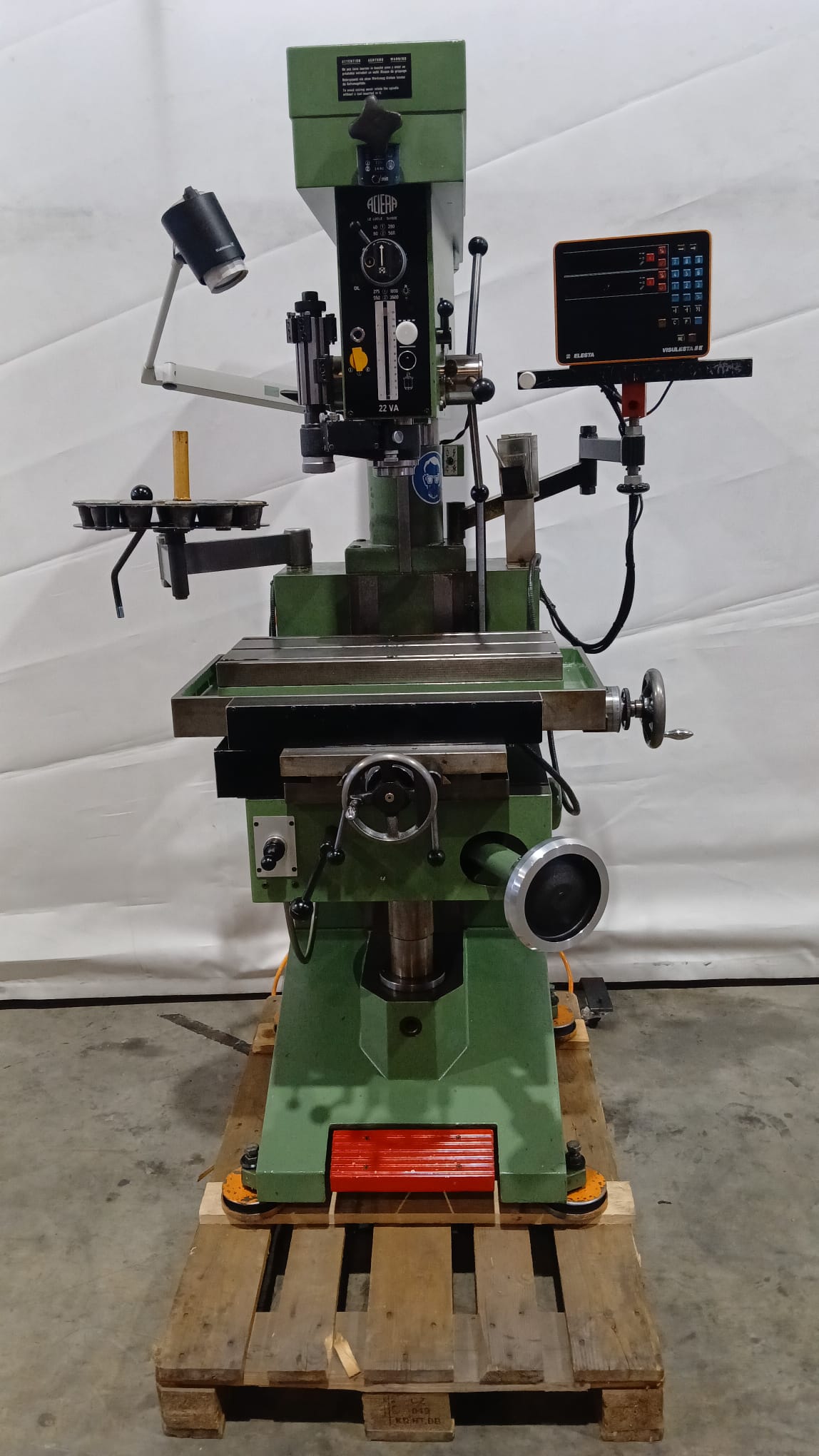

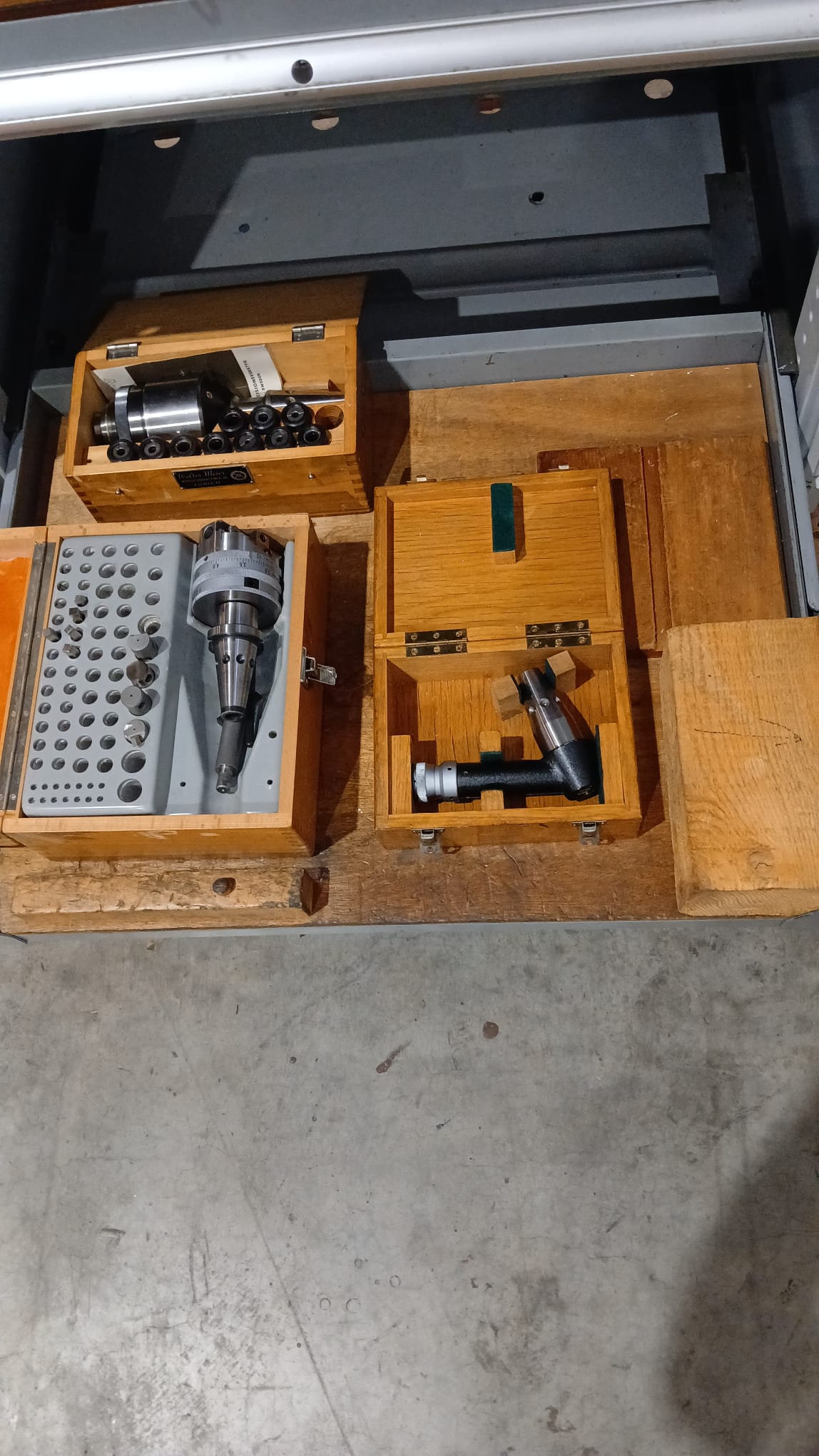

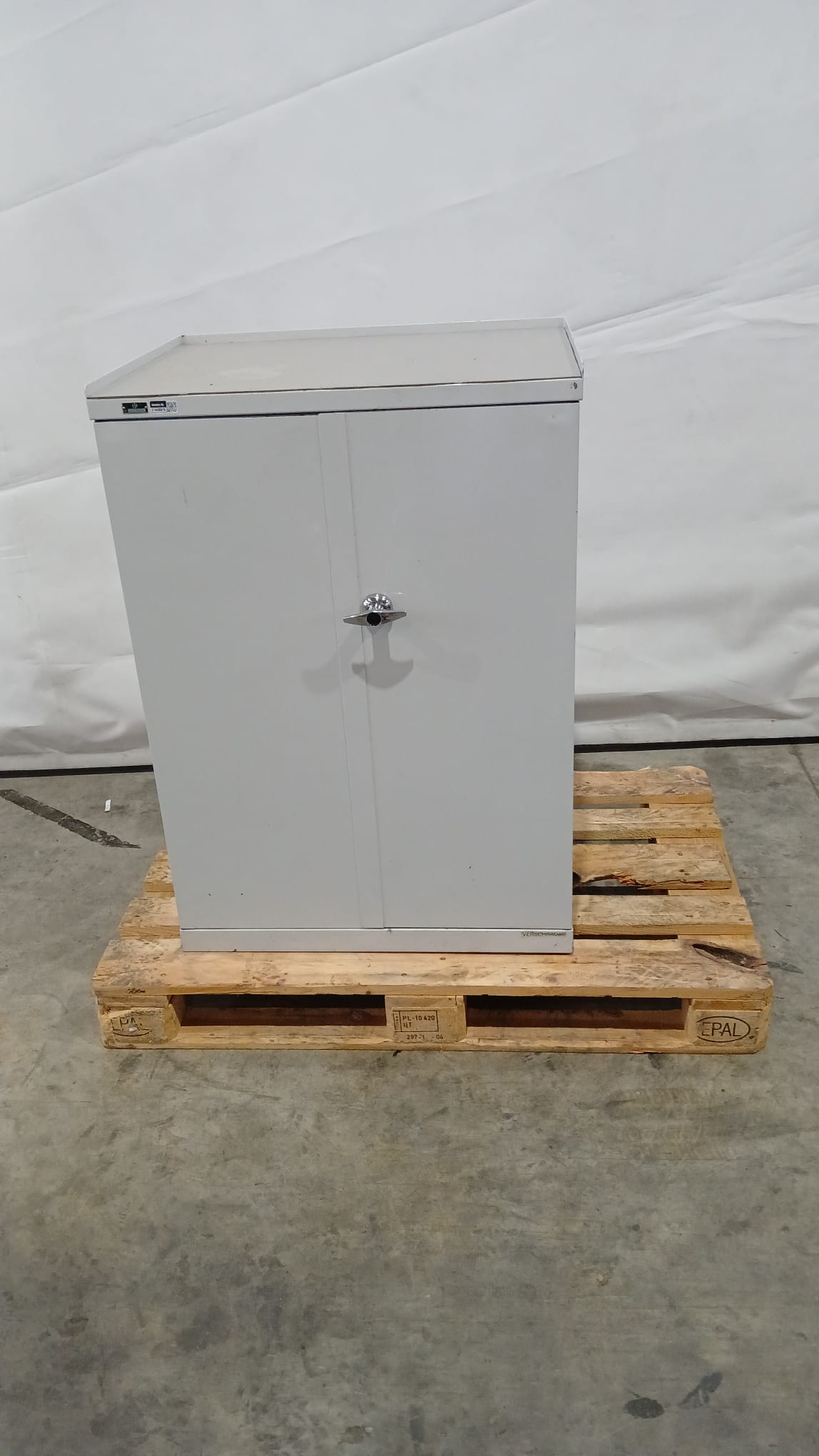

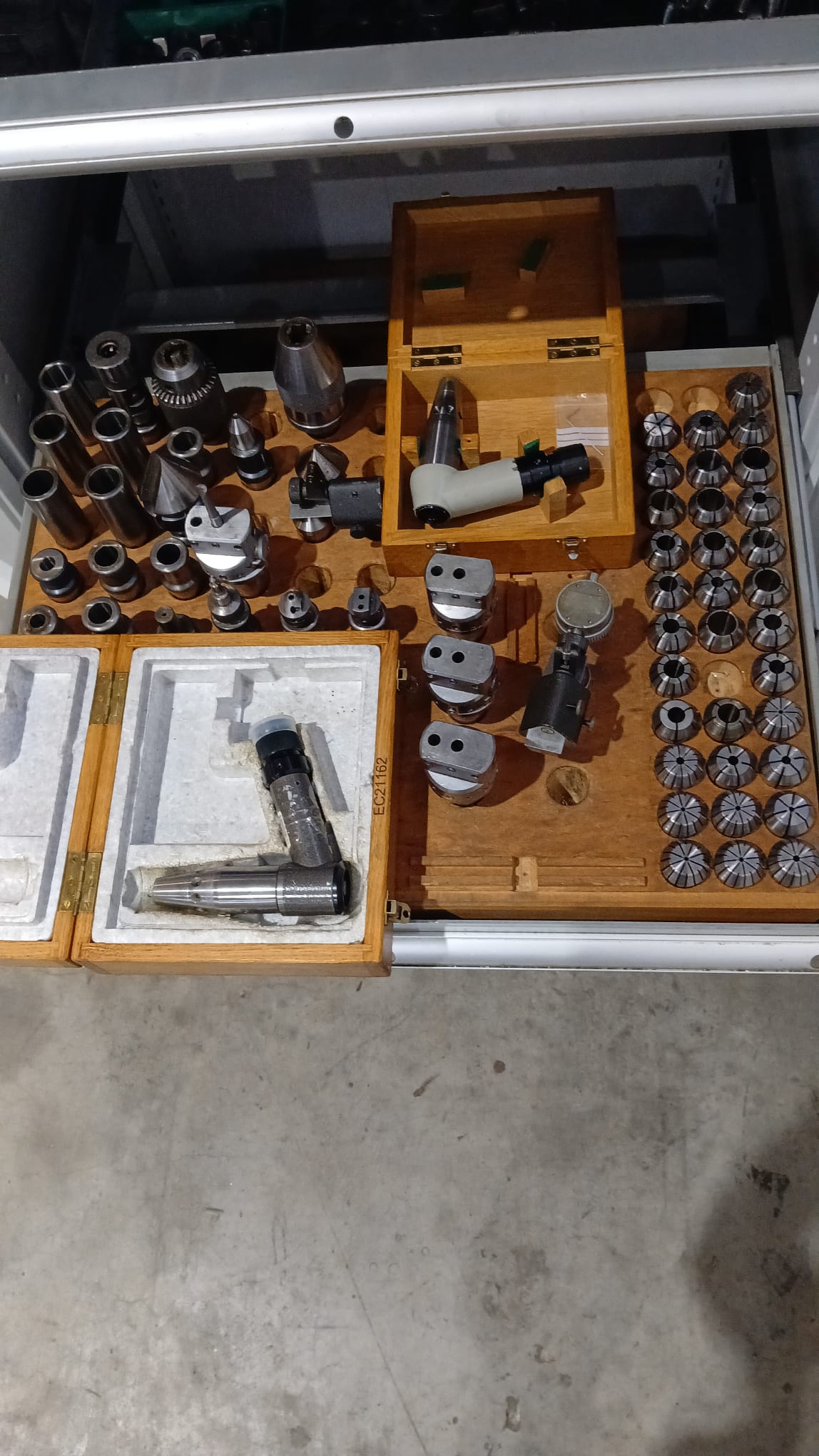

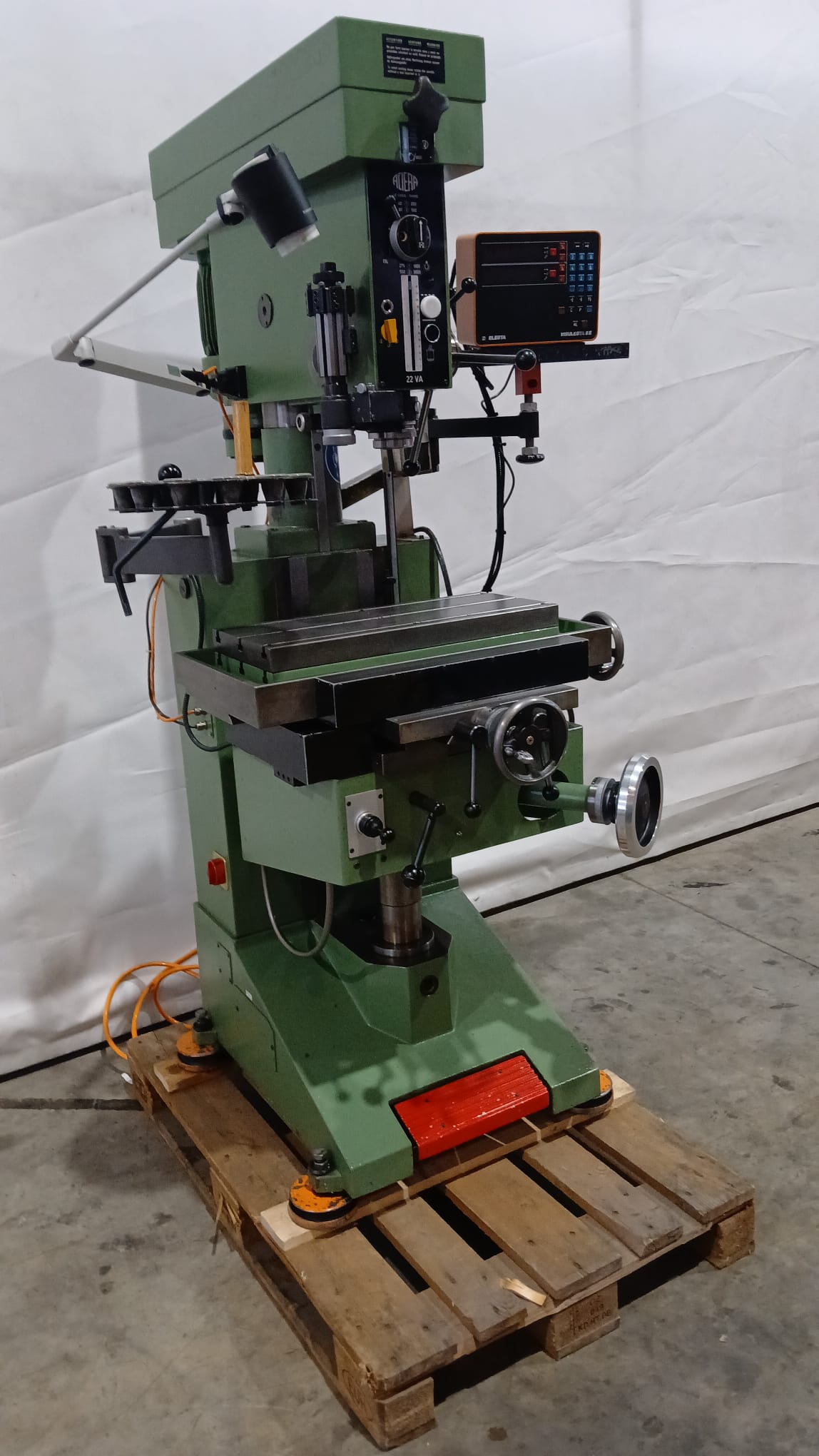

ACIERA 22 VA is a pillar drilling machine engineered for precision, high accuracy and reliability. Capacities: drilling in steel 22 mm, in cast iron 24 mm; throat 300 mm; spindle stroke 120 mm; spindle head travel 300 mm; table 700x370 mm, clamping surface 580x280 mm; travels X330 Y210 Z350 mm. Specs: taper MT:3; stepless spindle 40–3600 t/min; feeds 0.02–0.25 mm/t; supply 3x380 V 50 Hz; spindle motor 1.0/1.5 CV; weight ~990 kg; dimensions 1330x900x1800 mm. Accessories: digital readout 2 axes, threading device, drill chuck, lamp, centering microscope, boring head, tool cabinet, quick-change device, adjustable depth stop, collet set, clamping set, service tools; refurbished 2011. Delivers tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical.
