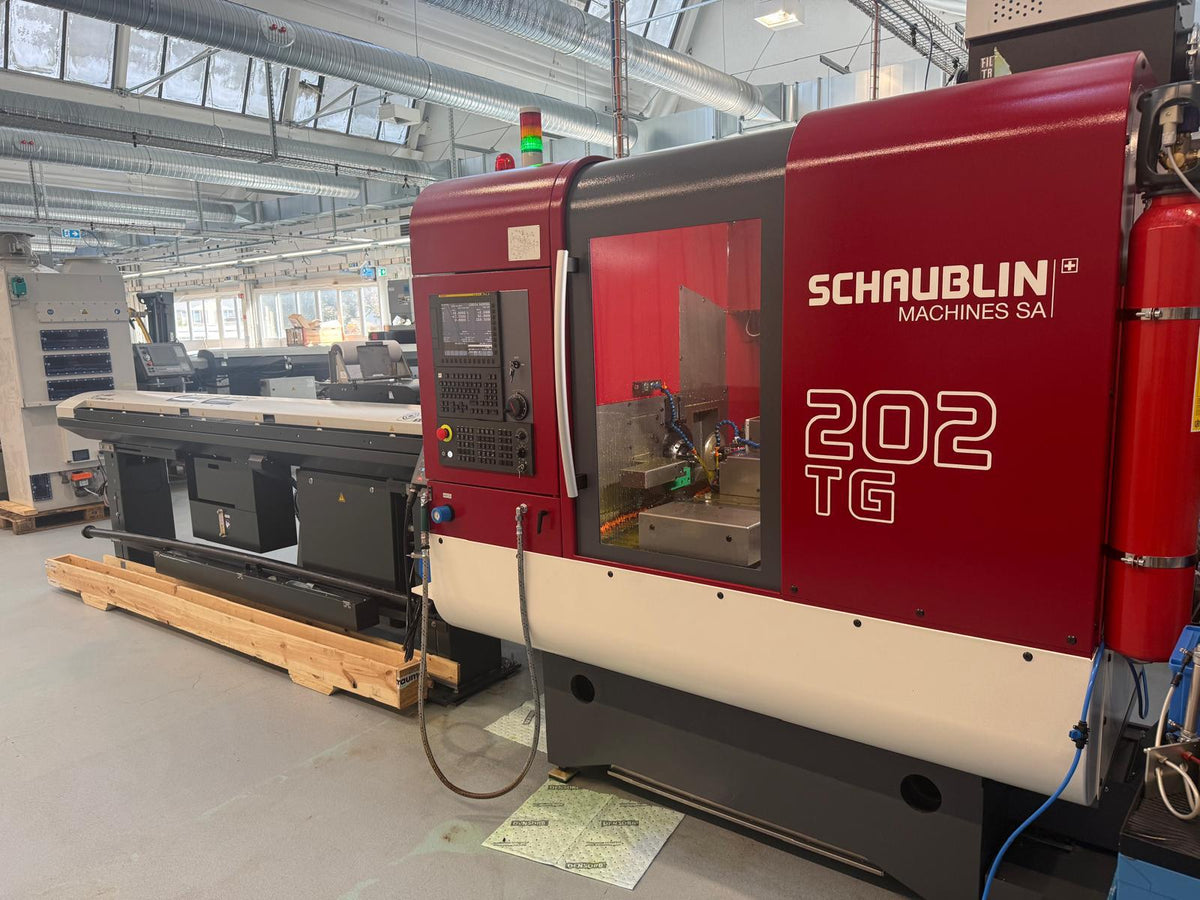

SCHAUBLIN 202 TG-CNC W25-0127
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
SCHAUBLIN 202 TG-CNC W25-0127 is a CNC turning, milling and grinding centre designed for high precision, excellent accuracy and reliable performance. Working capacities: centre height 60 mm, Z travel 300 mm, X travel 150 mm, collet bore 19 mm; linear resolution 0.0001 mm and C‑axis resolution 0.0001°. Main specs: spindle up to 7000 rpm, spindle power 5/6 kW, max torque 26.1/35.1 Nm, rapid traverses 20 m/min (X/Z), voltage 3x 400 V 50 Hz; weight approx. 3000 kg; dimensions L1930×W1300×H2040 mm. Key equipment: W25 collet interface, integrated C‑axis. Delivers tight tolerances; suited to automotive, watchmaking, machine tools, aerospace and medical sectors.
Technical specifications are subject to change without notice

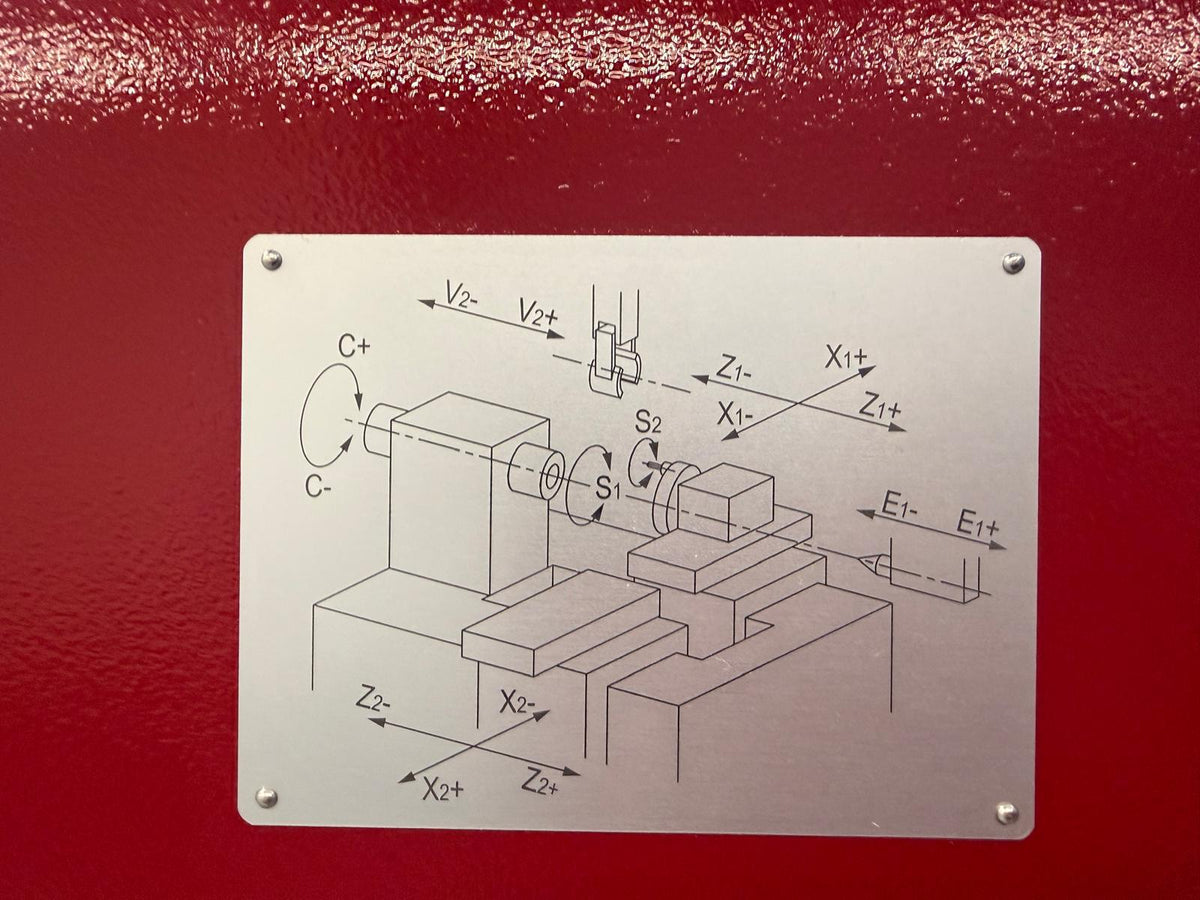

| Number of axis total | 3 |
| Centre height over slide | 60 mm |
| Travels: | |
| Longitudinal travel (Z-axis) | 300 mm |
| Cross travel (x-axis) | 150 mm |
| Resolution | 0.0001 mm |
| Rapid traverse Z | 20 m/min |
| Rapid traverse X | 20 m/min |
| Inner taper type | W25 |
| Collet bore | 19 mm |
| C axis (spindle,resolution) | 0.0001 ° |
| Spindle speeds: | |
| up to | 7000 t/min |
| Spindle power | 5 / 6 kW |
| Torque max. | 26.1 / 35.1 Nm |
| Voltage 50 Hz 3x | 400 Volt |
| Machine's weight about | 3000 kg |
| Overall dimensions machine: | |
| Length | 1930 mm |
| Width | 1300 mm |
| Height | 2040 mm |
