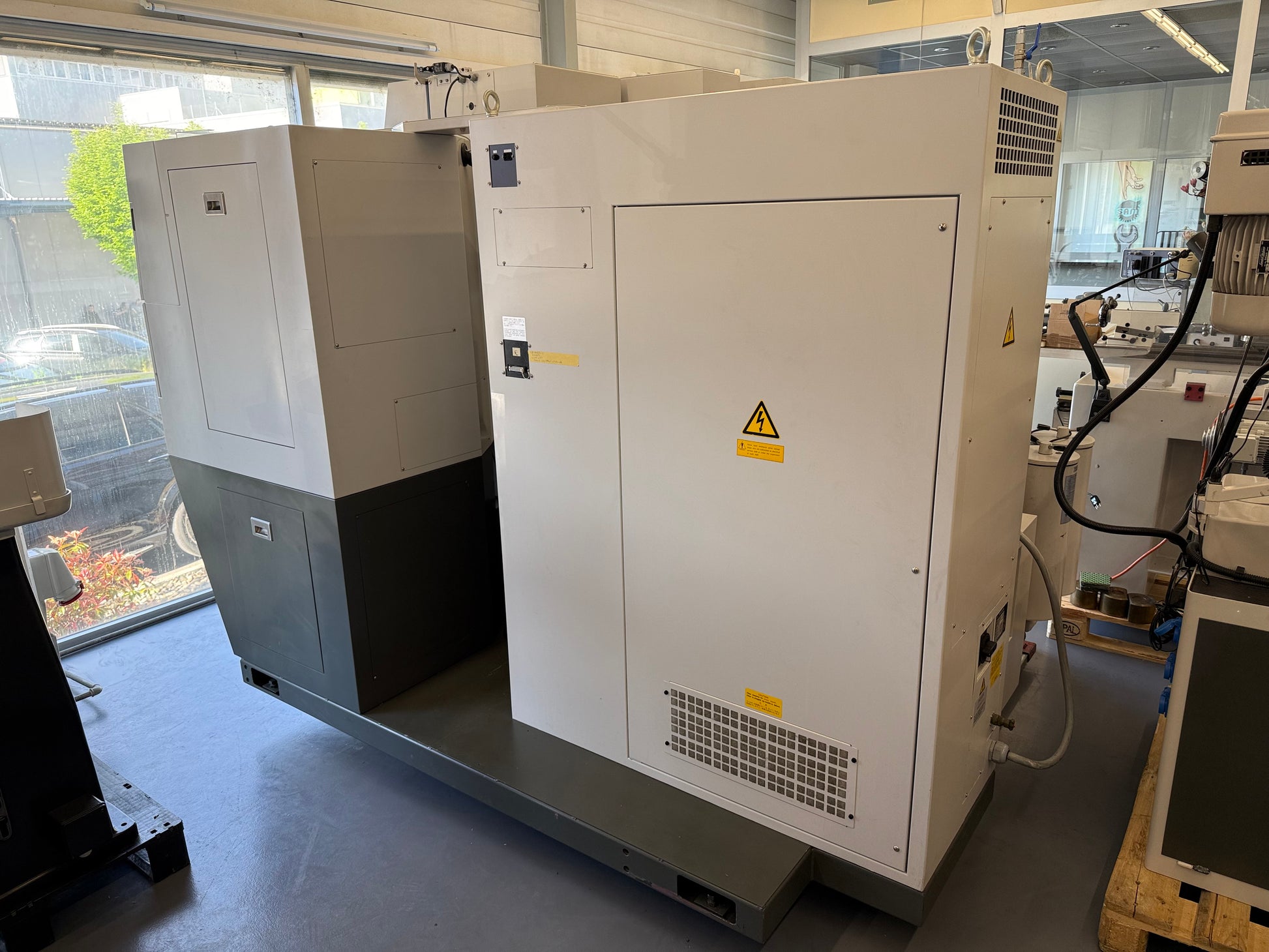

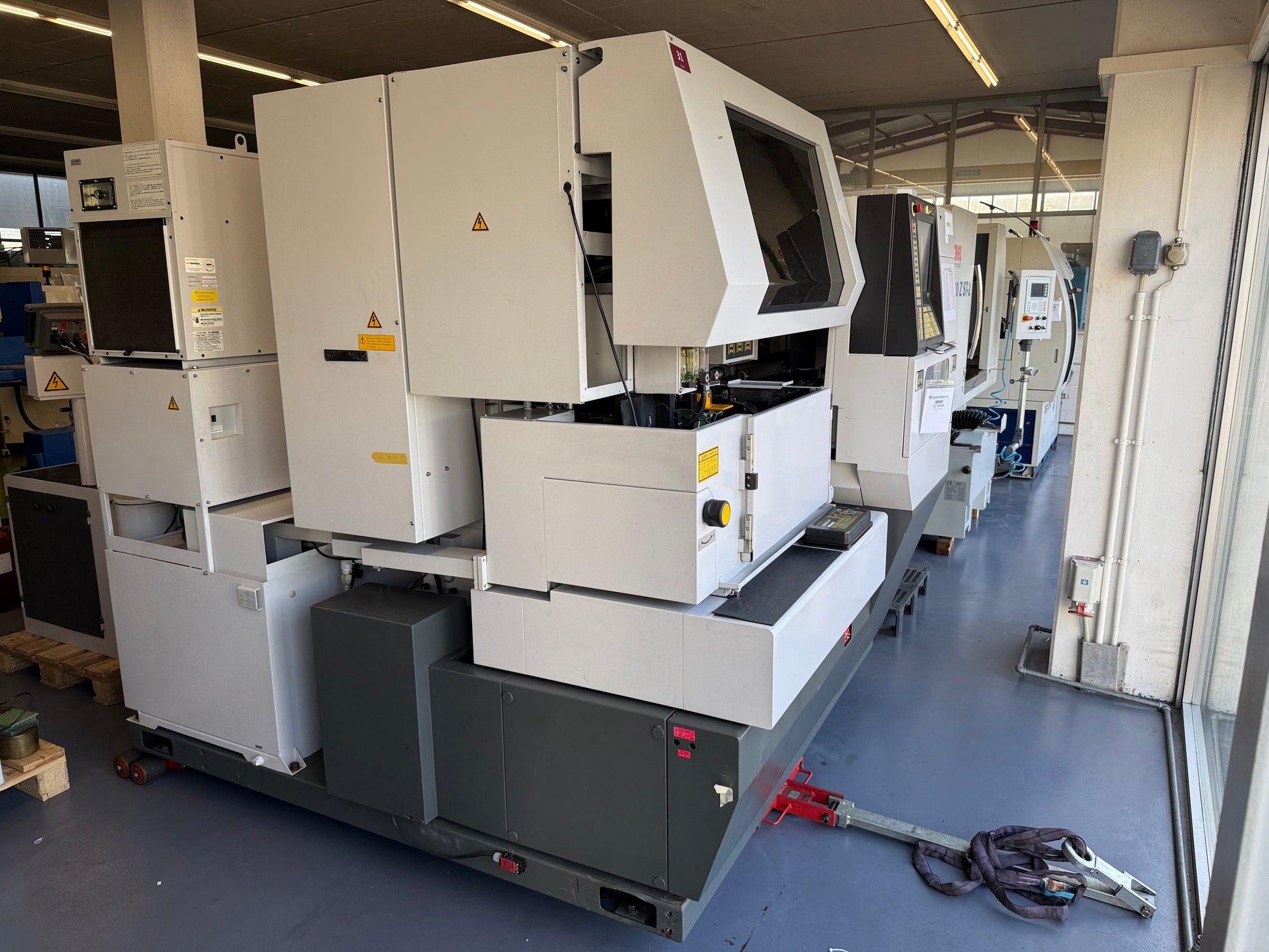

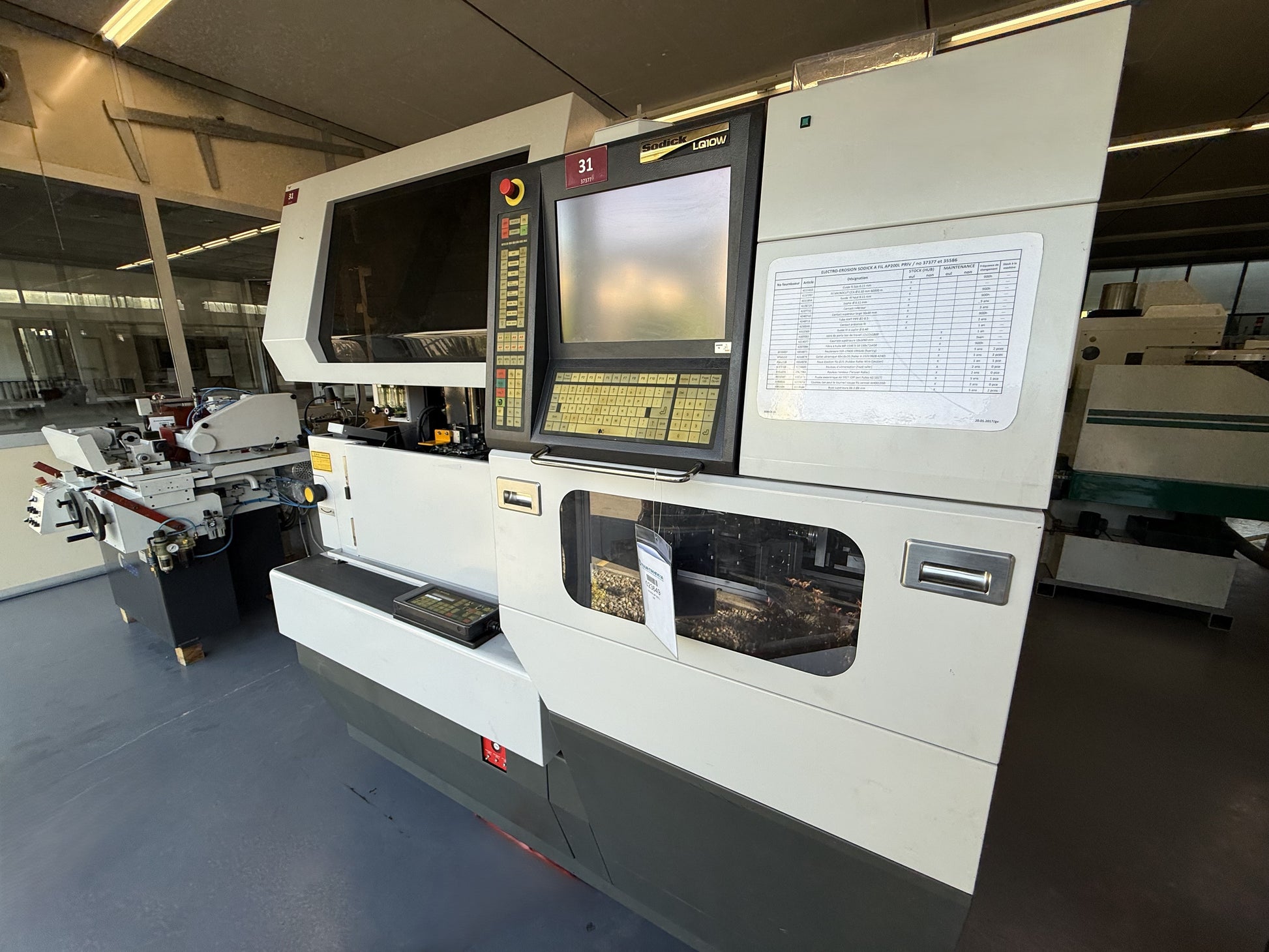

SODICK AP 200 L is a wire cutting EDM machine for precision, high accuracy and reliability. Capacities: workpiece 300×270×100 mm; travels X220, Y150, Z120 mm; U/V 35 mm; taper ±7°; wire from 0.05 mm. Main specs: 50 Hz 3×400 V; weight ~3200 kg; dims 2550×2350×2220 mm. Achieves tight tolerances; sectors: automotive, watchmaking, toolmaking, aerospace, medical.
Technical specifications are subject to change without notice
| Max. dimensions of work piece: | |
| Length | 300 mm |
| Width | 270 mm |
| Height | 100 mm |
| Longitudinal traverse (X-axis) | 220 mm |
| Cross traverse (Y-axis) | 150 mm |
| Vertical travel (Z axis) | 120 mm |
| U/V axis travel | 35 mm |
| Taper-cut +/- | 7 ° |
| Diameter of electrode wire: | |
| from | 0.05 mm |
| Voltage 50 Hz 3x | 400 Volt |
| Machine's weight about | 3200 kg |
| Overall dimensions machine: | |
| Length | 2550 mm |
| Width | 2350 mm |
| Height | 2220 mm |

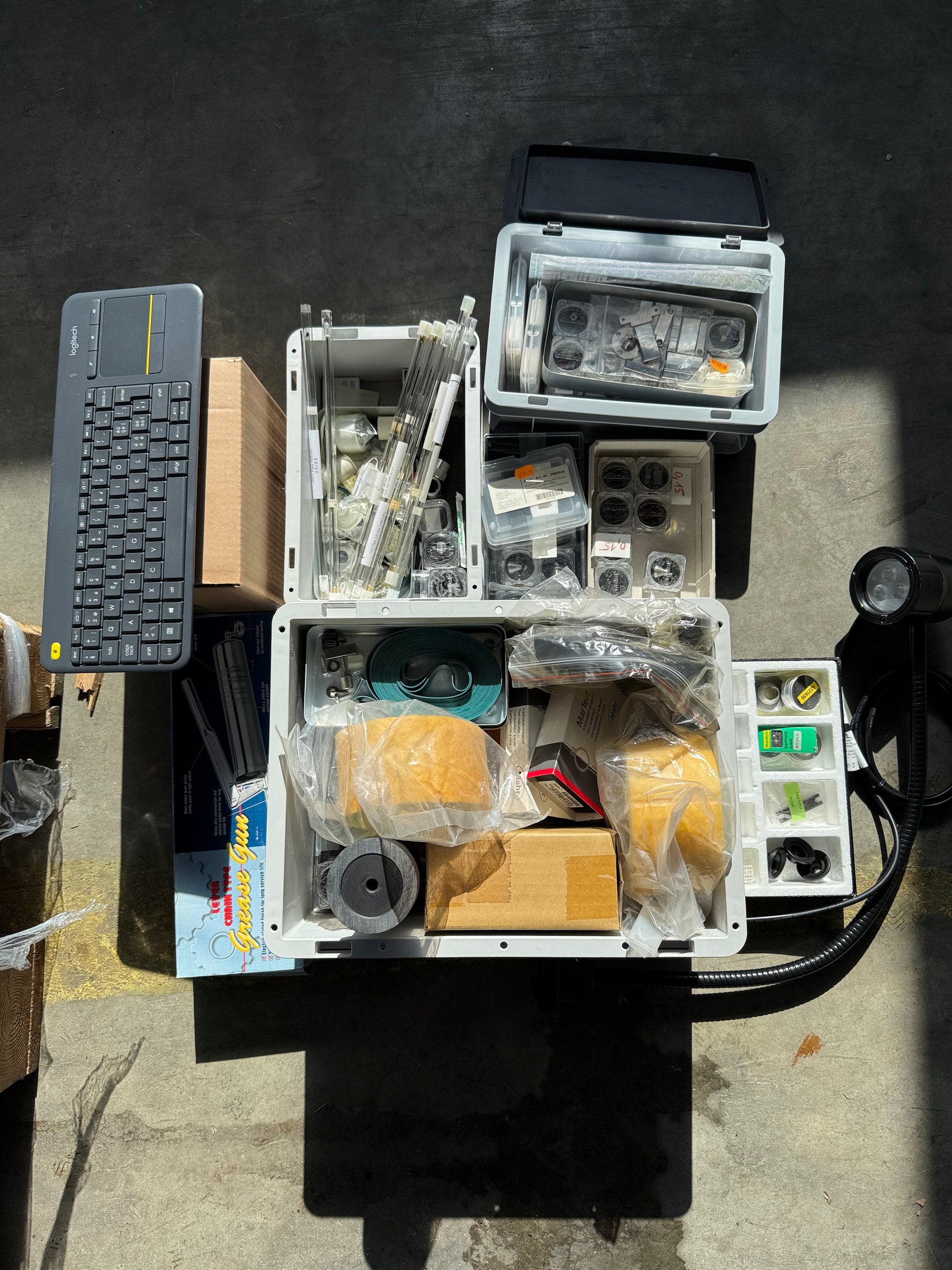

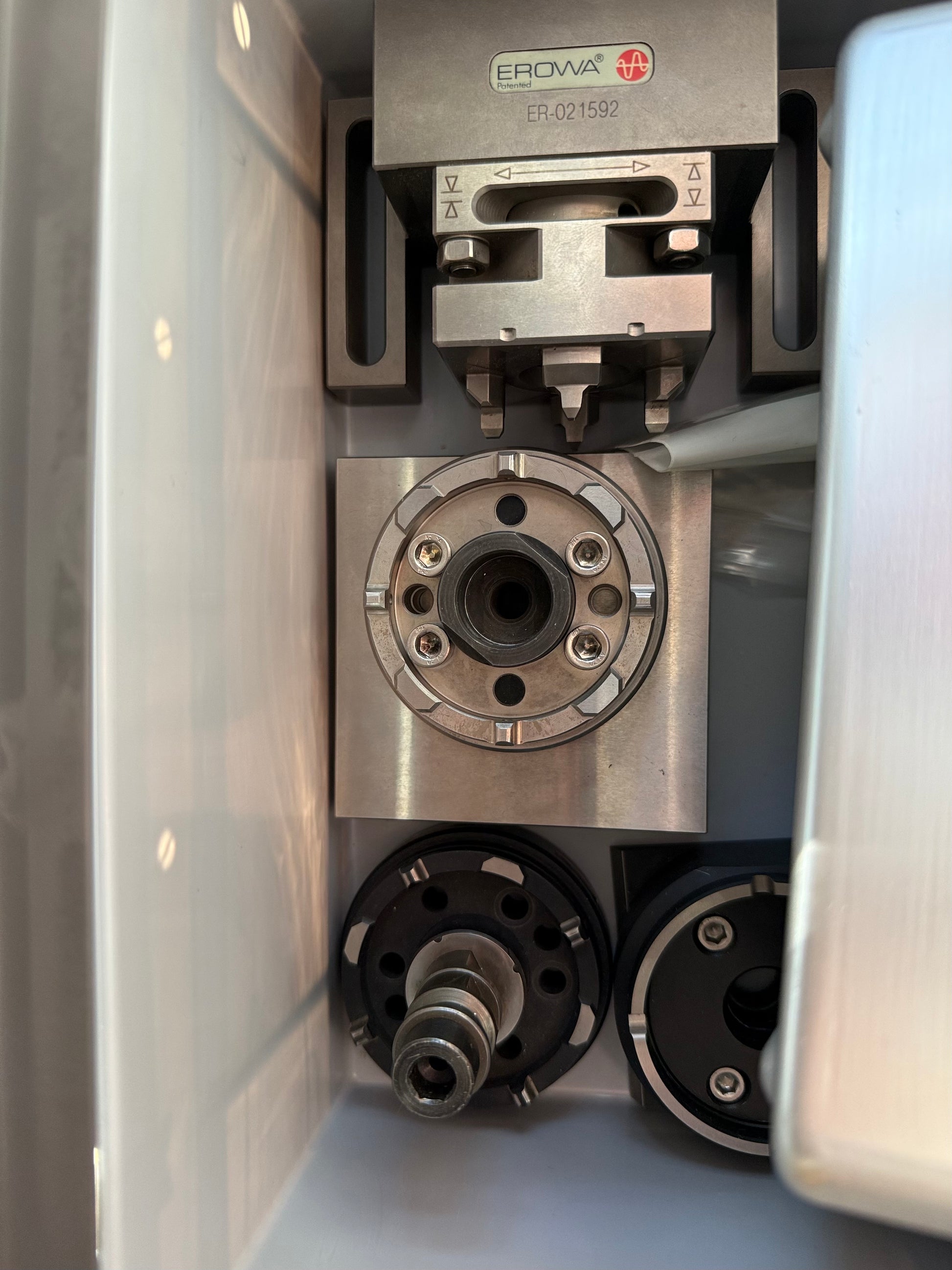

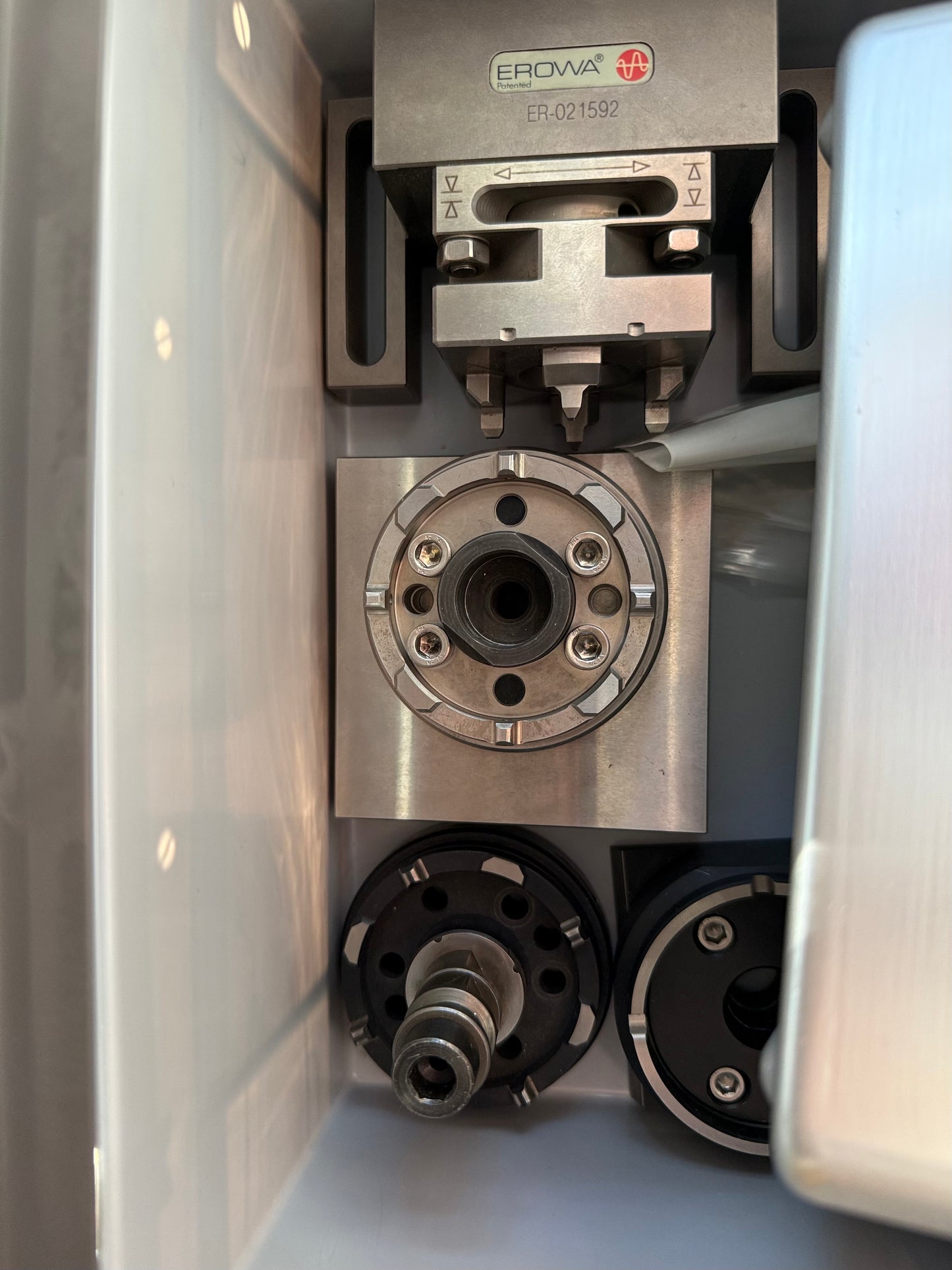

| Set of electrode holders | |
| Lamp | |

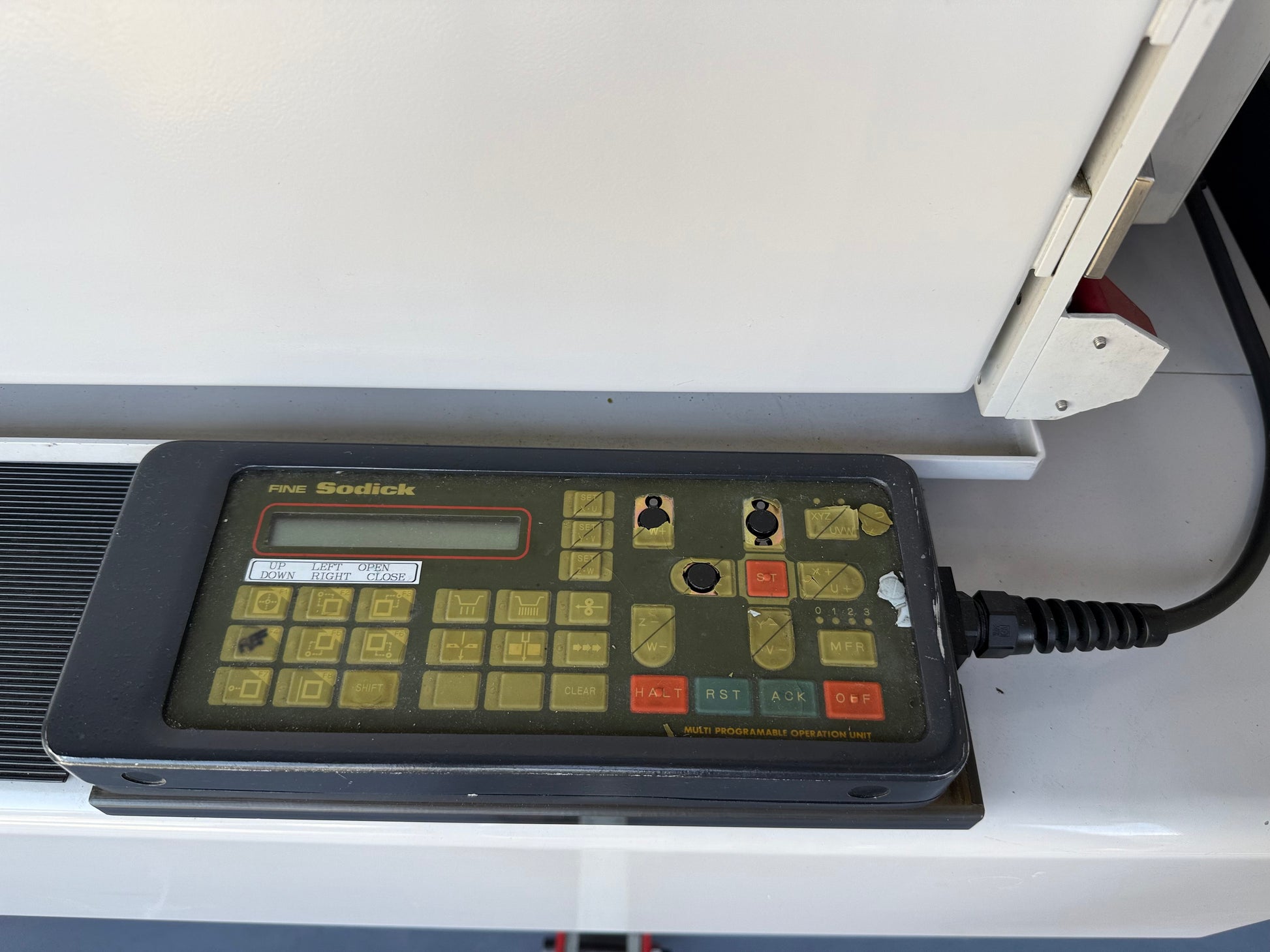

| Electronic hand held remote control |
