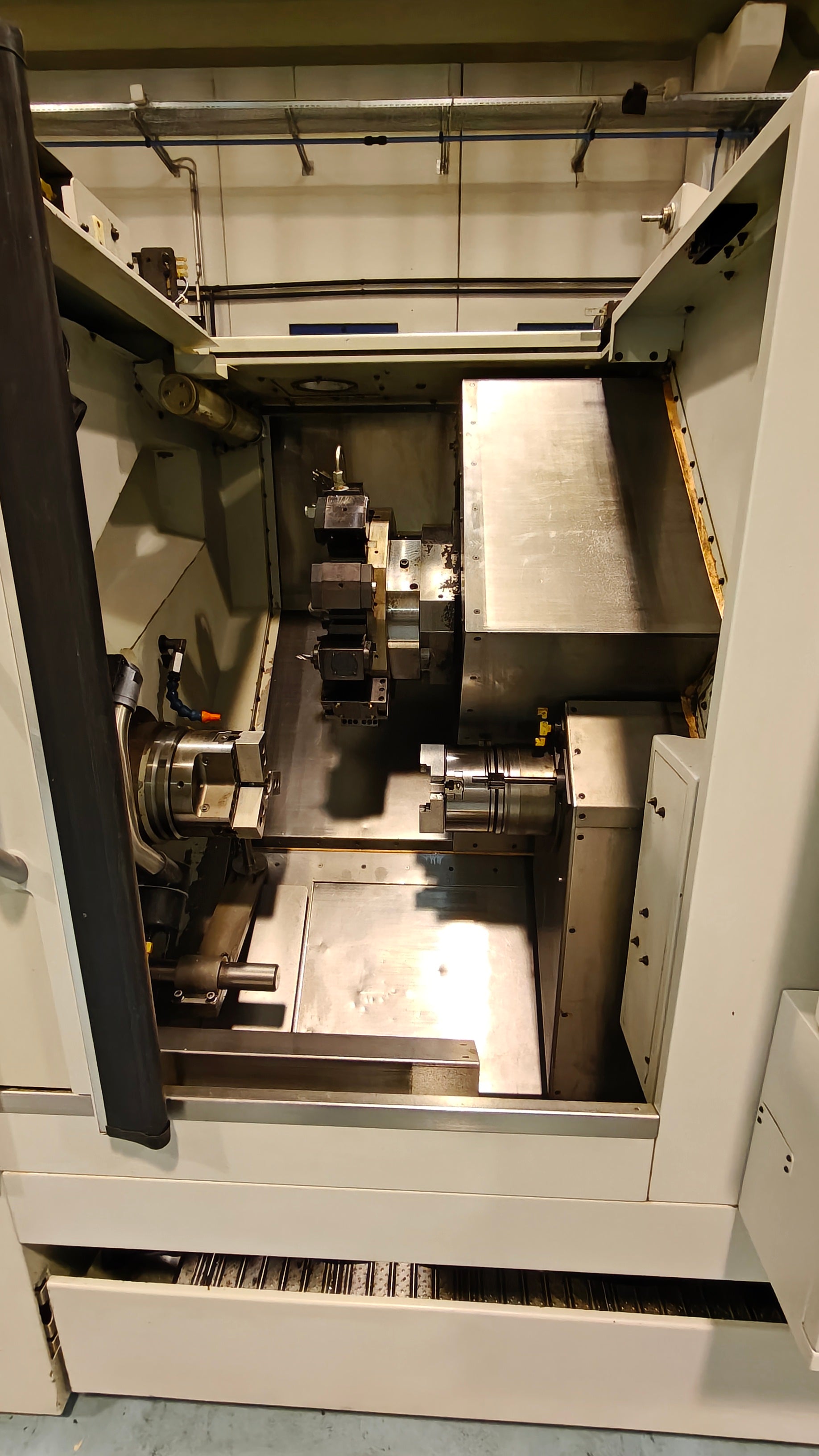

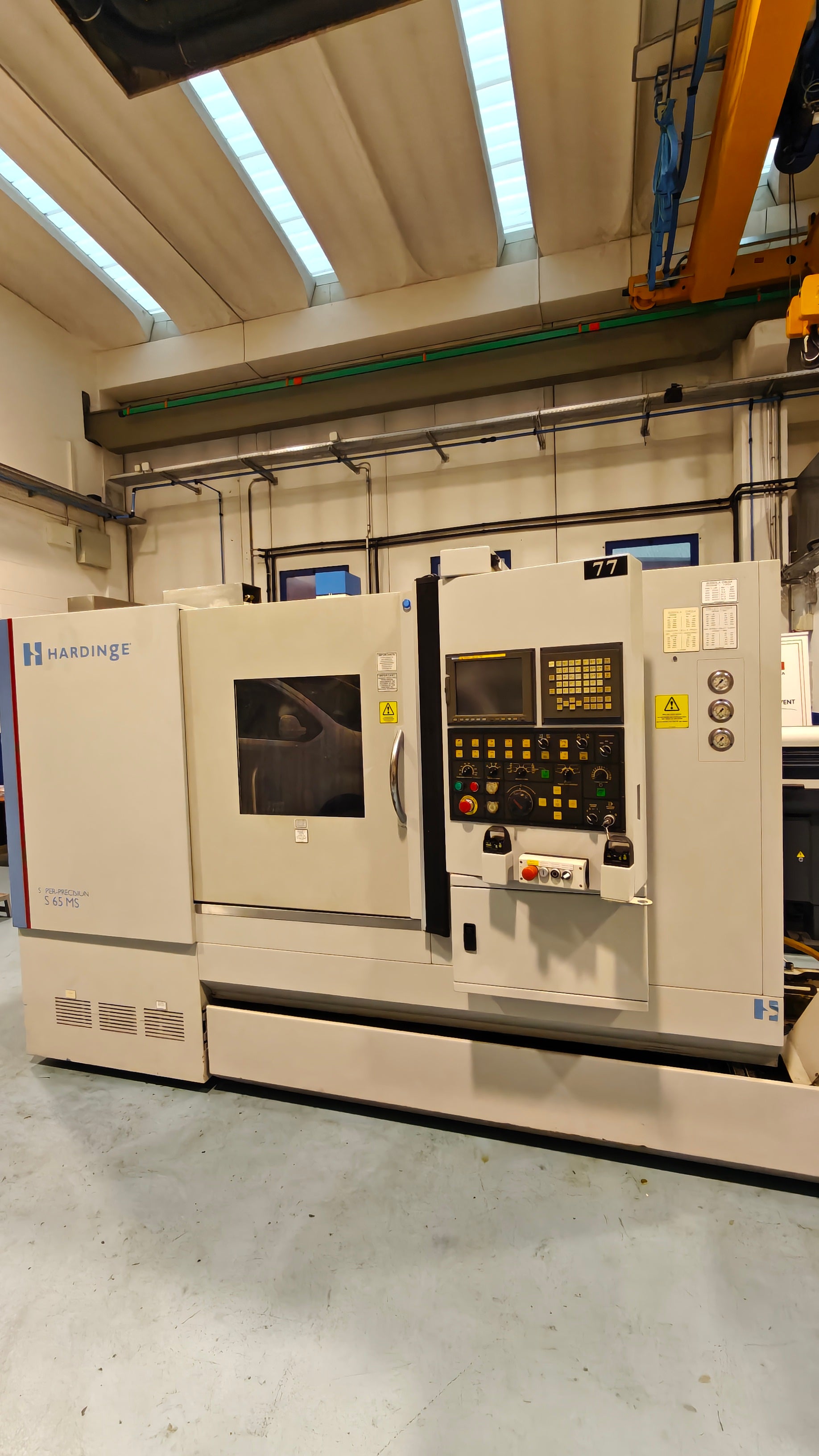

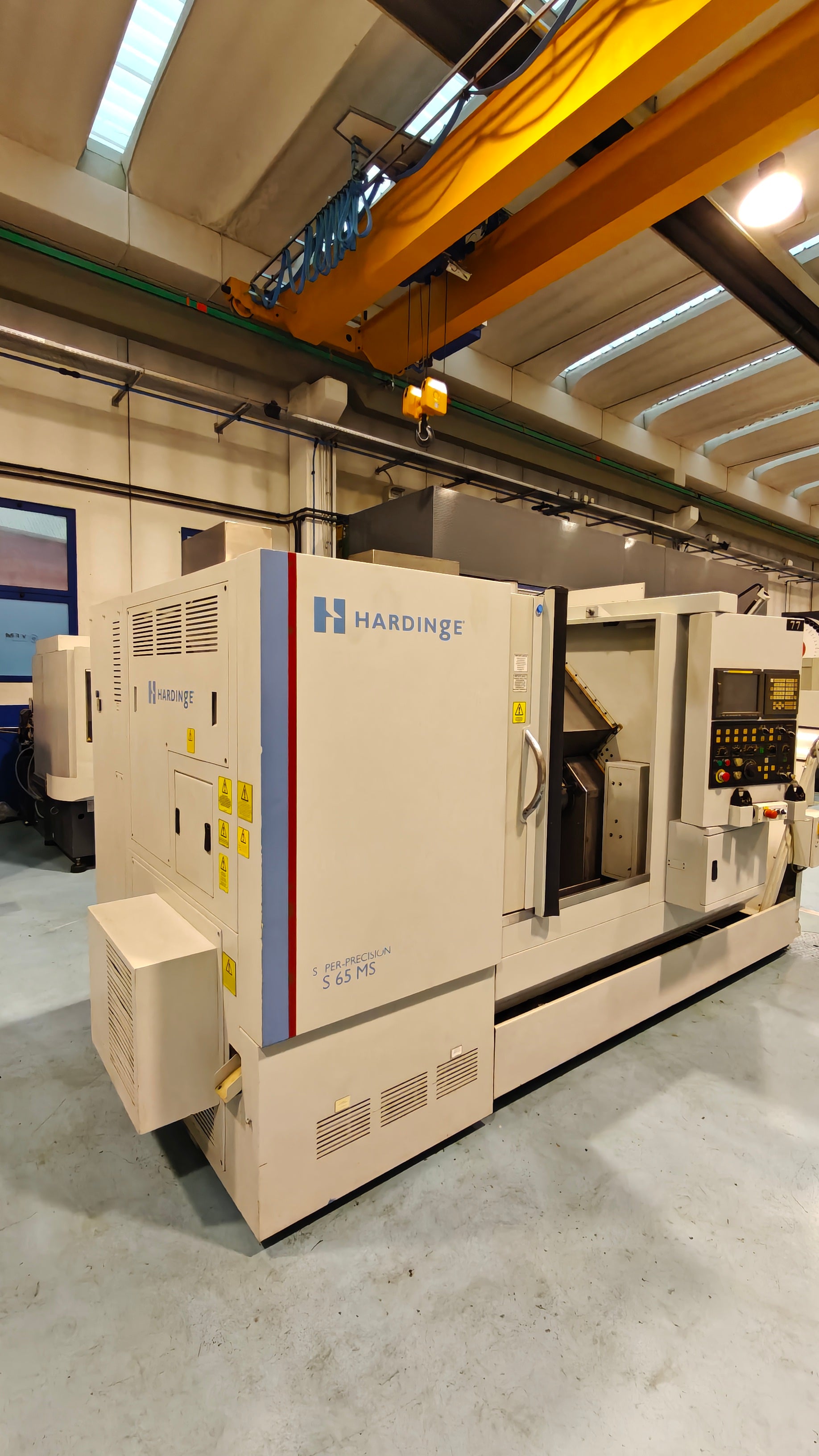

HARDINGE RS 65 SP MSY is a CNC turning lathe engineered for precision, high accuracy and reliability. Centre height 1’041 mm, bar passage 63 mm; travels Z 638 mm, X 189 mm, Y +50.8 / -34.0 mm. Spindle nose A2-6 up to 6000 t/min, spindle motor 22 kW, supply 50 Hz 3x230 V; machine weight approx. 7,200 kg; footprint L 2,286 mm x W 1,981 mm. Equipment includes 3-jaw chucks Ø200/Ø165 mm, set of collets 25C, part separator, chip conveyor, unloading device, driven tool holders radial 2 / axial 4, fixed 34, tool measuring device and probe. Achieves tight tolerances; ideal for automotive, watchmaking, machine-tool, aerospace and medical sectors.
Technical specifications are subject to change without notice
| Swing diameter over bed | 730 mm |
| Swing diameter over carriage | 230 mm |
| Max. turning diameter | mm |
| Maximum turning length | 400 mm |
| Max. turning diameter | 350 mm |
| Bar passage | 52 mm |
| Travels: | |
| Longitudinal travel (Z-axis) | 640 mm |
| Transversal strocke (X axis) | 190 mm |
| Transversal travel (y-axis) | 85 mm |
| Rapid traverse Z | 38 m/min |
| Rapid traverse X | 28 m/min |
| Turret slide: | |

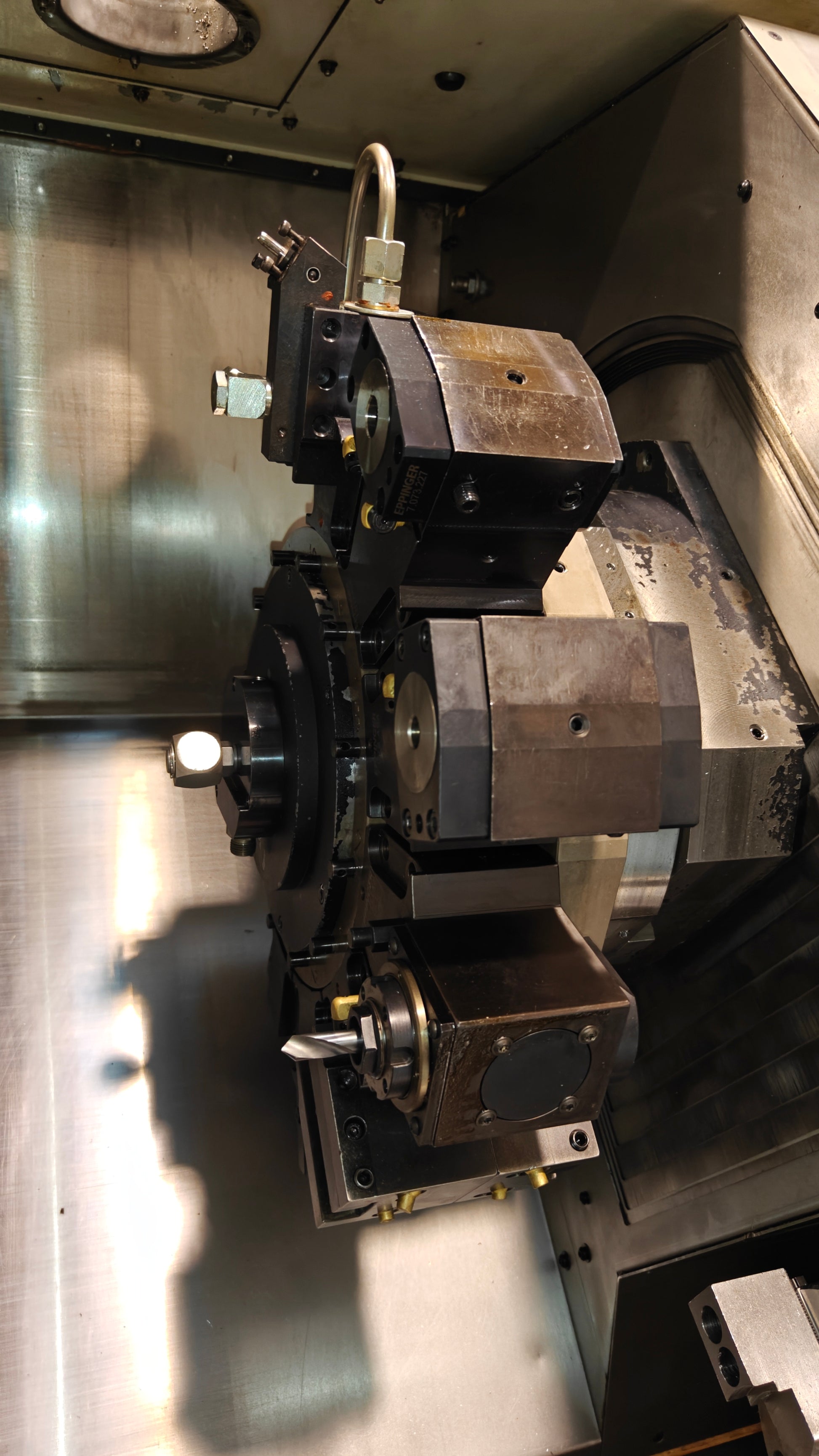

| Driven tools turret | 12 |
| Main spindle: | A2-6 |
| C axis | |
| Spindle speeds: | |
| stepless | |
| up to | 4500 t/min |
| Spindle power | 11 / 15 kW |
| Back spindle: | A2-5 |
| max. speed | 6000 t/min |
| Voltage 50 Hz 3x | 400 Volt |
| Machine's weight about | 7200 kg |
| Overall dimensions machine: | |
| Length | 3800 mm |
| Width | 2000 mm |
| Height | 1900 mm |
| Various accessories: | |

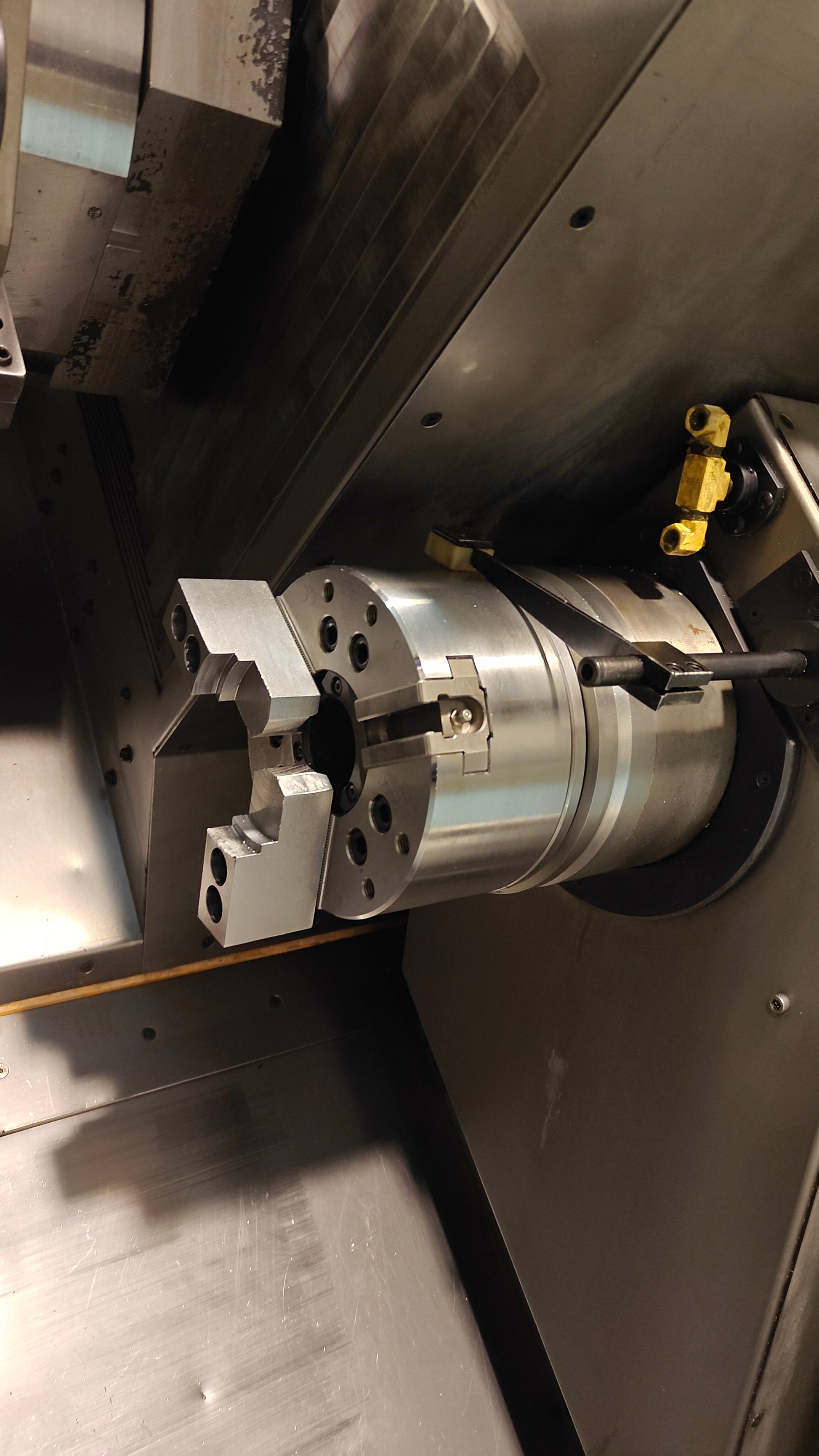

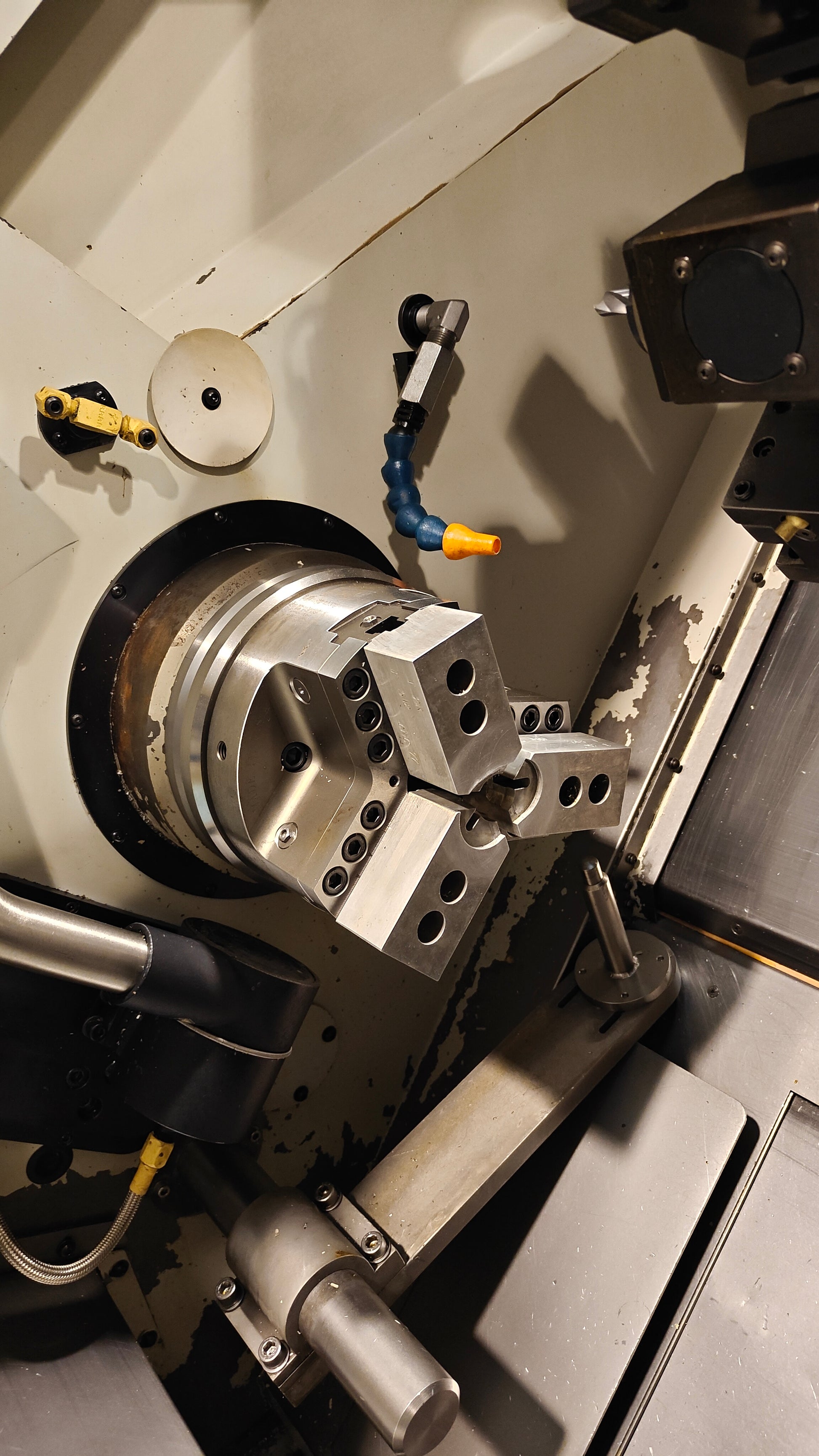

| 3-jaw chuck diameter | 210 mm |
| 3-jaw chuck diameter (back spindle) | 165 mm |

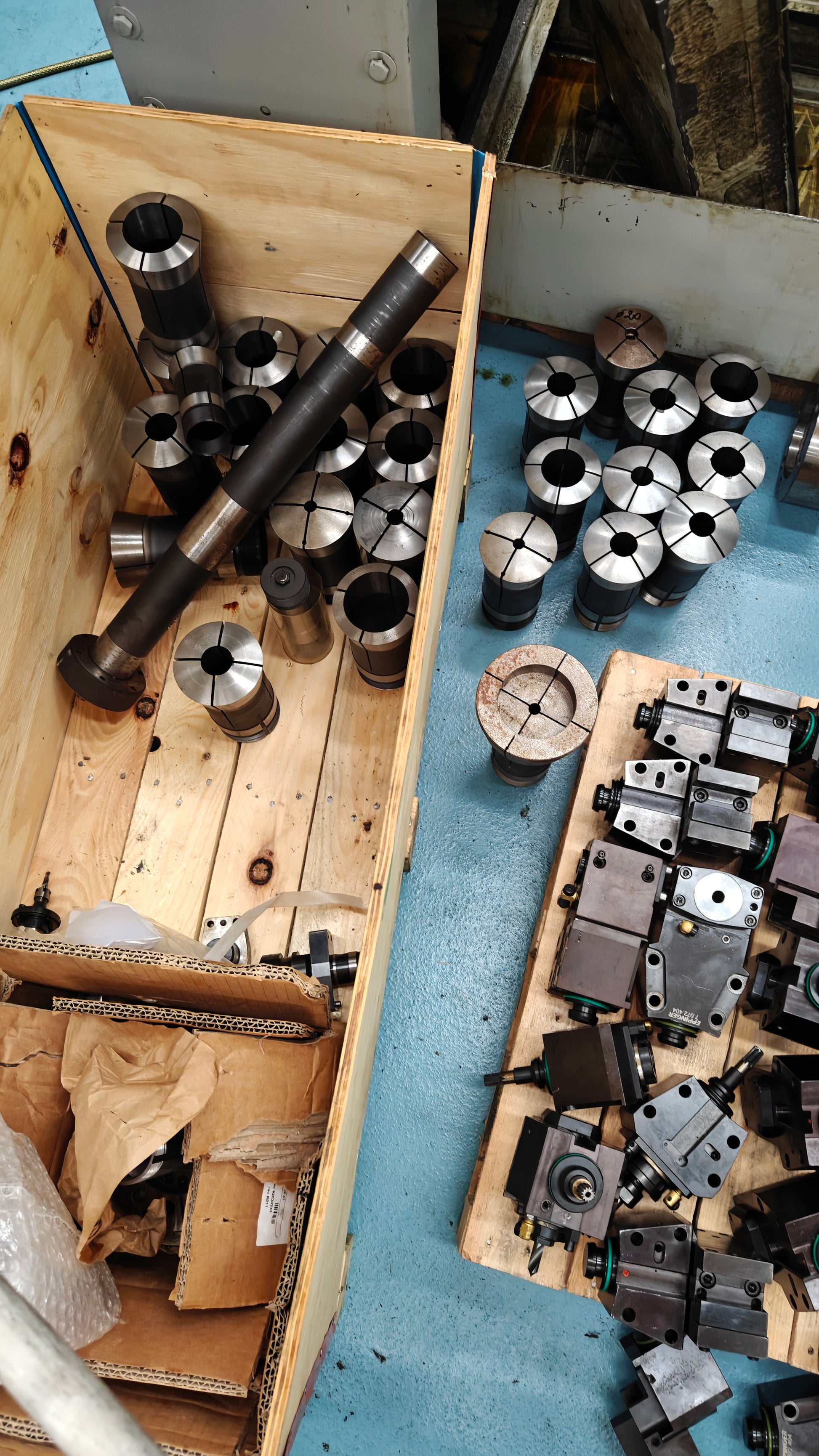

| Set of collets | 25C |
| Part separating device | |

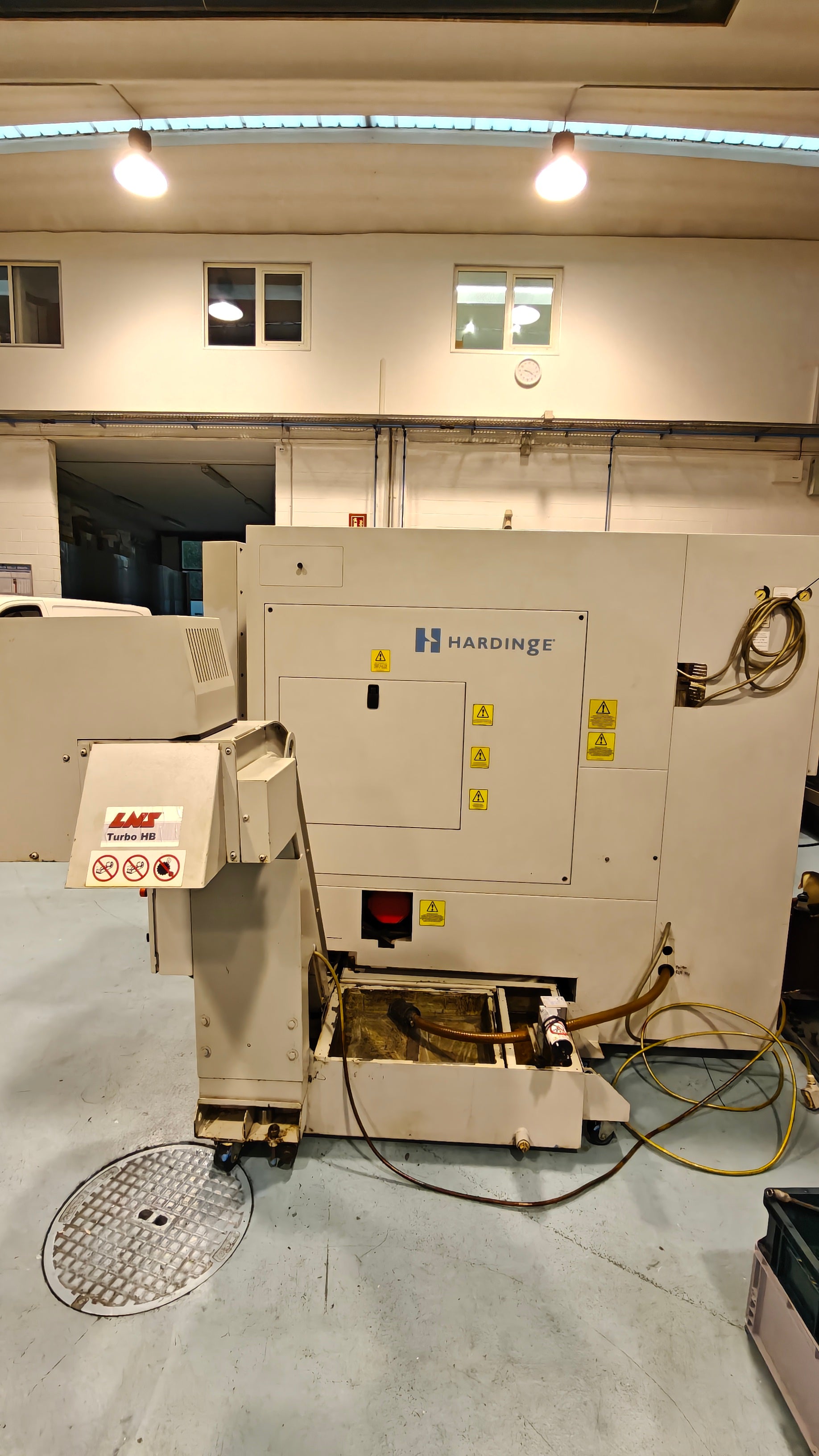

| Chip conveyor | |
| Unloading device | |

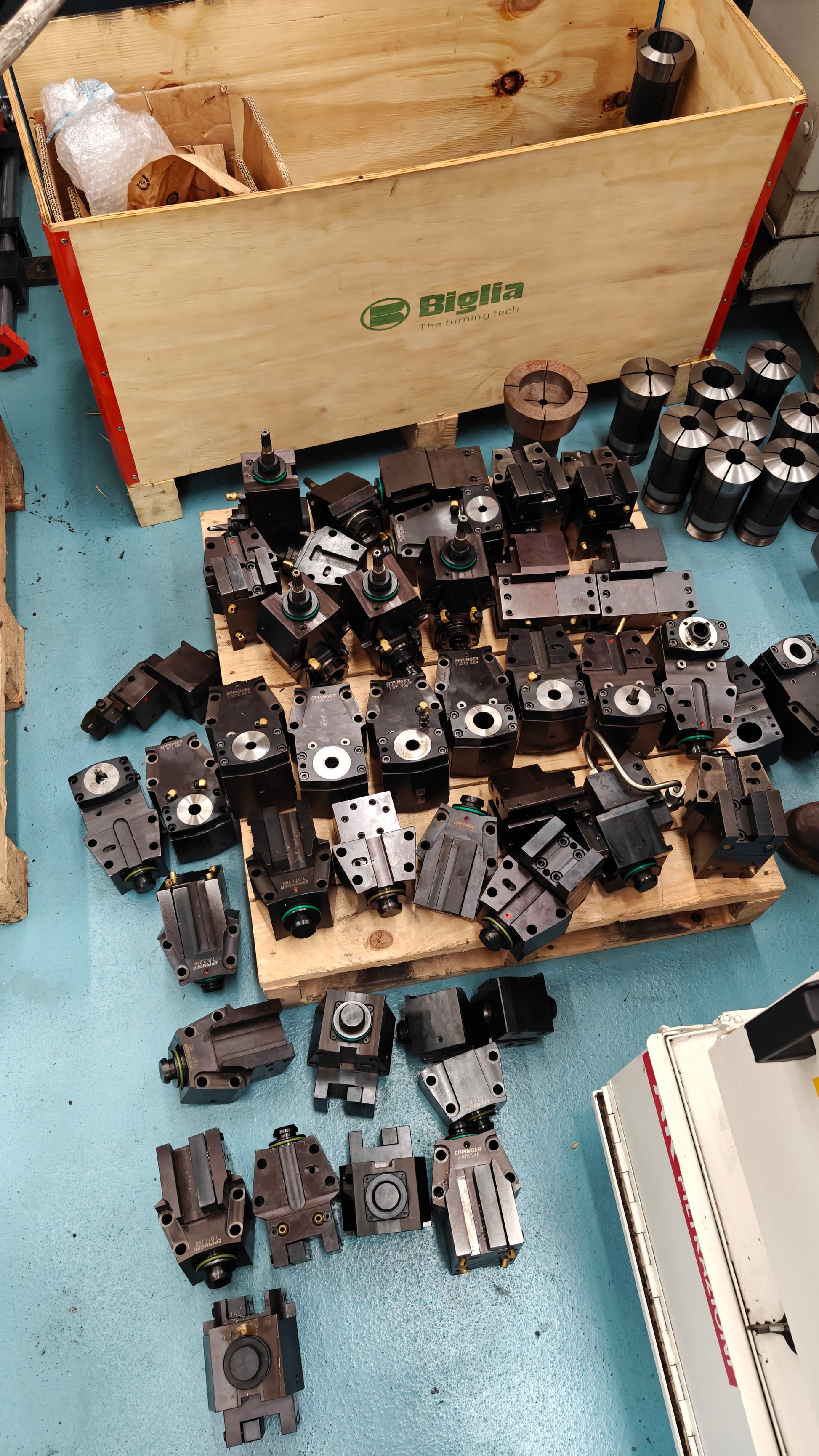

| Driven tool holder radial (nbr.) | 2 |
| Driven tool holder axial (nbr.) | 4 |
| Tool holder fix (nbr.) | 32 |
| Tool measuring device | |
| Measuring feeler gauge | |
| Automatic sliding door |
