TRIPET MHPE 500 is a surface grinder designed for precision, high accuracy and reliability. Working capacities: table 600 x 200 mm, grinding length 500 mm, grinding width 200 mm, grinding height 300 mm; X travel 530 mm, Y travel 220 mm. Main specs: grinding wheel Ø225 x 25 mm, speeds 1,000–2,700 rpm, automatic stepless cross-feed up to 9 m/min, table speeds up to 21 m/min, creep 0.5–8,000 mm/min; spindle motor 1.8 kW, 3x380 V 50 Hz, weight ≈800 kg, machine size 1000×700×1500 mm (electrical cabinet 800×600×1500 mm). Accessories: coolant system, magnetic plate, grinding wheel with flange. Achieves tight tolerances; typical applications: automotive, aerospace, medical, watchmaking, machine tool manufacturing.
Technical specifications are subject to change without notice
| Table length | 600 mm |
| Table width | 200 mm |
| Grinding length | 500 mm |
| Grinding width | 200 mm |
| Grinding height | 300 mm |
| Execution: | |
| hydraulic | |
| Longitudinal travel (X-axis) | 530 mm |
| Transversal travel (y axis) | 220 mm |
| Automatic cross-feed: | |
| stepless | |
| up to | 9 m/min |
| Table speeds: | |
| stepless | |
| up to | 21 m/min |
| Creep feed: | |
| from | 0.5 mm/min |
| up to | 8000 mm/min |
| Automatic vertical feed: | |
| Diameter of grinding wheel | 225 mm |
| Width of the grinding wheel | 25 mm |
| Grinding wheel speeds: | |
| from | 1000 t/min |
| up to | 2700 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Grinding spindle motor | 1.8 kW |
| Machine's weight about | 800 kg |
| Overall dimensions machine: | |
| Length | 1000 mm |
| Width | 700 mm |
| Height | 1500 mm |
| Dimensions electric cabinet: | |
| Length | 800 mm |
| Width | 600 mm |
| Height | 1500 mm |

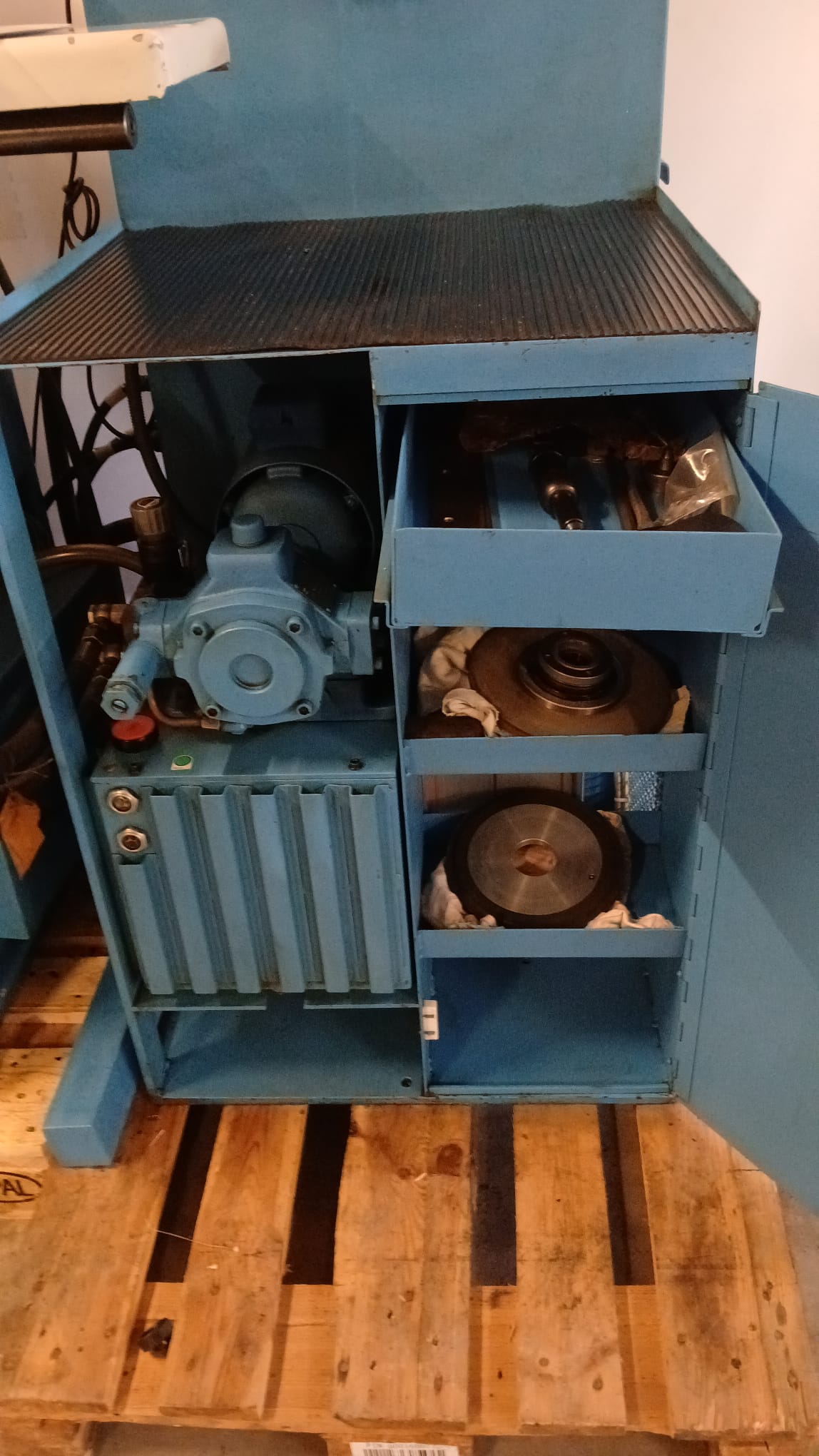

| Various accessories: | |
| Coolant system | |
| Magnetic plate: | |
| Length | mm |
| Width | mm |
| Grinding wheel with flange |
