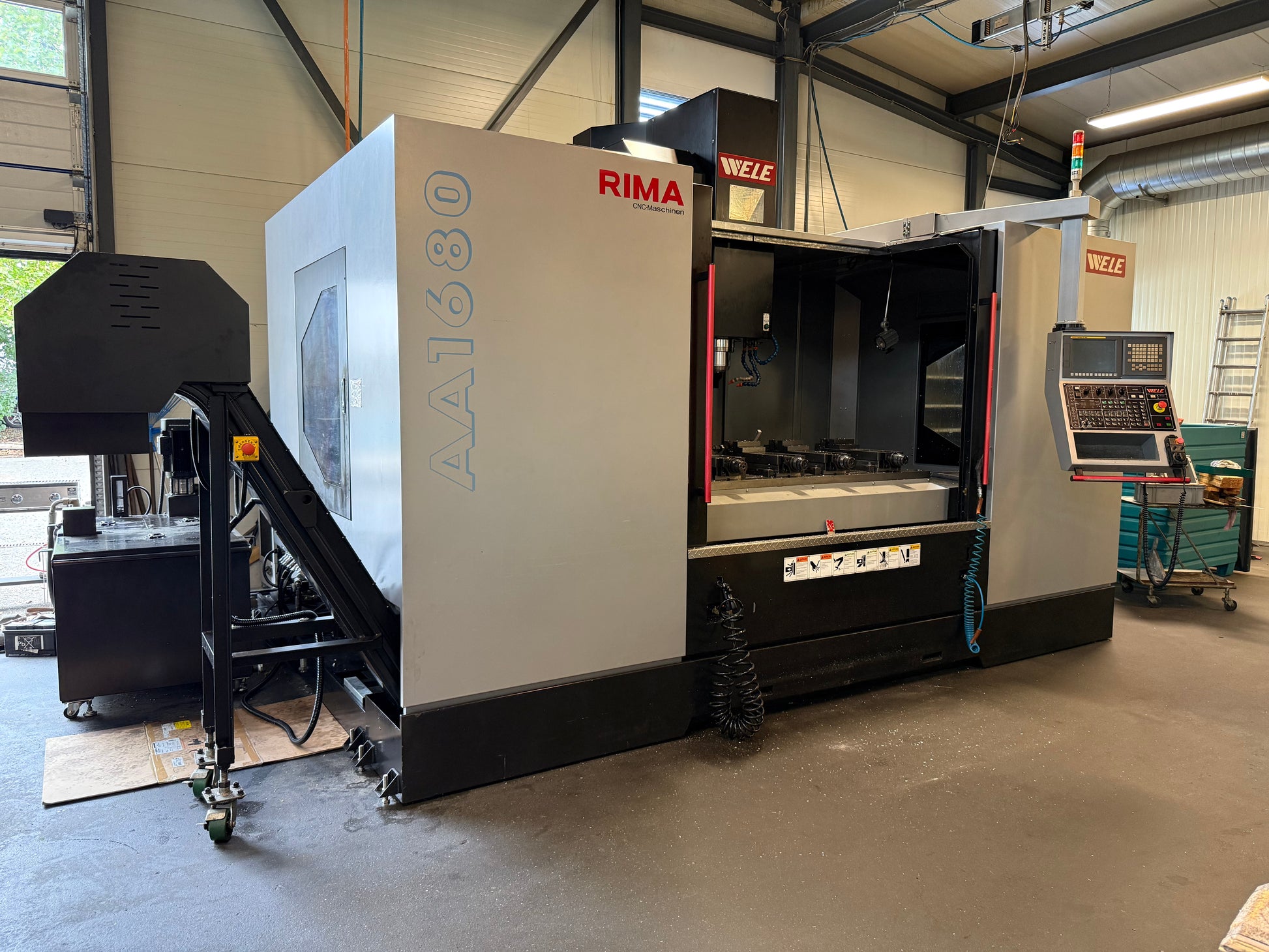

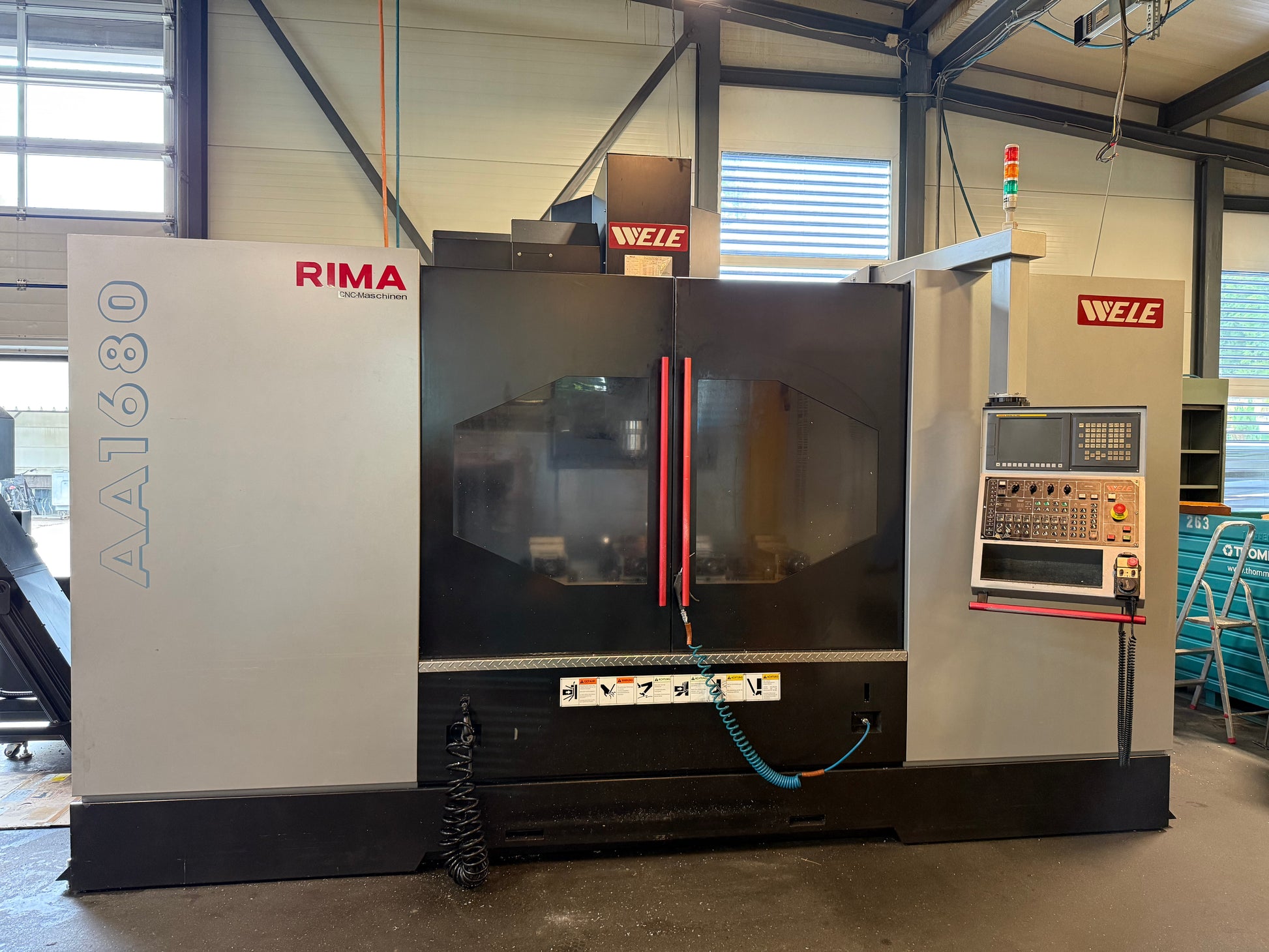

023306 - WELE AA 1680
Type: AA 1680
Manufacturer: WELE
Group: Machining center
Subgroup: Vertical machining center

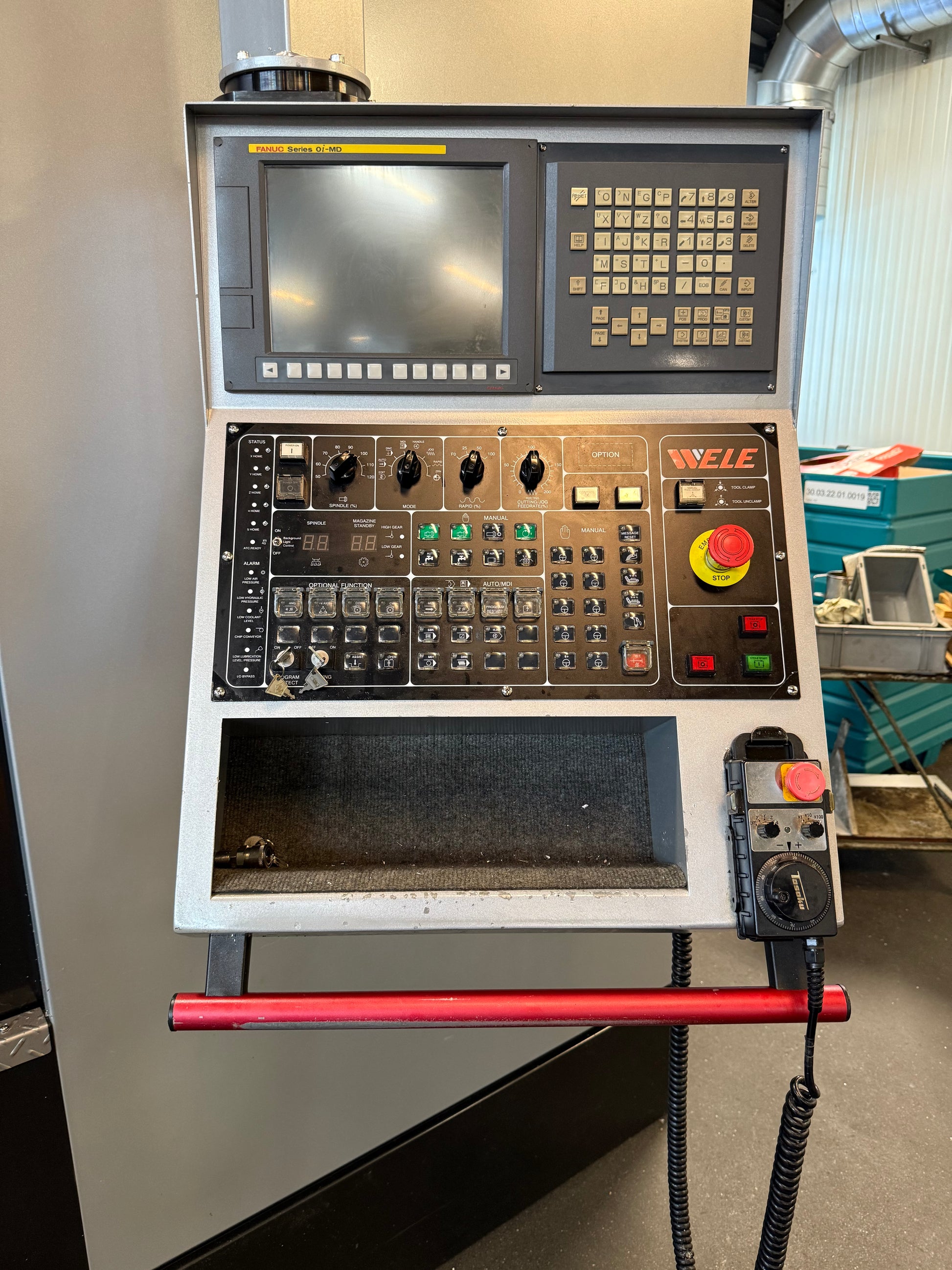

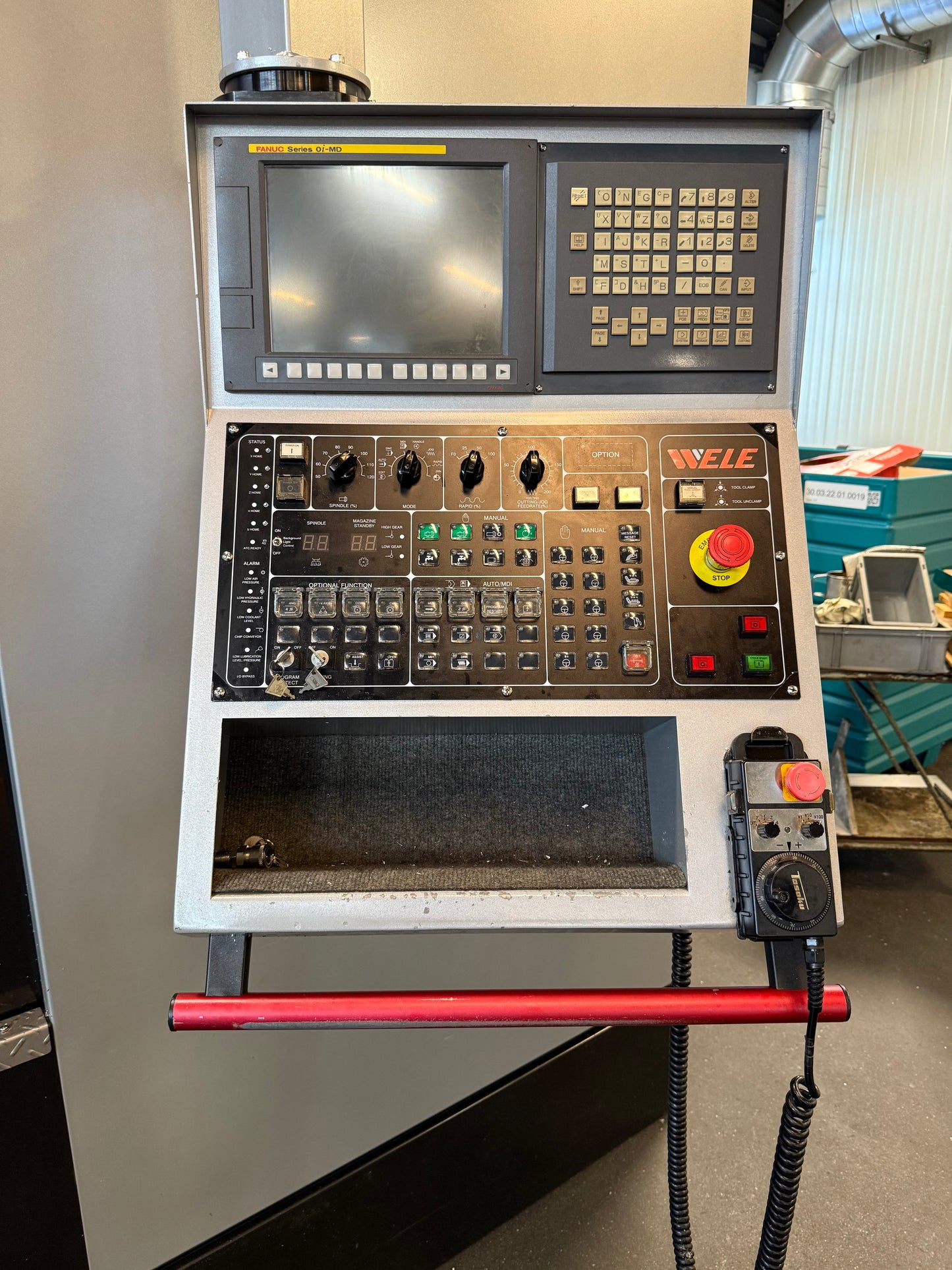

Control: FANUC Oi-MD
Year: 2014
Stock: 023306

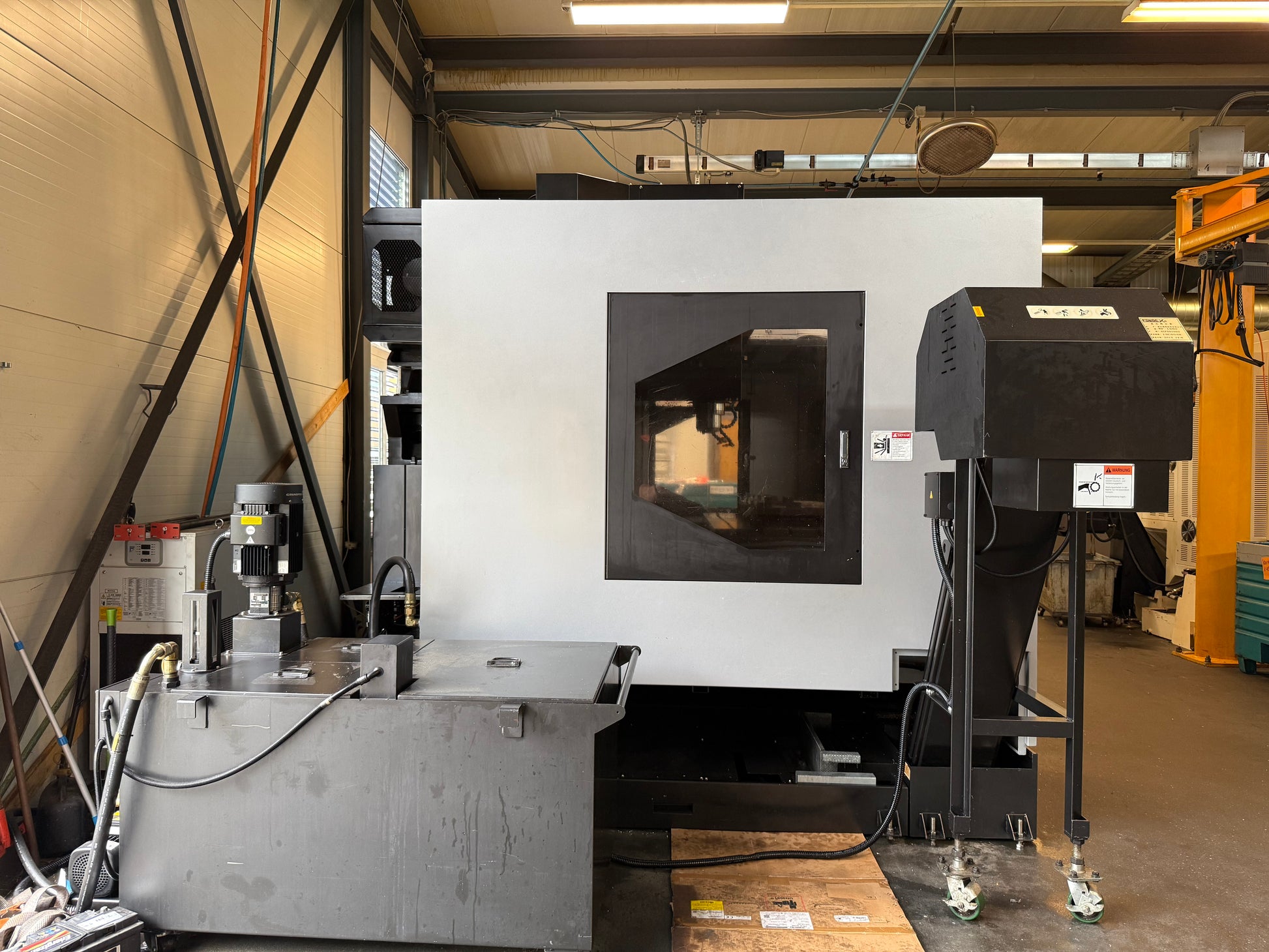

WELE AA 1680 is a Vertical machining center, engineered for precision, high accuracy and reliability. Working capacities: 3 axes, table 1750 x 800 mm, table load max 2000 kg; travels X1600 mm, Y800 mm, Z800 mm; tool magazine 48 places. Main specs: spindle nose BT40, stepless spindle up to 12,000 t/min; voltage 50 Hz 3x400 V; total power 35 kVA; machine weight approx. 16,000 kg; dimensions L5500 x W4400 x H3400 mm. Accessories: 4 vices, set of toolholders, coolant system with coolant-through-spindle, chip conveyor, electronic hand-held remote with handwheel, lamp. Delivers tight tolerances; typical applications: automotive, aerospace, medical, toolmaking and watchmaking.
Number of axis total | 3 |
Table length | 1750 mm |
Table width | 800 mm |
Table load max. | 2000 kg |
Longitudinal travel (X-axis) | 1600 mm |
Transversal travel (y-axis) | 800 mm |
Vertical travel (z axis) | 800 mm |
Tool changer: | |
with double gripper | |
Tool magazine number of tool places | 48 |
Spindle nose: BT | 40 |
Spindle speeds: | |
stepless | |
up to | 12000 t/min |
Voltage 50 Hz 3x | 400 Volt |
Total power required | 35 kVA |
Machine's weight about | 16000 kg |
Overall dimensions machine: | |
Length | 5500 mm |
Width | 4400 mm |
Height | 3400 mm |
Various accessories: | |

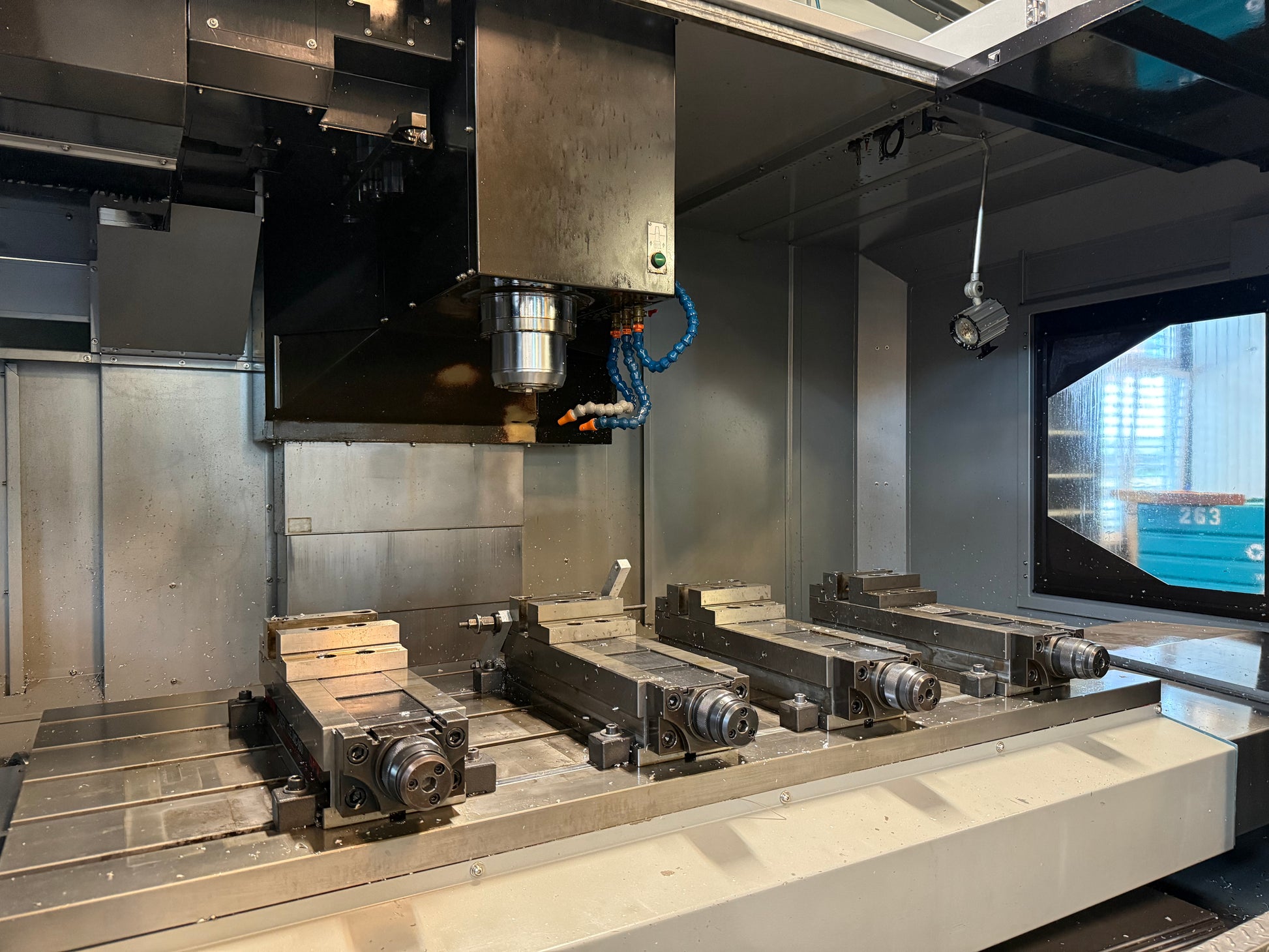

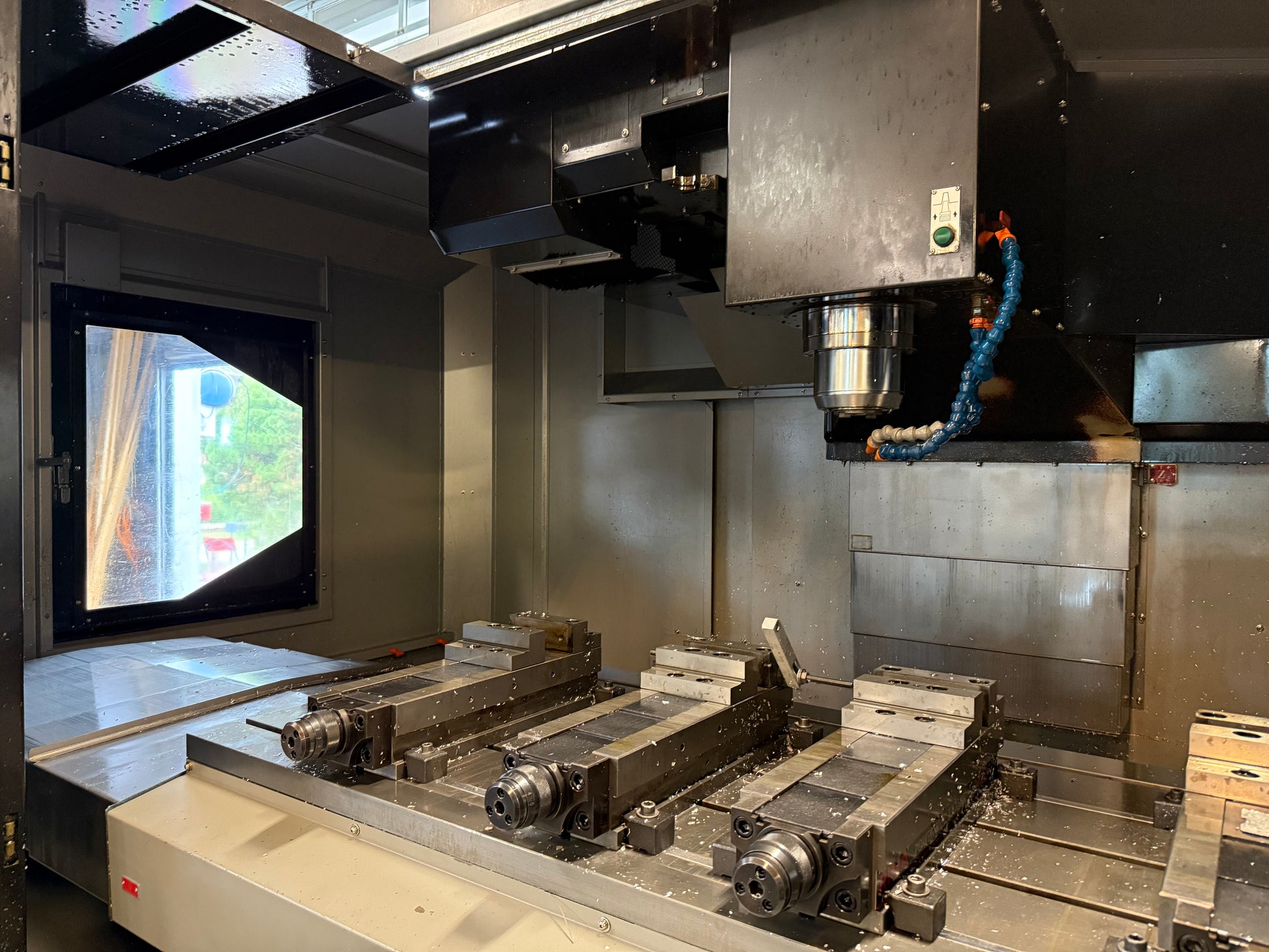

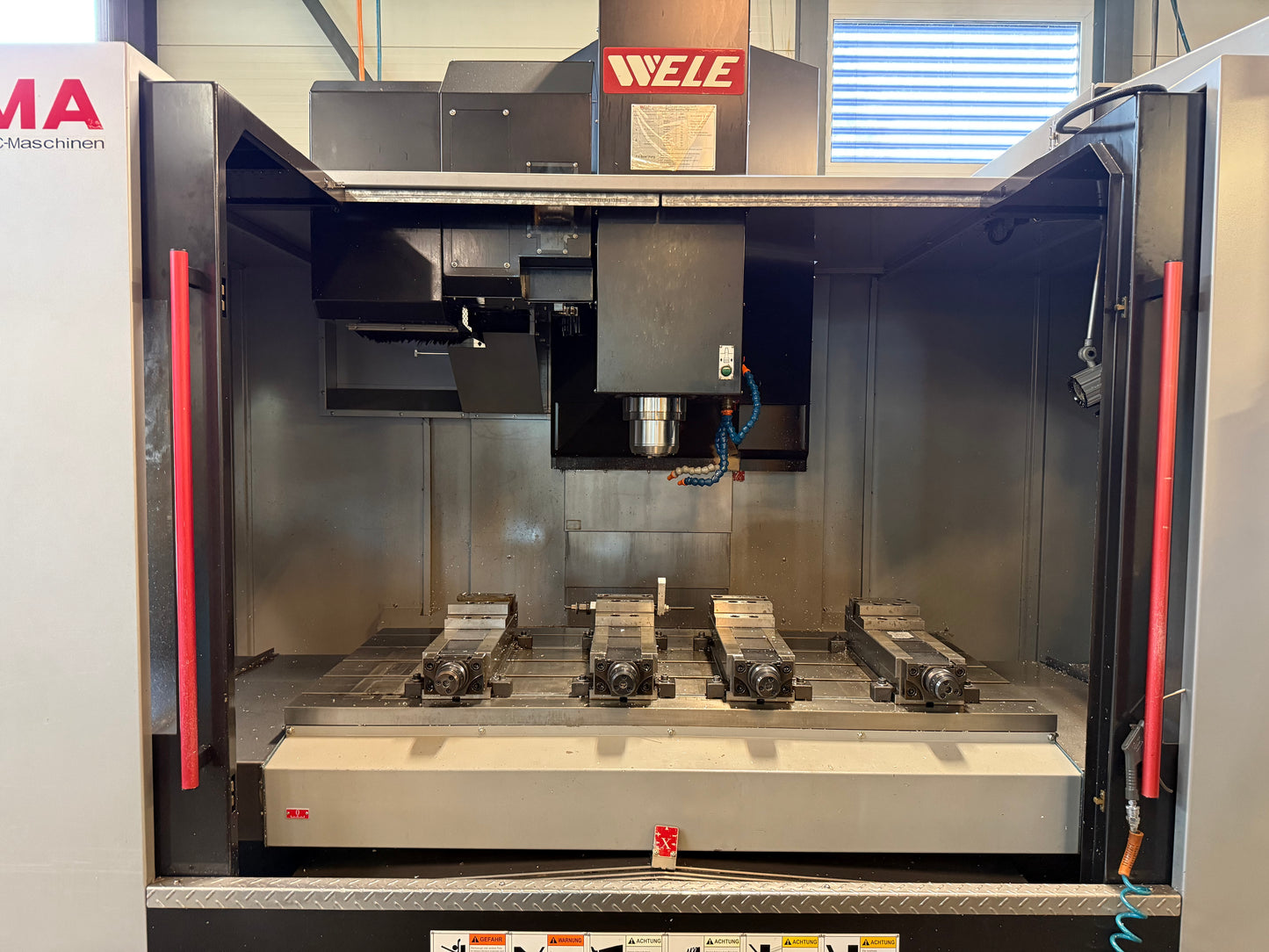

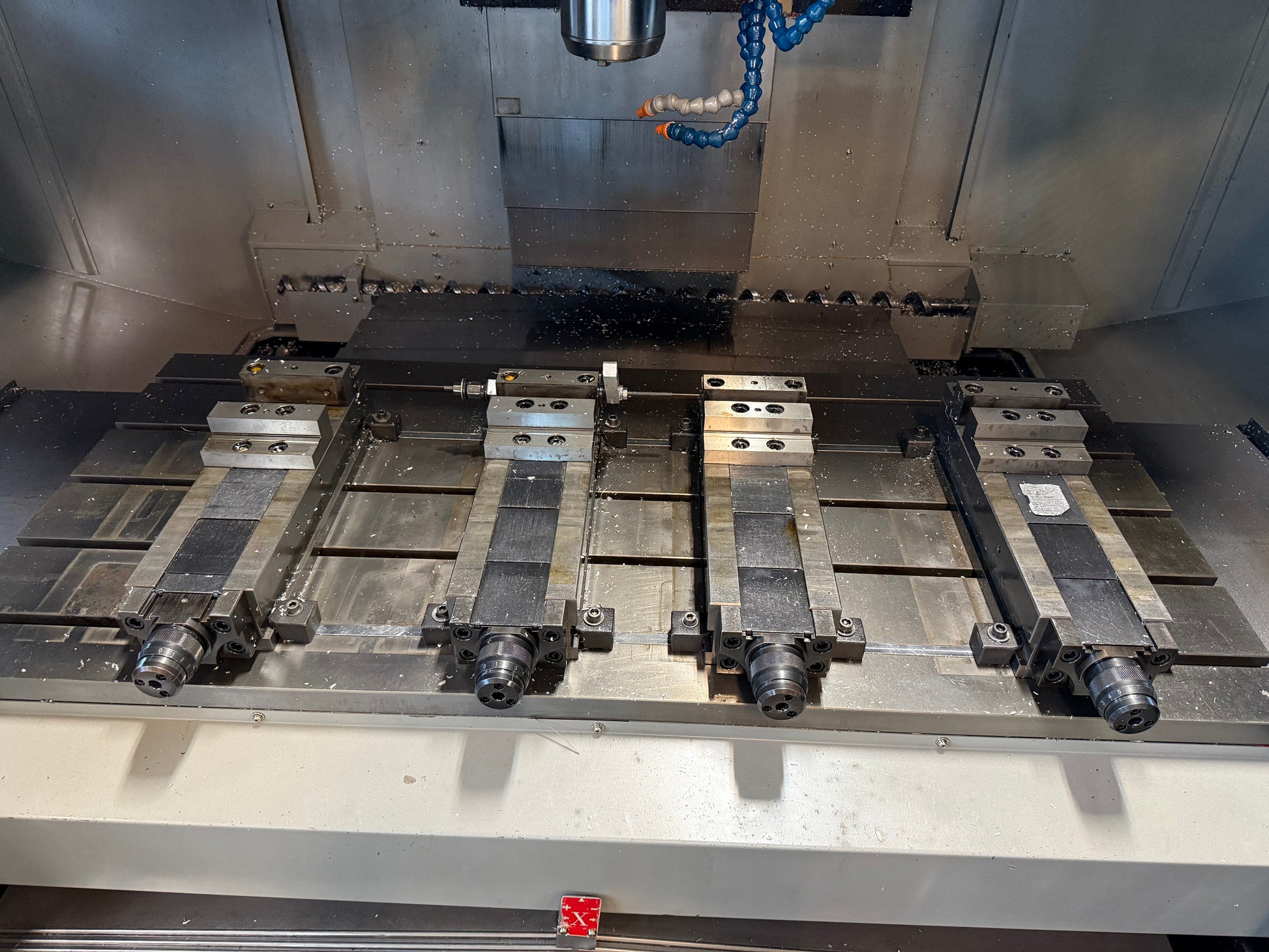

Vice | 4x |
Set of toolholders | |
Coolant system | |
Coolant through spindle (cts) | |
Chip conveyor | |
Electronic hand held remote control | |
Lamp |
