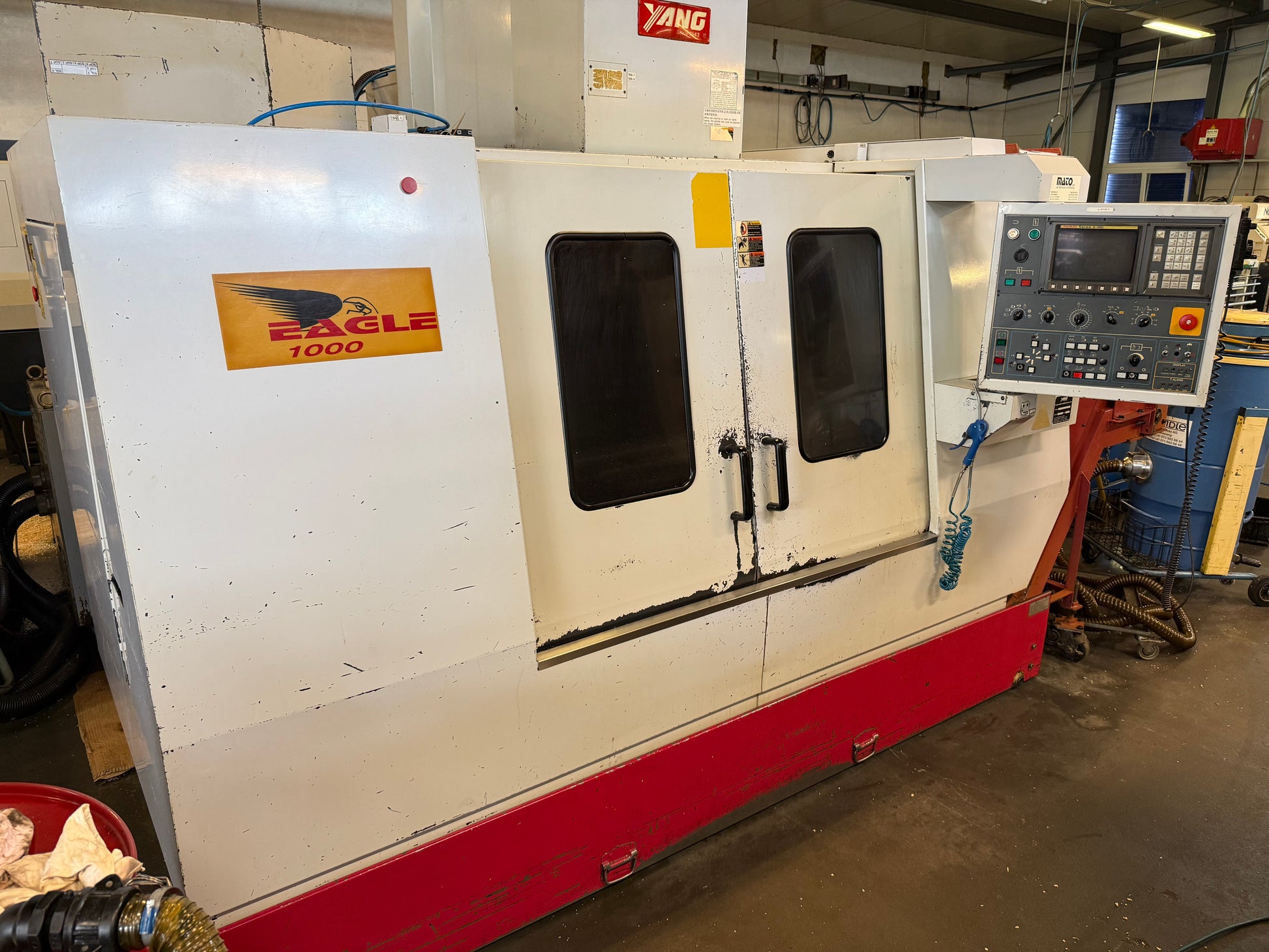

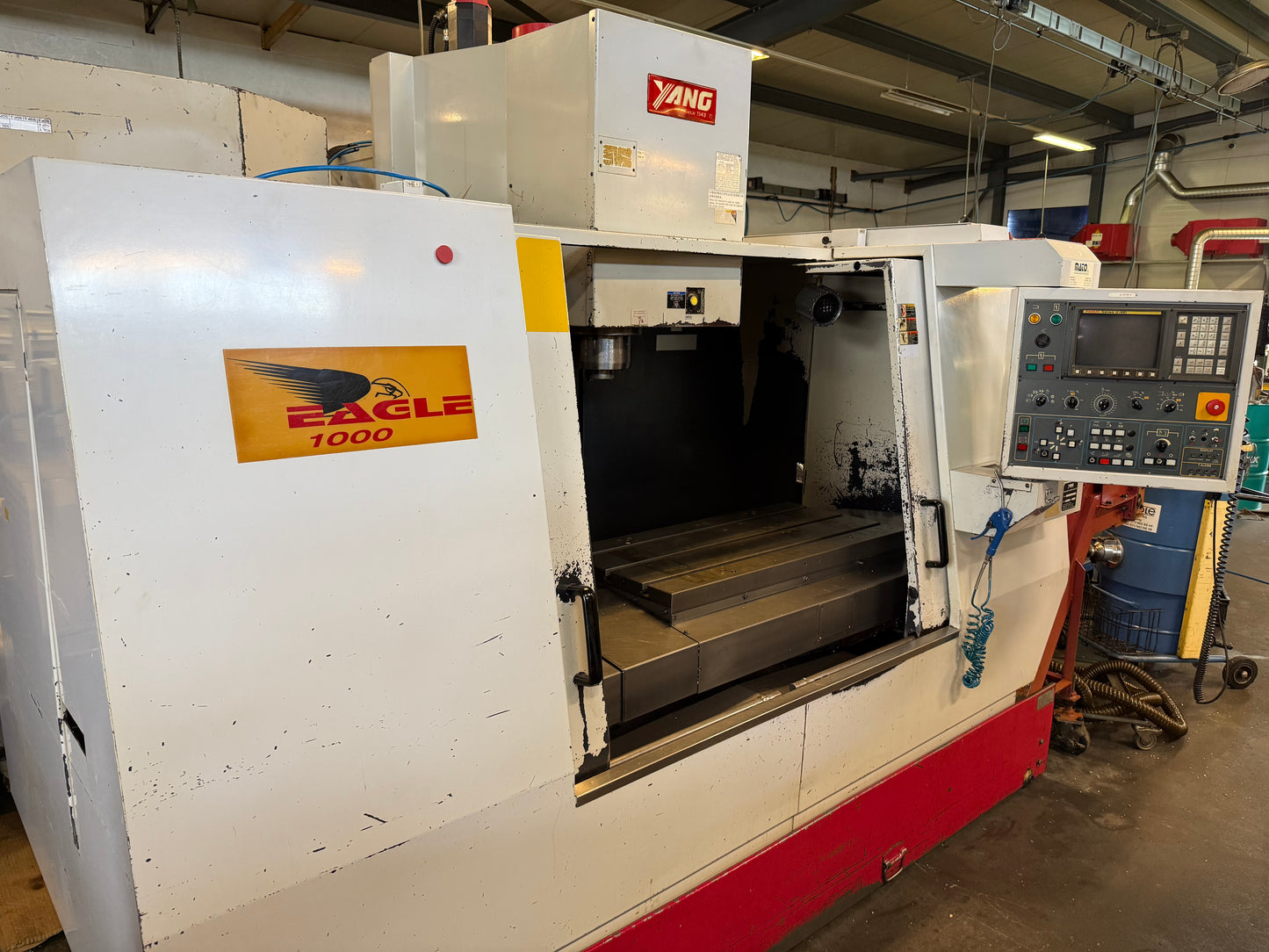

023303 - YANG EAGLE 1000 (SMV-1000)
Type: EAGLE 1000 (SMV-1000)
Manufacturer: YANG
Group: Machining center
Subgroup: Vertical machining center

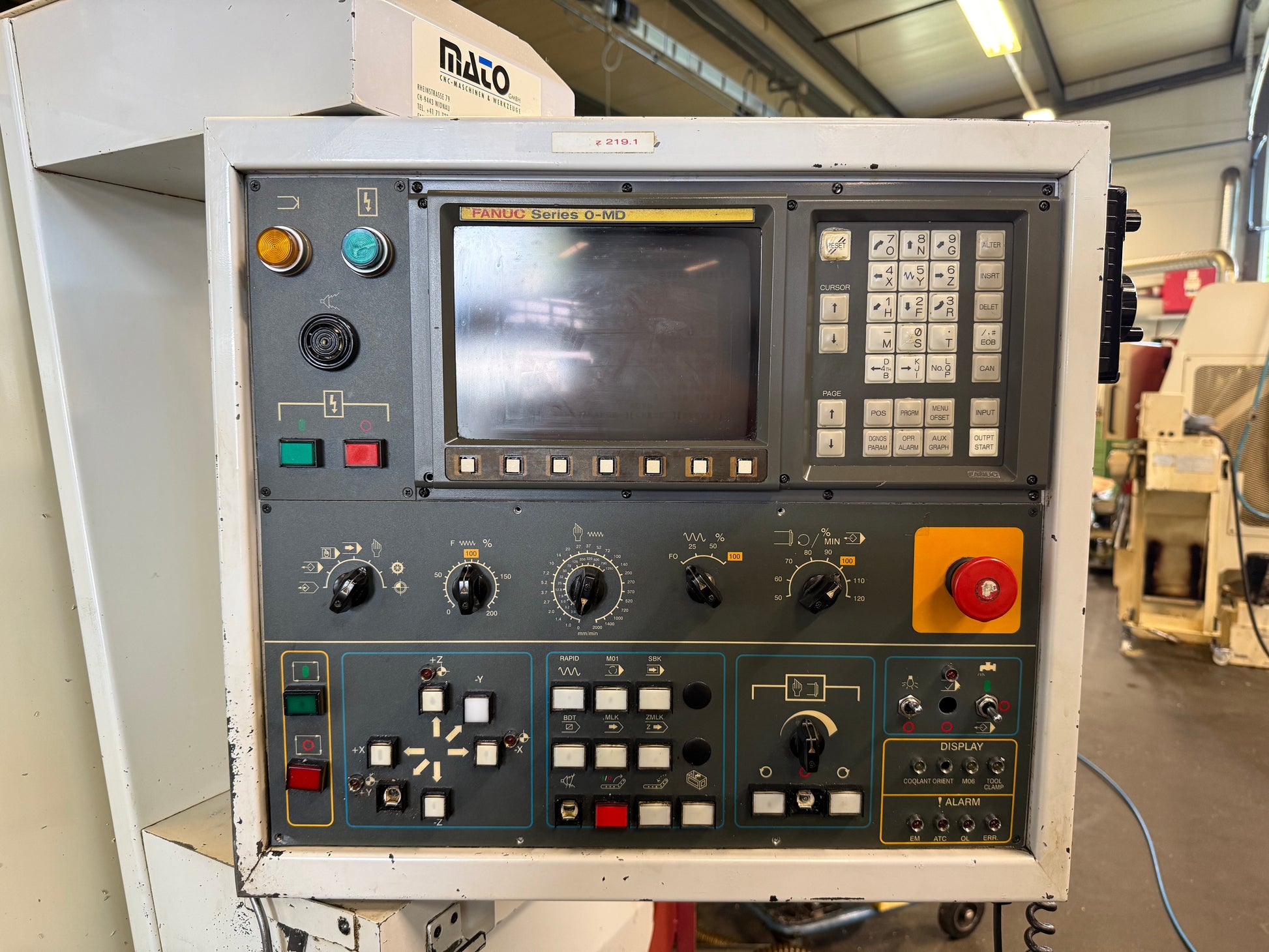

Control: FANUC Series O-MD
Stock: 023303
YANG EAGLE 1000 (SMV-1000) is a vertical machining center for precision, high accuracy and reliability. 3 axes; table 1070×500 mm; travels X1020 Y510 Z510; table load 350 kg; magazine 20 places; ISO40; spindle 60–6000 t/min, 7.5 kW; 3x400 V; weight 4200 kg; dims 2900×2230×2690 mm. Accessories: toolholders, coolant system, chip conveyor. Enables tight tolerances; sectors: automotive, watchmaking, machine tools, aerospace, medical.
Number of axis total | 3 |

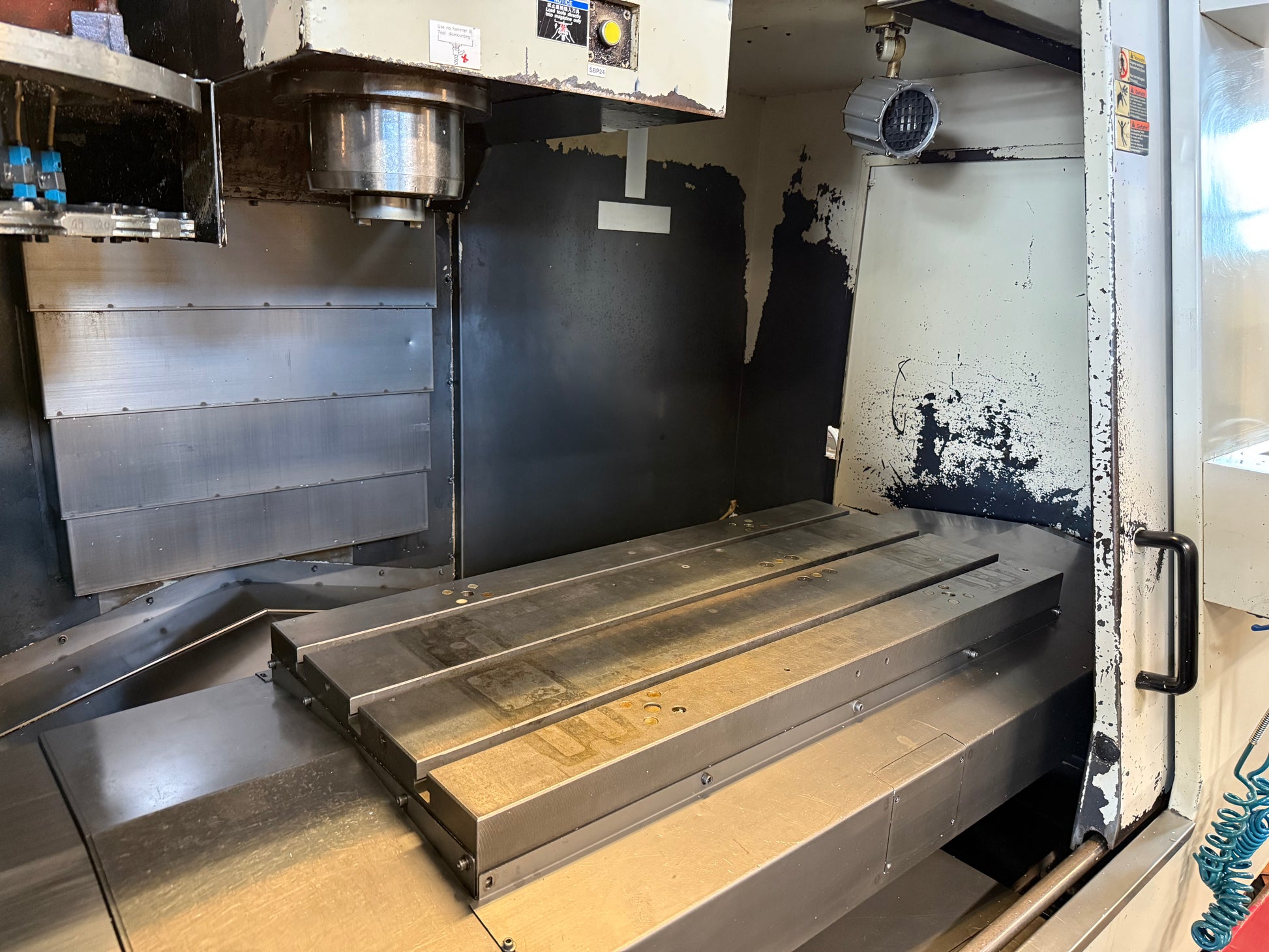

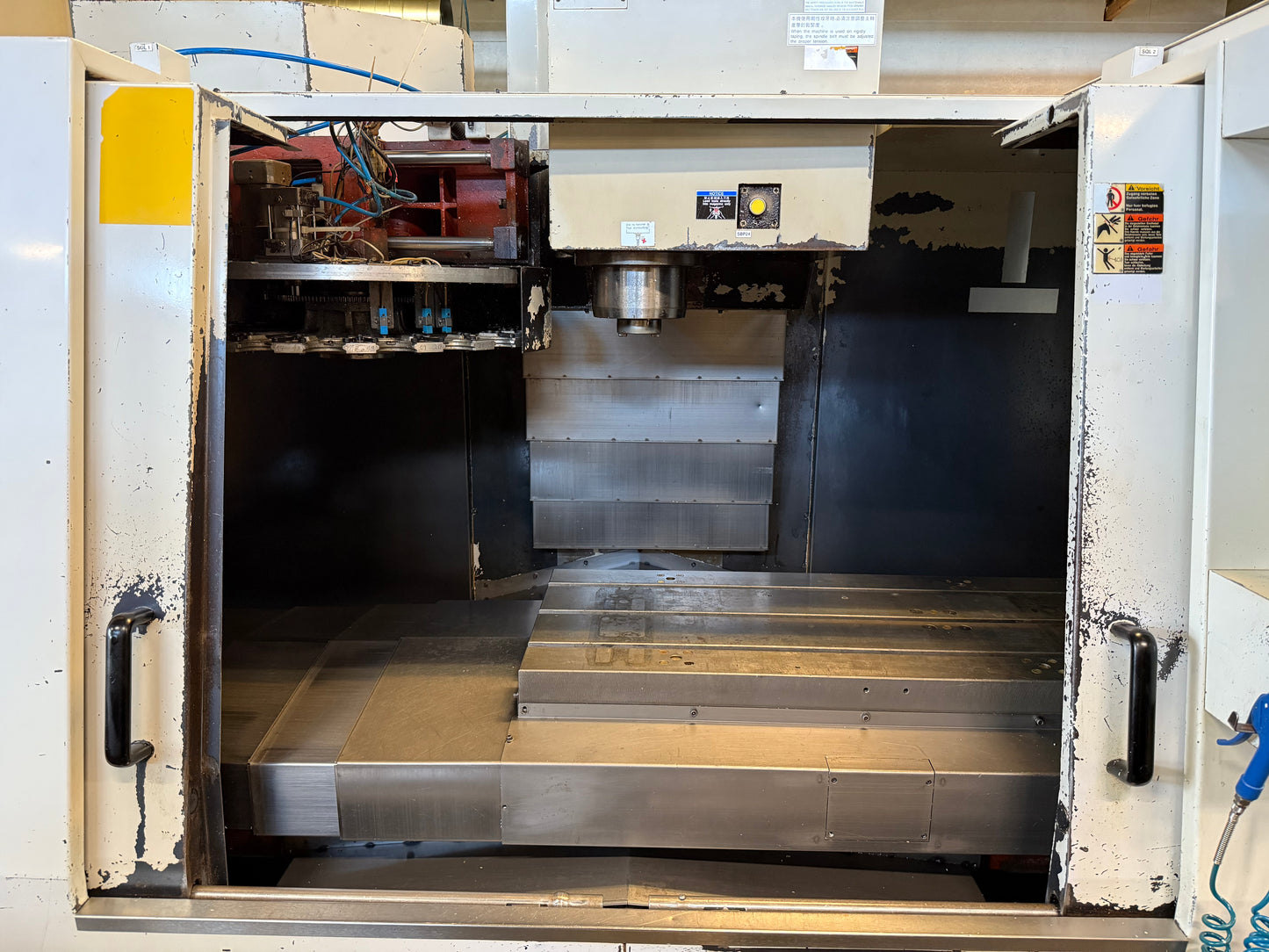

Table length | 1070 mm |
Table width | 500 mm |
Longitudinal travel (X-axis) | 1020 mm |
Transversal travel (y-axis) | 510 mm |
Vertical travel (z axis) | 510 mm |
Table load max. | 350 kg |

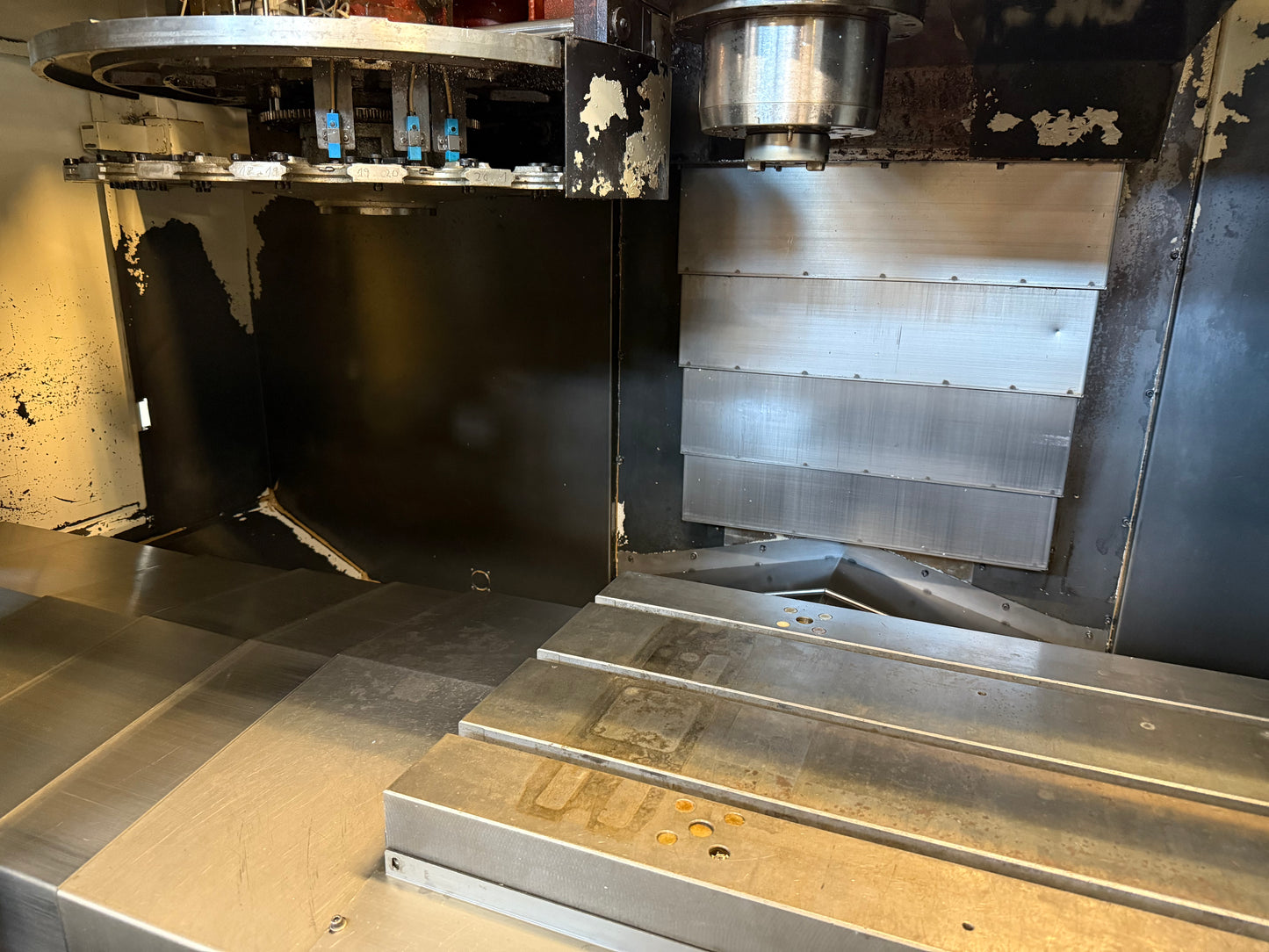

Tool magazine number of tool places | 20 |
Milling head: | |
Spindle nose: ISO | 40 |
Distance spindle nose to table | 100 - 610 mm |
Spindle speeds: | |
stepless | |
from | 60 t/min |
up to | 6000 t/min |
Voltage 50 Hz 3x | 400 Volt |
Spindle power | 7.5 kW |
Machine's weight about | 4200 kg |
Overall dimensions machine: | |
Length | 2900 mm |
Width | 2230 mm |
Height | 2690 mm |
Various accessories: | |
Set of toolholders | |
Coolant system | |

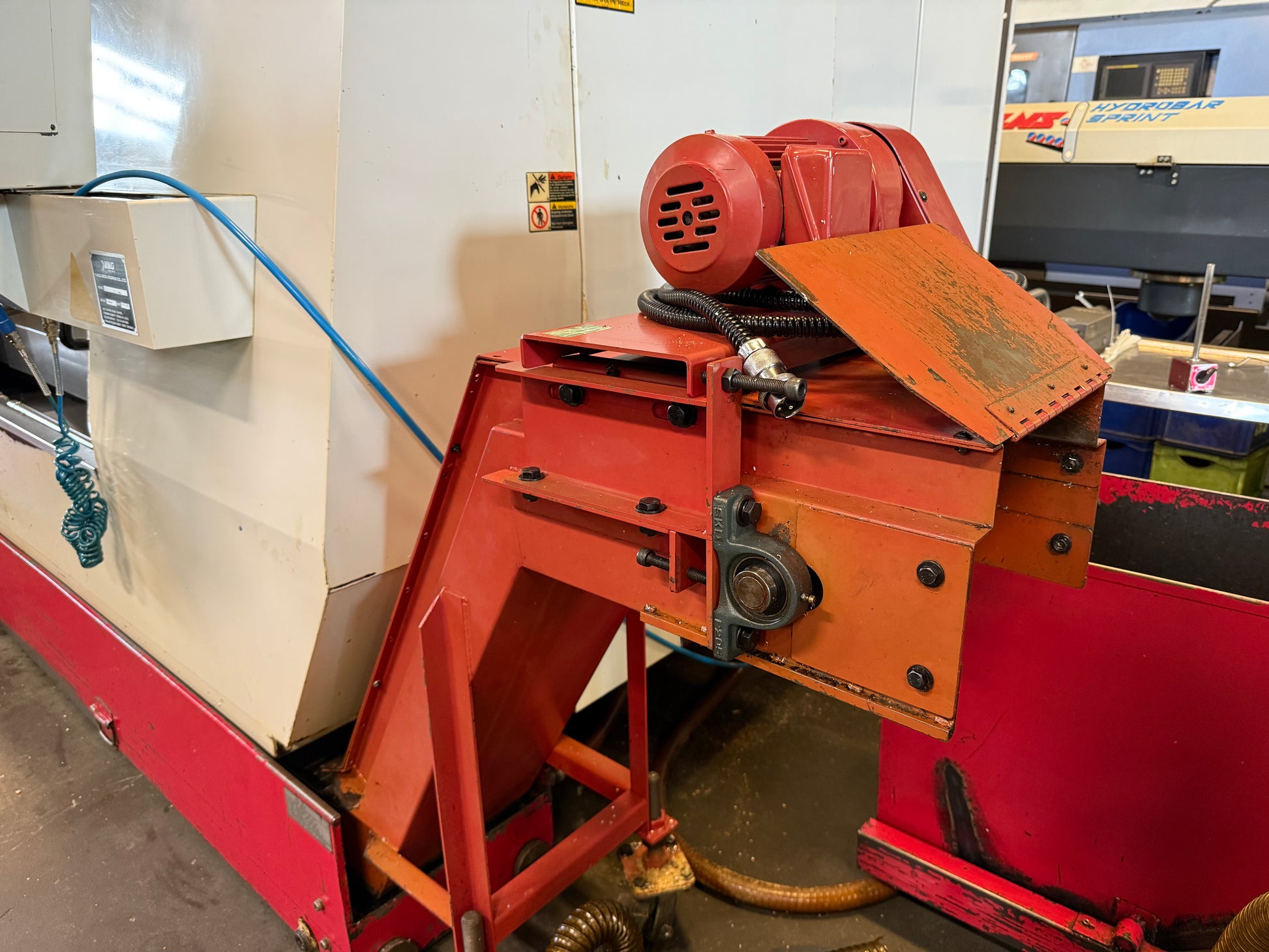

Chip conveyor |
