| Centre height | 175 mm |
| Distance between centres | 1000 mm |
| Workpiece weight on centres max. | 120 kg |
| Grinding wheel: | |
| Diameter | 500 mm |
| Width | 63 mm |
| Bore | 203 mm |
| max. width | 80 mm |
| Rotatable grinding spindle head (b-axis) | -15 / + 195 ° |
| Peripheral speed | 44/35 m/s |
| Longitudinal slide: | |
| Max. travel | 285 mm |
| Transversal slide: | |
| Max. travel | 1150 mm |

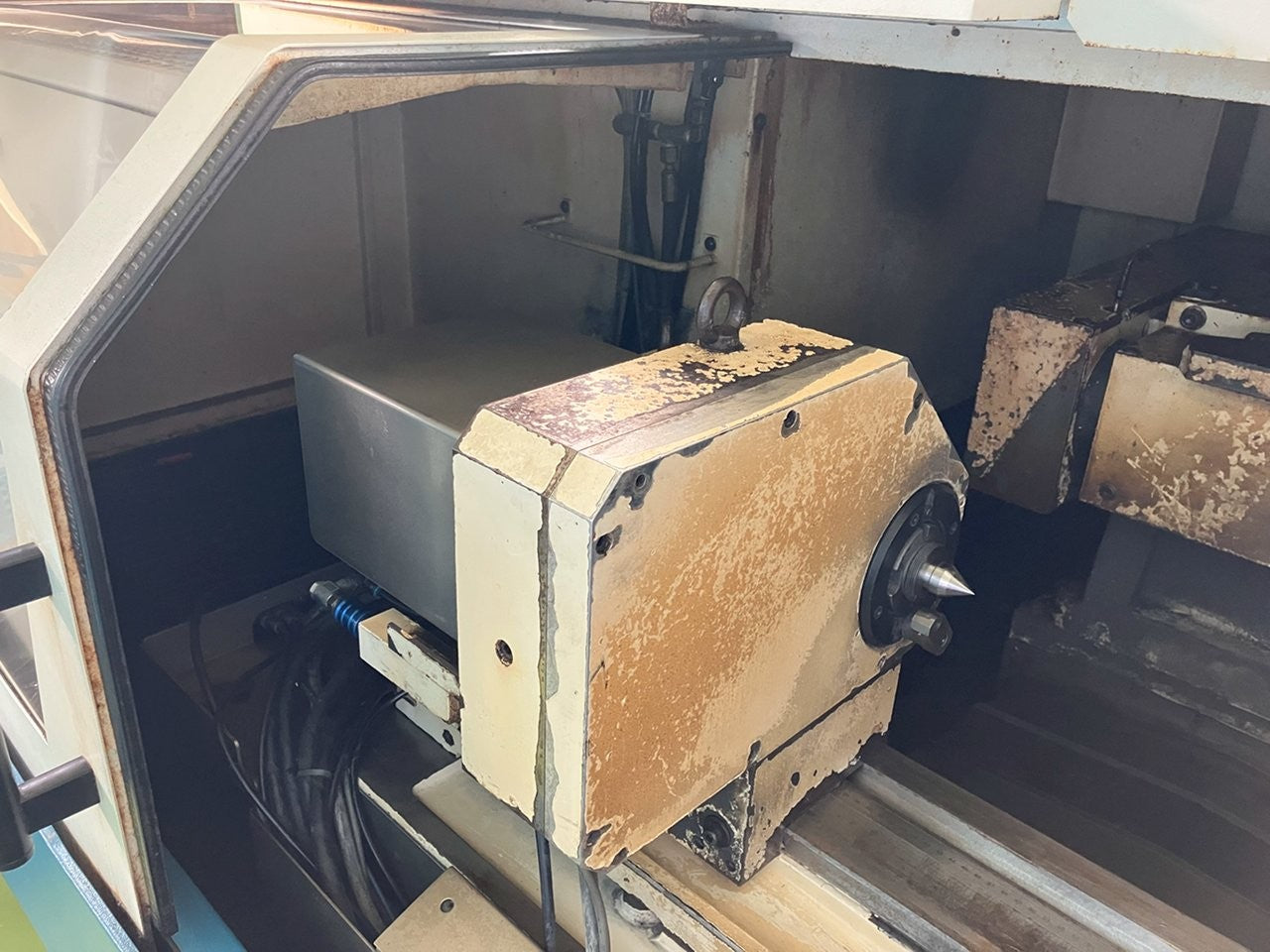

| Work piece spindle head: | |
| speeds: | |
| from | 1 t/min |
| up to | 1500 t/min |

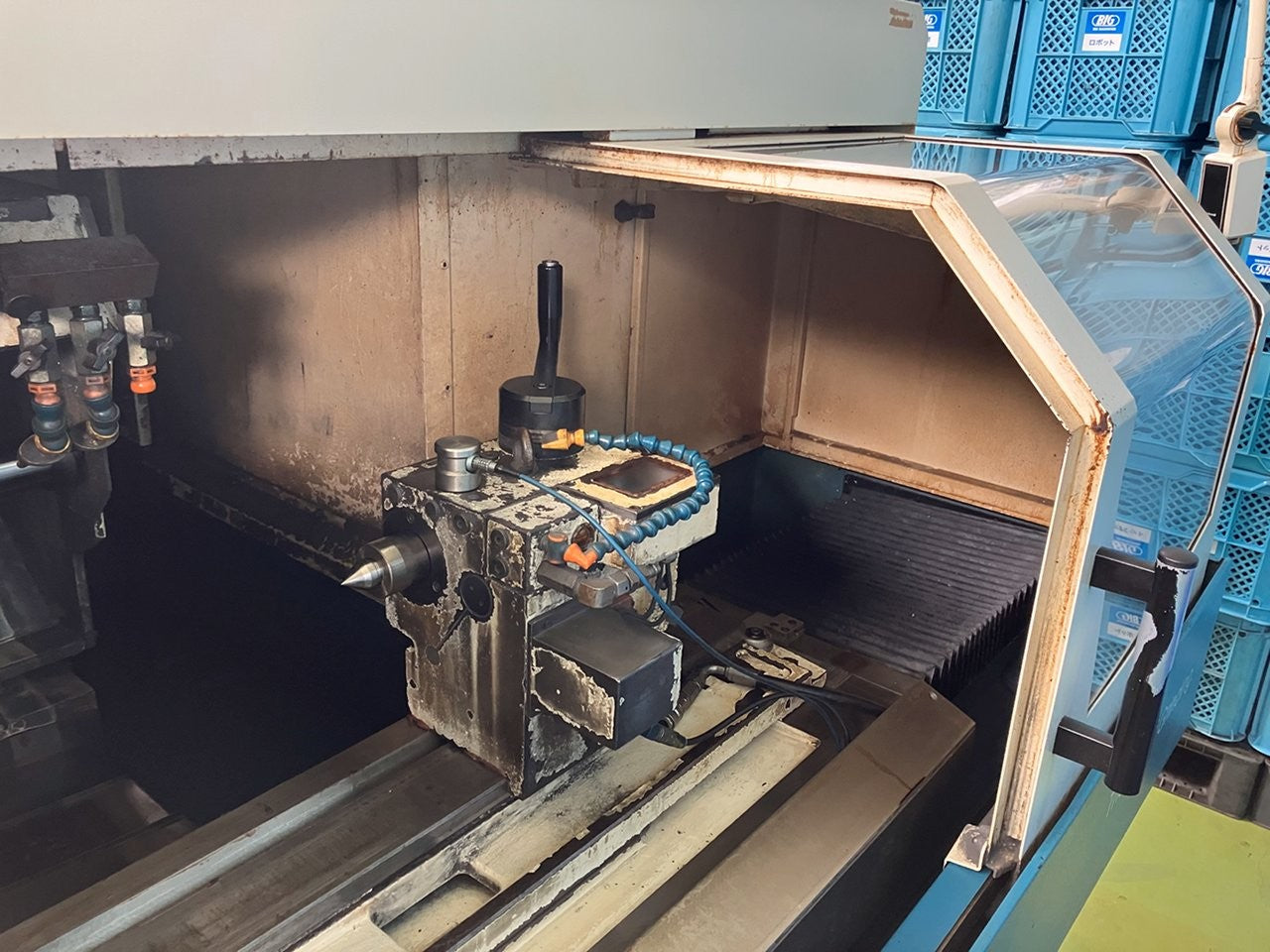

| Tailstock: | |
| Tailstock travel of barrel | 35 mm |
| Max. table angular displacement | 8.5 ° |
| Air connect | 5.5 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Grinding spindle motor | 7.5 kW |
| Total power required | 20 kVA |
| Machine's weight about | 5000 kg |
| Overall dimensions machine: | |
| Length | 2620 mm |
| Width | 2090 mm |
| Height | 2000 mm |
