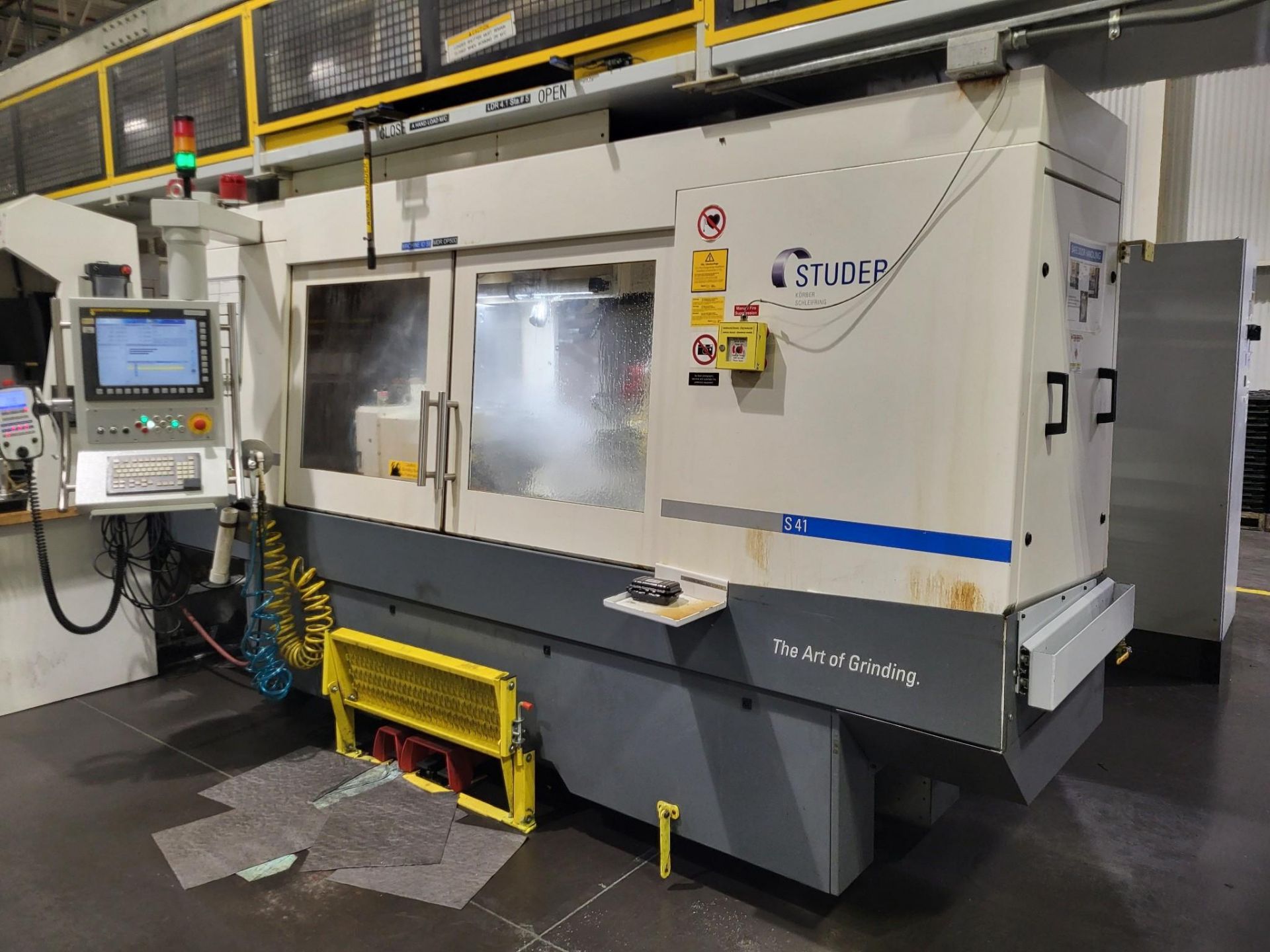

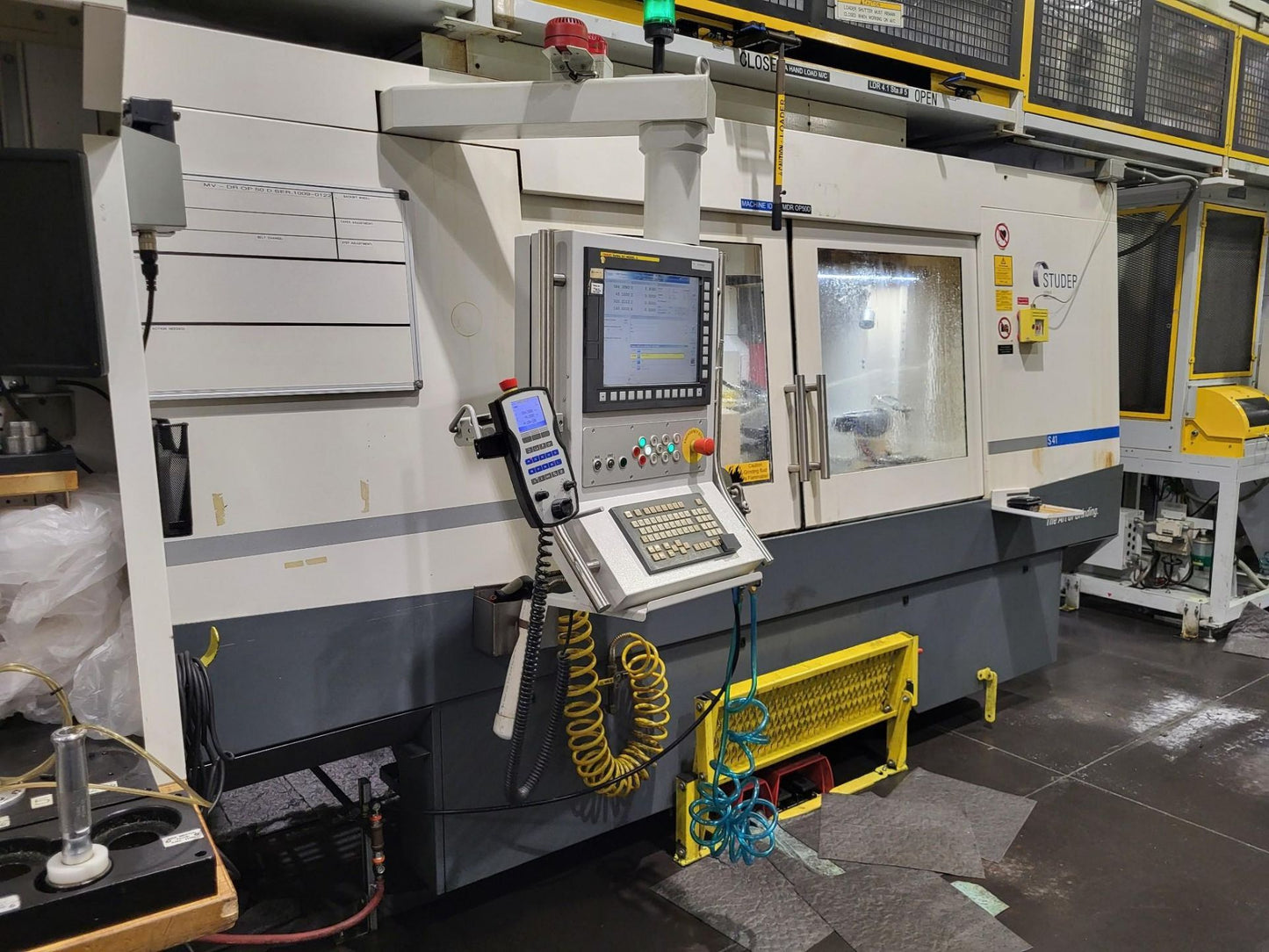

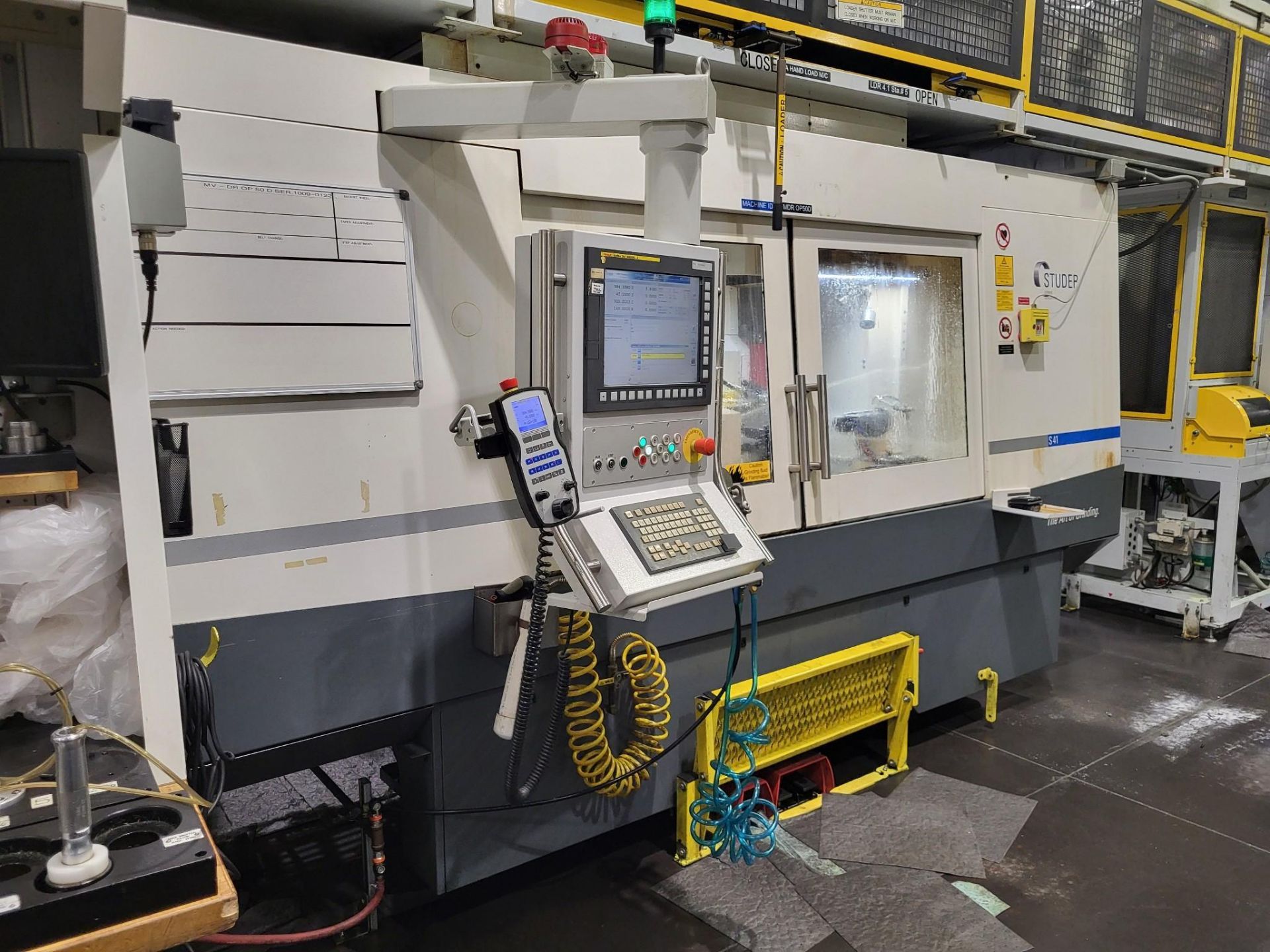

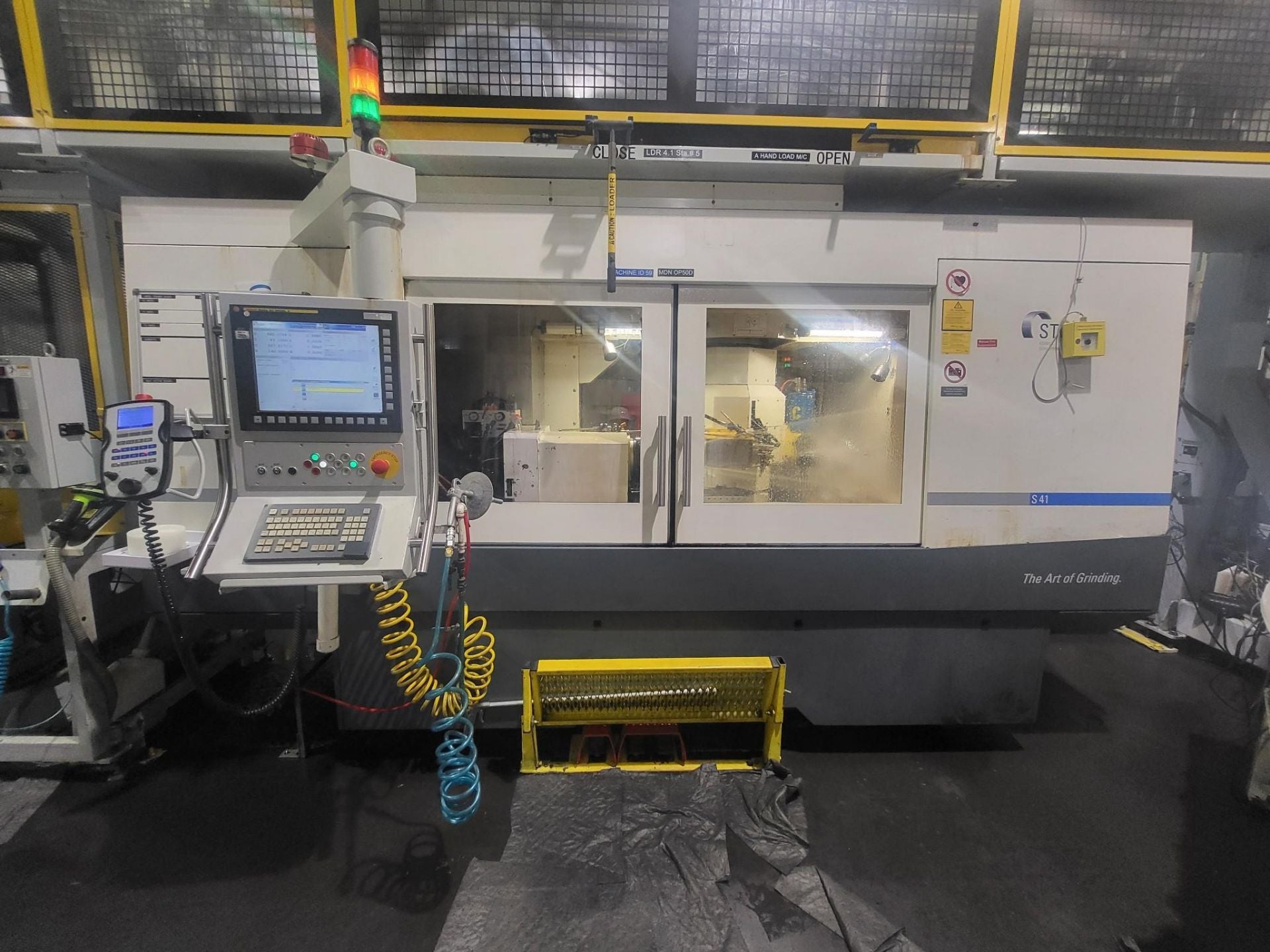

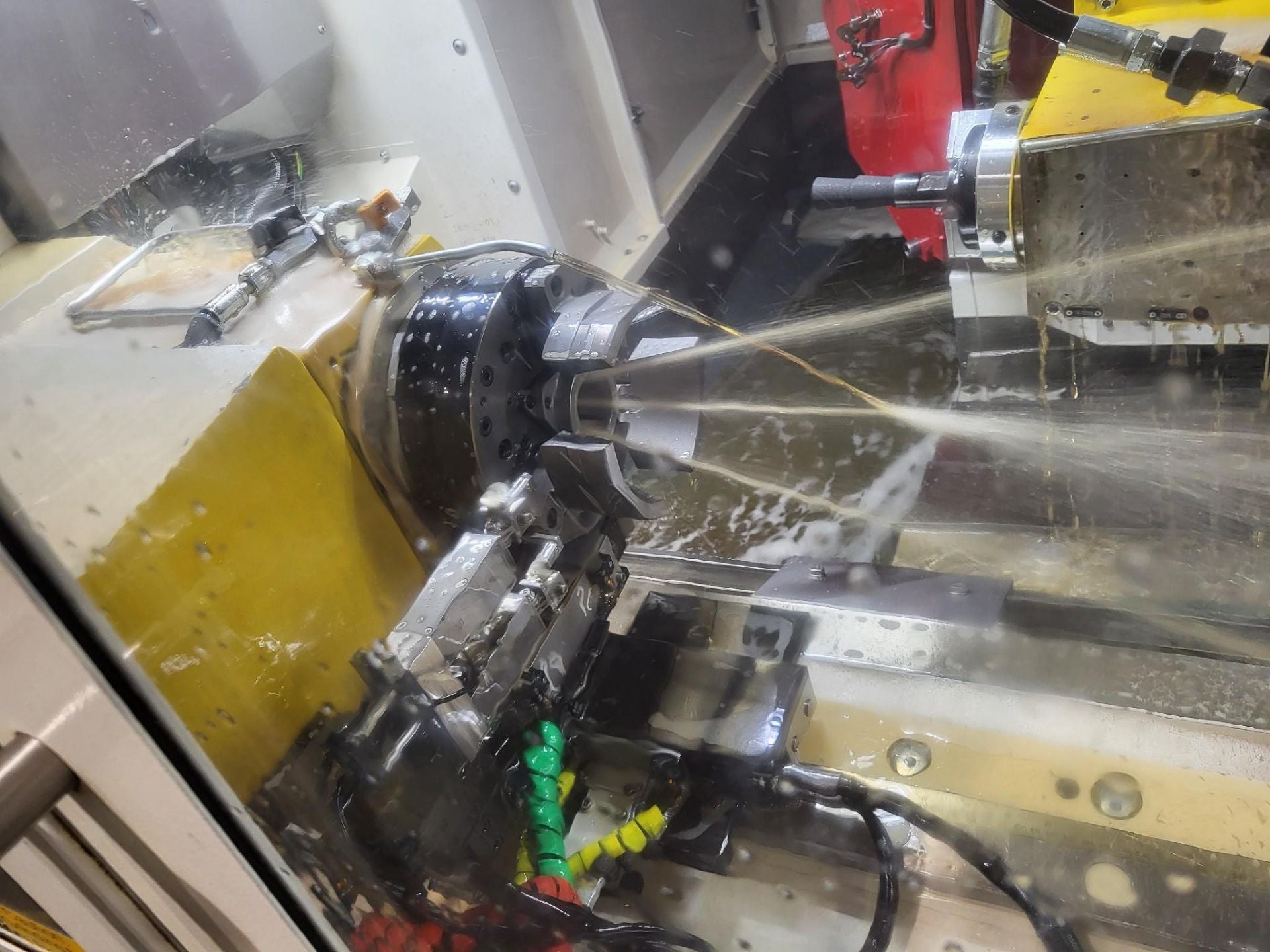

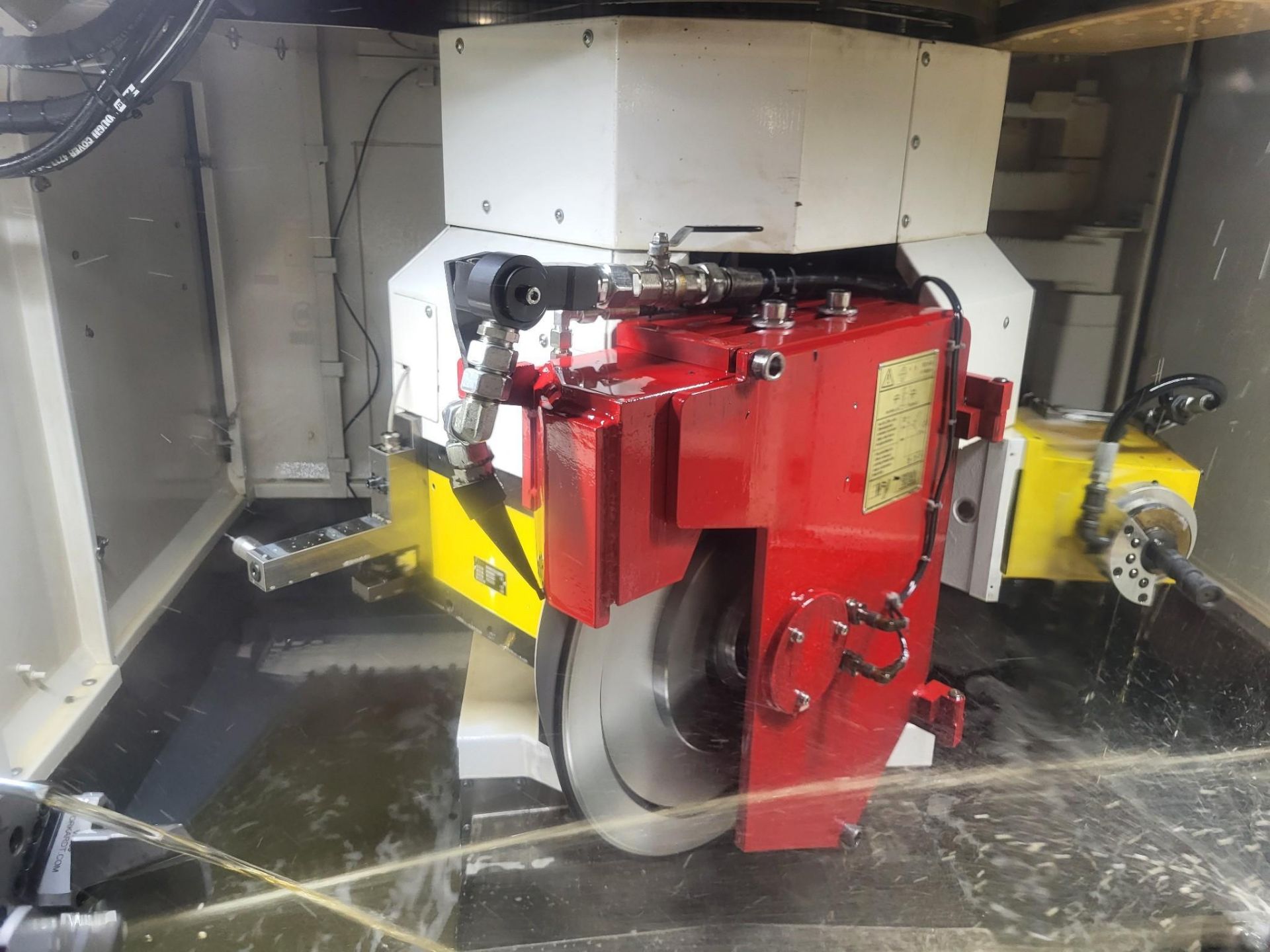

STUDER S41 is a CNC cylindrical grinder engineered for precision, high accuracy and reliability. Capacities: centre height 275 mm, distance between centres 1000 mm, max workpiece Ø 550 mm, workpiece height 1000 mm, Z 1150 mm, X 350 mm, workpiece weight 250 kg. Specs: grinding wheel Ø500×100 mm, peripheral speed 50/80 m/s, spindle speeds 0–4500 rpm, wheel head swivel -45/+225°, workpiece spindle motor 15 kW, 3x400 V 50 Hz, air 5 bar, tailstock stroke 60 mm (Ø 60 mm), machine weight ≈9000 kg. Accessories: high‑res C‑axis, B1+B2 axes, coolant system, internal grinding attachment, 2 spindles, lamp, status light, PC system, electronic handheld control, foot pedal. Achieves tight tolerances; typical in automotive, aerospace, toolmaking, medical and watchmaking.
High-resolution C-axis + Axis B1 + B2
| Centre height | 275 mm |
| Distance between centres | 1000 mm |
| Max. work piece diameter | 550 mm |
| Travels: | |
| Z axis | 1150 mm |
| X axis | 350 mm |
| Workpiece dimensions: | |
| Diameter | 550 mm |
| Height | 1000 mm |
| Weight | 250 kg |
| Grinding wheel: | |
| Diameter | 500 mm |
| Width | 100 mm |
| Grinding spindle head: | |
| Swivelling range | -45 - +225 ° |
| Peripheral speed | 50 / 80 m/s |
| speeds: | |
| from | 0 t/min |
| up to | 4500 t/min |
| Tailstock: | |
| Spindle stroke | 60 mm |
| Spindle diameter | 60 mm |
| Air connect | 5 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Workpiece spindle motor | 15 kW |
| Machine's weight about | 9000 kg |
| Various accessories: | |
| High resolution C-axis | |
| Axes B1 + B2 | |
| Coolant system | |

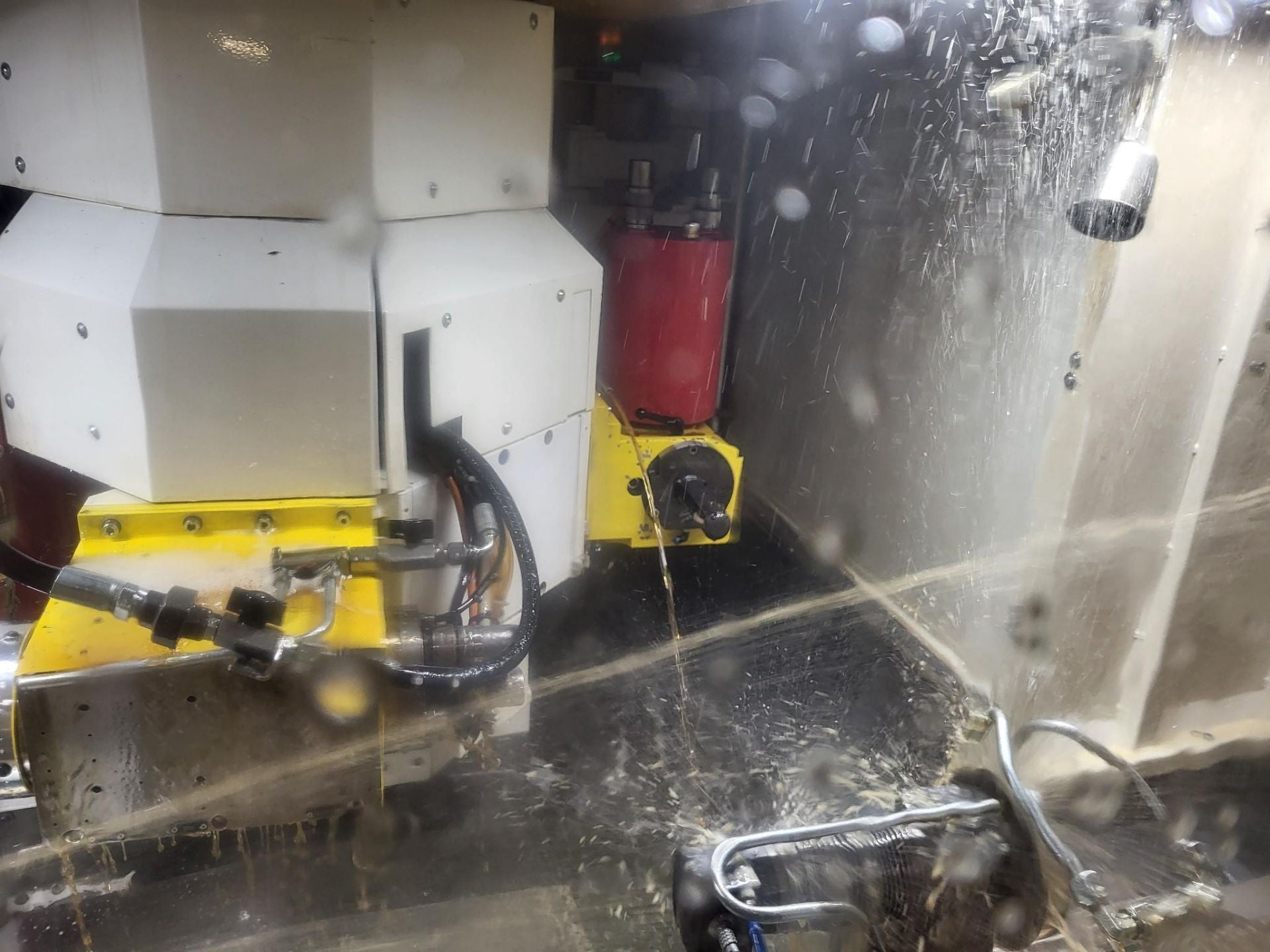

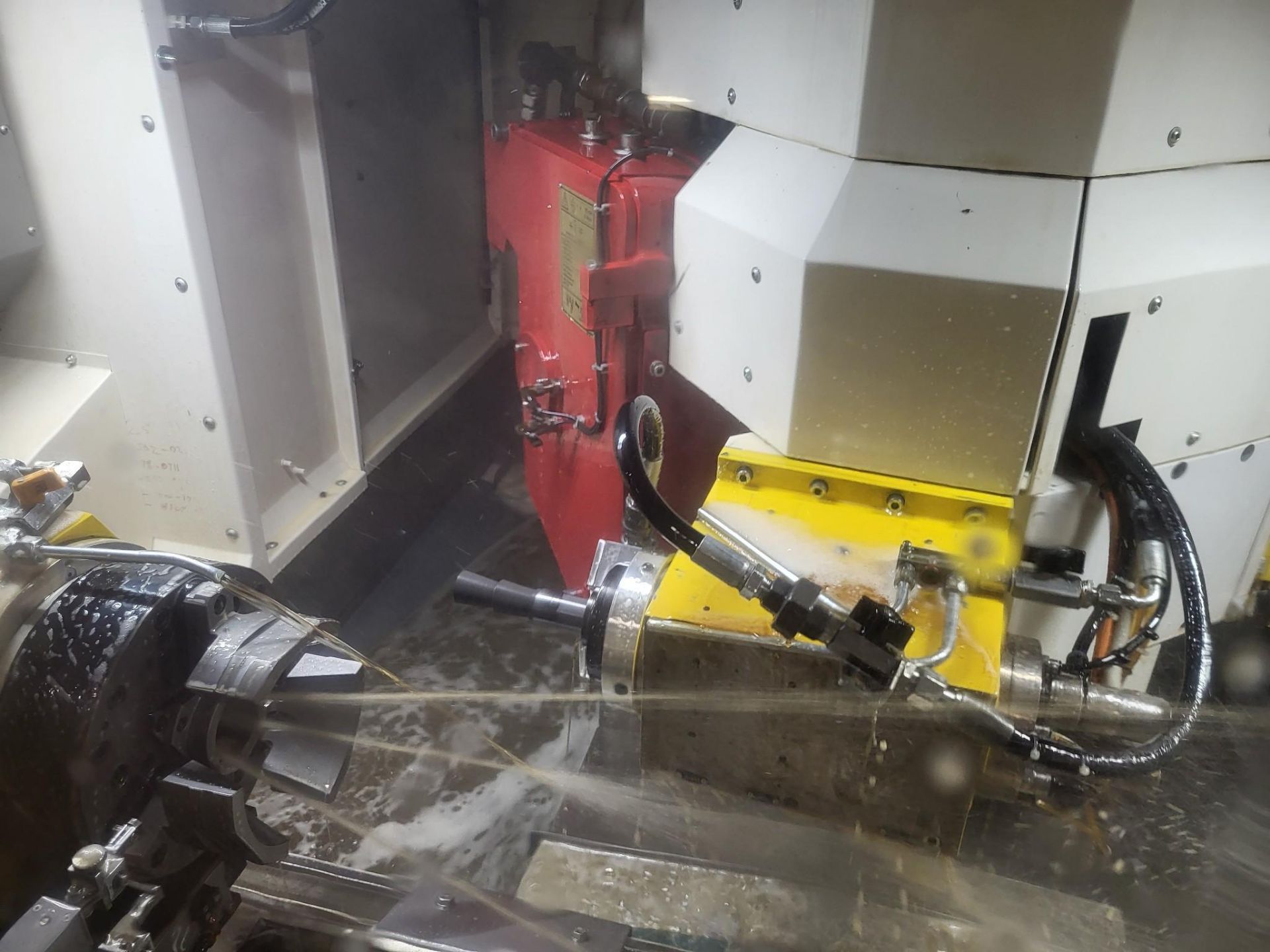

| Internal grinding attachment: | |
| Number of spindles | 2 |
| Lamp | |
| Status light | |

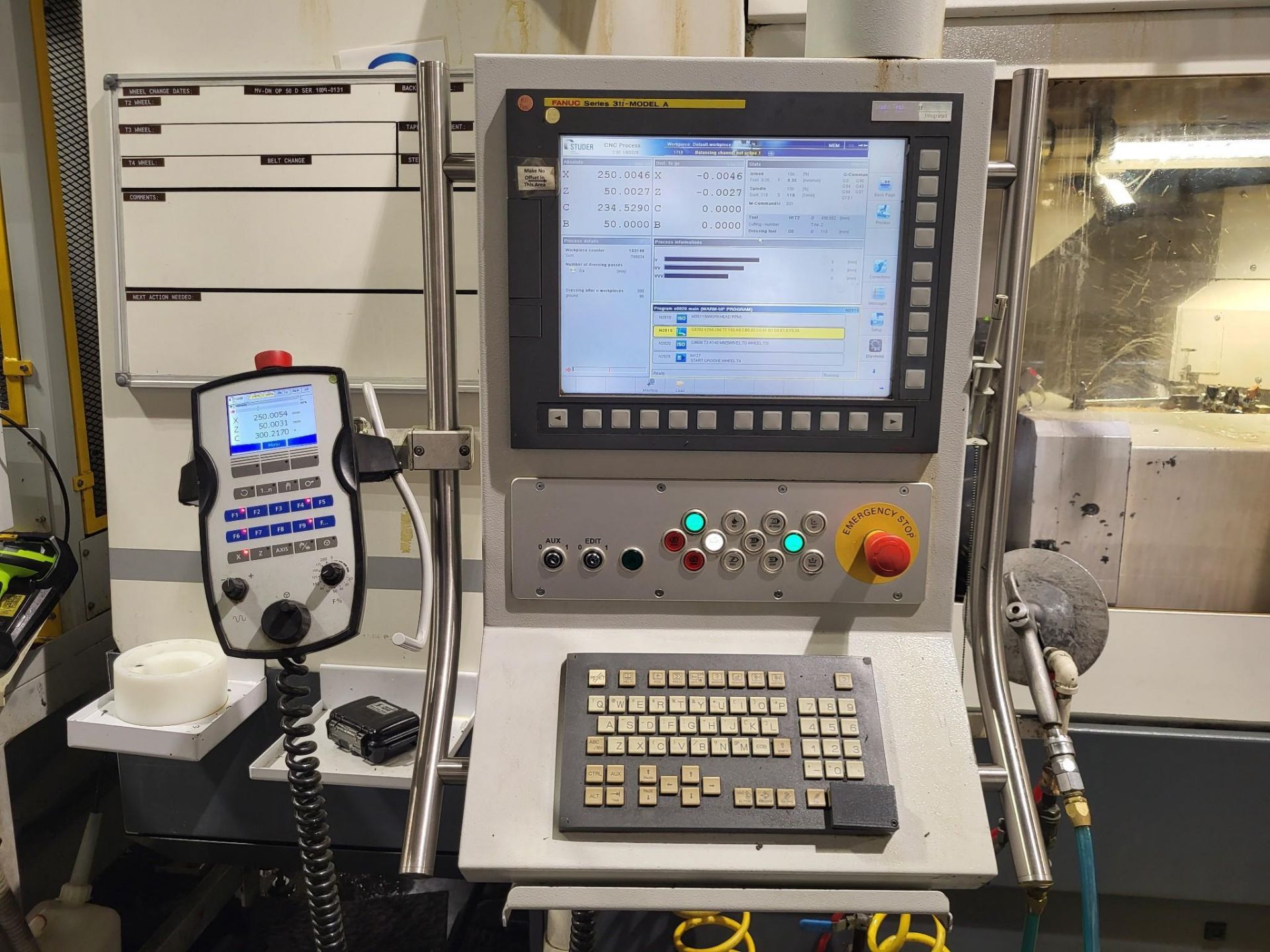

| PC system | |

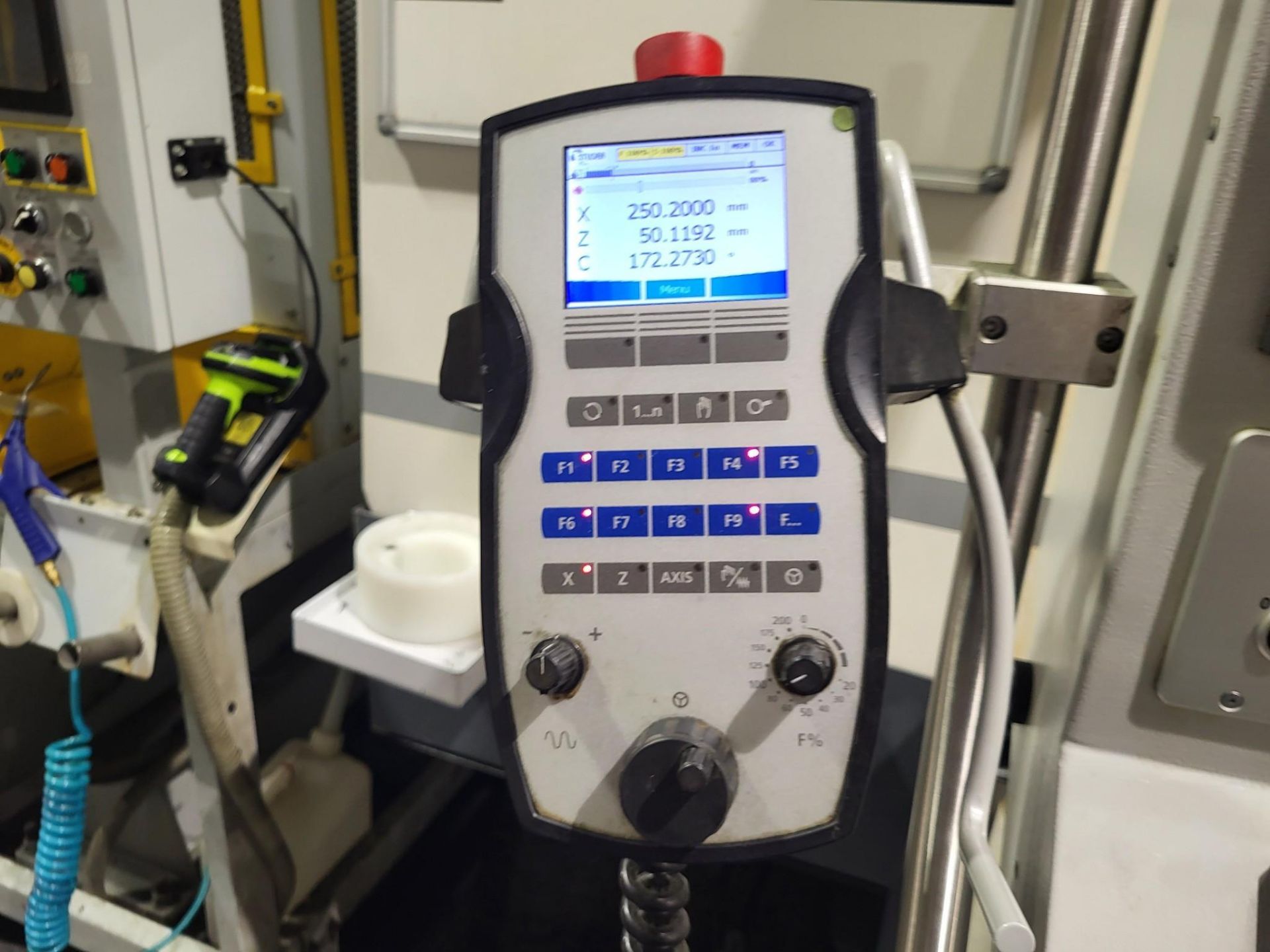

| Electronic hand held control | |
| Foot pedal |
