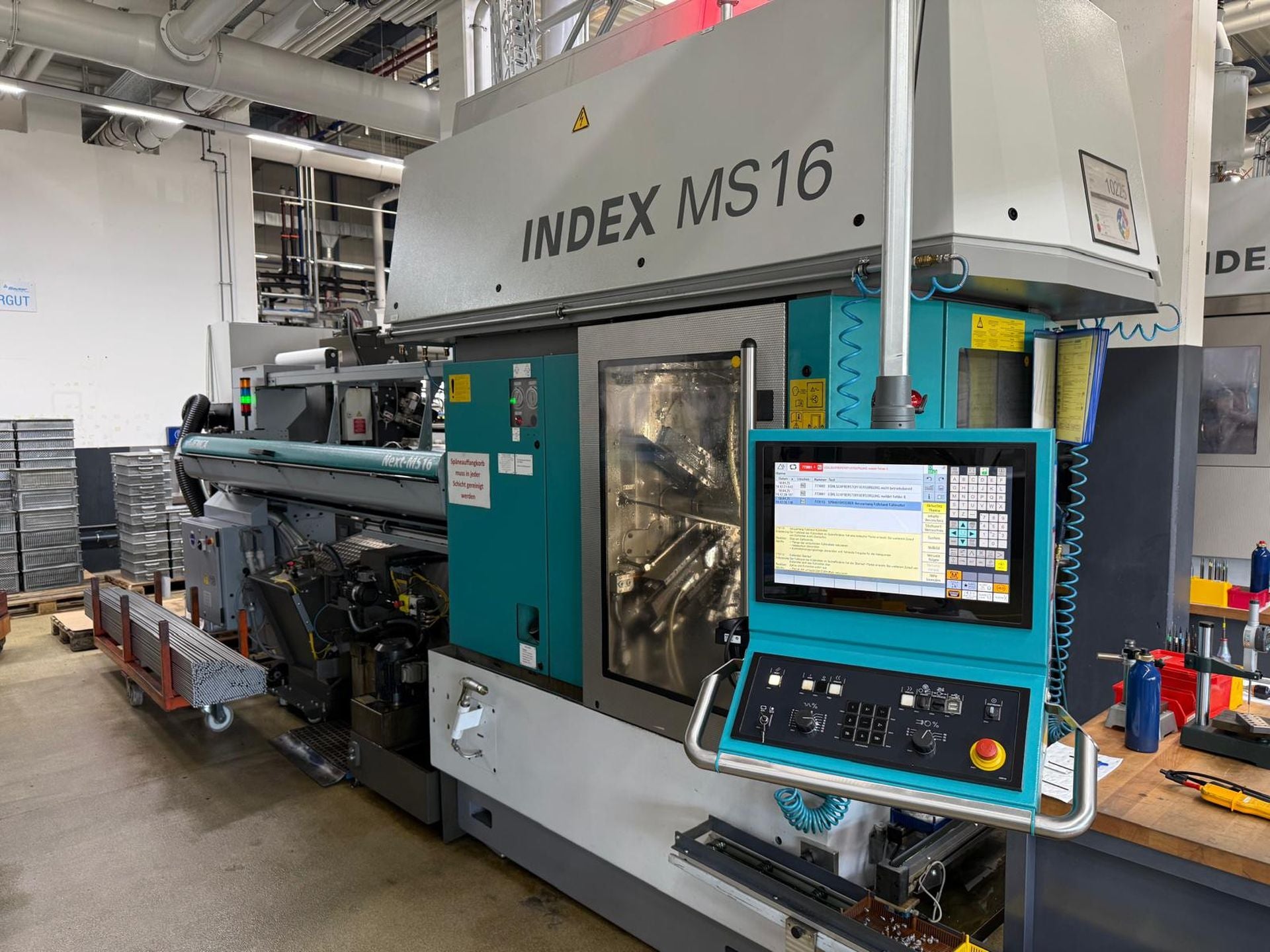

INDEX MS 16C
Type: MS 16C
Manufacturer: INDEX
Group: Multi-spindle turning lathe
Subgroup: CNC Multi-spindle turning lathe
Year: 2018
Stock: 023166
INDEX MS 16C is a CNC multi-spindle turning lathe, engineered for precision, high accuracy and dependable performance. Capacity: round bar capacity 16 mm, 6 spindles and 12 cross slides, spindle speeds from 0 to 10,000 rpm. Main specifications: 50 Hz 3x 400 V supply, total power required 59 kVA; dimensions L 2600 × W 1300 × H 3050 mm; machine weight approx. 5200 kg; type NEXT‑MS16. Achieves tight tolerances and is suited to automotive, watchmaking, machine tools, aerospace and medical applications.
| Number of cross slides | 12 |
| Number of spindles | 6 |
| Capacity round bar | 16 mm |
| from | 0 t/min |
| up to | 10000 t/min |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 59 kVA |
| Machine's weight about | 5200 kg |
| Length | 2600 mm |
| Width | 1300 mm |
| Height | 3050 mm |
| Type | NEXT-MS16 |
