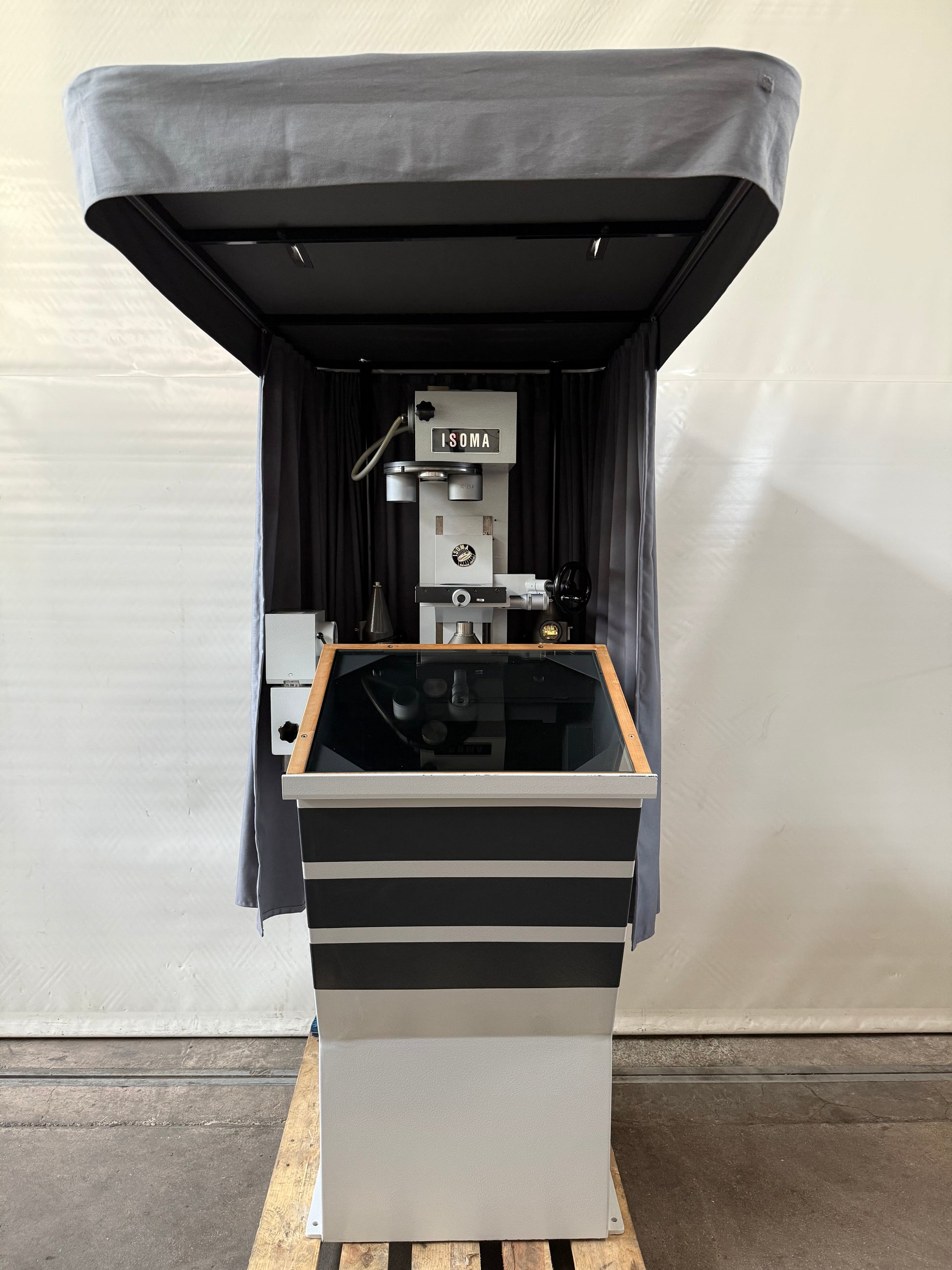

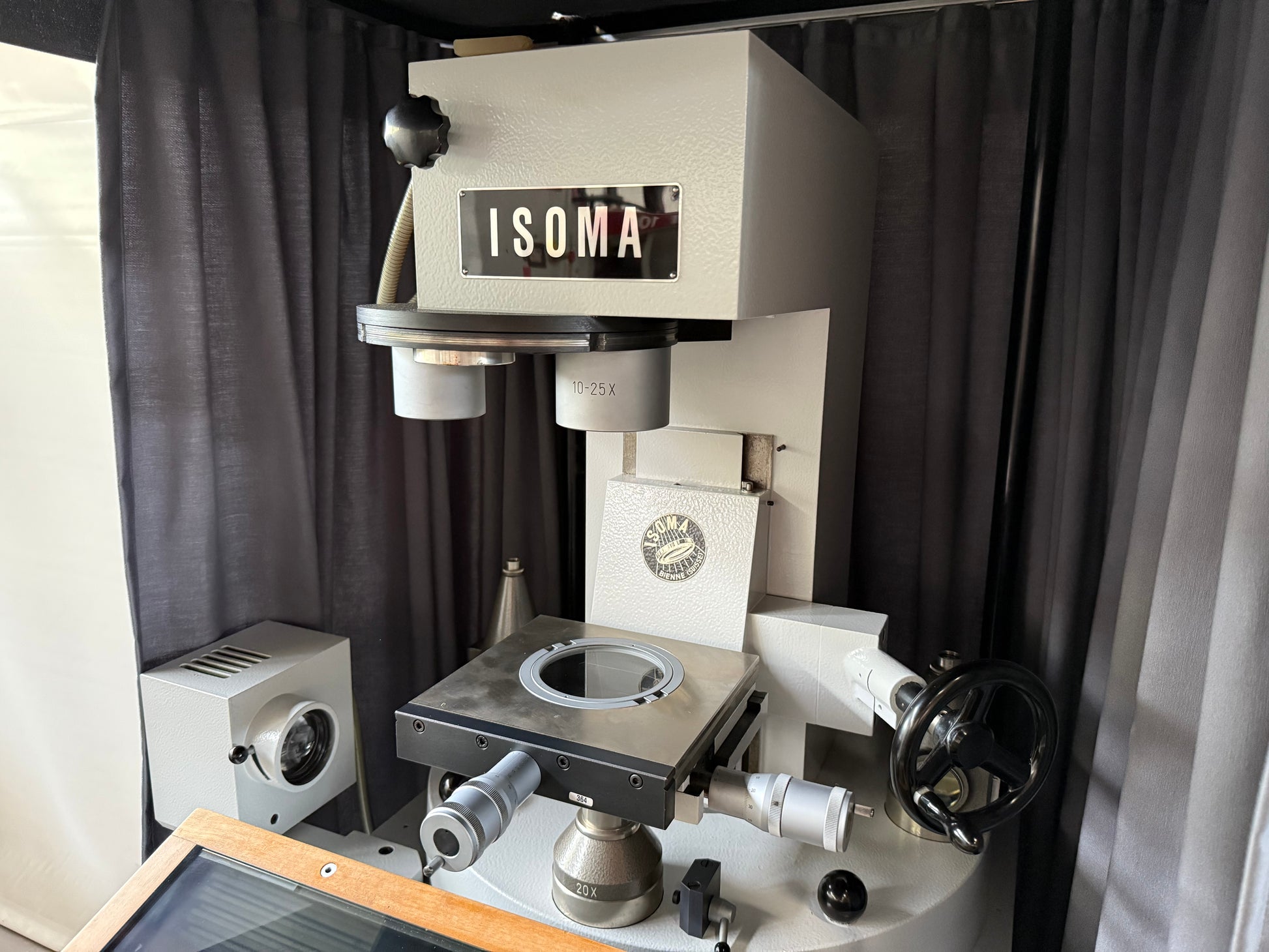

ISOMA 129 Y is a profile projector of high precision, engineered for superior accuracy and reliability. Screen 550×550 mm; microscope stage Ø95 mm; longitudinal travel 200 mm, transverse travel 50 mm; glass table diameter 80 mm; magnifications 10×, 20×, 50×, 100×. Voltage 50 Hz, 3x 220 V; machine weight about 320 kg; overall dimensions L810×W1120×H1760 mm. Fitted with an obscuration device. Enables inspection to tight tolerances; suitable for automotive, watchmaking, machine tools, aerospace and medical sectors.
| Screen width | 550 mm |
| Screen height | 550 mm |
| Microscope stage diameter | 95 mm |
| Longitudinal way | 200 mm |
| Transversal way | 50 mm |
| Diameter of the glass table | 80 mm |
| Amplifications: | |
| 10 | 1 x |
| 20 | 1 x |
| 50 | 1 x |
| 100 | 1 x |
| Lighting: | |
| Diascopy lighting | |
| episcopy | |
| Voltage 50 Hz 3x | 220 Volt |
| Machine's weight about | 320 kg |
| Overall dimensions machine: | |
| Length | 810 mm |
| Width | 1120 mm |
| Height | 1760 mm |
| Various accessories: | |
| Obscuration device |
