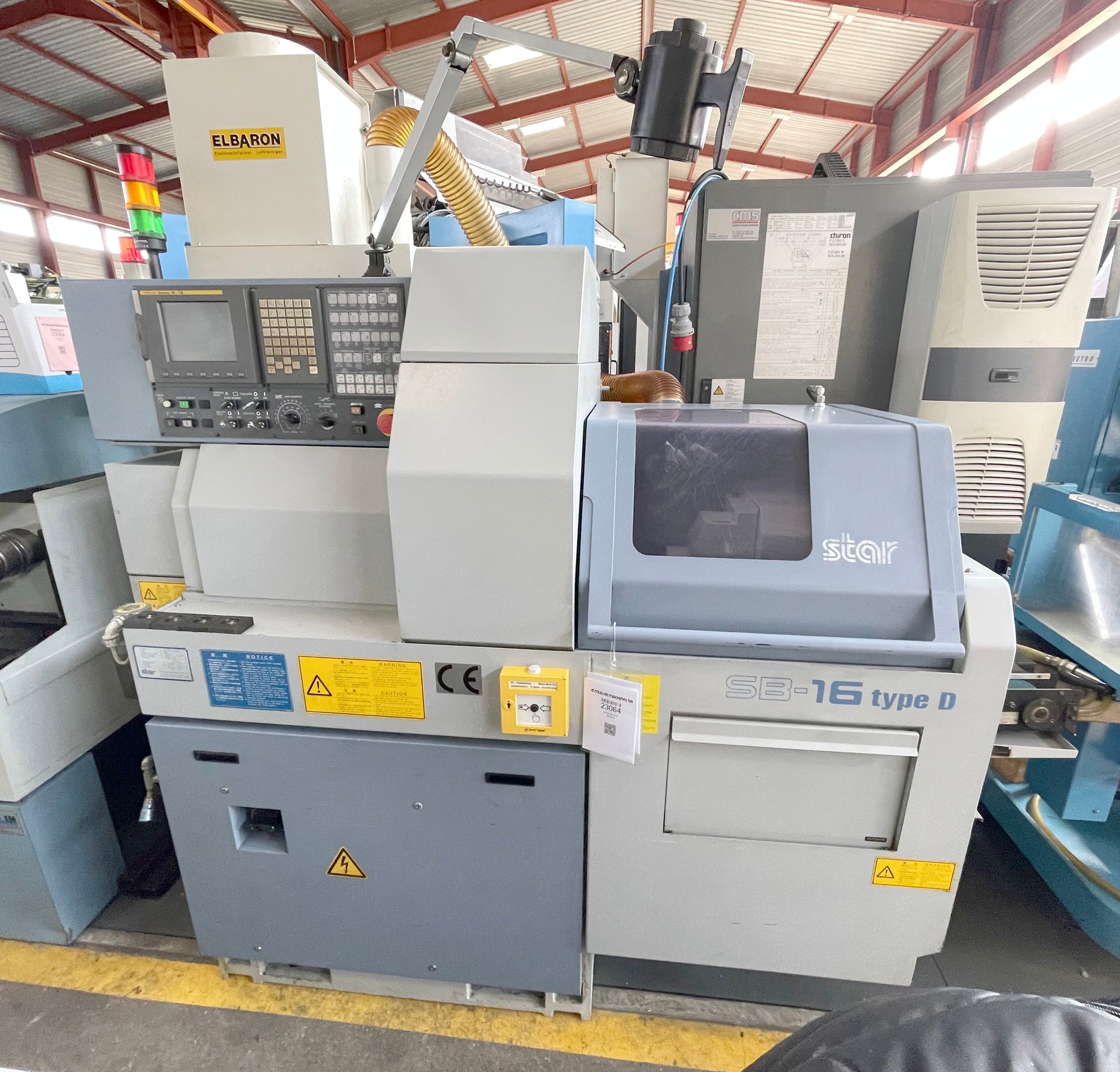

STAR SB 16 D is a CNC automatic (Swiss‑type) lathe engineered for high precision, accuracy and reliability. Capacities: max turning Ø 16 mm; turning length 155/205 mm; max drilling Ø 10 mm; max threading 8 M; bar passage 2–20 mm (up to 3200 mm). Main specs: 6 tools, 3 driven tools (5,000 t/min); spindle 500–10,000 t/min; back spindle up to 8,000 t/min; rapid traverse 35 m/min; C‑axis resolution 15°; 3x400 V 50 Hz; spindle motor 2.2/3.7 kW; weight ≈1600 kg; dims 1900×1100×1800 mm. Accessories: LNS HYDROBAR EXPRESS 220 bar feeder, ELBARON oil‑mist extractor, fire extinguishing system, lamp, status light, parts conveyor. Achieves tight tolerances; typical applications: automotive, watchmaking, medical, aerospace, precision engineering.
| Max. turning diameter | 16 mm |
| Turning length | 155 / 205 mm |
| Max. drilling diameter | 10 mm |
| Max. threading diameter | 8 M |

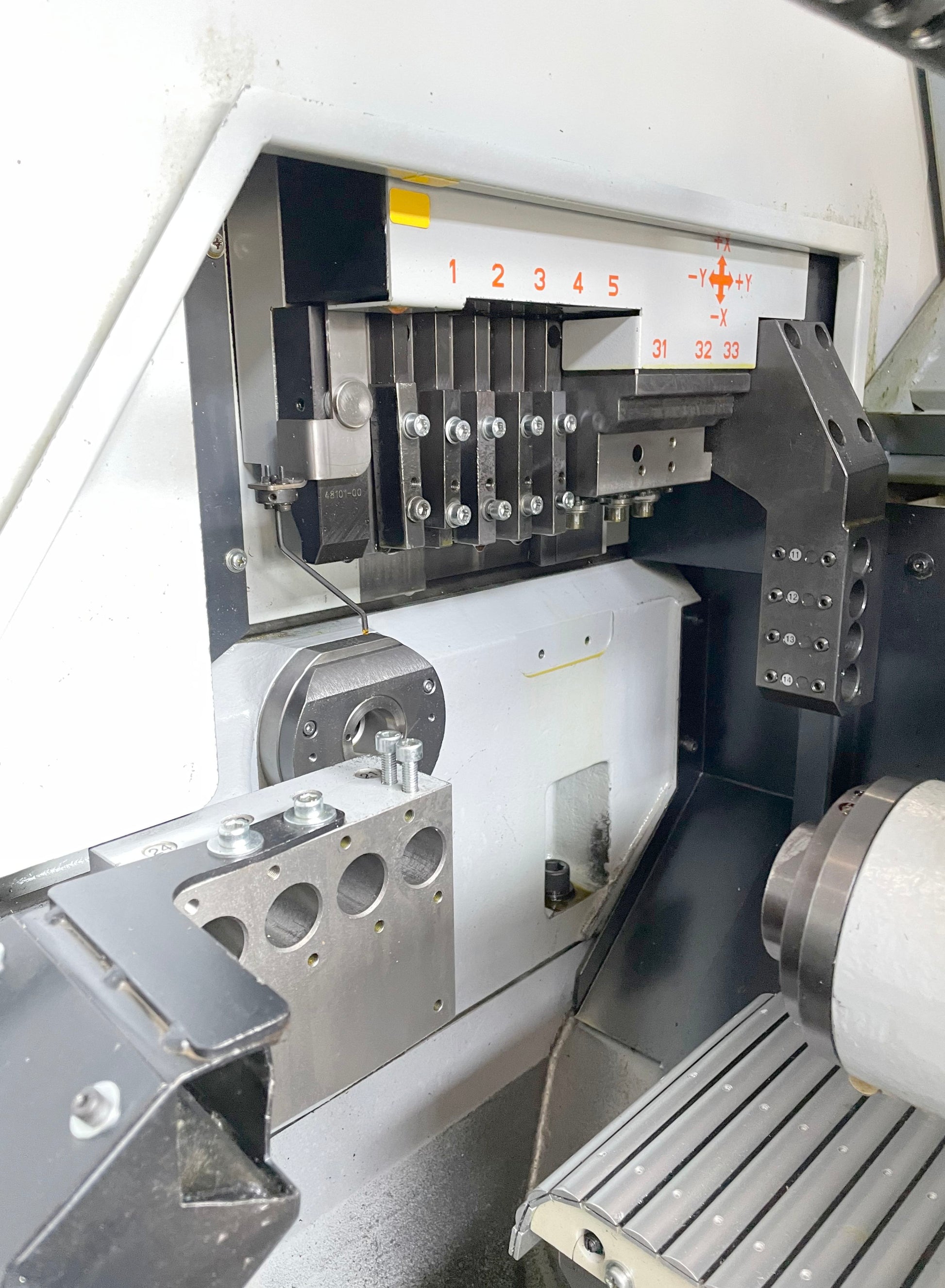

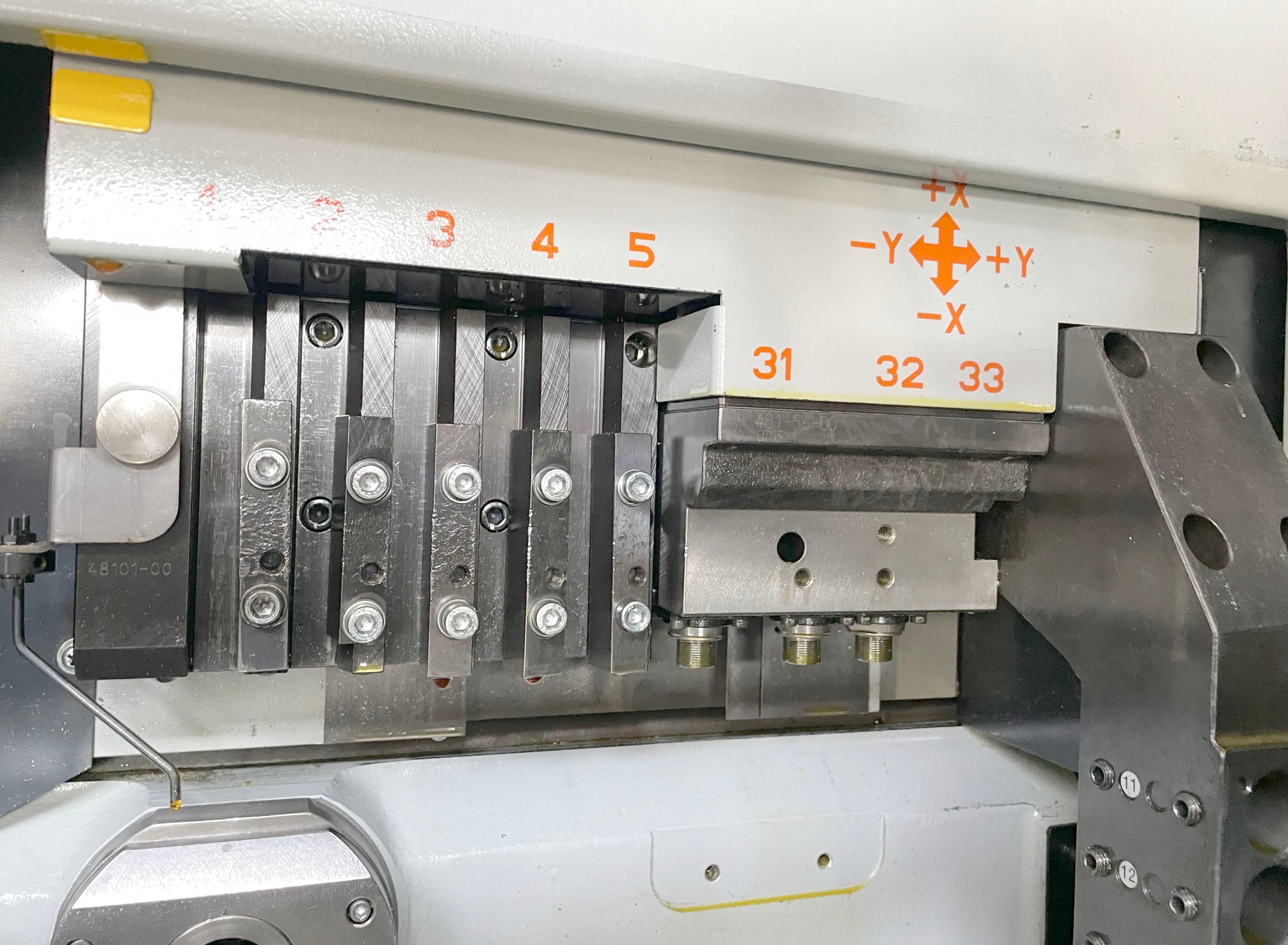

| number of tools | 6 |
| Spindle speeds: | |
| stepless | |
| from | 500 t/min |
| up to | 10000 t/min |
| number of driven tools | 3 |
| Spindle speeds (turning tools) | 5000 t/min |
| Power of driven tools | kW |

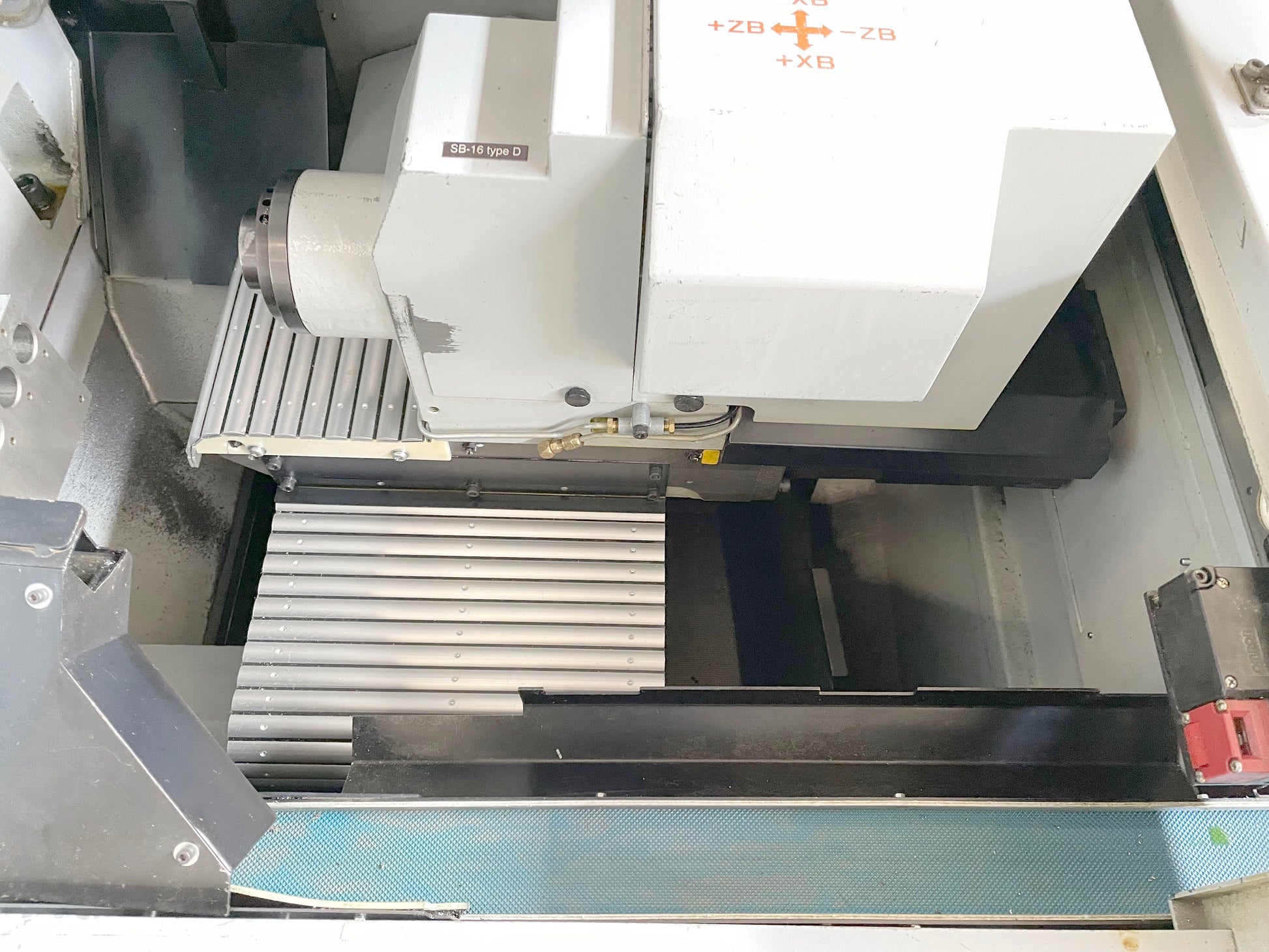

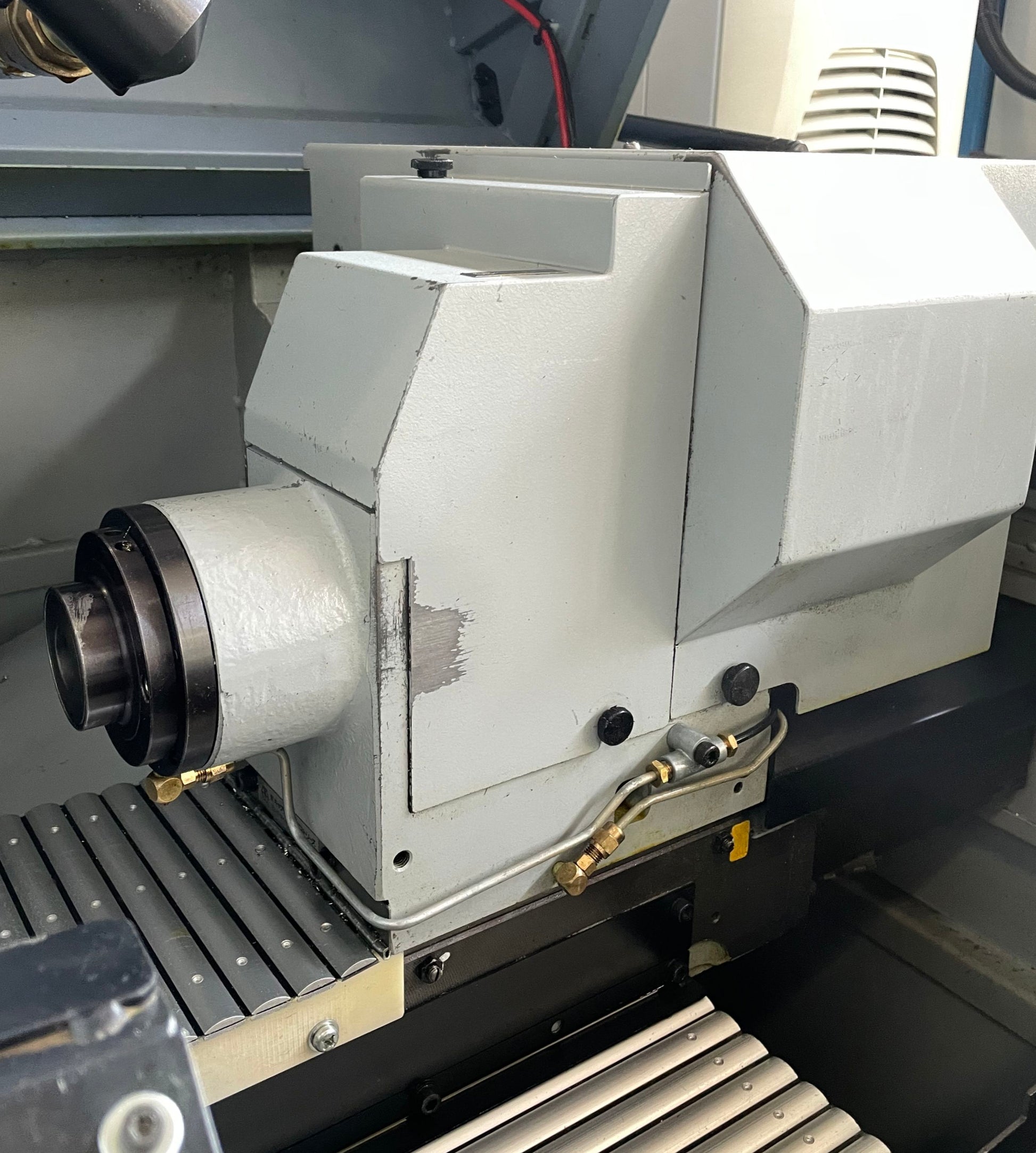

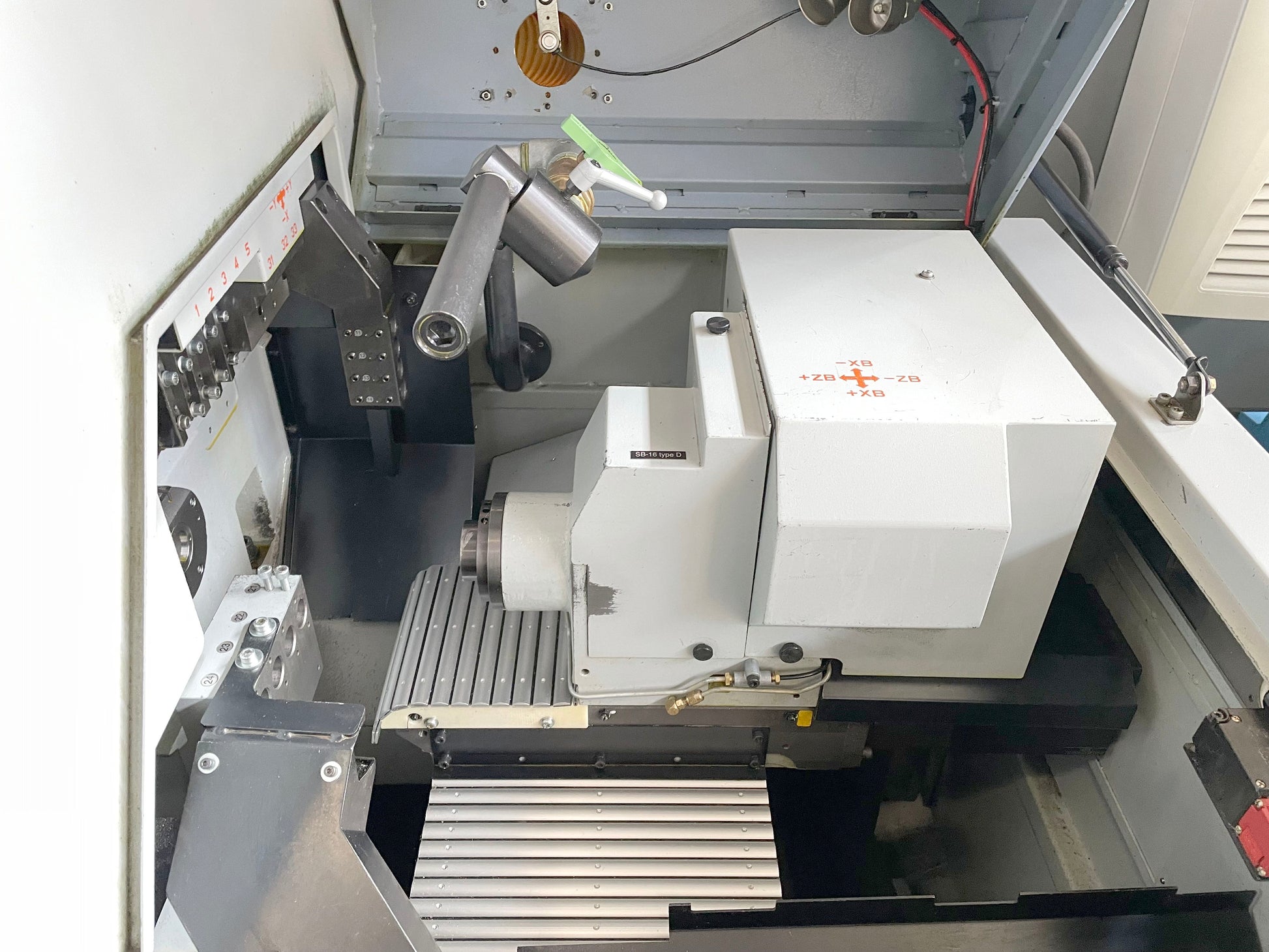

| Back spindle: | |
| speeds: | |
| up to | 8000 t/min |
| Thread drill diameter | 6 M |
| Back machining workpiece length max. | 80 mm |
| Rapid traverse: | 35 m/min |
| C axis (spindle,resolution) | 15 ° |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 2.2 / 3.7 kW |
| Machine's weight about | 1600 kg |
| Overall dimensions machine: | |
| Length | 1900 mm |
| Width | 1100 mm |
| Height | 1800 mm |
| Various accessories: | |

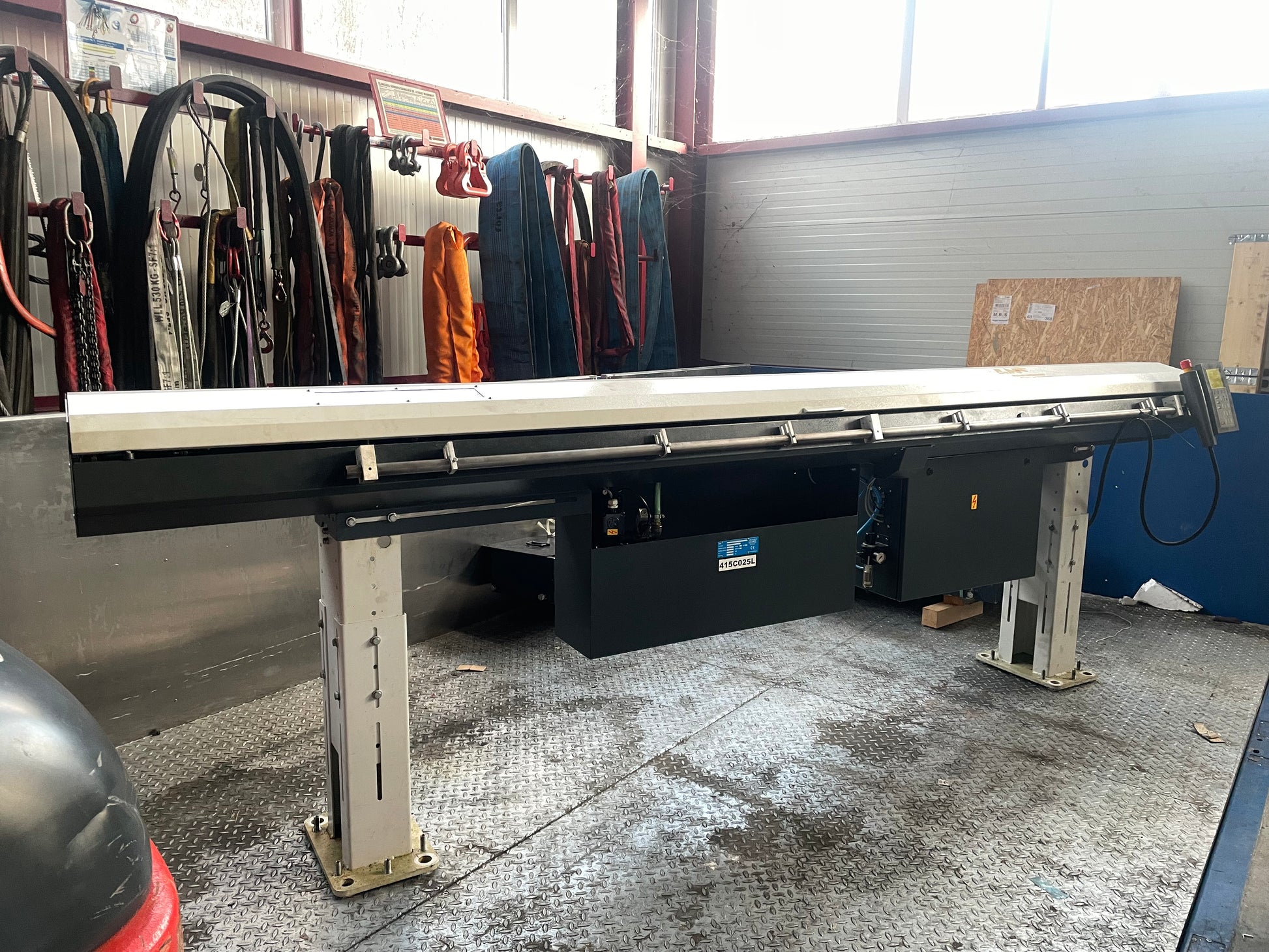

| Bar feeder | |
| Manufacturer | LNS |
| Type | HYDROBAR EXPRESS 220 |
| year of manufacture | 2007 |
| Length of bars max. | 3200 mm |
| Bar diameter | 2 - 20 mm |
| Parts catcher | |

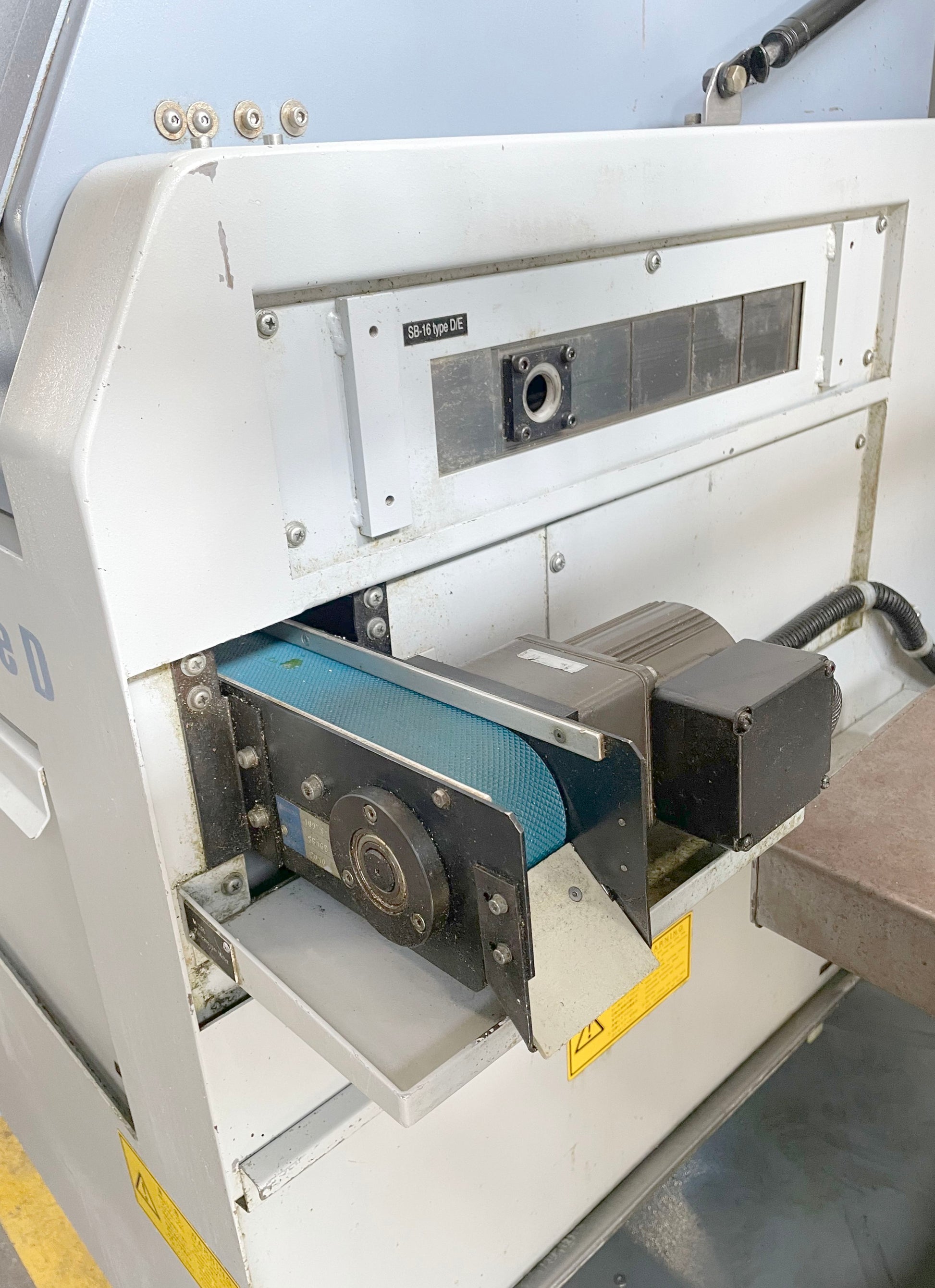

| Workpiece conveyor | |
| Lamp | |

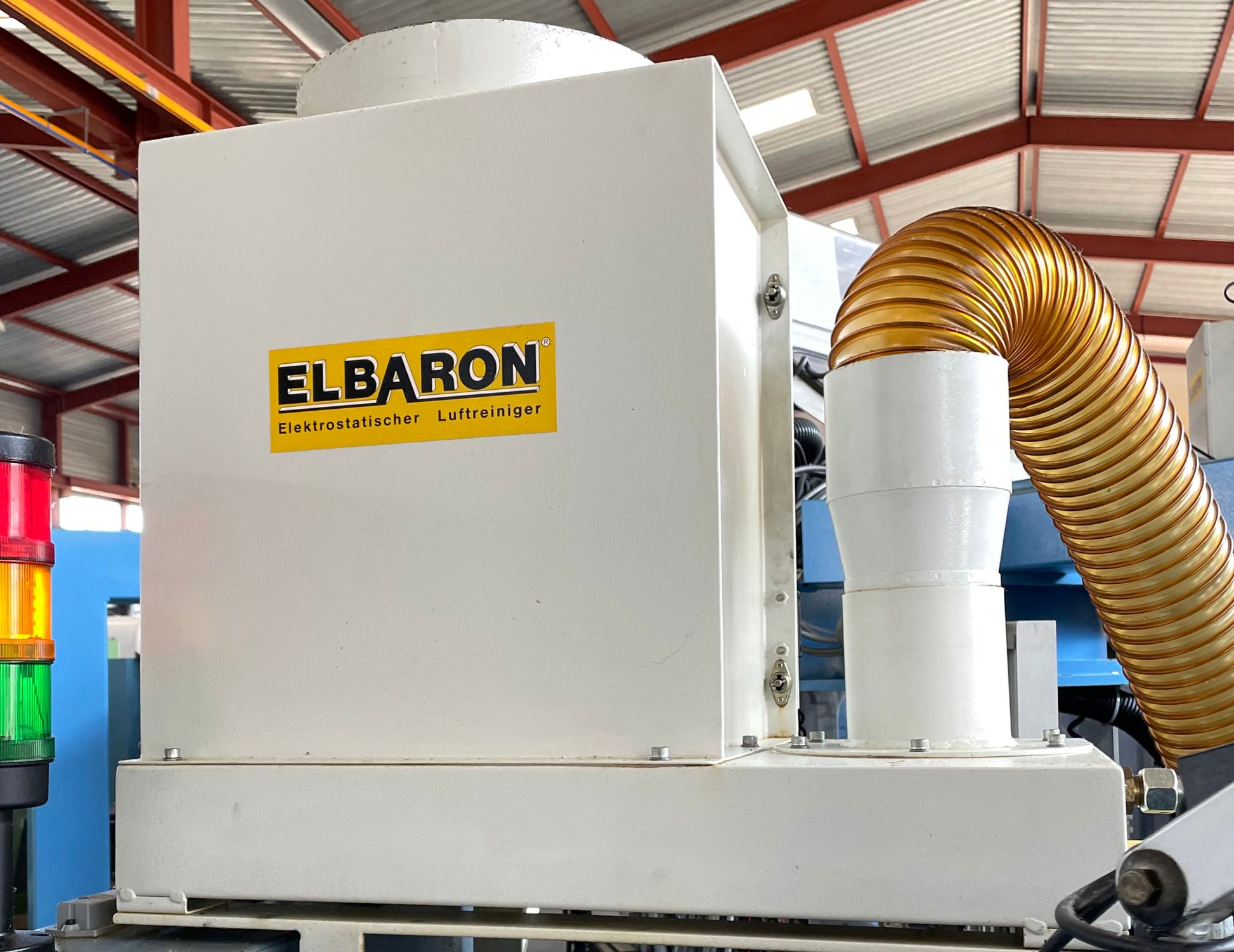

| Oil mist extractor | ELBARON |
| Fire extinguishing system | |
| Status light |
