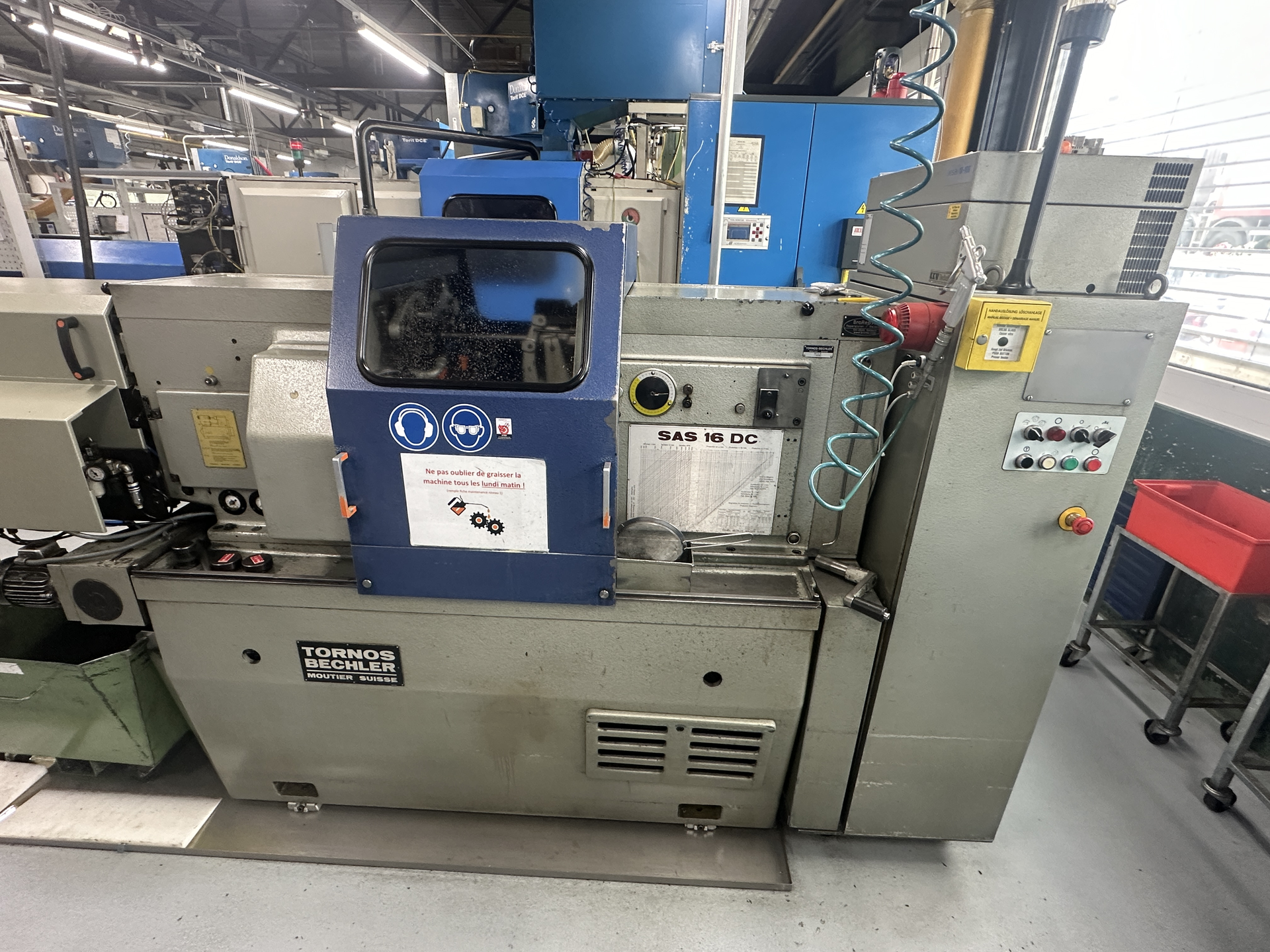

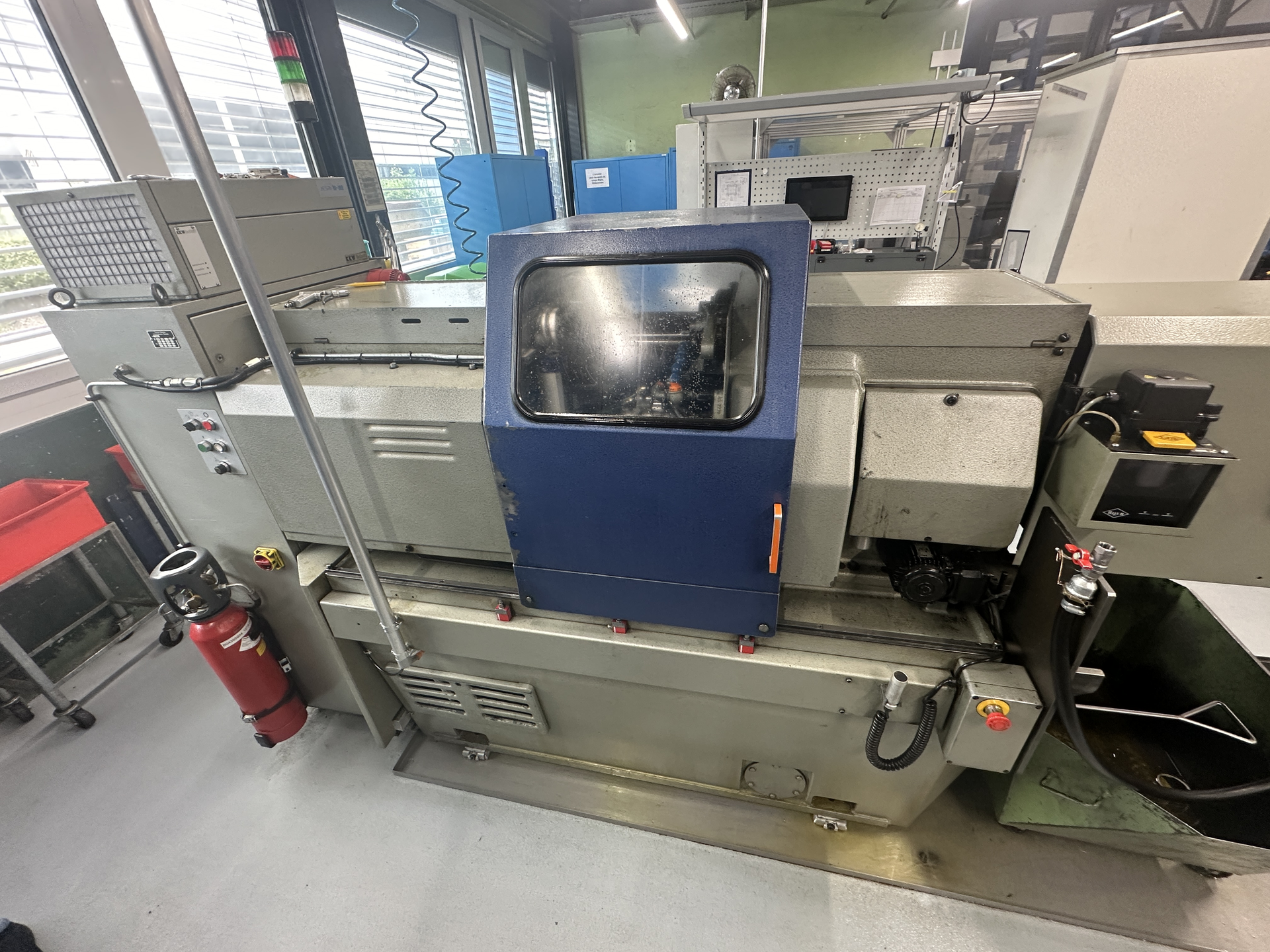

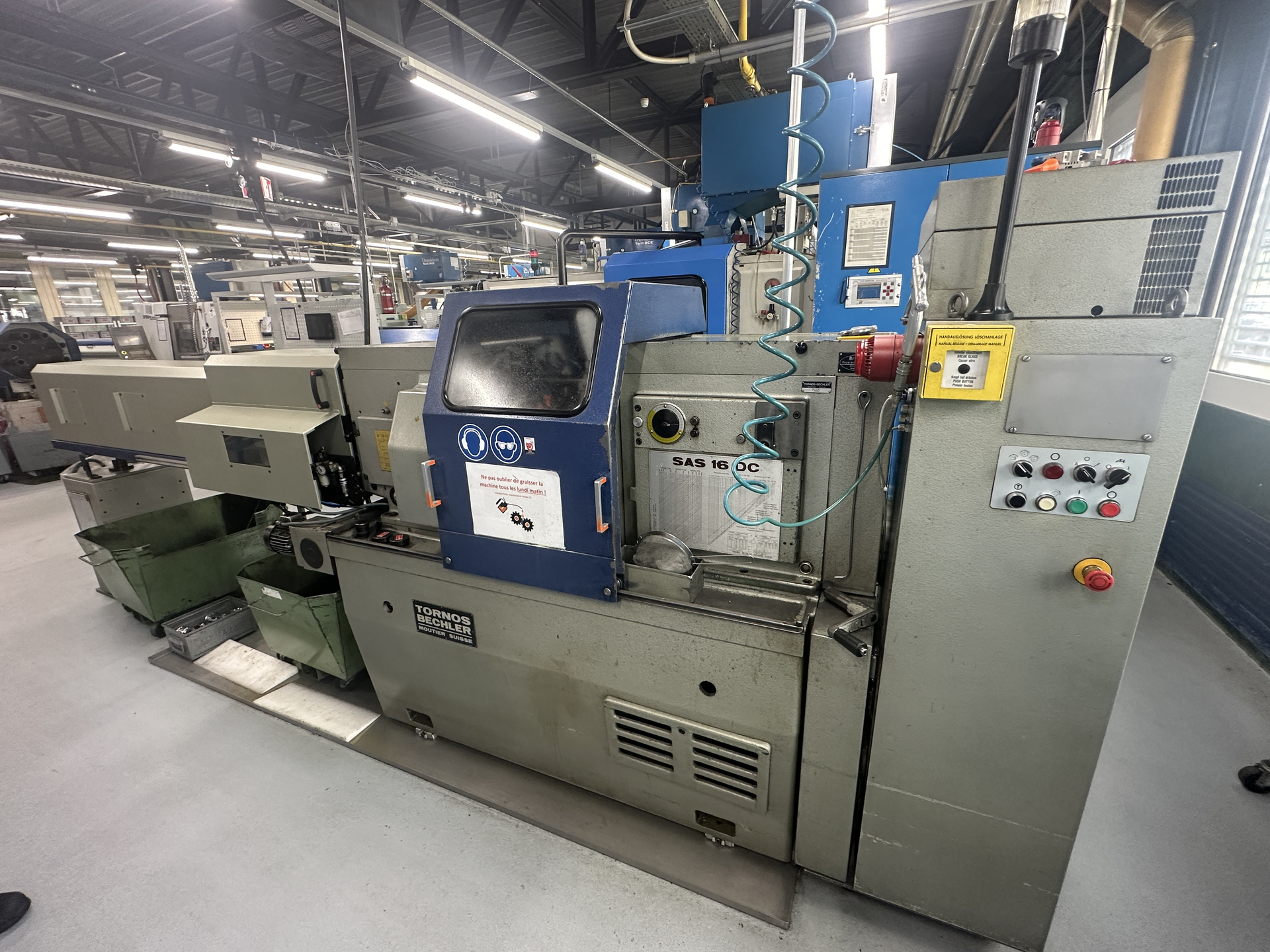

TORNOS SAS 16 DC
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
TORNOS SAS 16 DC is a multi-spindle turning lathe for precision, high accuracy and reliability. Capacities: 6 spindles; round 16 mm, square 11 mm, hex 13 mm; max turning length 60 mm; long slide stroke 50 mm; 6 cross slides, max stroke 100 mm; feeds 45–100 mm; 11 tool positions; camshaft 630. Specs: 250–8000 t/min (stepless); 50Hz 3×380V; 7.5 kW; weight ~2500 kg; L2860×W1180×H1500 mm. Accessories: automatic bar loader, status light. Achieves tight tolerances; applications: automotive, watchmaking, machine tools, aerospace, medical.
| Number of spindles | 6 |
| Capacity round bar | 16 mm |
| Capacity square bar | 11 mm |
| Capacity hexagon bar | 13 mm |
| Max. turning length | 60 mm |
| Max. stroke of long slide | 50 mm |
| Number of tools | 11 |
| Number of camshaft | |
| speeds | 630 |
| Number of cross slides: | 6 |
| Max. stroke | 100 mm |
| Stroke of independent feeds | 45-100 mm |
| Spindle speeds: | |
| stepless | |
| from | 250 t/min |
| up to | 8000 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Power | 7.5 kW |
| Machine's weight about | 2500 kg |
| Overall dimensions machine: | |
| Length | 2860 mm |
| Width | 1180 mm |
| Height | 1500 mm |
| Various accessories: | |

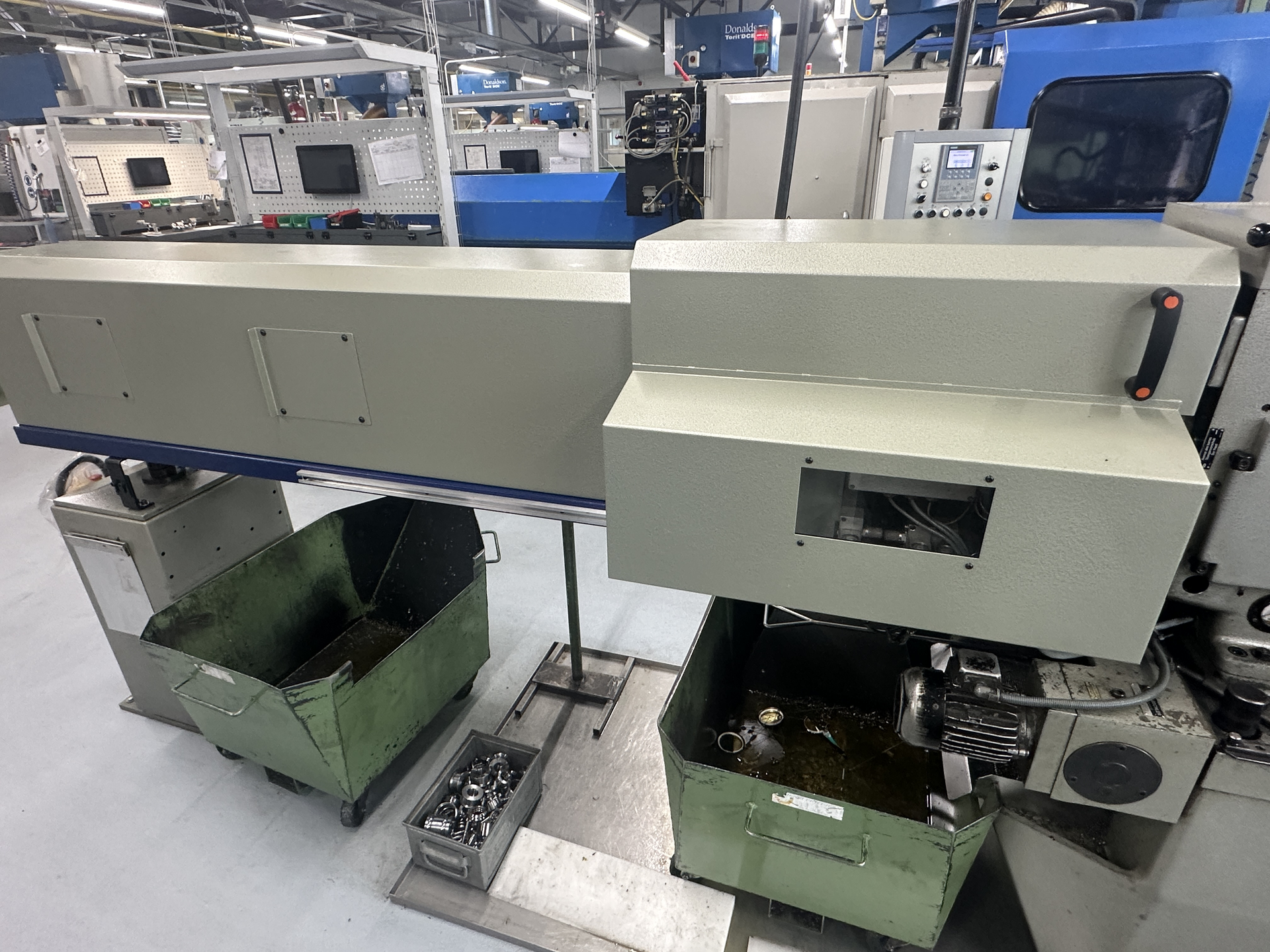

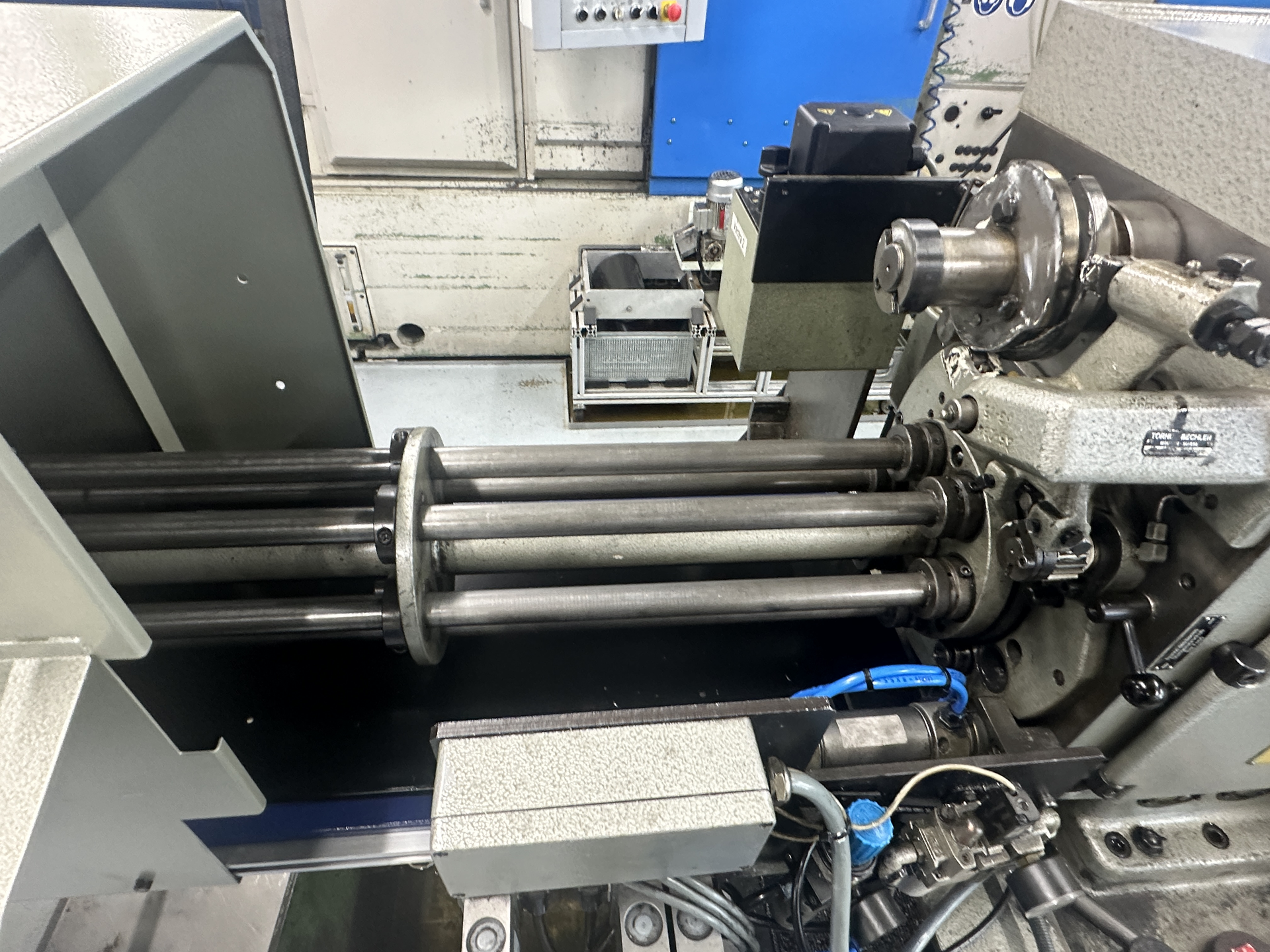

| Automatic bar loader (num. bars) | |
| Status light |
