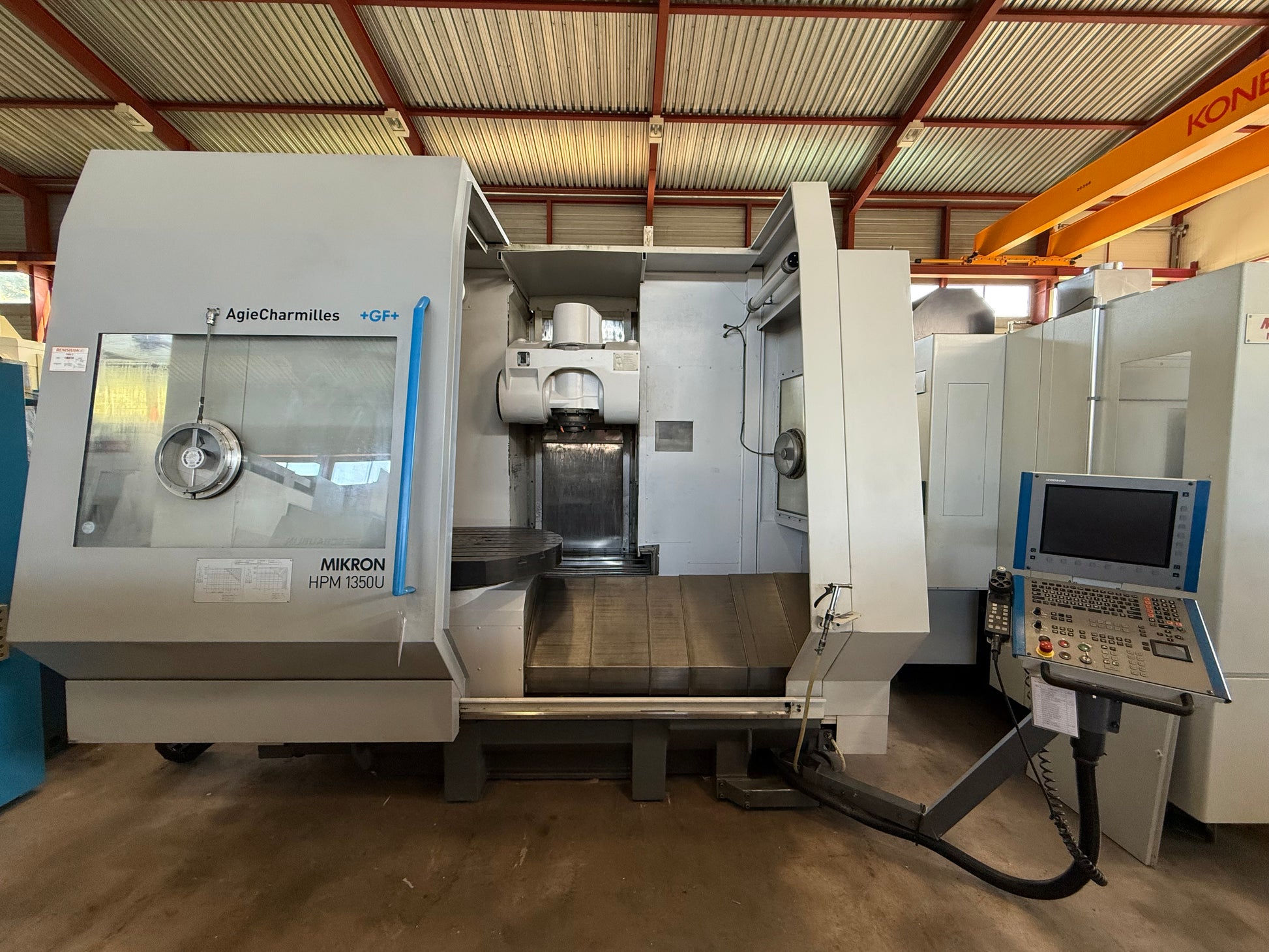

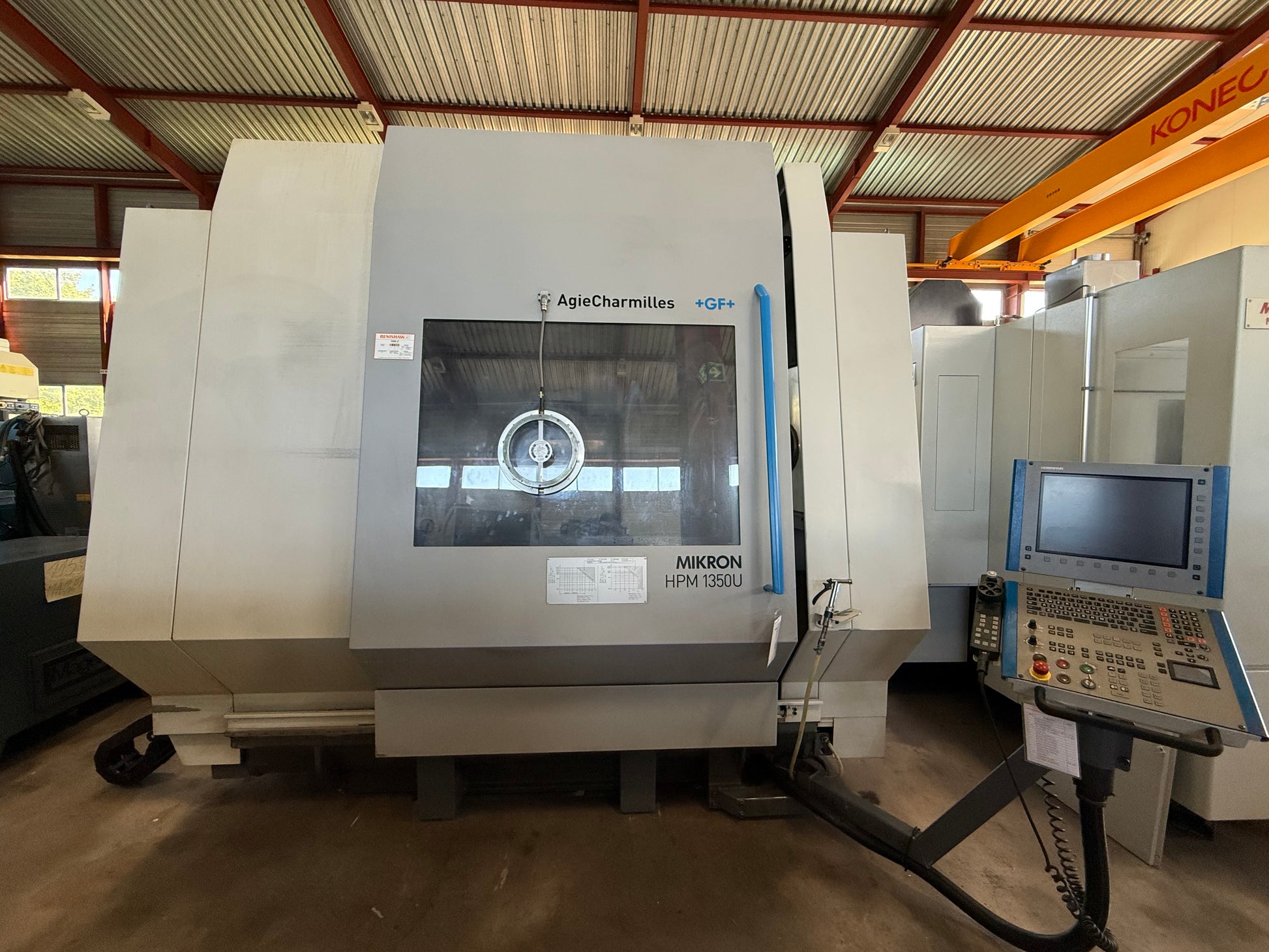

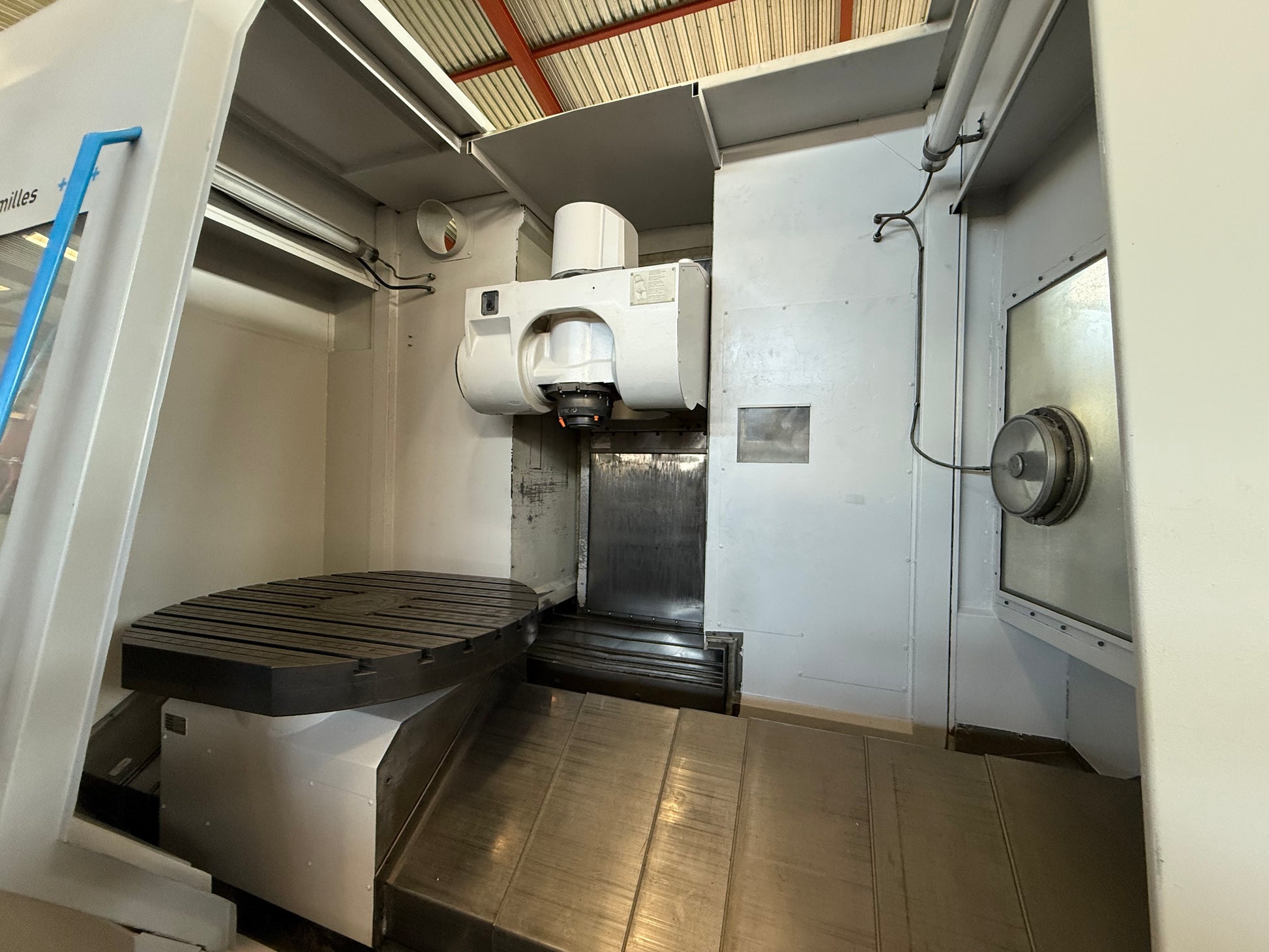

MIKRON HPM 1350 U is a 5-axis machining center designed for precision, high accuracy and reliability. Capacities: rotary table Ø1100 mm, table load max 1600 kg, travels X1350 mm, Y1150 mm, Z895 mm, swivel A +16/-120°. Main specs: spindle HSK-A63, speeds 0–18000 rpm stepless, 92-tool magazine, voltage 3x400 V 50 Hz, total power 68 kW, noise 68 dB(A), machine weight ~12600 kg, footprint L4500×W3600×H3500 mm. Accessories: coolant system, paper filtration, Renishaw touch probe, chip conveyor, electronic handwheel, oil mist extractor, rotating viewing window. Delivers tight tolerances; suited for automotive, aerospace, medical, watchmaking and machine-tool sectors.
| Number of axis total | 5 |
| Number of spindles | 1 |

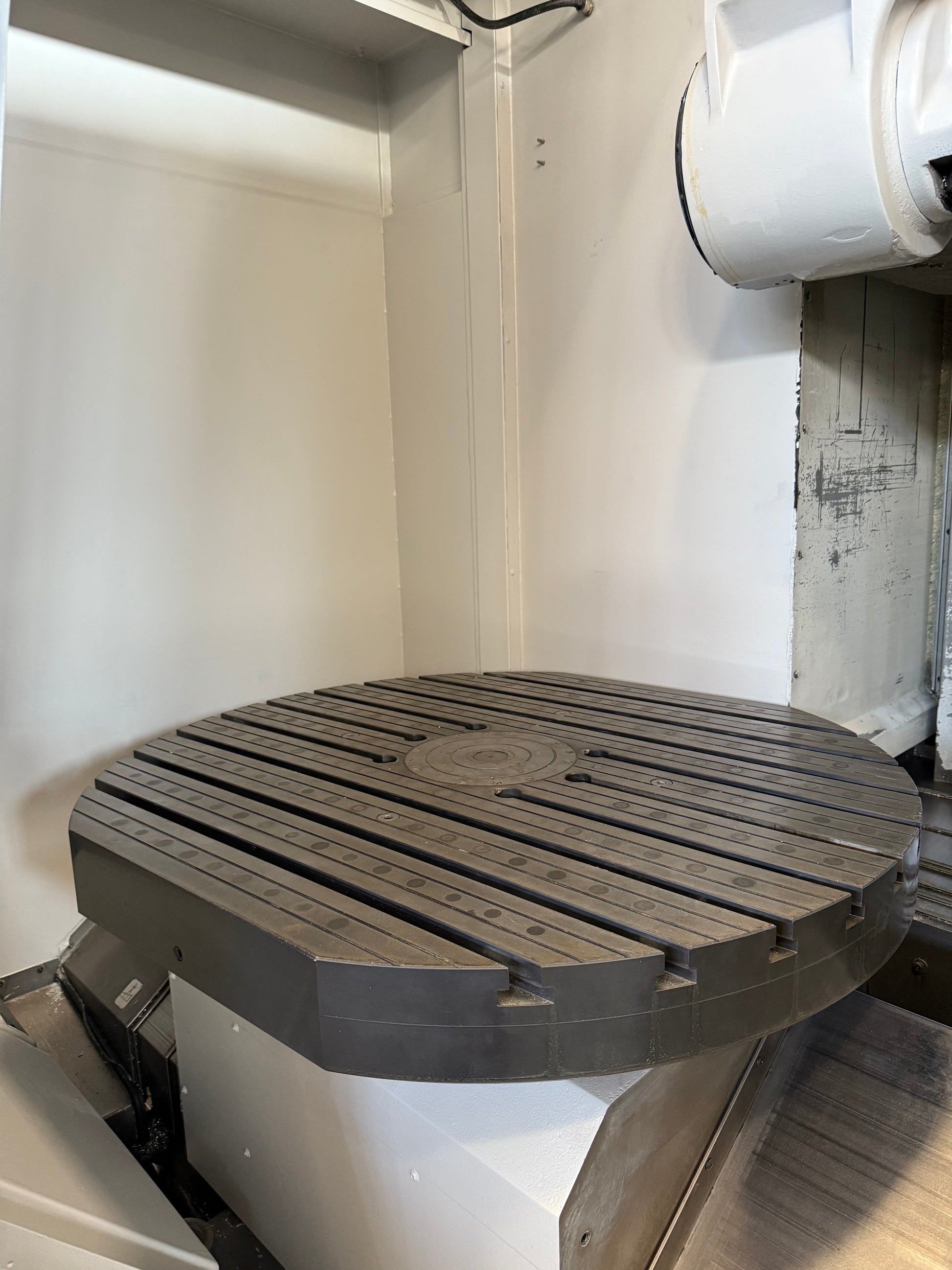

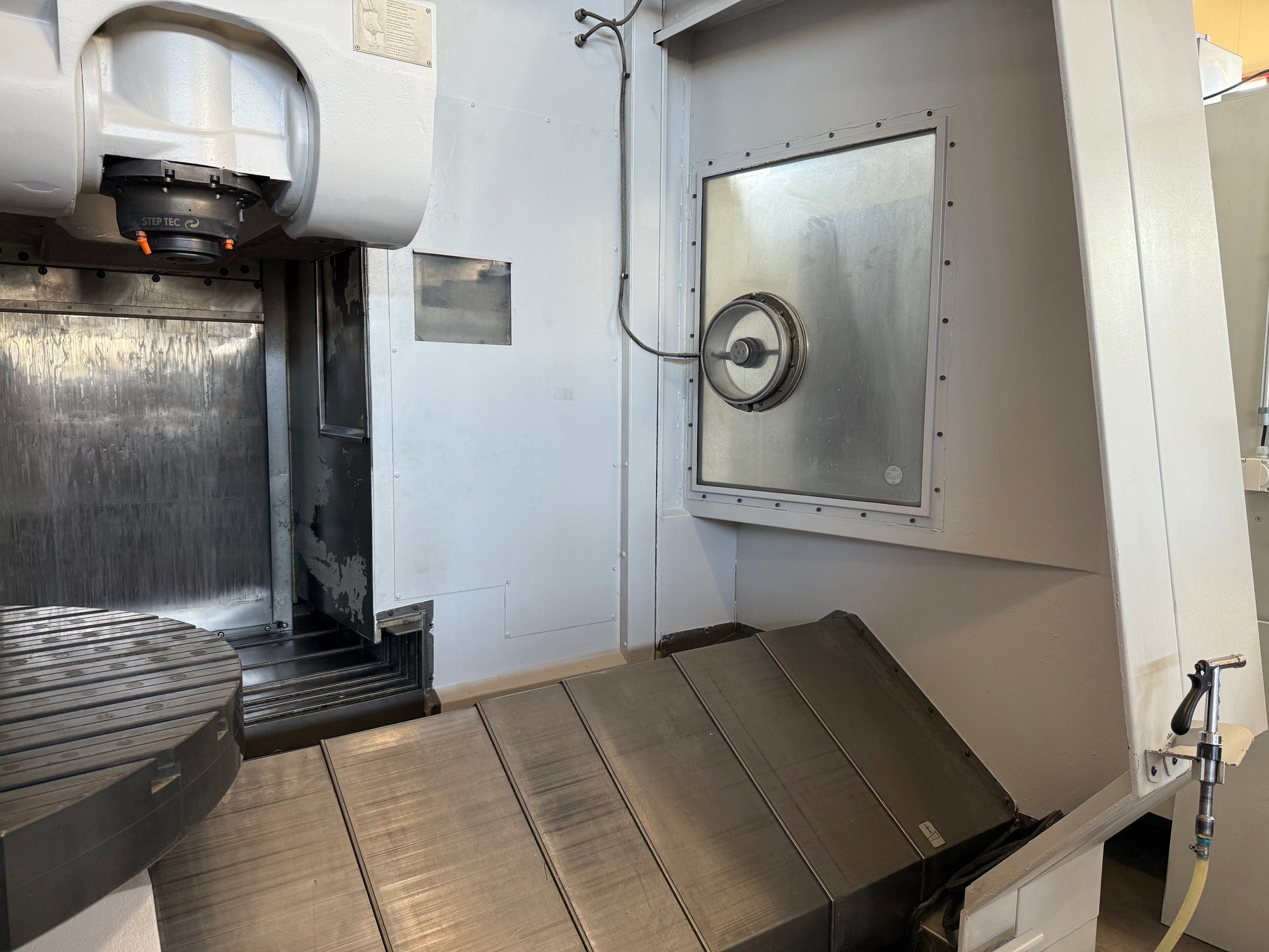

| Circulary table diameter | 1100 mm |
| Table load max. | 1600 kg |
| Longitudinal travel (X-axis) | 1350 mm |
| Transversal travel (y-axis) | 1150 mm |
| Vertical travel (z axis) | 895 mm |
| Swivel angle (a-axis) | +16 - / 120 ° |

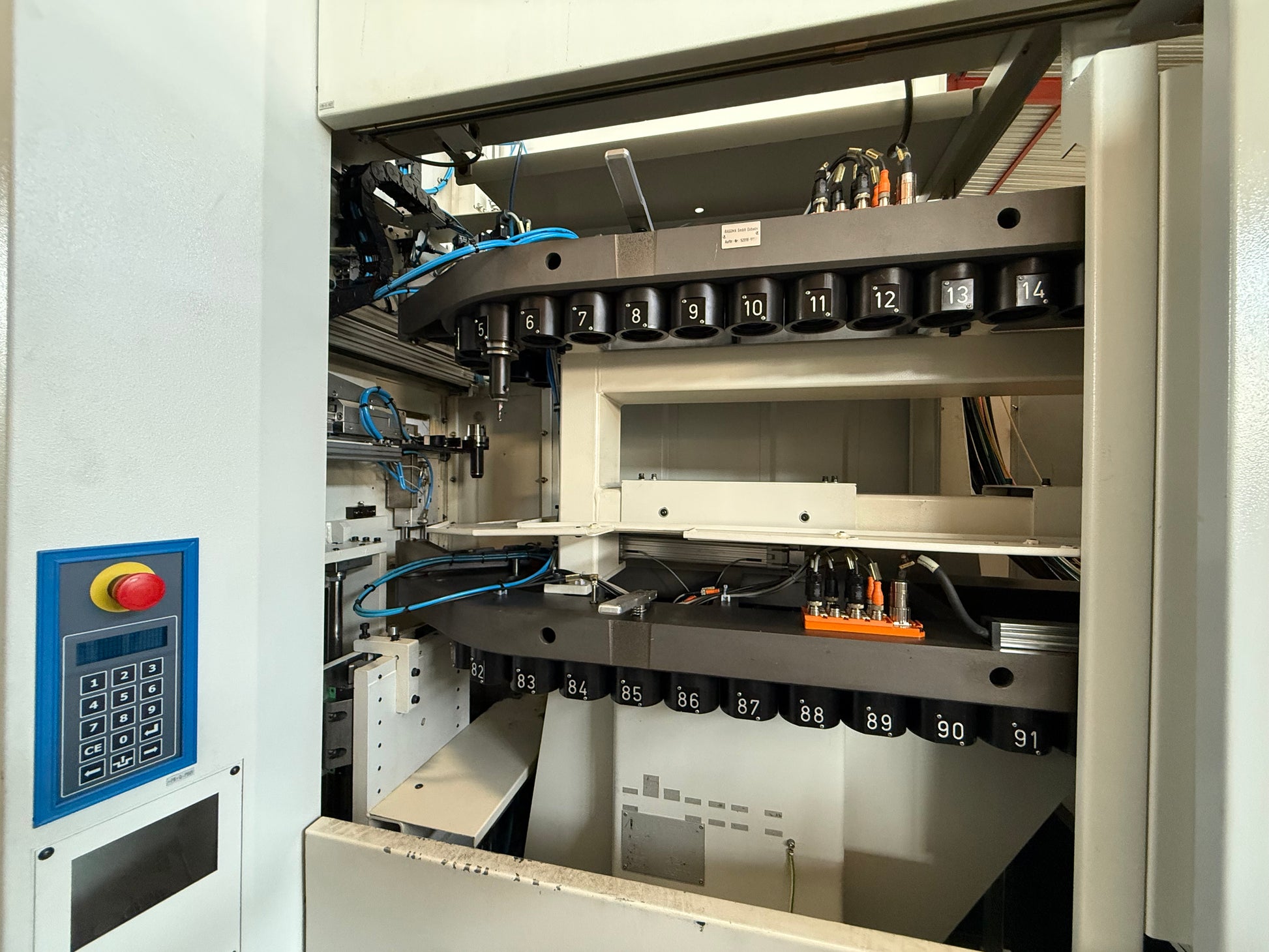

| Tool magazine number of tool places | 92 |

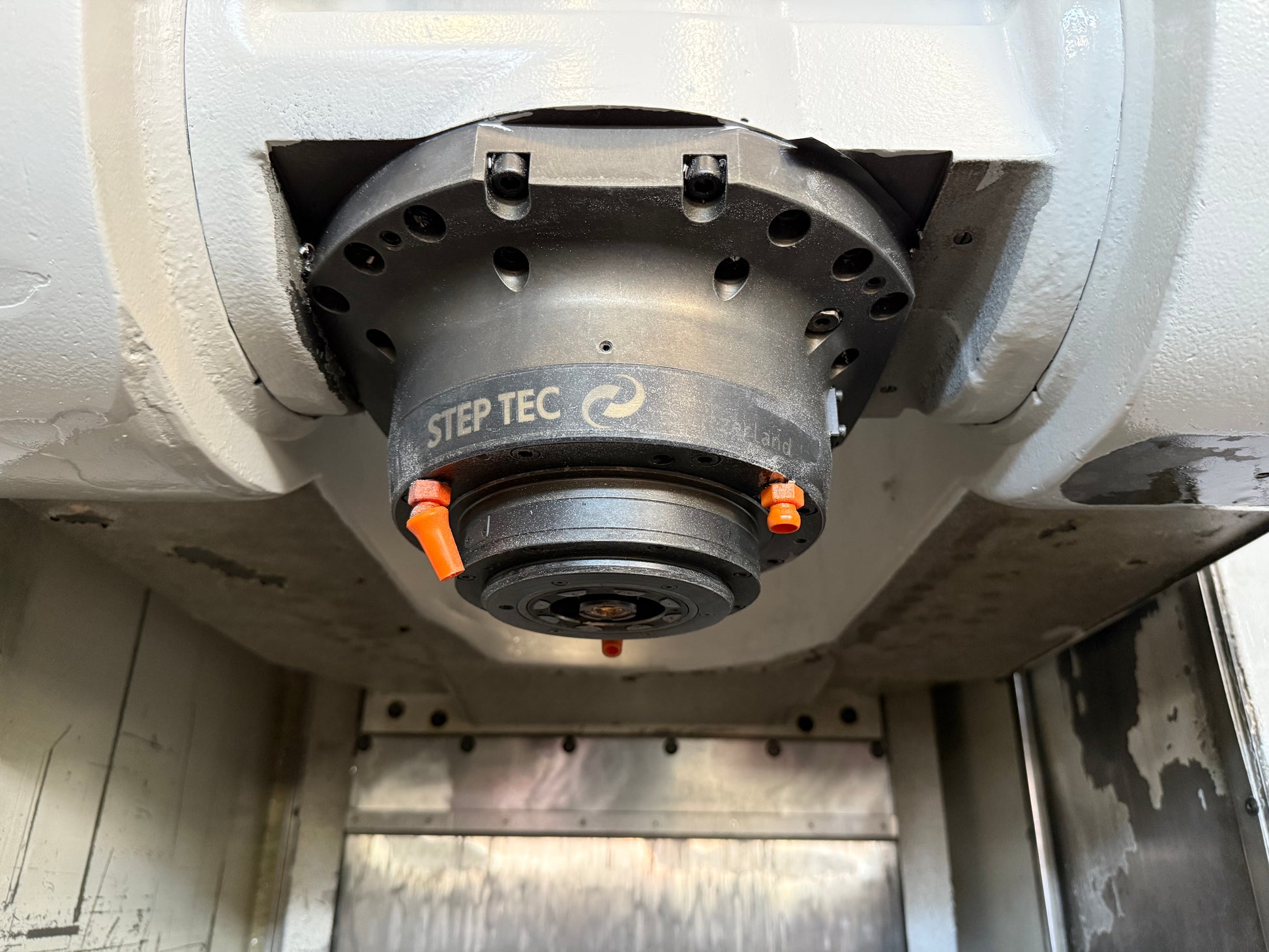

| Spindle nose: HSK-A | 63 |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 18000 t/min |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 68 kW |
| Noise level | 68 dB (A) |
| Machine's weight about | 12600 kg |
| Overall dimensions machine: | |
| Length | 4500 mm |
| Width | 3600 mm |
| Height | 3500 mm |
| Various accessories: | |
| Coolant system | |

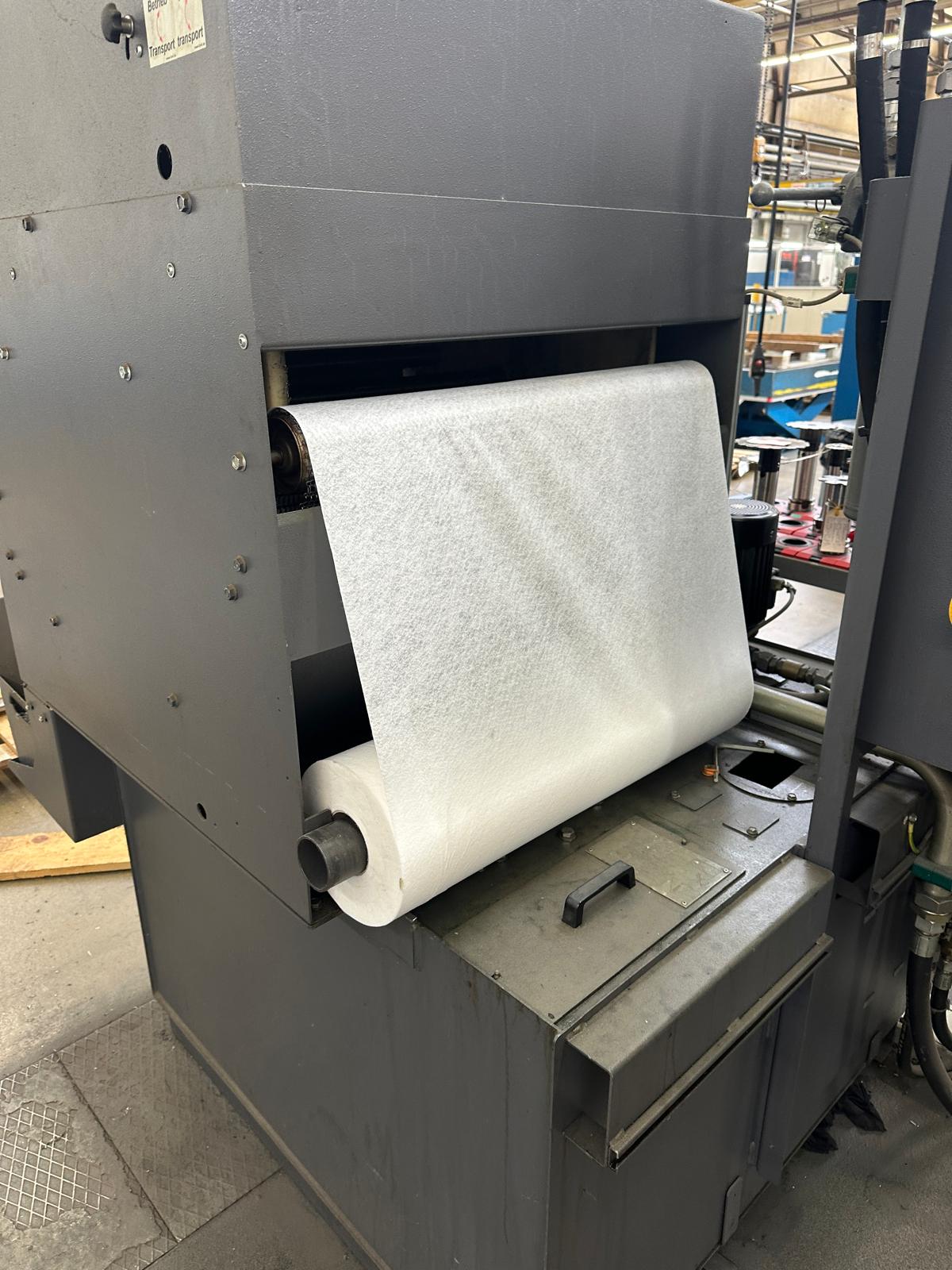

| Paper filtration system | |

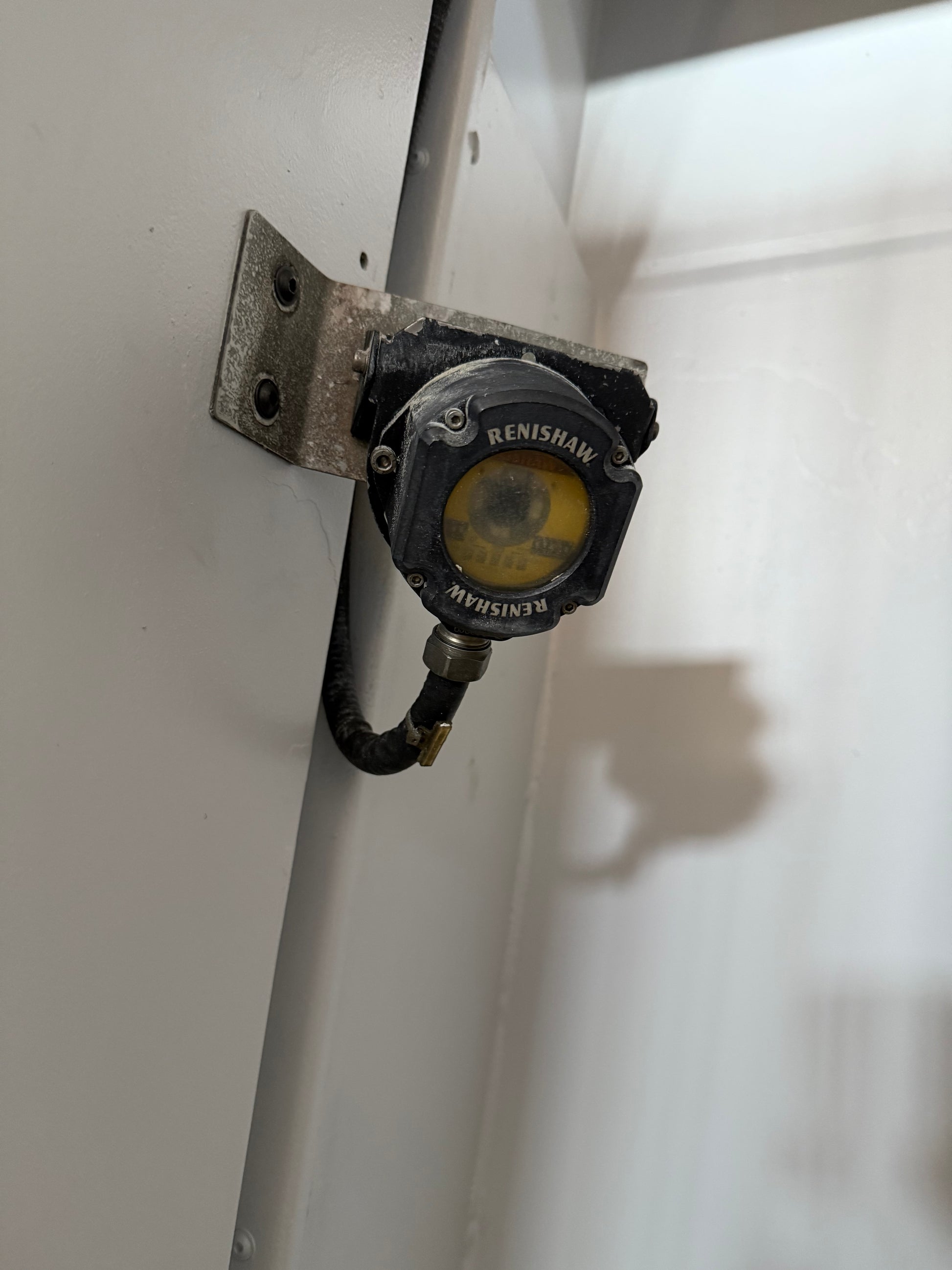

| Touch Probe Renishaw | |
| Chip conveyor | |
| Handwheel electroinic | |

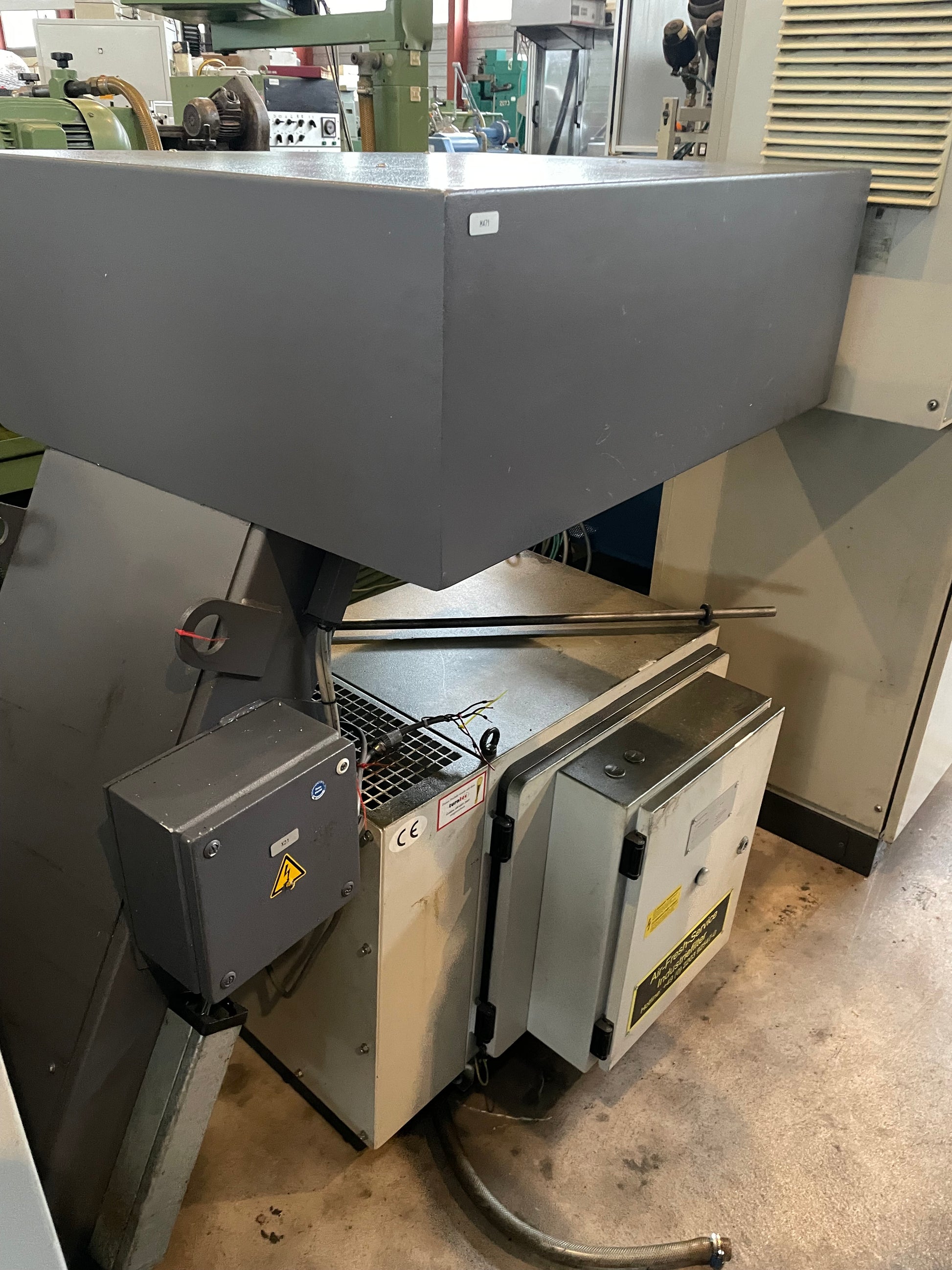

| Oil mist extractor | |
| Rotating viewing window |
