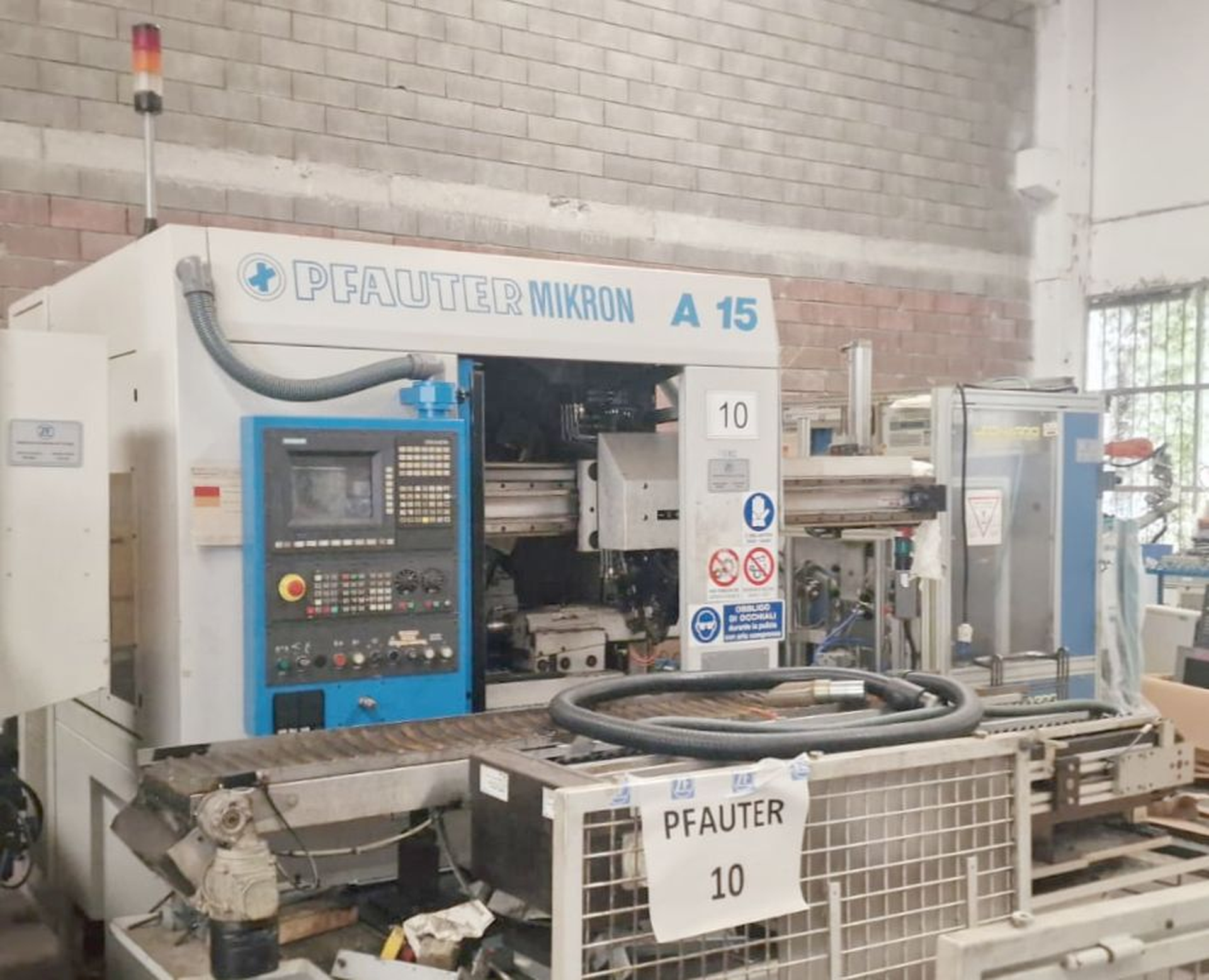

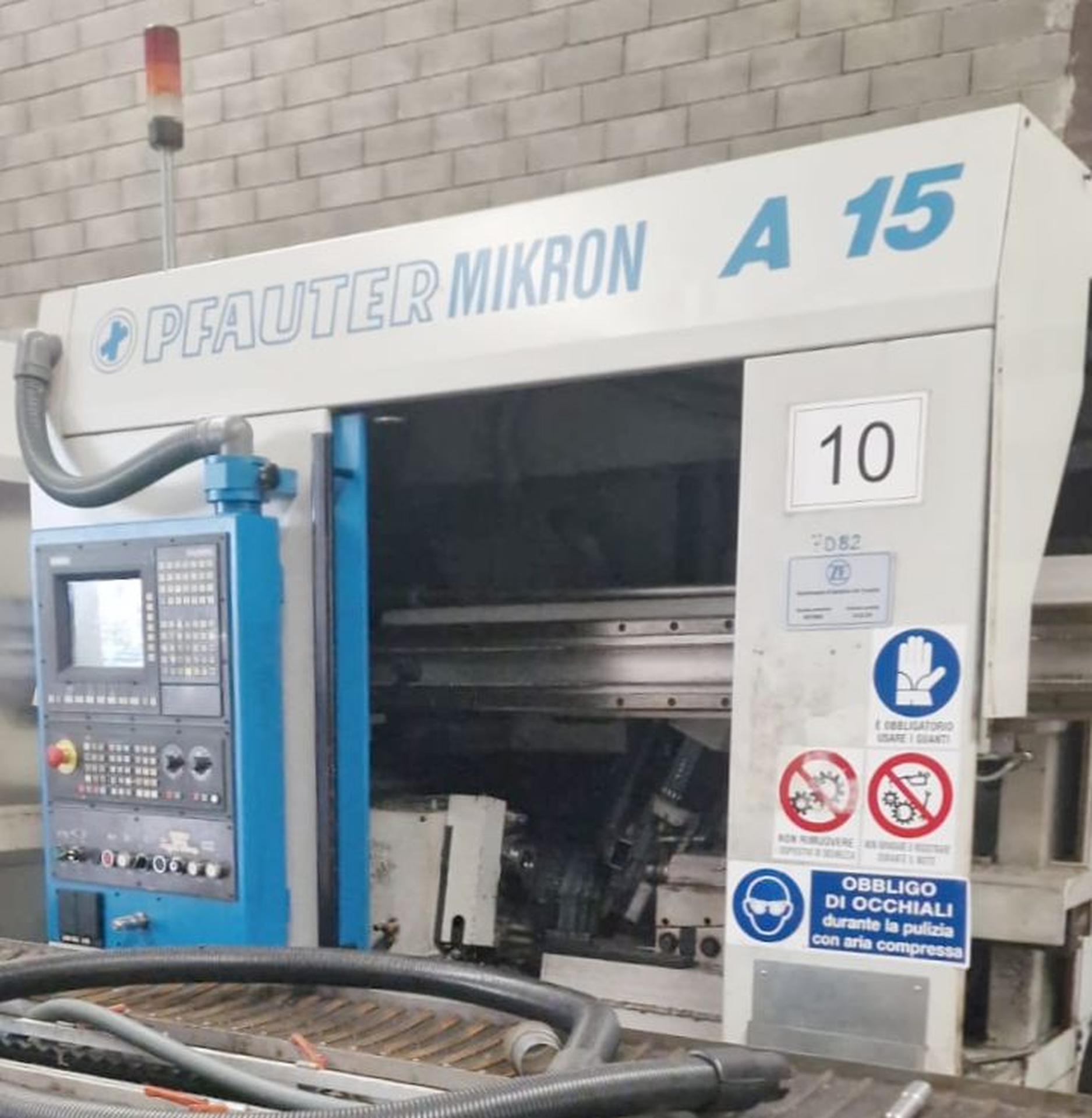

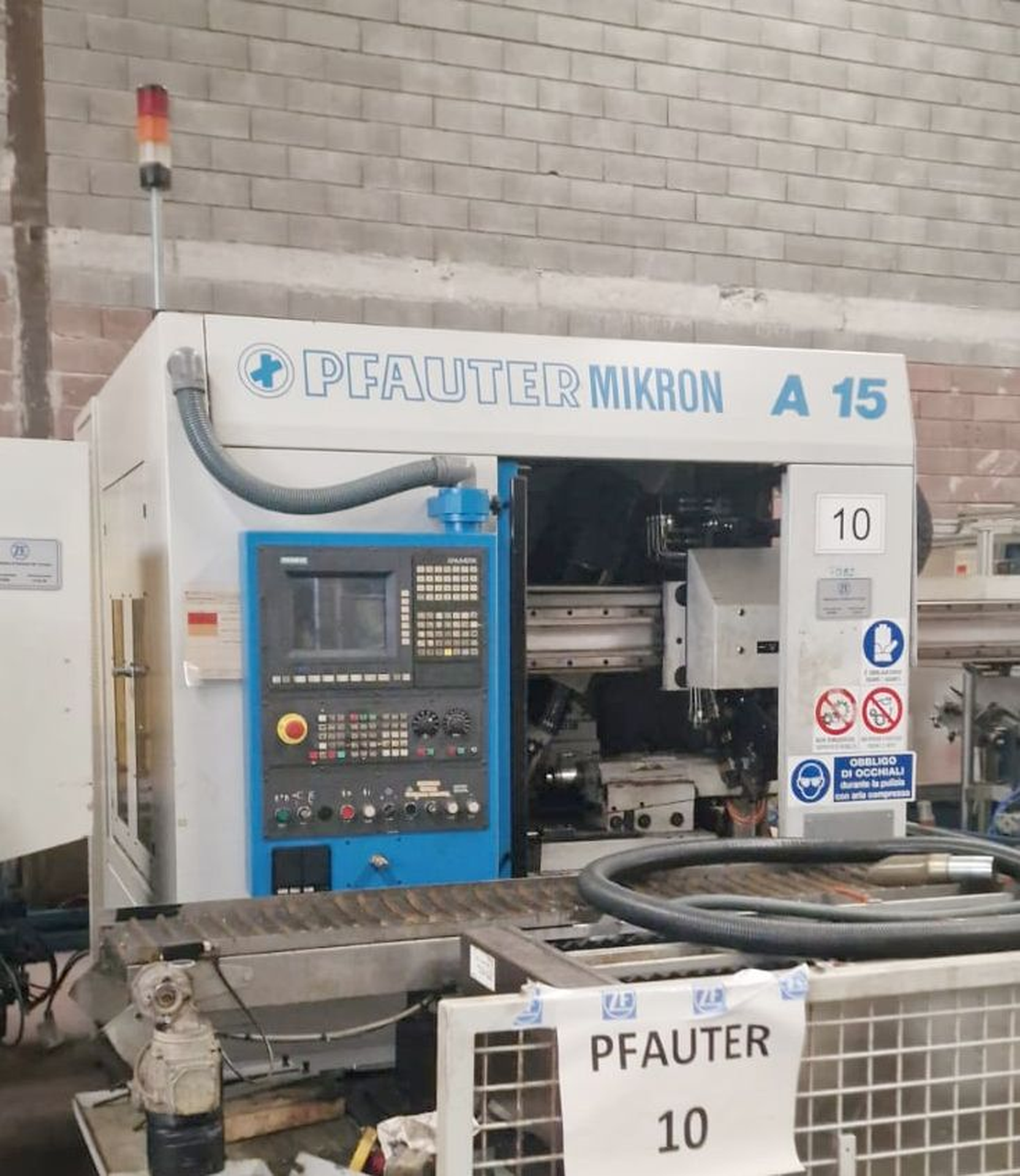

PFAUTER-MIKRON A 15 CNC
Type: A 15 CNC
Manufacturer: PFAUTER-MIKRON
Group: Hobbing machine
Subgroup: CNC Gear Hobbing Machines

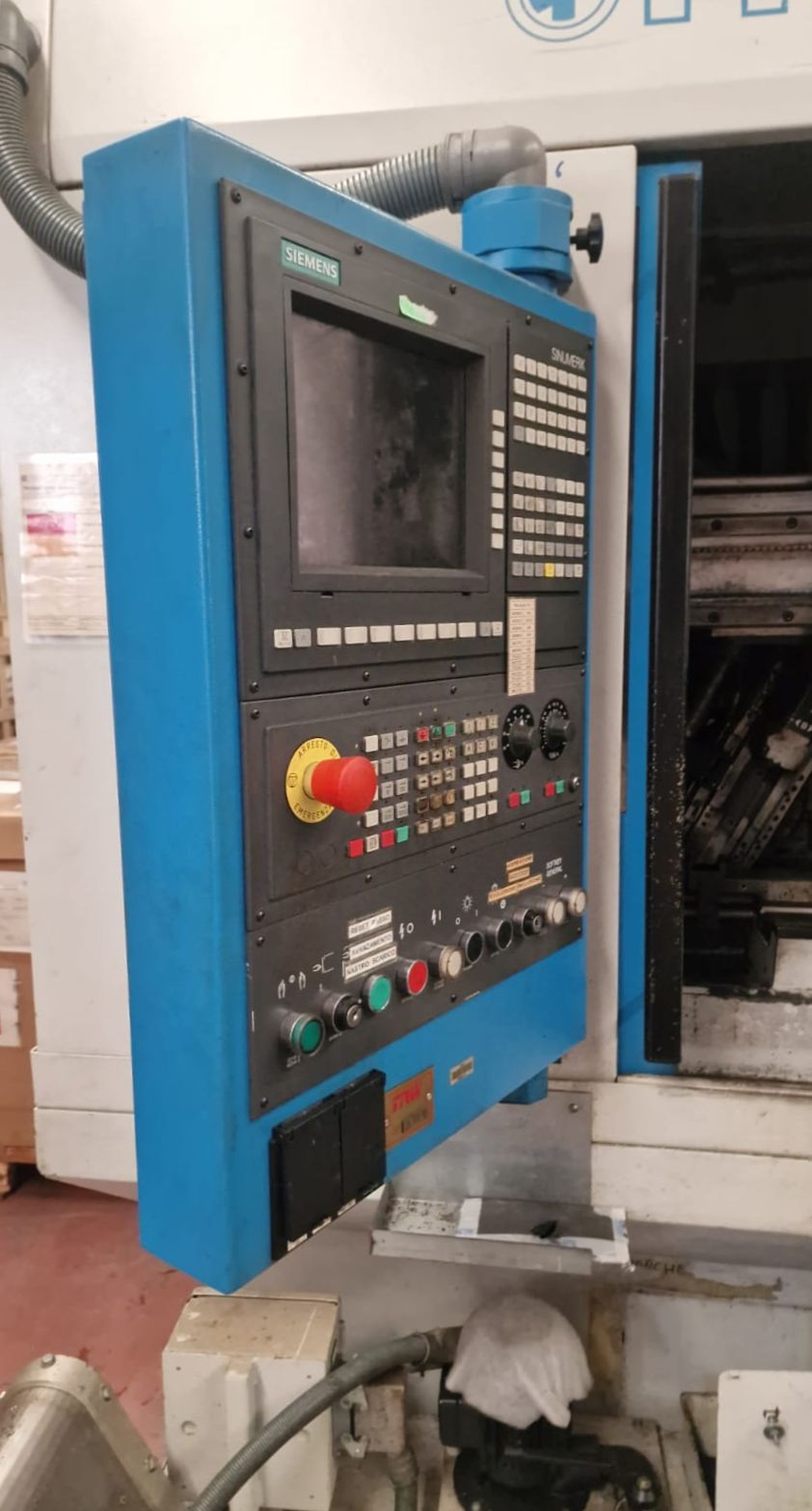

Control: SIEMENS 840C
Stock: 023017
PFAUTER‑MIKRON A 15 CNC is a CNC Gear Hobbing Machine delivering high precision, accuracy and reliable performance. Capacities: workpiece Ø 100 mm, module max 2.5 mm, length max 300 mm, pitch 1–999, hob Ø max 65 mm. Cutter speed stepless 200–4000 t/min, head tilt -50/+50°. 50 Hz 3x380 V, total power 12 kVA, weight ≈5500 kg, dims 2670×2085×2255 mm. Accessory: loading attachment. Enables tight tolerances; typical sectors: automotive, tooling, aerospace, medical, watchmaking.
| Work-piece diameter | 100 mm |
| Module max. | 2.5 mm |
| Workpiece length max. | 300 mm |
| Pitch min. | 1 |
| max. | 999 |
| Gear hob: | |
| max. diameter | 65 mm |
| min. diameter | 100 mm |
| Milling cutter speeds: | |
| stepless | |
| from | 200 t/min |
| up to | 4000 t/min |
| Max. milling head inclination | -50 / +50 ° |
| Voltage 50 Hz 3x | 380 Volt |
| Total power required | 12 kVA |
| Machine's weight about | 5500 kg |
| Overall dimensions machine: | |
| Length | 2670 mm |
| Width | 2085 mm |
| Height | 2255 mm |
| Various accessories: | |

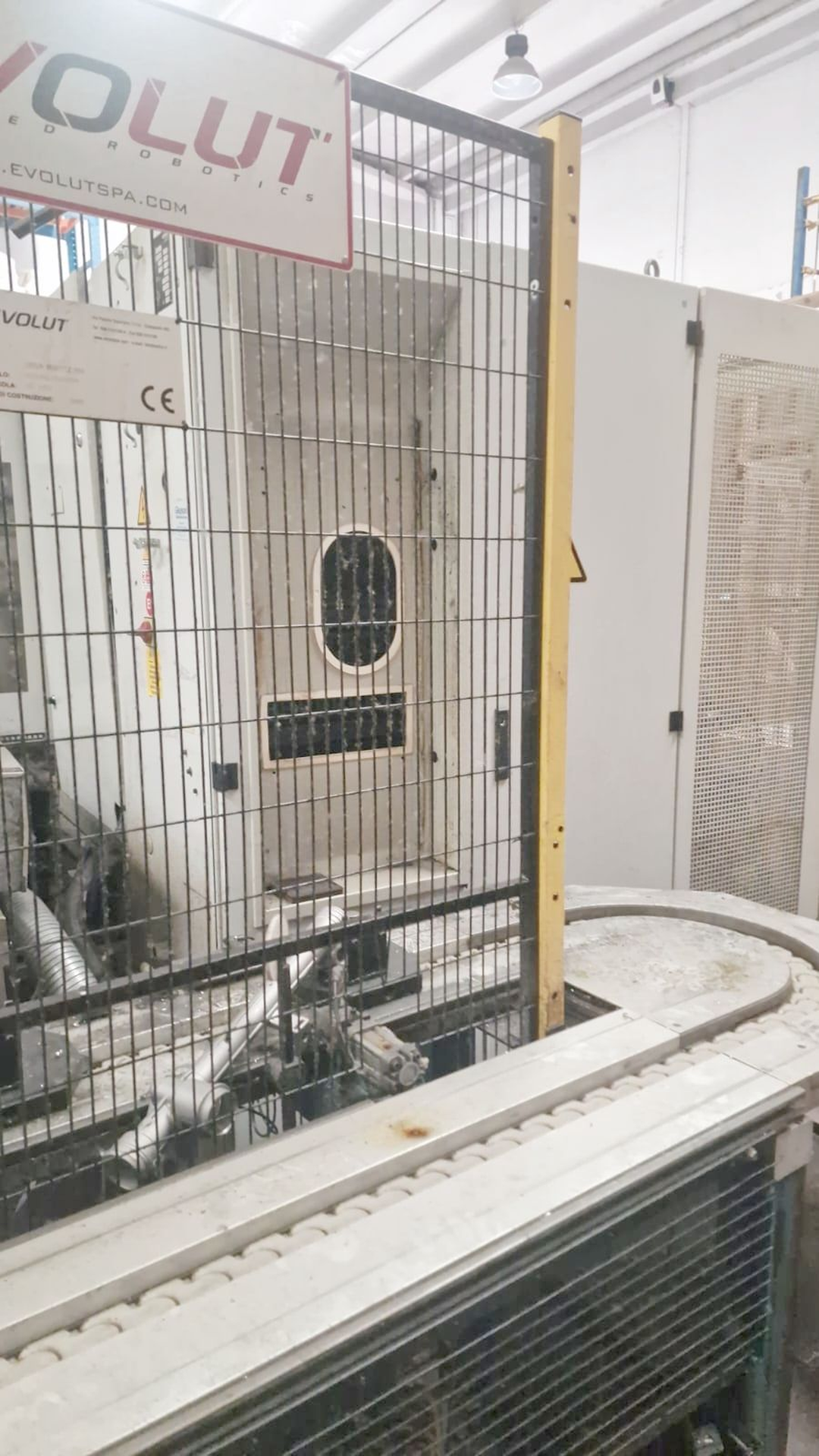

| Loading attachment |
