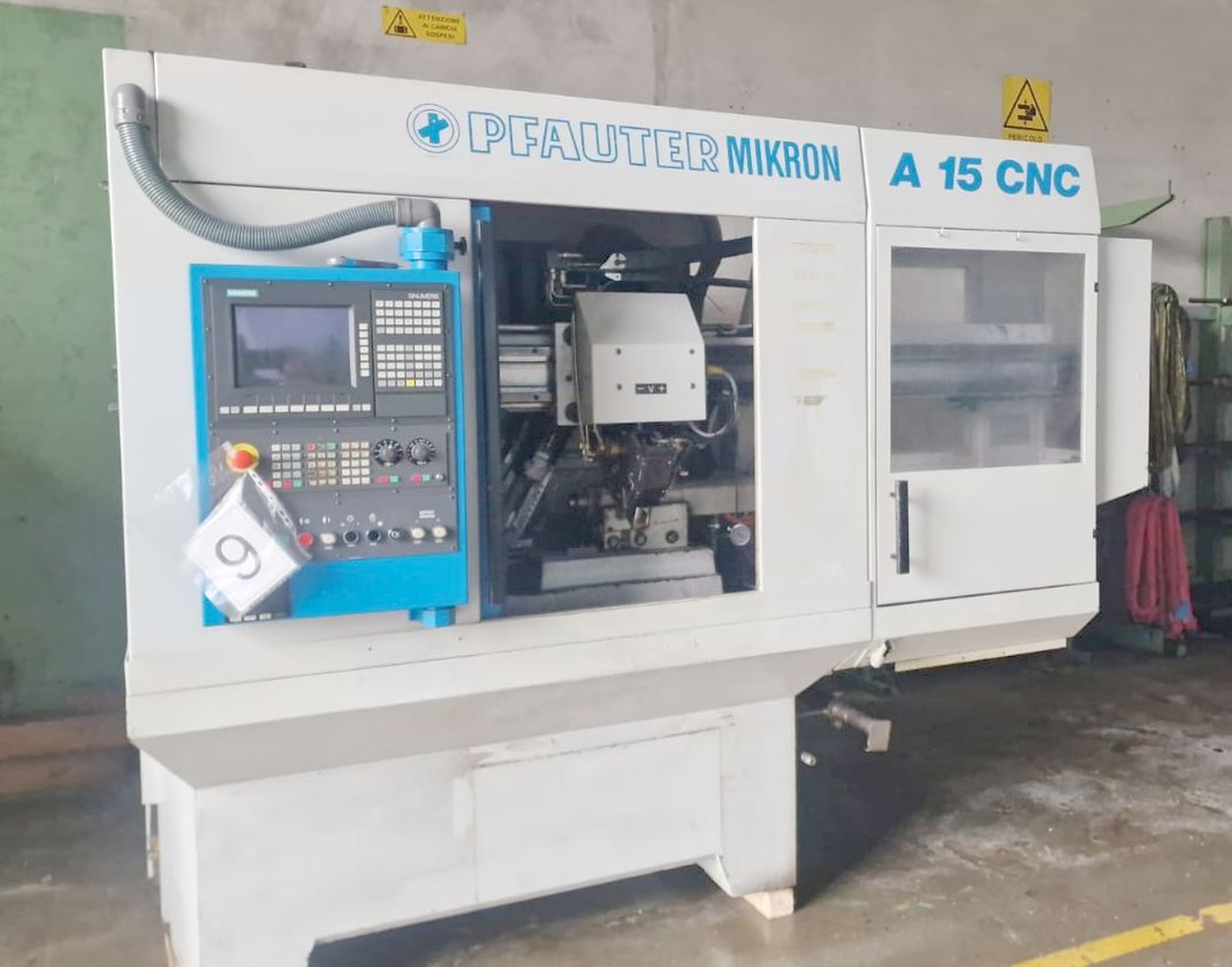

PFAUTER-MIKRON A 15 CNC
Type: A 15 CNC
Manufacturer: PFAUTER-MIKRON
Group: Hobbing machine
Subgroup: CNC Gear Hobbing Machines

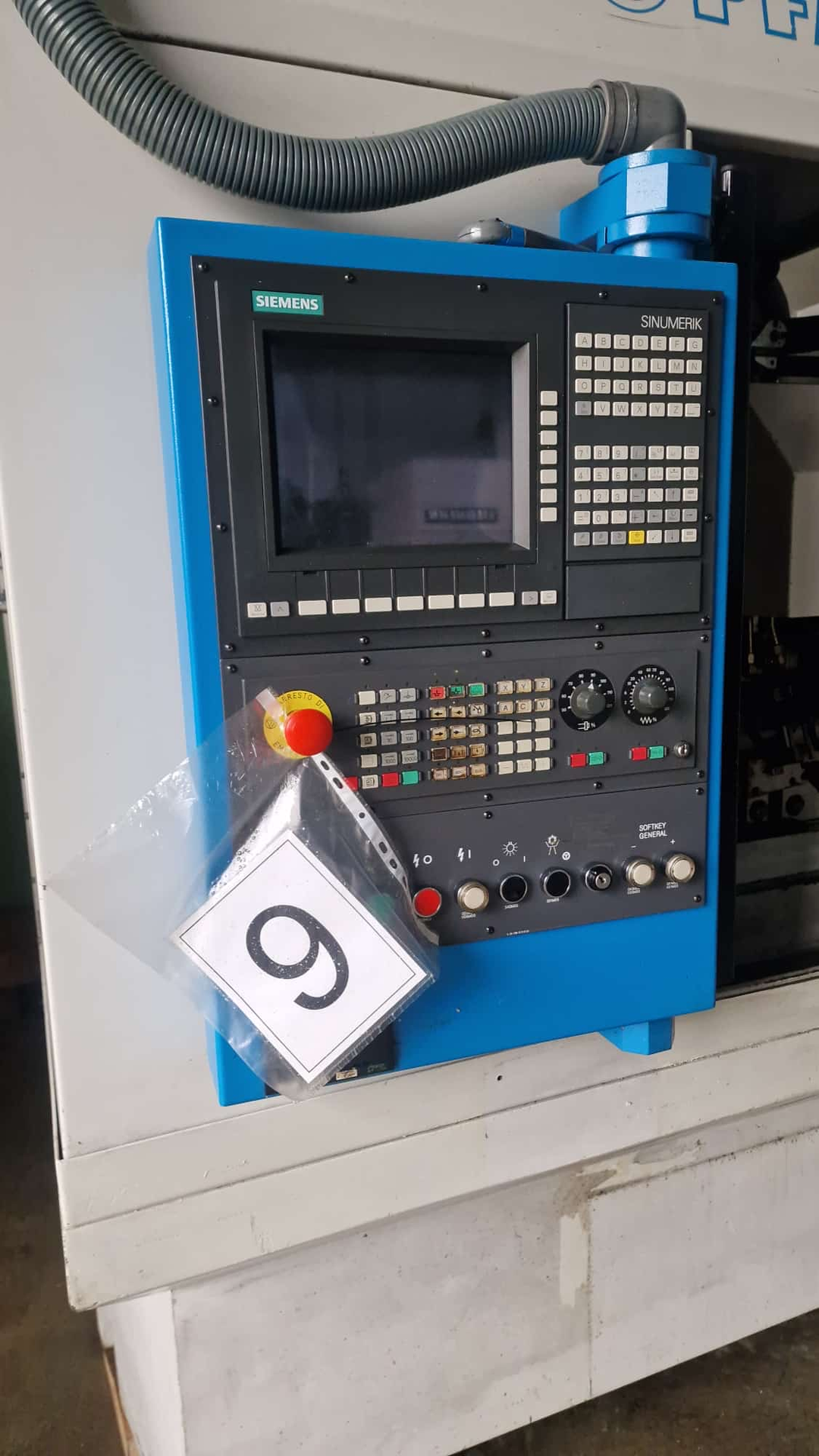

Control: SIEMENS 840C
Stock: 023016
PFAUTER-MIKRON A 15 CNC is a CNC Gear Hobbing Machine providing high precision, accuracy and reliability. Capacities: workpiece diameter 100 mm, module max 2.5 mm, workpiece length max 300 mm, teeth 1–999; hob max ø 65 mm; milling head tilt -50/+50°. Specs: hob speeds stepless 200–4000 t/min; voltage 50 Hz 3x 380 V; total power 12 kVA; weight ≈5500 kg; footprint L2617×W2085×H2255 mm. Enables tight tolerances; typical sectors: automotive, aerospace, machine tools, watchmaking and precision components.
| Work-piece diameter | 100 mm |
| Module max. | 2.5 mm |
| Workpiece length max. | 300 mm |
| Pitch min. | 1 |
| max. | 999 |
| Gear hob: | |
| max. diameter | 65 mm |
| min. diameter | 100 mm |
| Milling cutter speeds: | |
| stepless | |
| from | 200 t/min |
| up to | 4000 t/min |
| Max. milling head inclination | -50 / + 50 ° |
| Voltage 50 Hz 3x | 380 Volt |
| Total power required | 12 kVA |
| Machine's weight about | 5500 kg |
| Overall dimensions machine: | |
| Length | 2617 mm |
| Width | 2085 mm |
| Height | 2255 mm |
