MORI SEIKI SV-503B/40
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
MORI SEIKI SV-503B/40 is a 4-axis machining center designed for precision, high accuracy and reliability. Table 1320×600 mm, table load 1200 kg; travels X1050, Y510, Z510 mm; tool magazine 30 places, BT40. Spindle 0–10,000 rpm, 22 kW; voltage 3x200V 50Hz; total power 58 kVA; weight ~8030 kg; dimensions 2500×2350×2700 mm. Equipment: toolholder set, coolant with 30 bar through‑spindle, chip conveyor, NIKKEN dividing attachment, lamp and status light. Suitable for tight‑tolerance work in automotive, aerospace, medical and machine‑tool sectors.
Technical specifications are subject to change without notice
| Number of axis total | 4 |
| Table length | 1320 mm |
| Table width | 600 mm |
| Table load max. | 1200 kg |
| Longitudinal travel (X-axis) | 1050 mm |
| Transversal travel (y-axis) | 510 mm |
| Vertical travel (z axis) | 510 mm |
| Tool magazine number of tool places | 30 |
| Spindle nose: BT | 40 |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 10000 t/min |
| Measurement system: | |
| Voltage 50 Hz 3x | 200 Volt |
| Spindle power | 22 kW |
| Total power required | 58 kVA |
| Machine's weight about | 8030 kg |
| Overall dimensions machine: | |
| Length | 2500 mm |
| Width | 2350 mm |
| Height | 2700 mm |
| Various accessories: | |

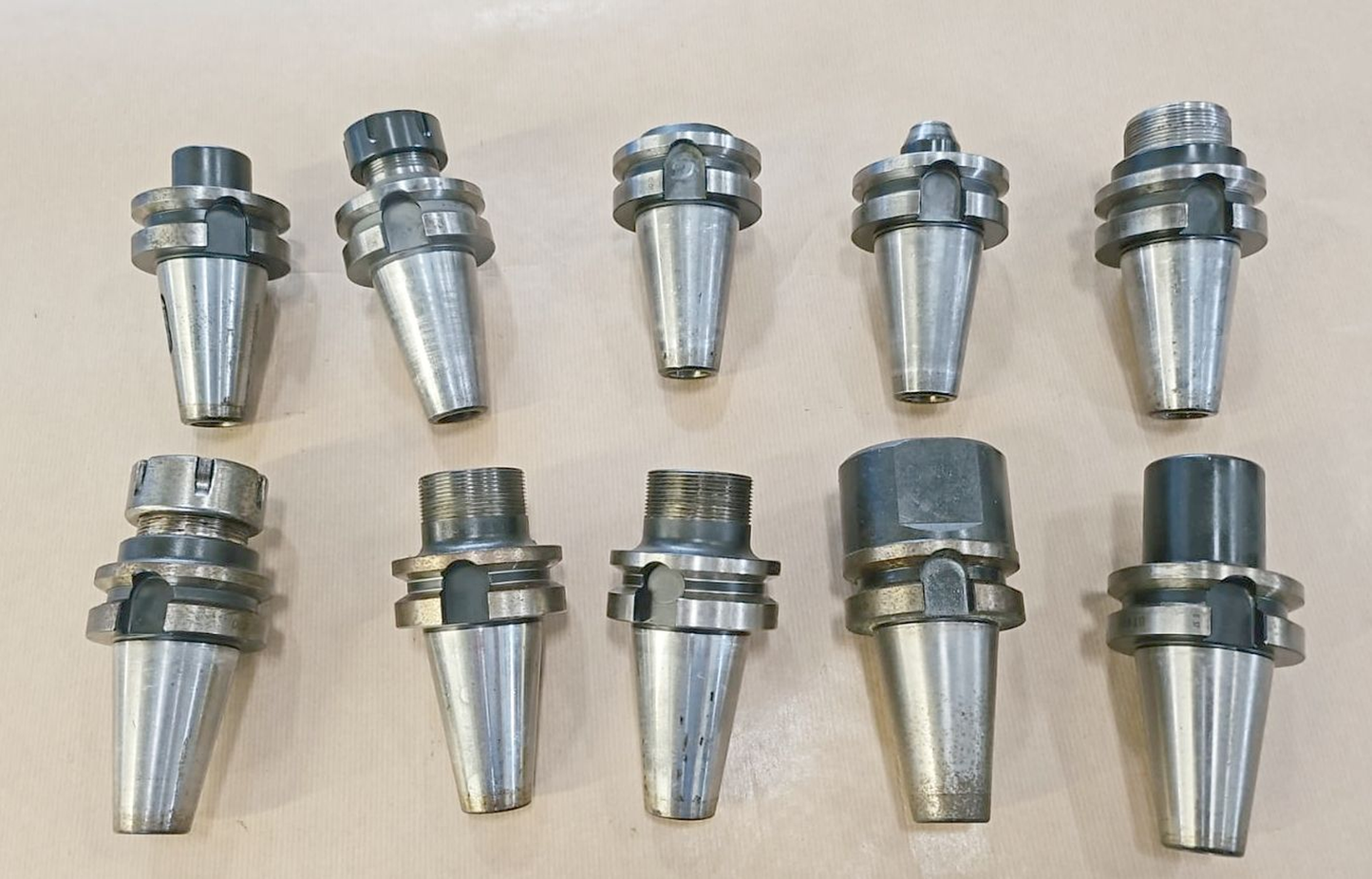

| Set of toolholders | |
| Coolant system | |
| Coolant through spindle (cts) | 30 bar |
| Chip conveyor | |
| Dividing attachment | NIKKEN |
| Lamp | |
| Status light |
