022595 - SCHAUBLIN 135
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

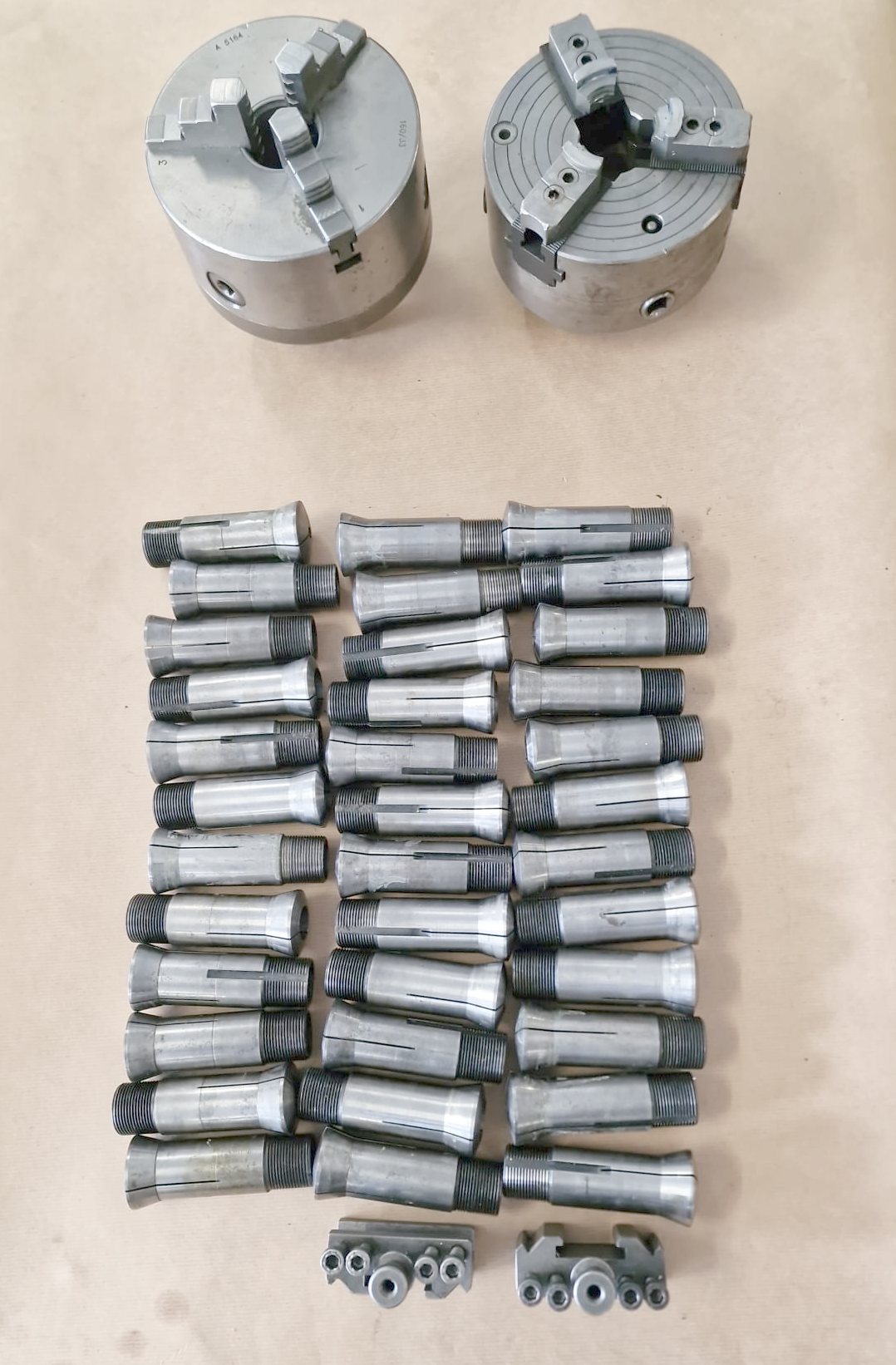

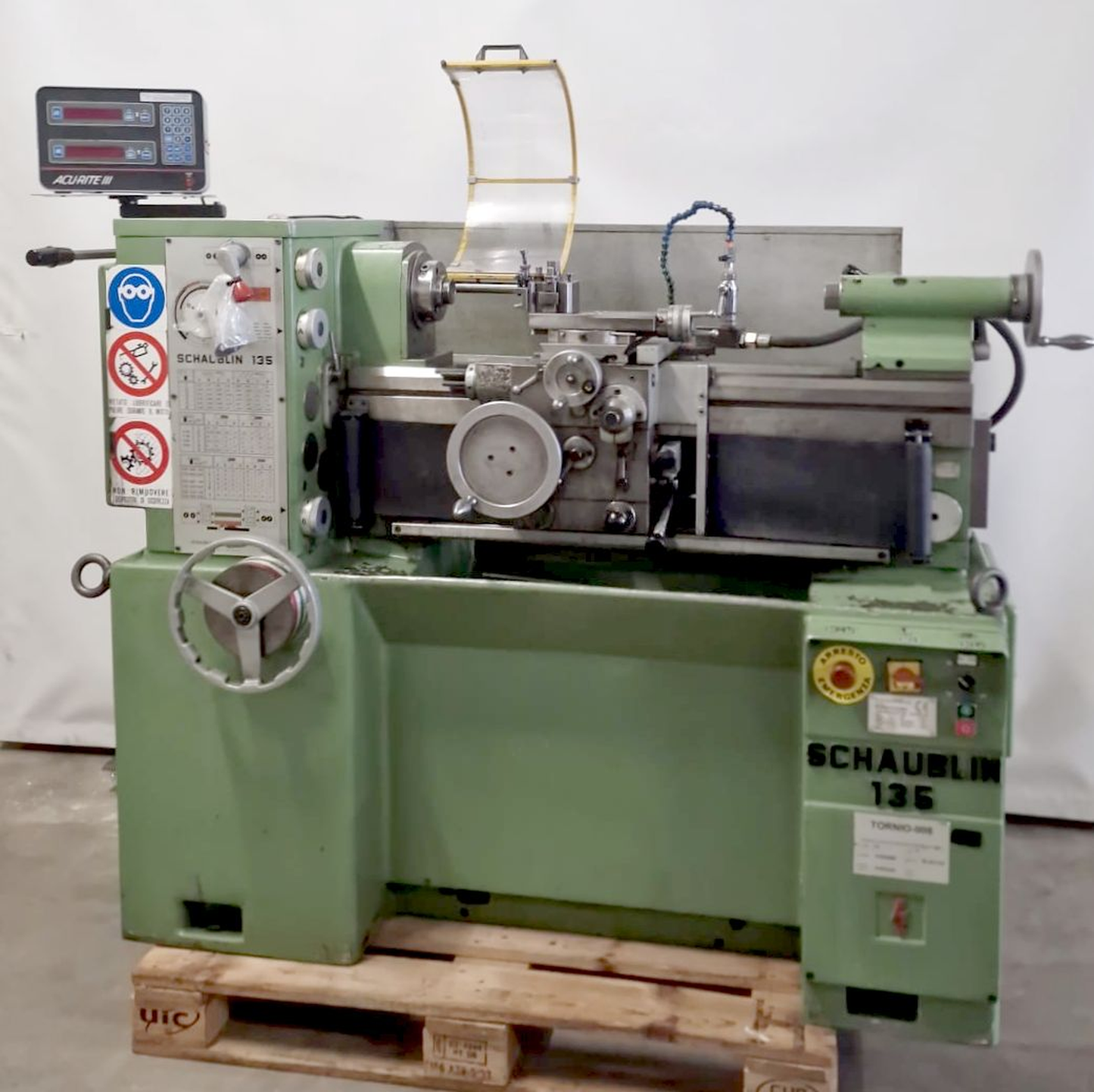

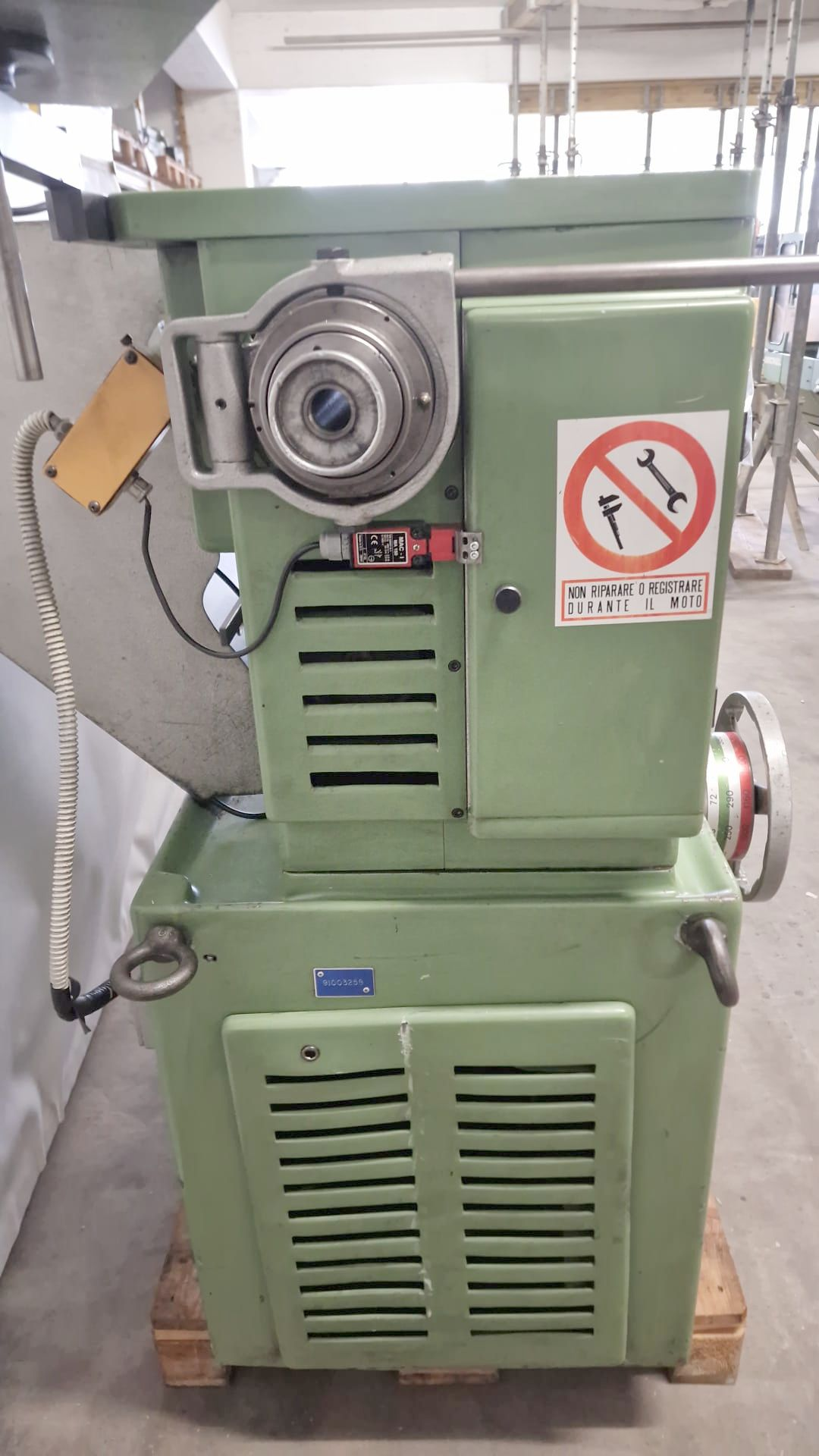

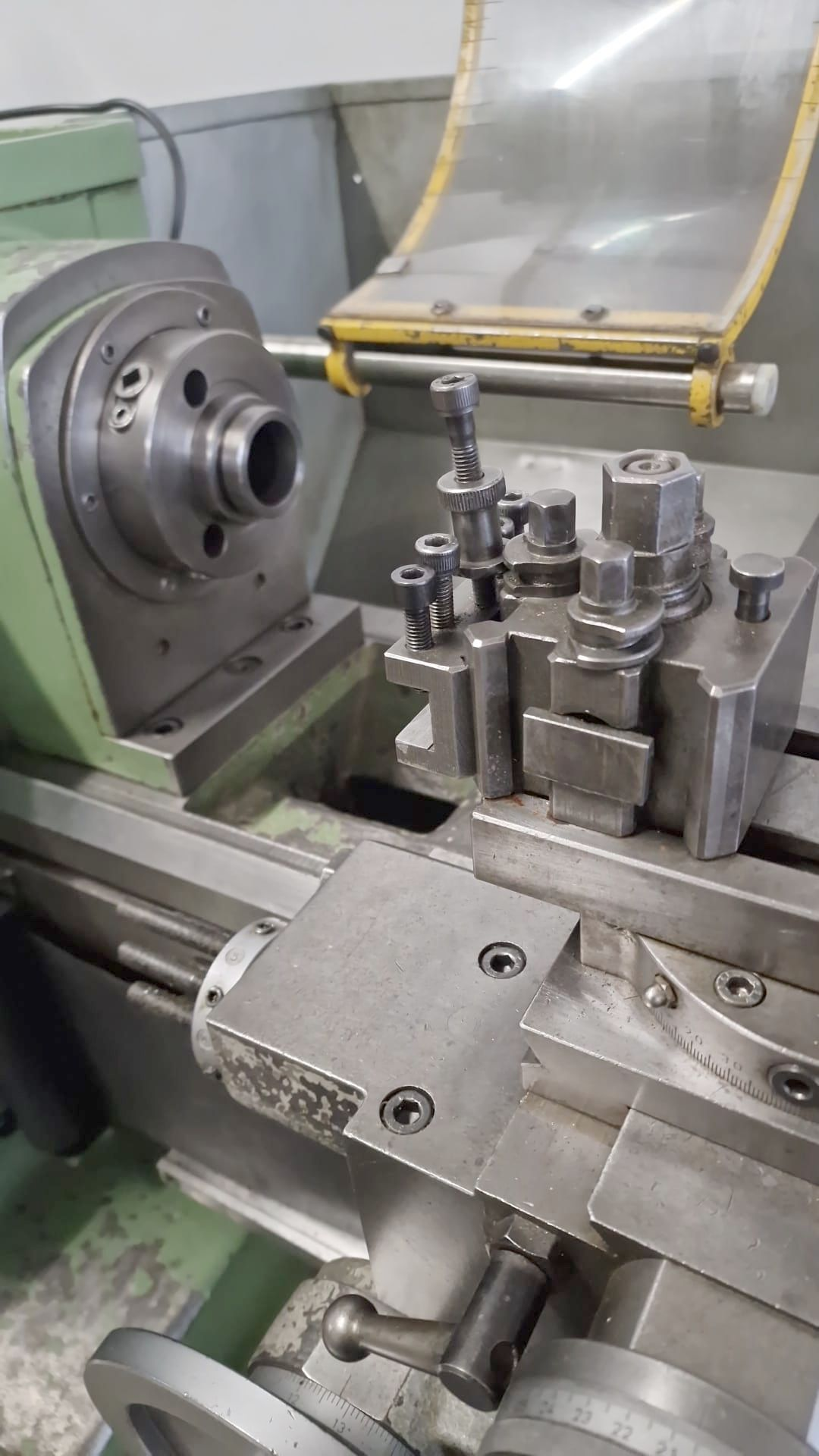

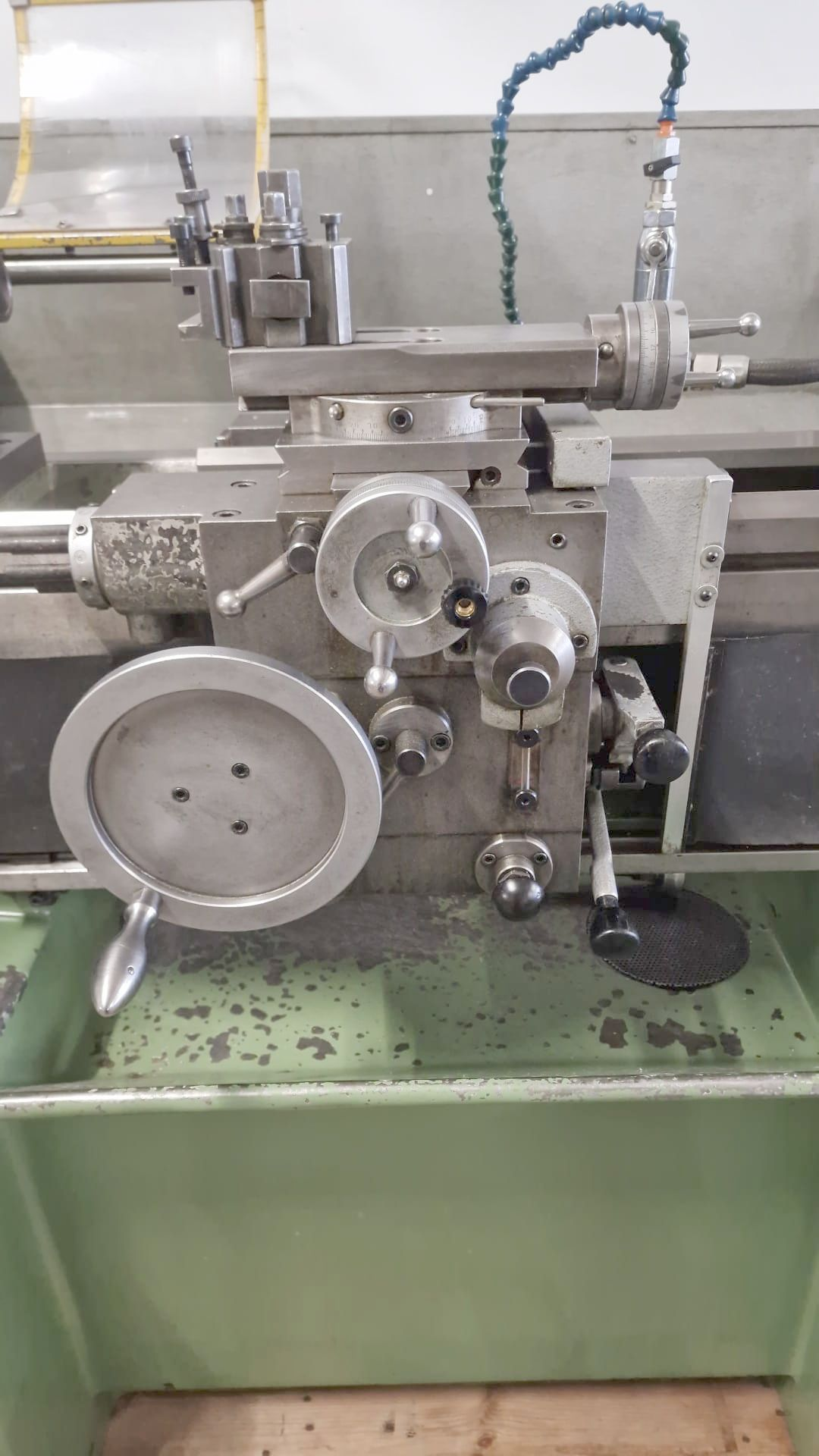

SCHAUBLIN 135 is a Centre lathe designed for precision, high accuracy and reliability. Working capacities: centre height 135 mm, distance between centres 630 mm, swing over cross-slide 150 mm, swing over bed 315 mm, spindle hole 40 mm, spindle nose for collets B32. Main specs: stepless spindle speeds from 55 to 3000 t/min, spindle motor 4.00 CV, total power 6 CV, supply 3x380 V 50 Hz, weight ~1400 kg, dimensions L1700×W850×H1280 mm. Accessories: 2-axis digital readout, 3-jaw chucks Ø150/Ø160, set of collets, set of centers, toolholder set, drilling tailstock, chip protector, quick-closing attachment. Enables tight tolerances; suitable for watchmaking, aerospace, medical, automotive and machine tool manufacturing.
| Centre height | 135 mm |
| Distance between centres | 630 mm |
| Swing over cross-slide | 150 mm |
| Swing over bed | 315 mm |
| Spindle hole | 40 mm |
| Spindel nose for collets | B32 |
| Travels: | |
| Taper in spindle: | |
| Camlock | |
| Spindle speeds: | |
| stepless | |
| from | 55 t/min |
| up to | 3000 t/min |
| Taper in tailstock: | 3 CM |
| Feeds: | |
| number (steps) | 24 |
| length: | |
| from | 0.015 mm/t |
| up to | mm/t |
| Frontal: | |
| from | 0.015 mm/t |
| up to | mm/t |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 4.00 CV |
| Total power required | 6 CV |
| Machine's weight about | 1400 kg |
| Overall dimensions machine: | |
| Length | 1700 mm |
| Width | 850 mm |
| Height | 1280 mm |
| Various accessories: | |

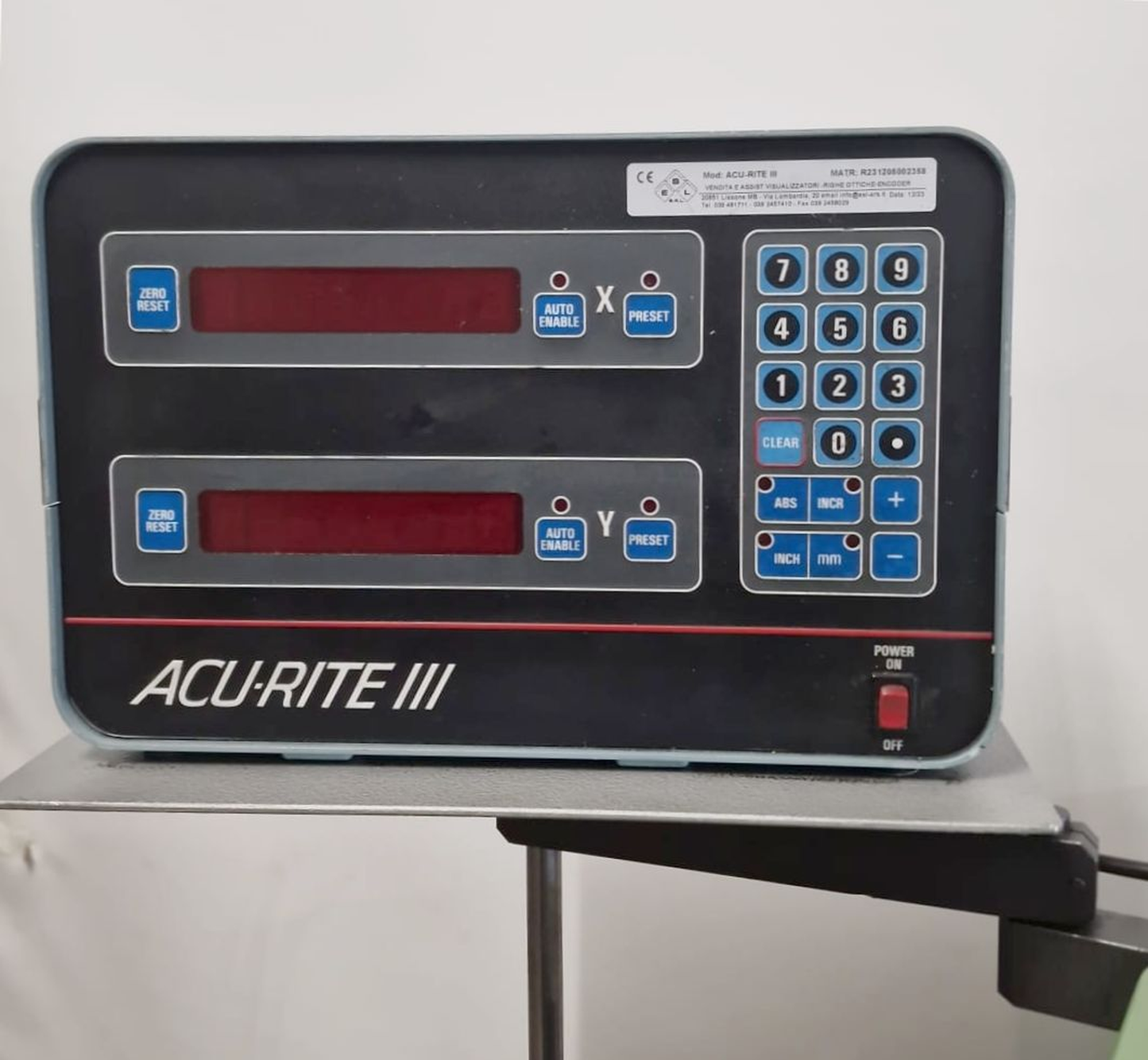

| Digital readout number of axis: | 2 |
| 3-jaw chuck diameter | 150 mm |
| 3-jaw chuck diameter | 160 mm |
| Quick closing attachment | |
| Set of steel holders | |
| Set of collets | |

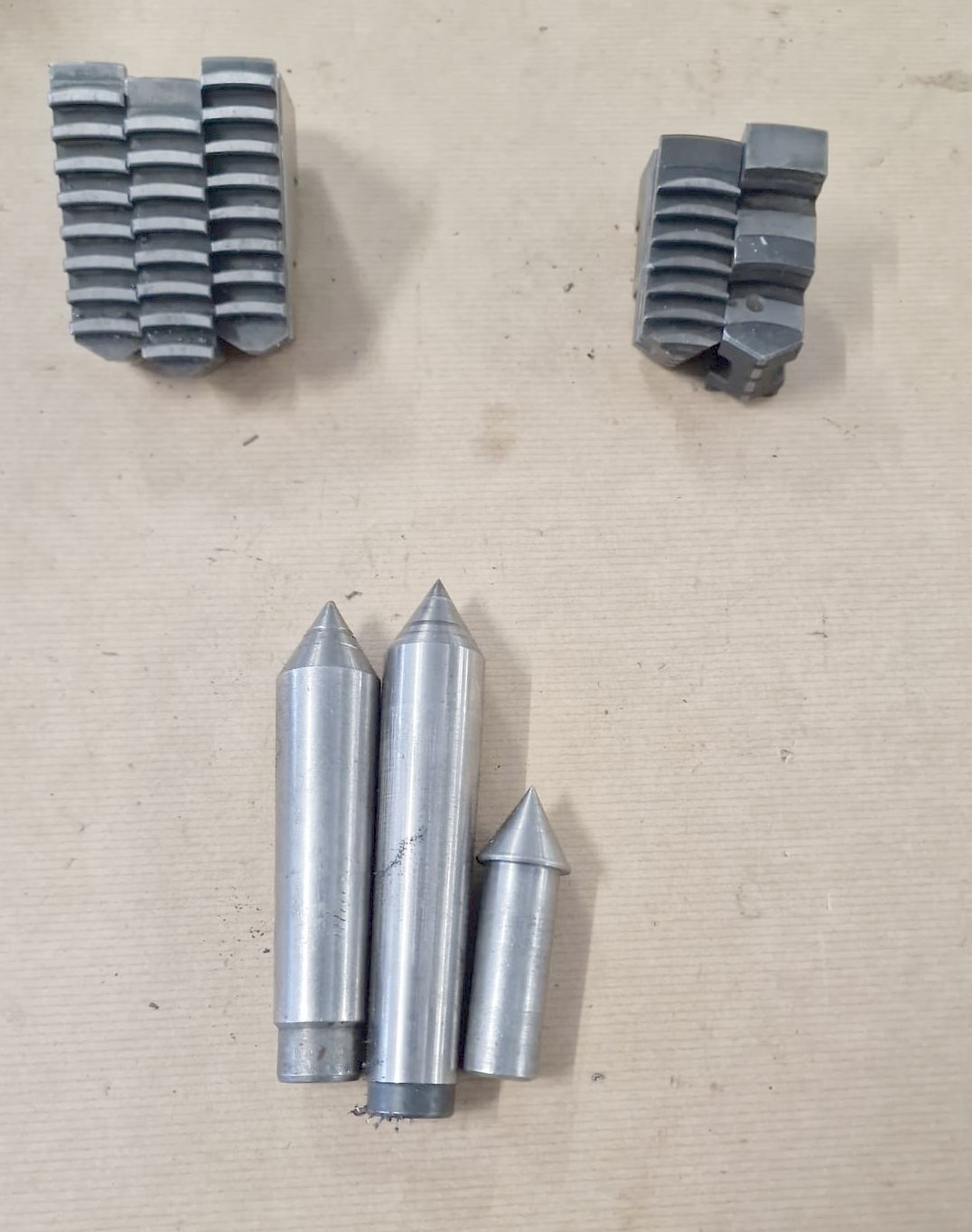

| Set of centers | |
| Drilling tailstock | |
| Chip protector |
