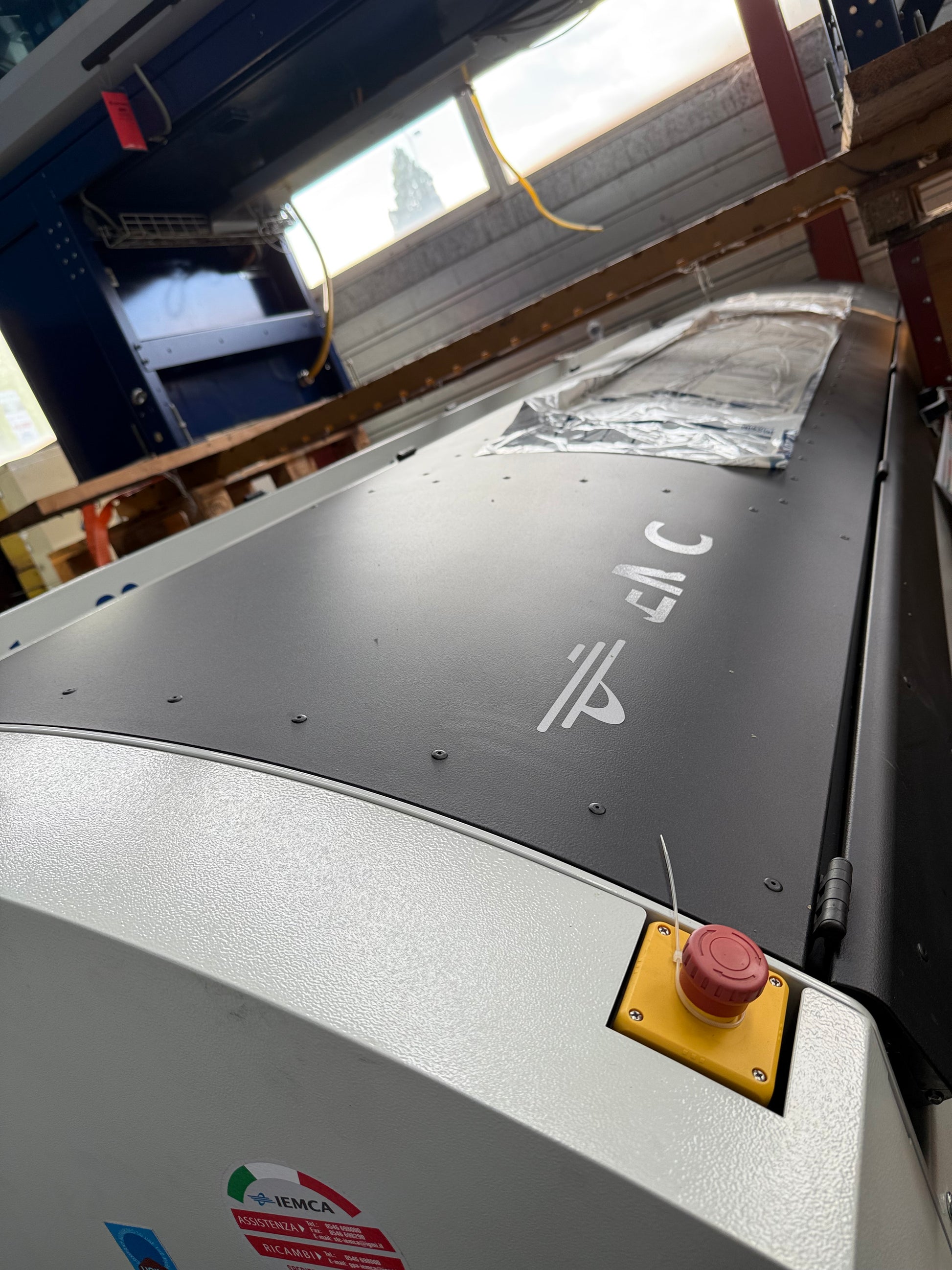

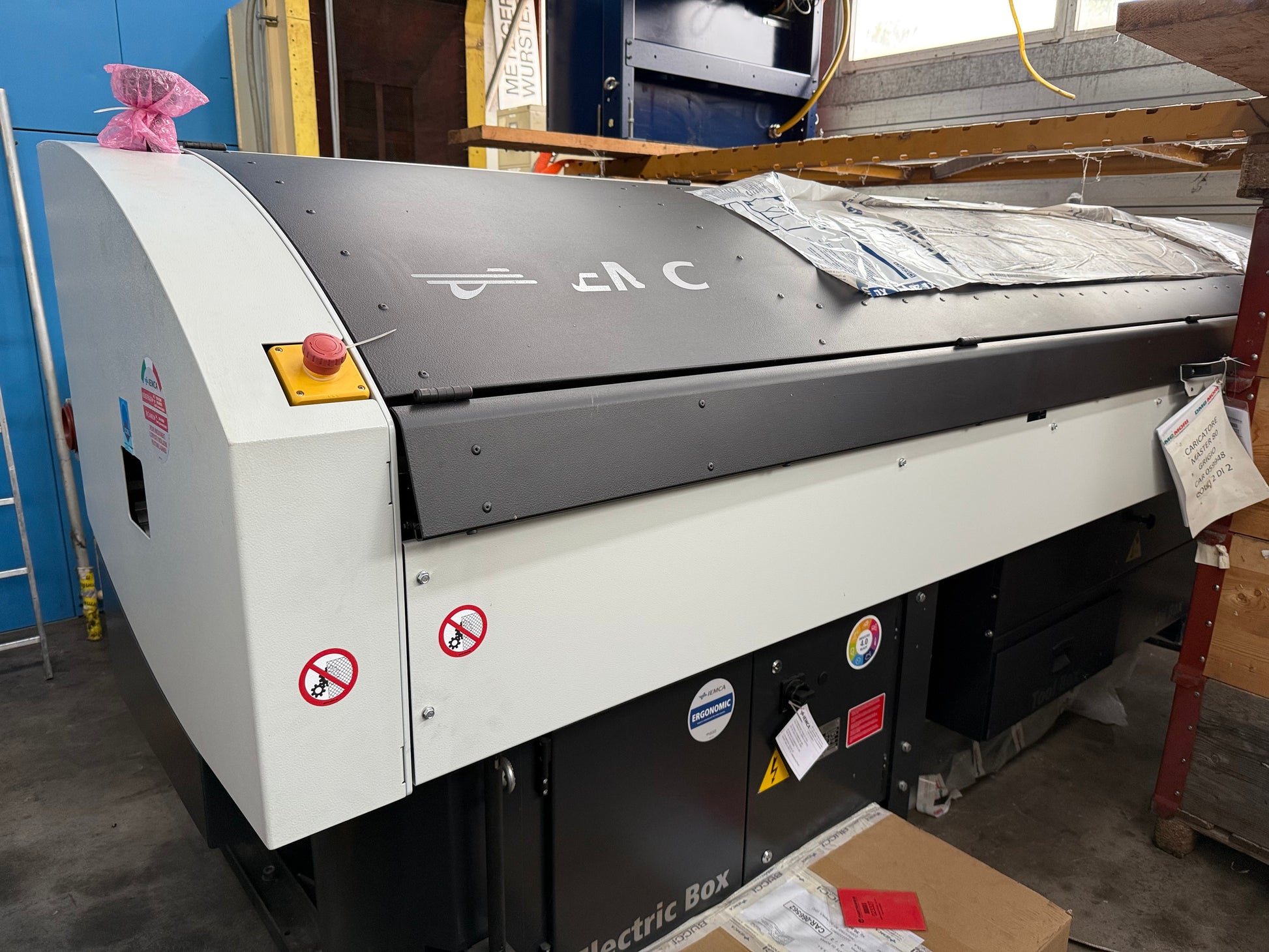

IEMCA MAESTRO 80 / 32 / MP L
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
IEMCA MAESTRO 80 / 32 / MP L is a Bar feeder/loader designed for precision, high accuracy and reliability. Capacities: round Ø10–80 mm, square 10–50 mm, hexagon 10–65 mm; up to 29 bars; lengths 1,000–6,200 mm; bar weight max 180 kg; outstanding 250–400 mm. Specs: 3×400 V 50 Hz; 2.3 kW; compressed air 6 bar; weight ≈1,000 kg; dims L4450×W1400×H1900 mm. Enables tight tolerances; typical applications: automotive, aerospace, watchmaking, medical, machine tools.
| Execution: | |
| left | |
| Bar diameter round up | 10 mm |
| up to | 80 mm |
| Square up | 10 mm |
| up to | 50 mm |
| hexagon up | 10 mm |
| up to | 65 mm |
| Quantity of bars max. | 29 |
| Length of bars min. | 1000 mm |
| Length of bars max. | 6200 mm |
| Bar weight max. | 180 kg |
| Outstanding length min. | 250 mm |
| Outstanding length max. | 400 mm |
| Voltage 50 Hz 3x | 400 Volt |
| Power | 2.3 kW |
| Compressed air from | 6 bar |
| Machine's weight about | 1000 kg |
| Overall dimensions machine: | |
| Length | 4450 mm |
| Width | 1400 mm |
| Height | 1900 mm |
