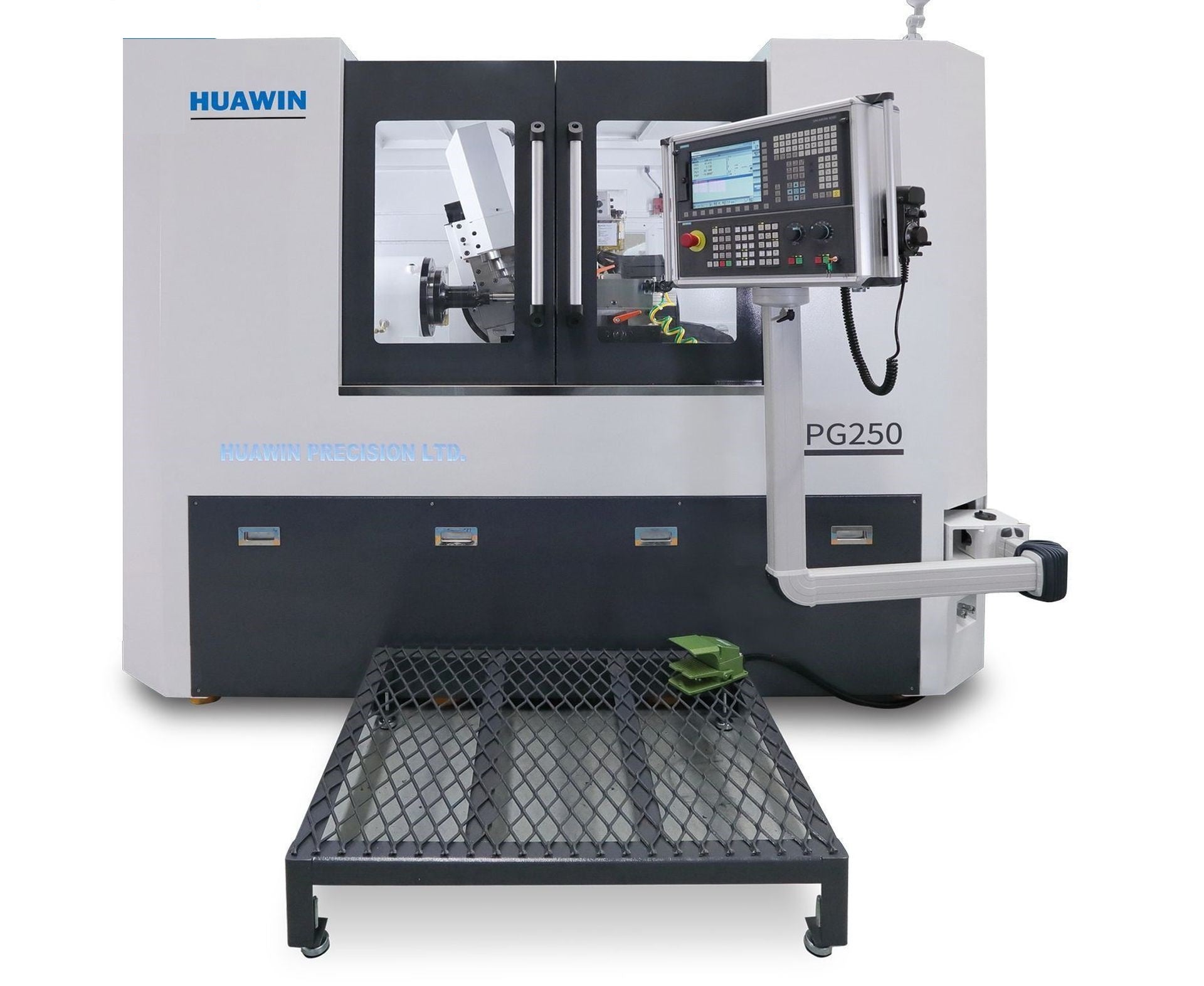

HUAWIN PG250
Type: PG250
Manufacturer: HUAWIN
Group: Gear grinding machine
Subgroup: CNC Gear grinding machine
Control: HUAWIN (FANUC / SIEMENS optional)
Stock: 022307
HUAWIN PG250 is a CNC gear grinding machine offering high precision, accuracy and reliability. Capacities: min/max grinding Ø 20–250 mm, min root Ø 20 mm, teeth 1–999, module 1–6; travels X170 Y60 Z450, C360°, A±45°. Specs: max speed 10000 rpm, grinding spindle 17 kW, total power <20 kVA, 3x400V 50Hz; weight ≈8000 kg; dims L2600×W2370×H2155 mm. Designed to achieve tight tolerances for automotive, aerospace, machine tool and precision components sectors.

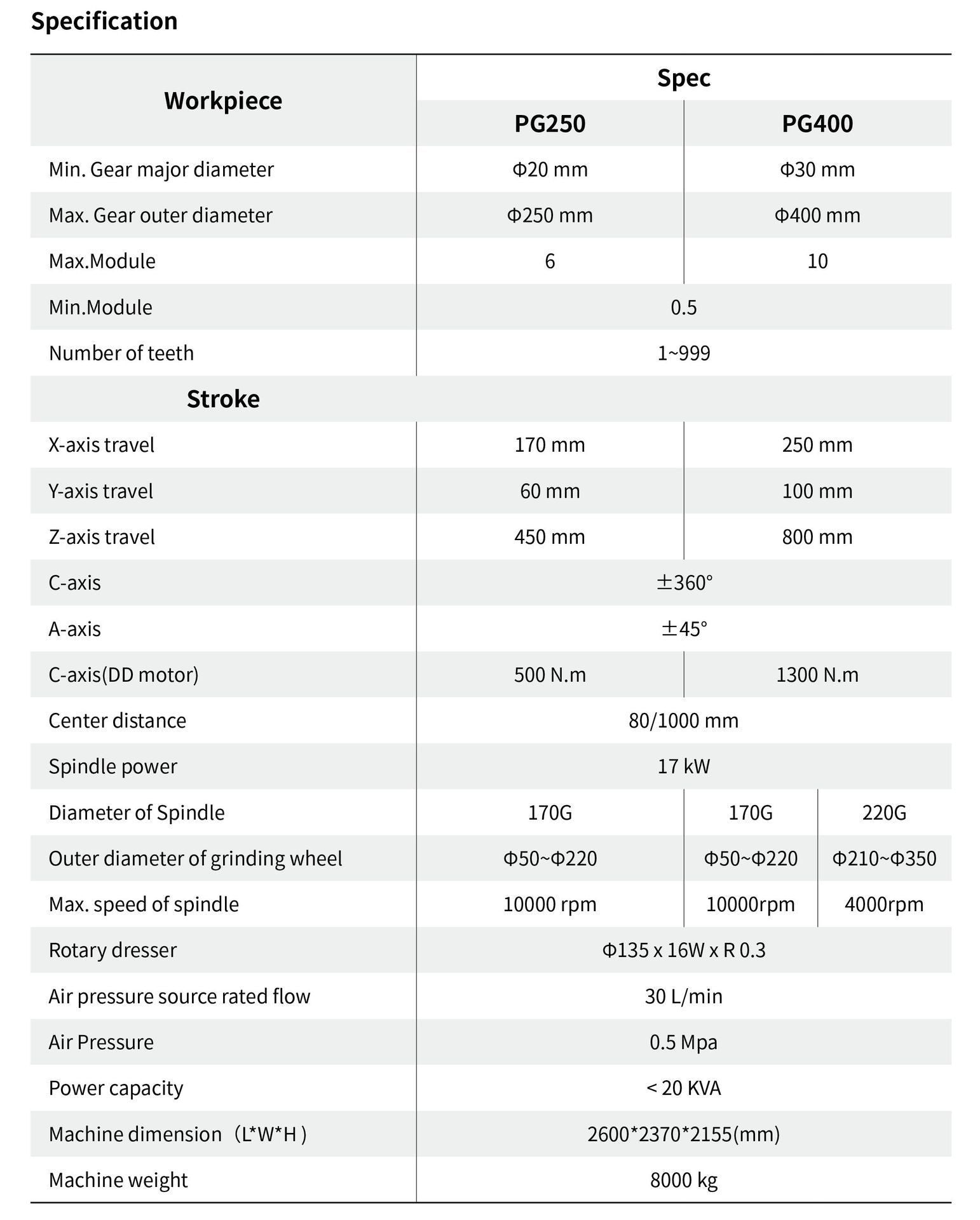

| Min. grinding diameter | 20 mm |
| Max. grinding diameter | 250 mm |
| Min. root diameter | 20 |
| Min. diametrical pitch | 1 |
| Max. diametrical pitch | 999 |
| Max. circular pitch (modul) | 6 |
| Min. circular pitch (modul) | 1 |
| Travels: | |
| X axis | 170 mm |
| Y axis | 60 mm |
| Z axis | 450 mm |
| C axis | 360 ° |
| A axis | +/-45 ° |
| max. speed | 10000 t/min |
| Grinding spindle motor | 17 kW |
| Total power required | <20 kVA |
| Voltage 50 Hz 3x | 400 Volt |
| Machine's weight about | 8000 kg |
| Overall dimensions machine: | |
| Length | 2600 mm |
| Width | 2370 mm |
| Height | 2155 mm |
