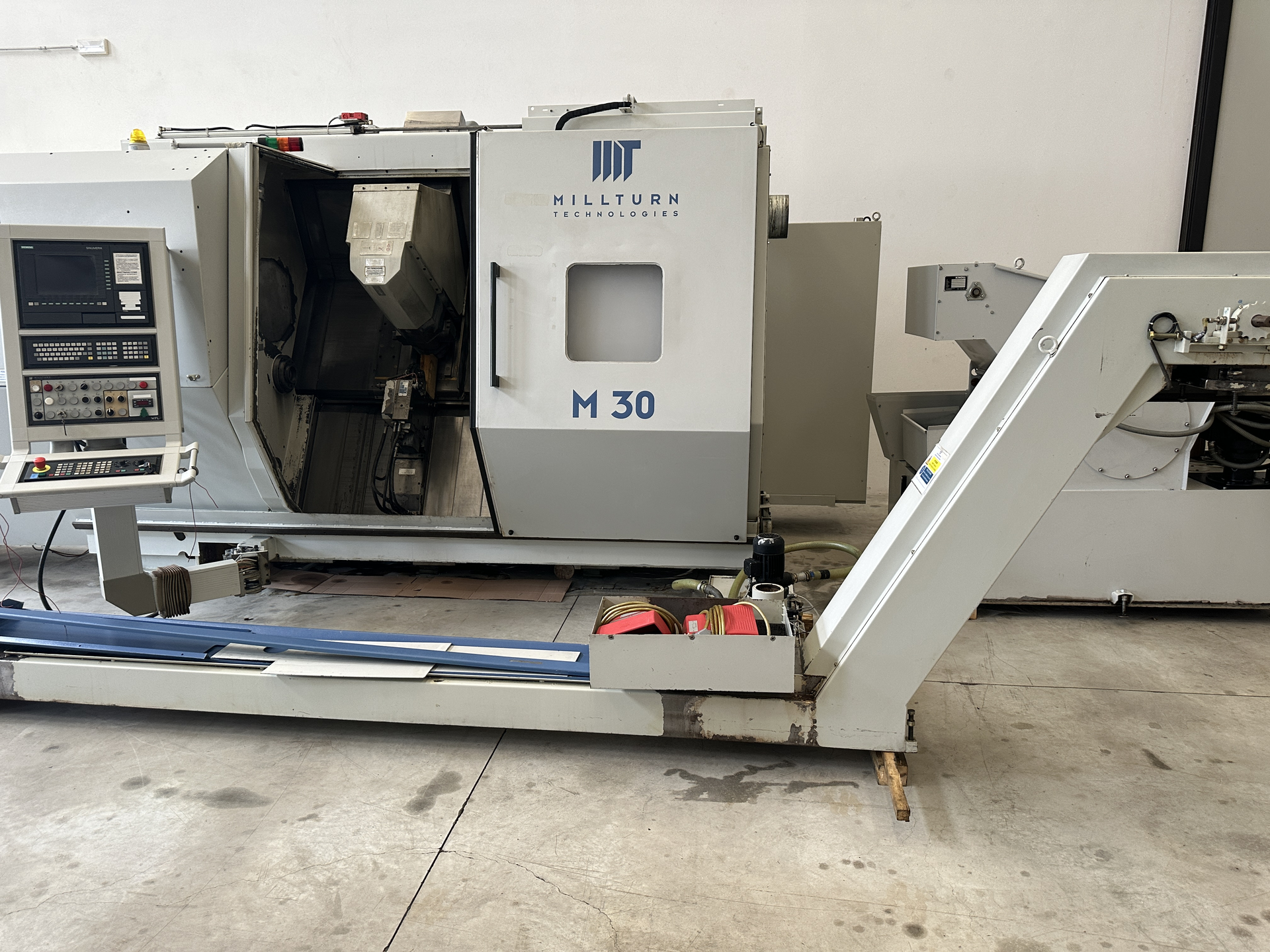

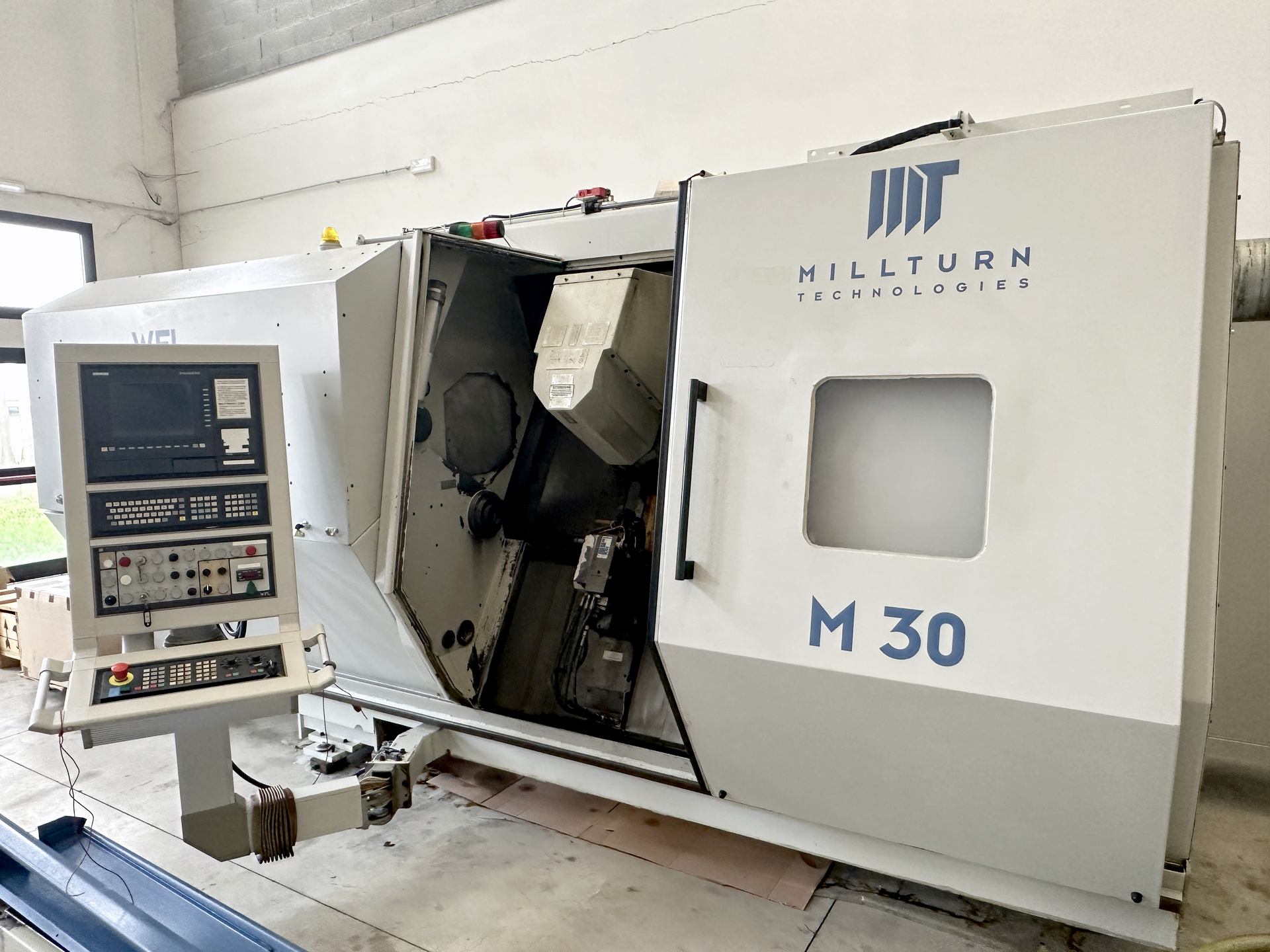

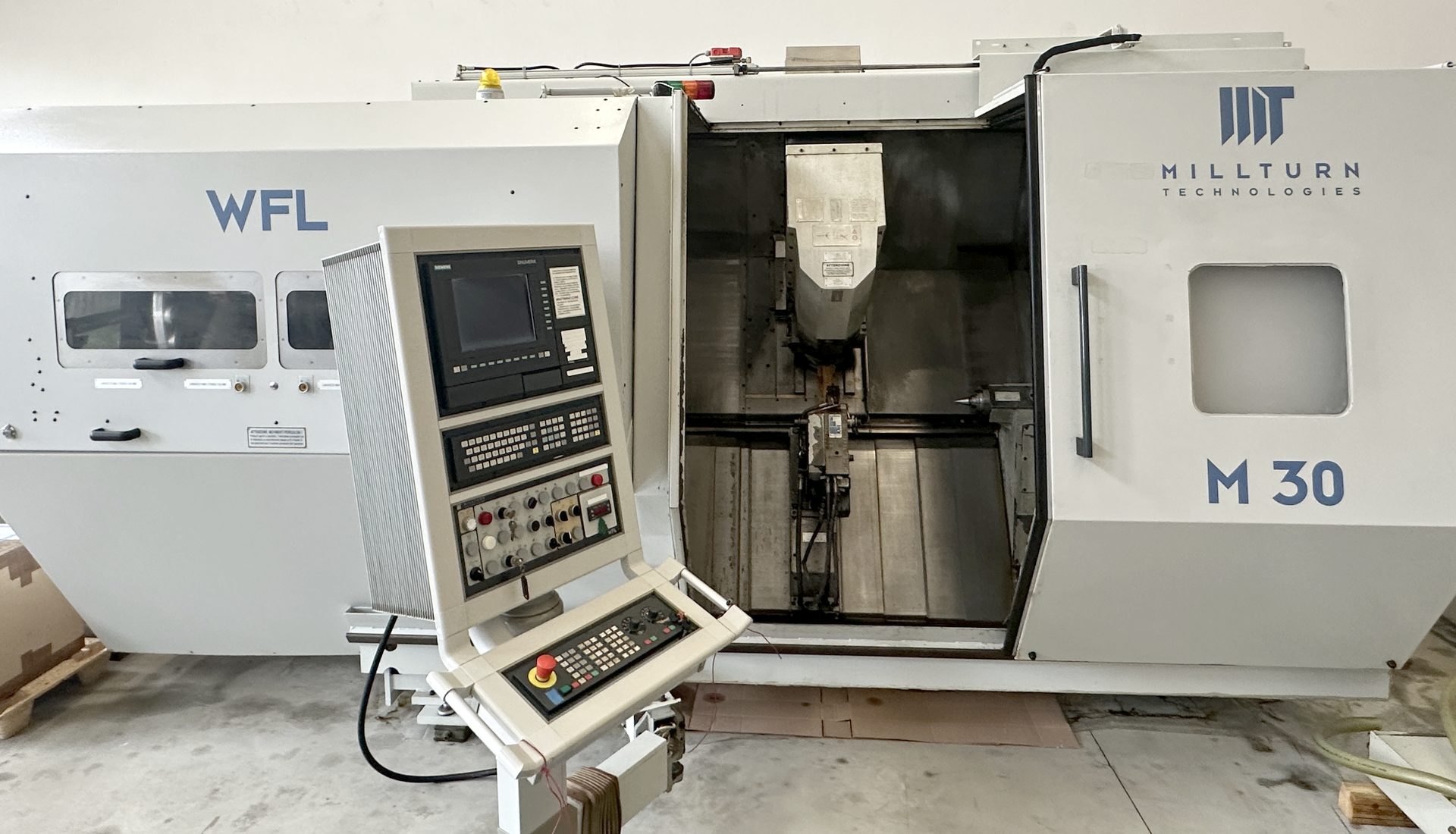

WFL Millturn M30
Type: Millturn M30
Manufacturer: WFL
Group: CNC turning lathe
Subgroup: CNC Turning-Milling-Drilling Center

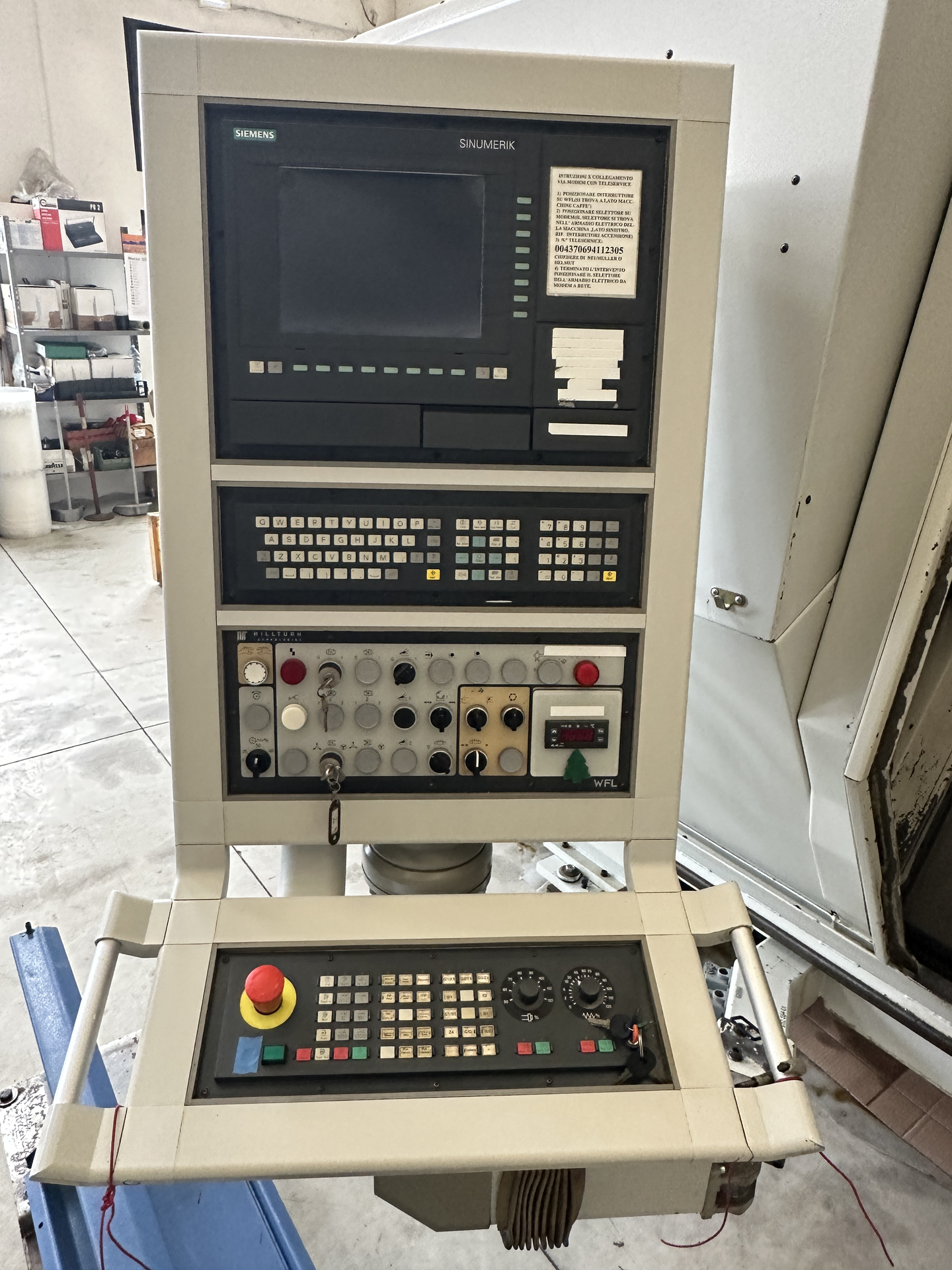

Control: SIEMENS SINUMERIK 840 C
Year: 2002
Stock: 022237
Special Price
CHF 25 000
Special offer machines are sold as-is, without any warranty or inspection from us.
WFL Millturn M30 is a CNC Turning‑Milling‑Drilling Center engineered for precision, high accuracy and reliability. Capacities: 600 kg between centres, swing 300/390 mm, spindle bore 77 mm, max length 1000 mm, travels Z1120 X420 Y160(±80). Specs: 10–5000 min⁻¹, 22/37 kW, 940 Nm, rapids X/Z25 Y10 m/min, milling spindle 4000 min⁻¹ 9 kW, B ±90°, weight ≈11000 kg, HSK‑A50, magazine 96. Key accessories: 3‑jaw chuck Ø250 mm, hydraulic tailstock, coolant through spindle 80 bar. Enables tight tolerances; typical sectors: automotive, aerospace, medical, toolmaking.
| Number of spindles | 1 |
| Number of milling heads | 1 |
| Workpiece weight on centres max. | 600 kg |
| Swing over cross-slide | 300 mm |
| Swing over bed | 390 mm |
| Spindle hole | 77 mm |
| Maximum turning length | 1000 mm |
| Max. turning diameter | 300 mm |
| Travels: | |
| Longitudinal travel (Z-axis) | 1120 mm |
| Transversal strocke (X axis) | 420 mm |
| Transversal travel (y-axis) | 160 (+/-80) mm |
| Rapid traverse X | 25 m/min |
| Rapid traverse Y | 10 m/min |
| Rapid traverse Z | 25 m/min |
| Spindle nose: HSK-A | 50 |

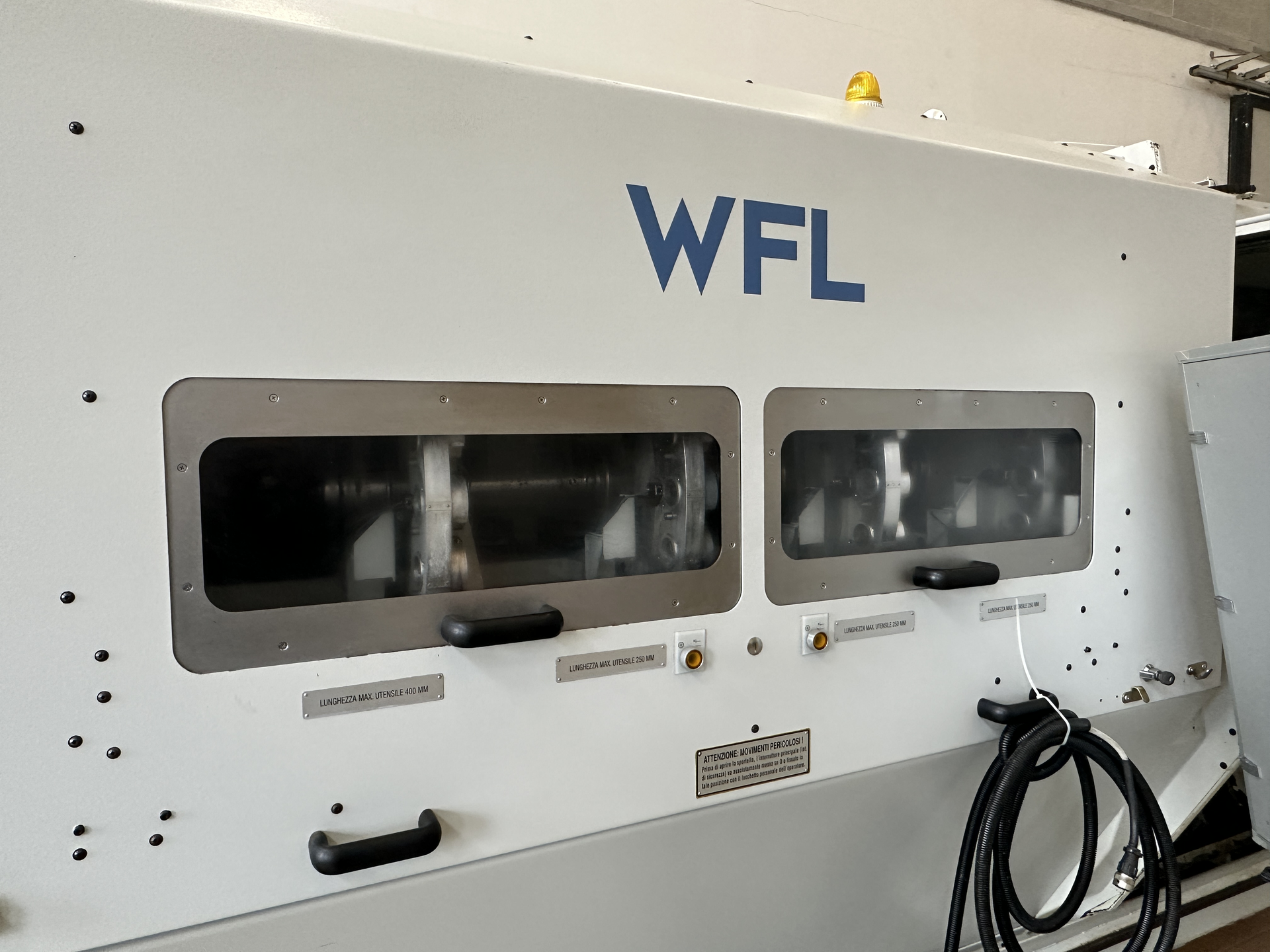

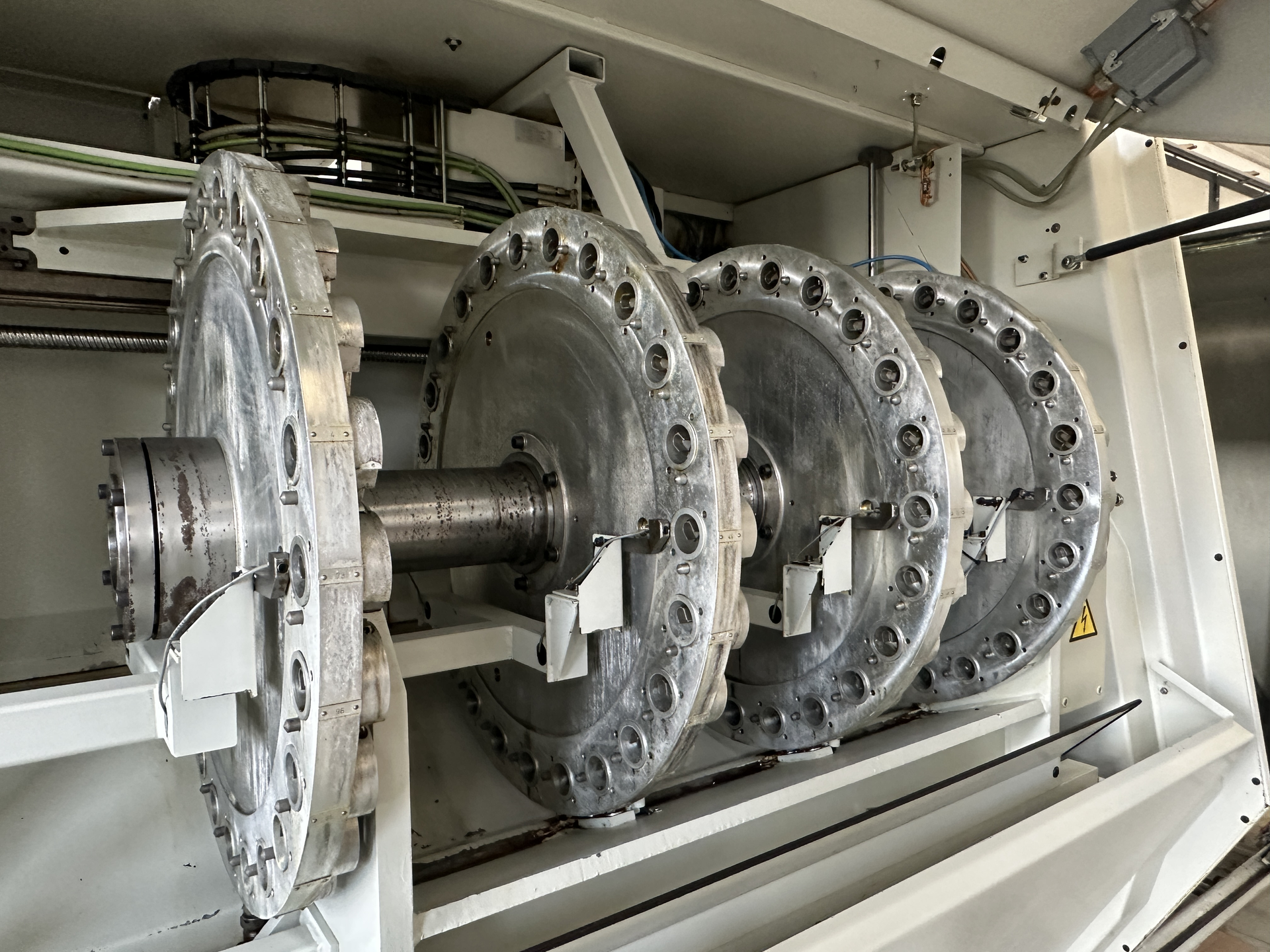

| Tool magazine stationary, number of tools | 96 |
| Tool diameter max. | 70 mm |
| Diameter with free adjacent pockets | 90 mm |
| Tool lenght | 250 mm |
| Max. tool-weight | 4 kg |
| Spindle speeds: | |
| from | 10 t/min |
| up to | 5000 t/min |
| Spindle power | 22 / 37 kW |
| Torque max. | 940 Nm |
| Taper in tailstock: | SK 30 |
| Tailstock: | |
| Rapid traverse: | 10 m/min |
| Pressure | 12 kN |
| Milling spindle: | |
| Milling cutter speeds | 4000 t/min |
| Drive milling spindle | 9 kW |
| B axis swivelling range | +/- 90 ° |
| B axis resolution max. | ° |
| Machine's weight about | 11000 kg |
| Overall dimensions machine: | |
| Length | 5300 mm |
| Width | 3400 mm |
| Height | 2700 mm |
| Various accessories: | |

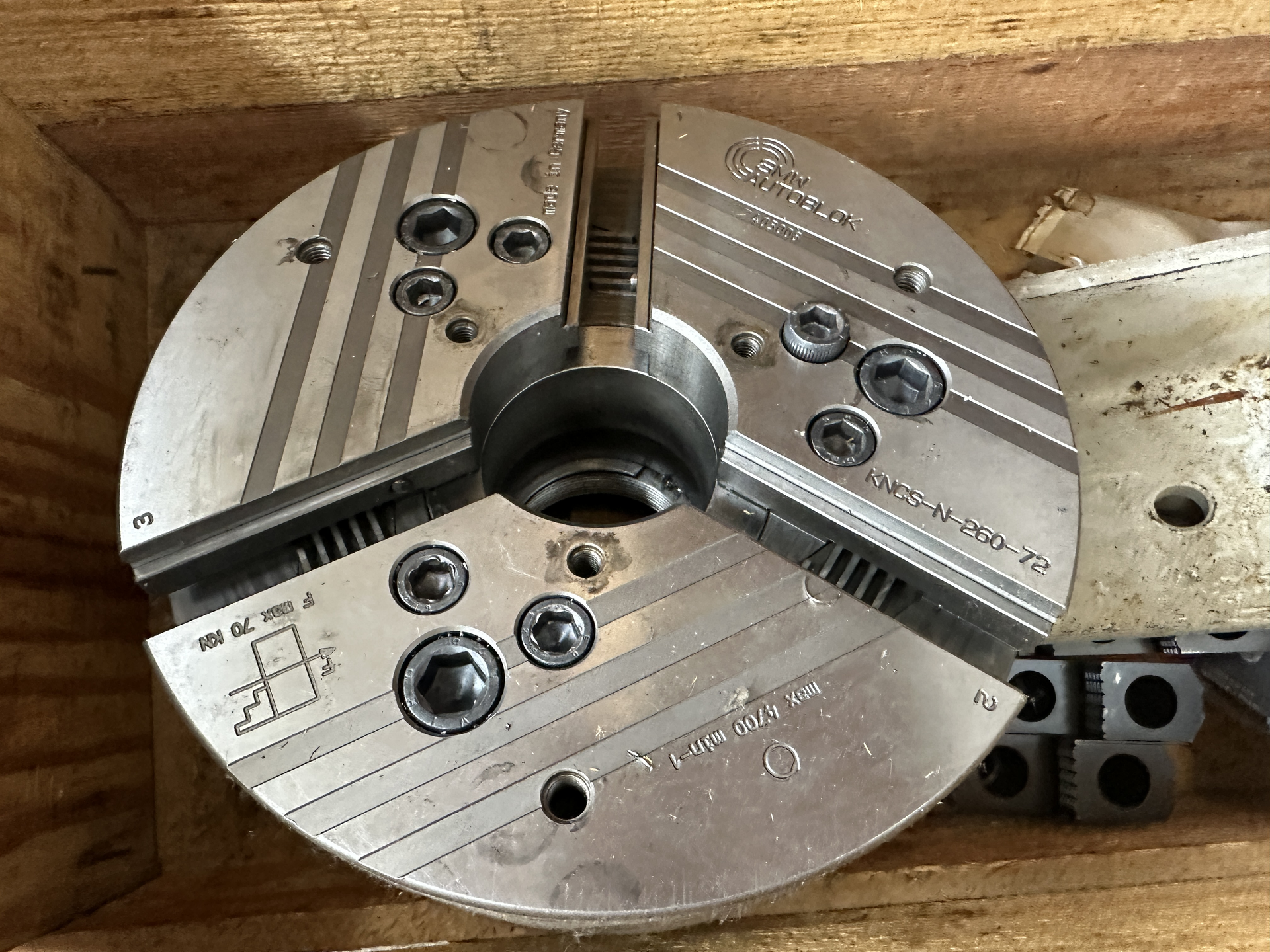

| 3-jaw chuck diameter | 250 mm |

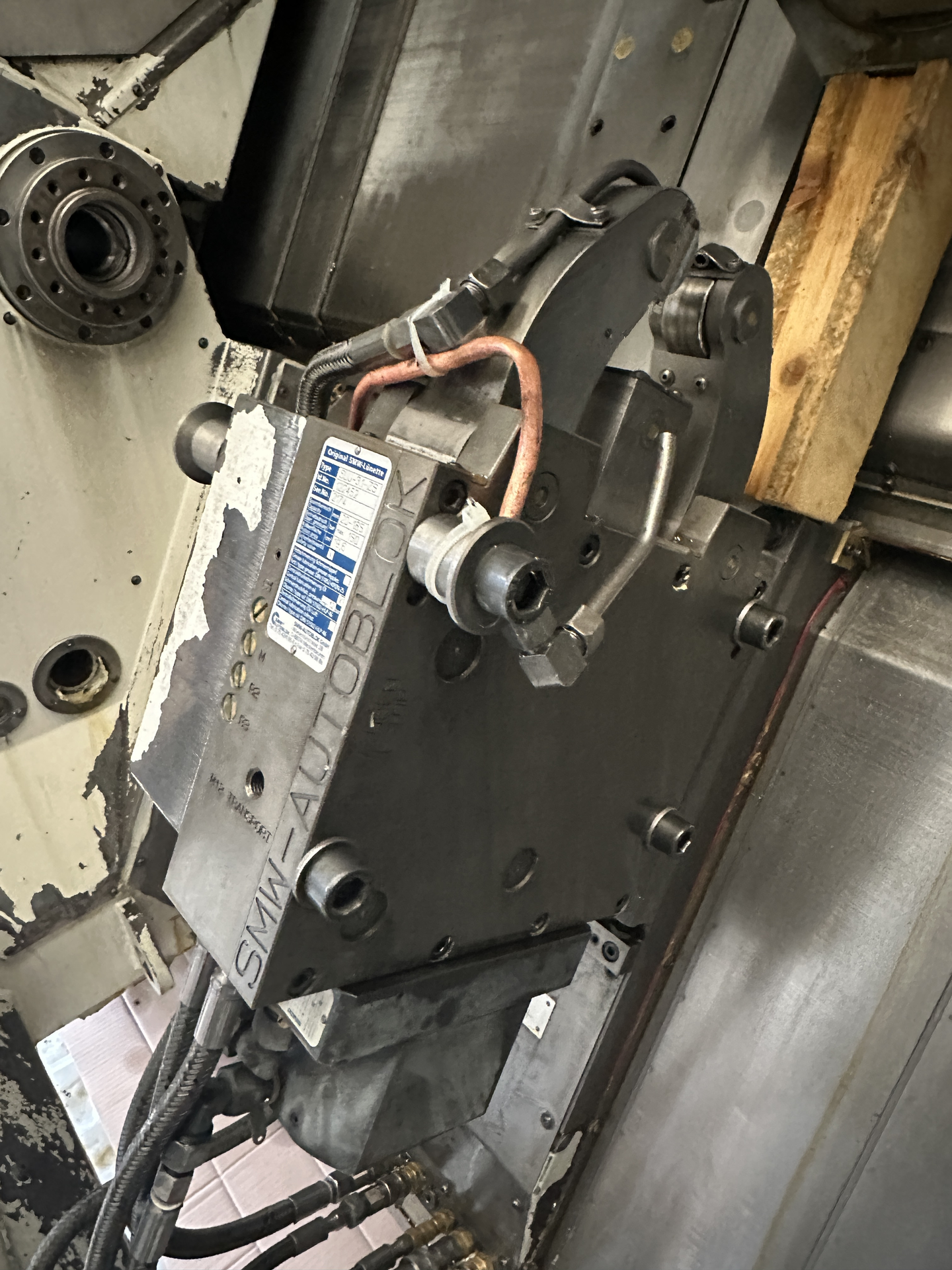

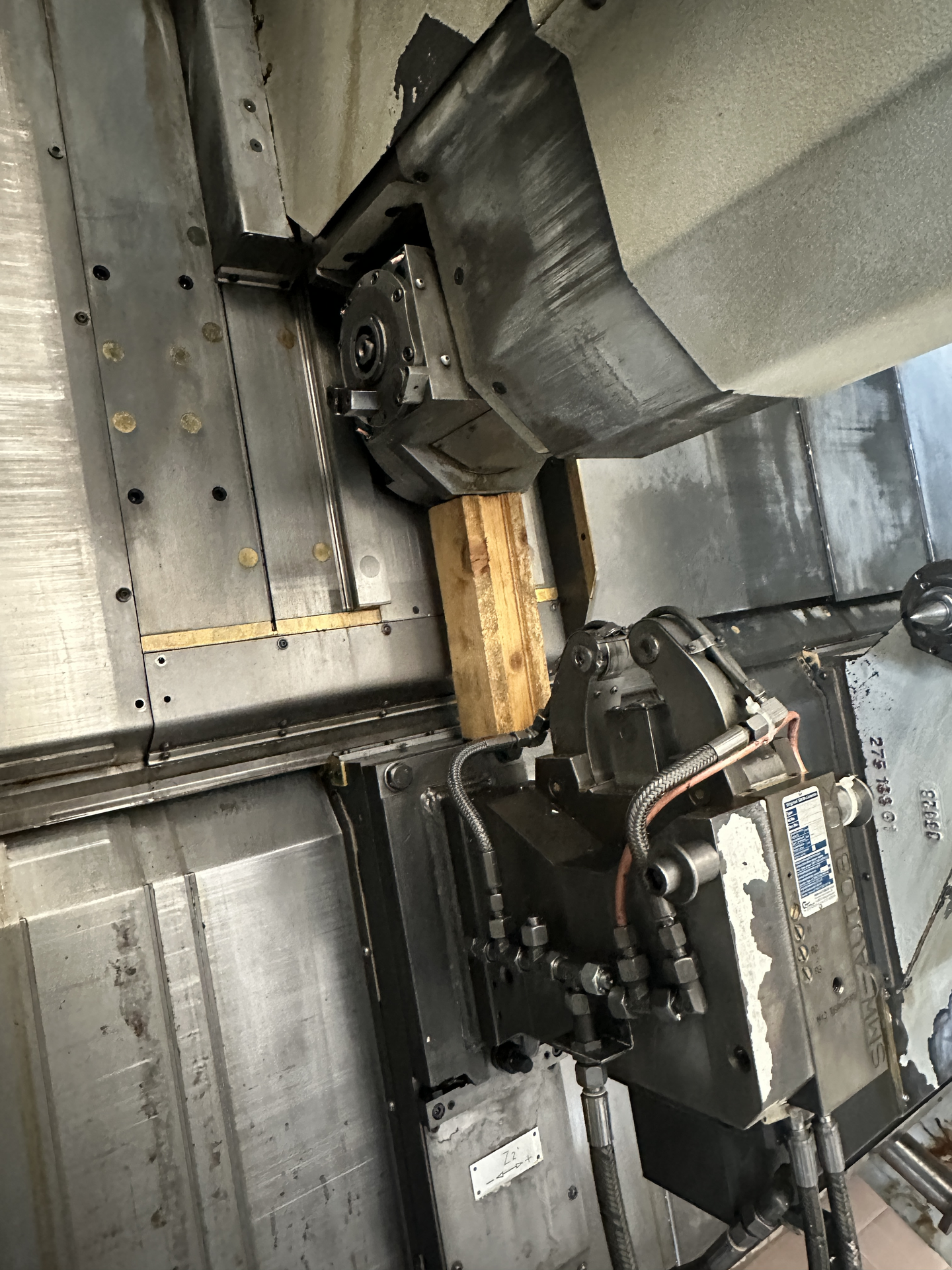

| Travelling steady hydraulic | |
| Clamping range | 20 - 165 mm |

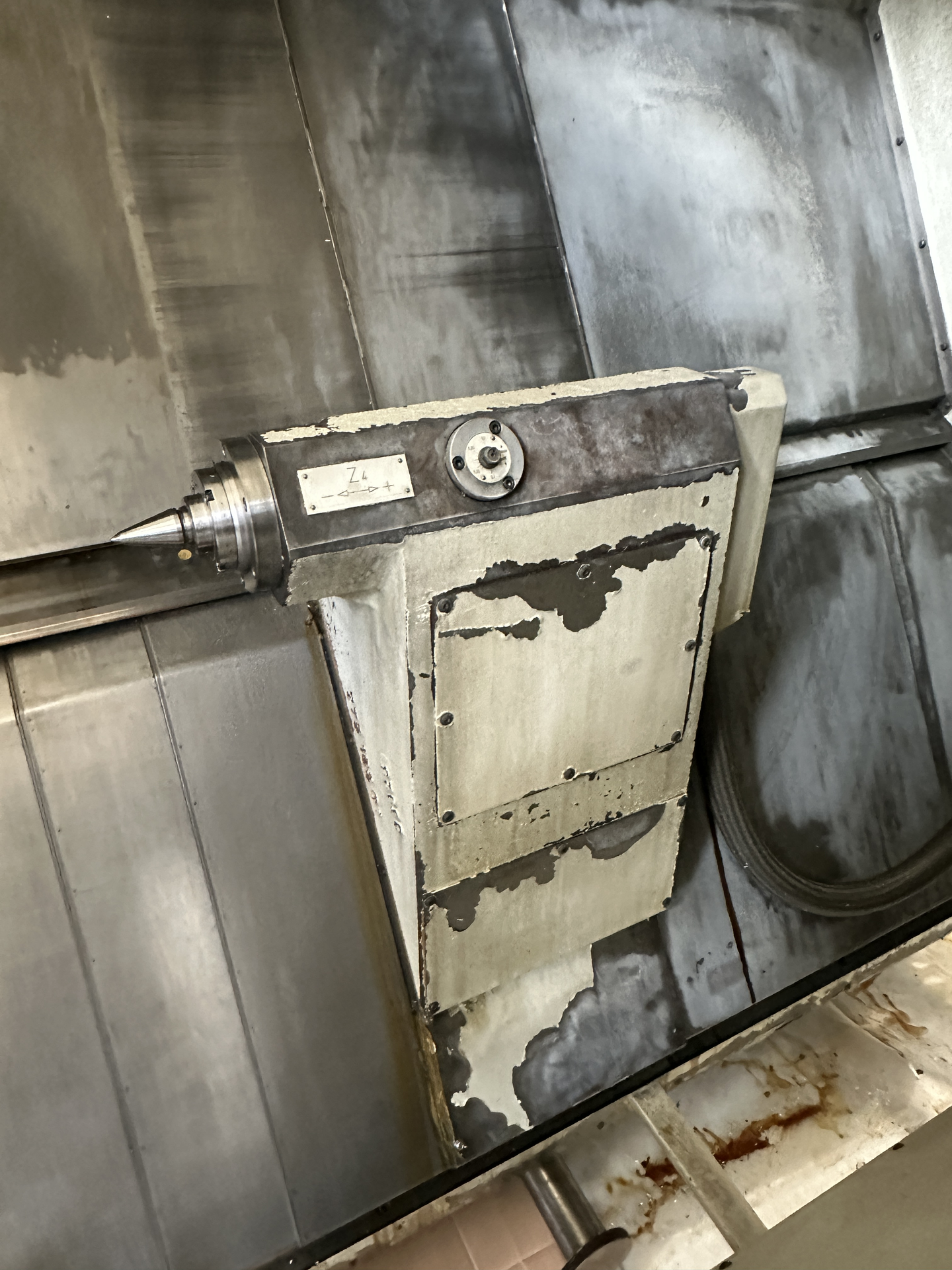

| Hydraulic tailstock | |

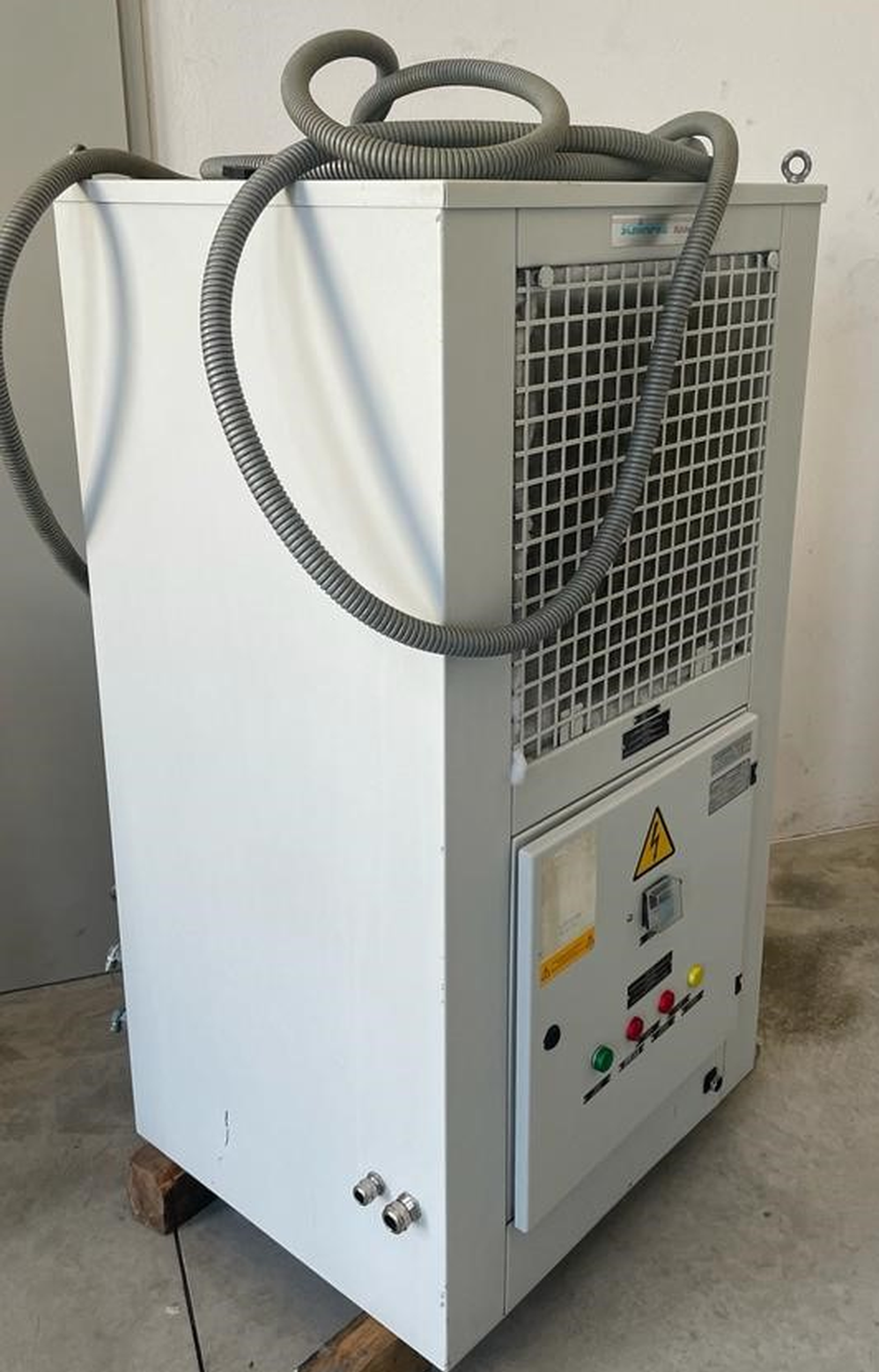

| Water cooler | |

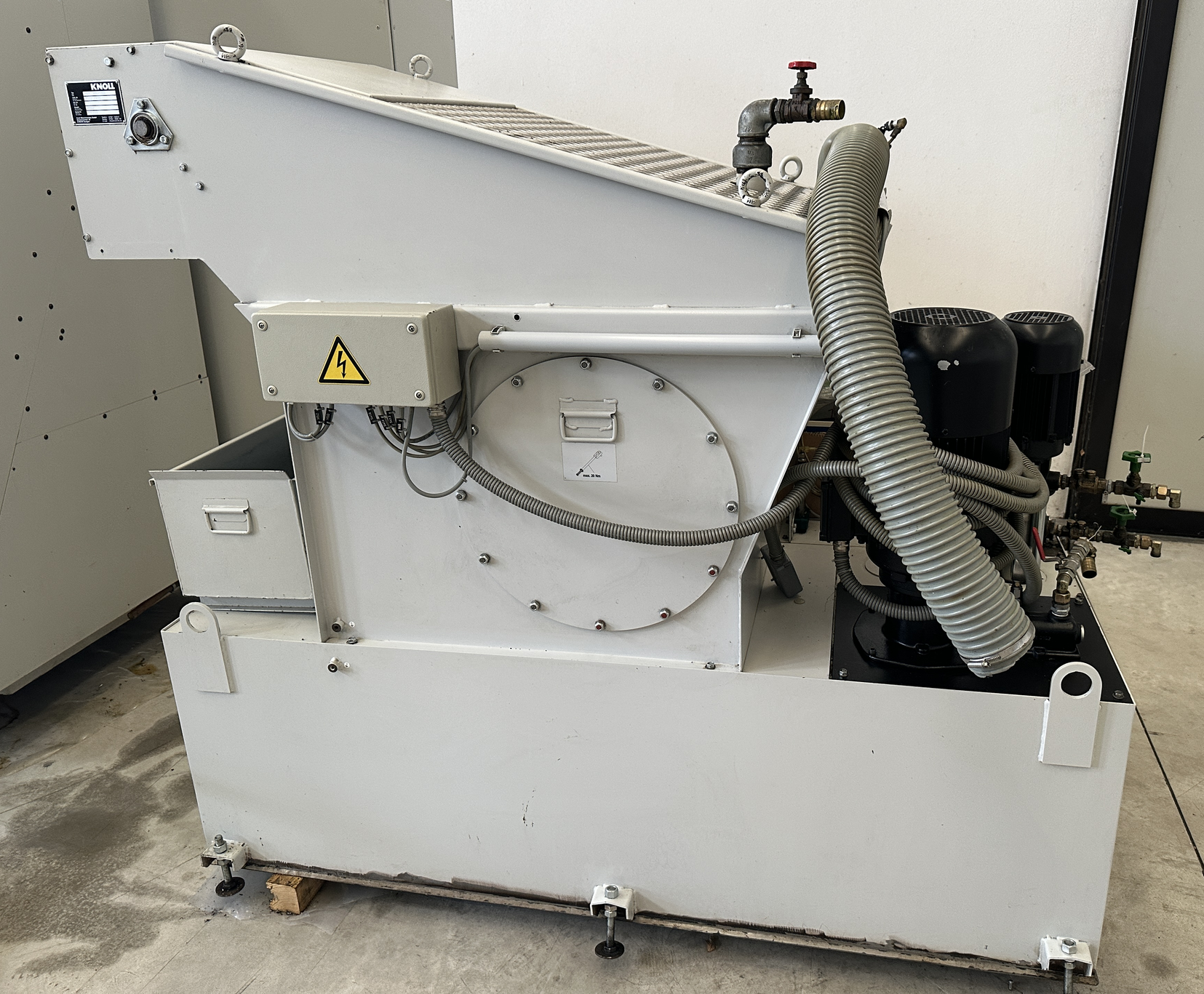

| Coolant system | |
| Coolant through spindle (cts) | 80 bar |
| Chip conveyor | |
| Foot pedal | |

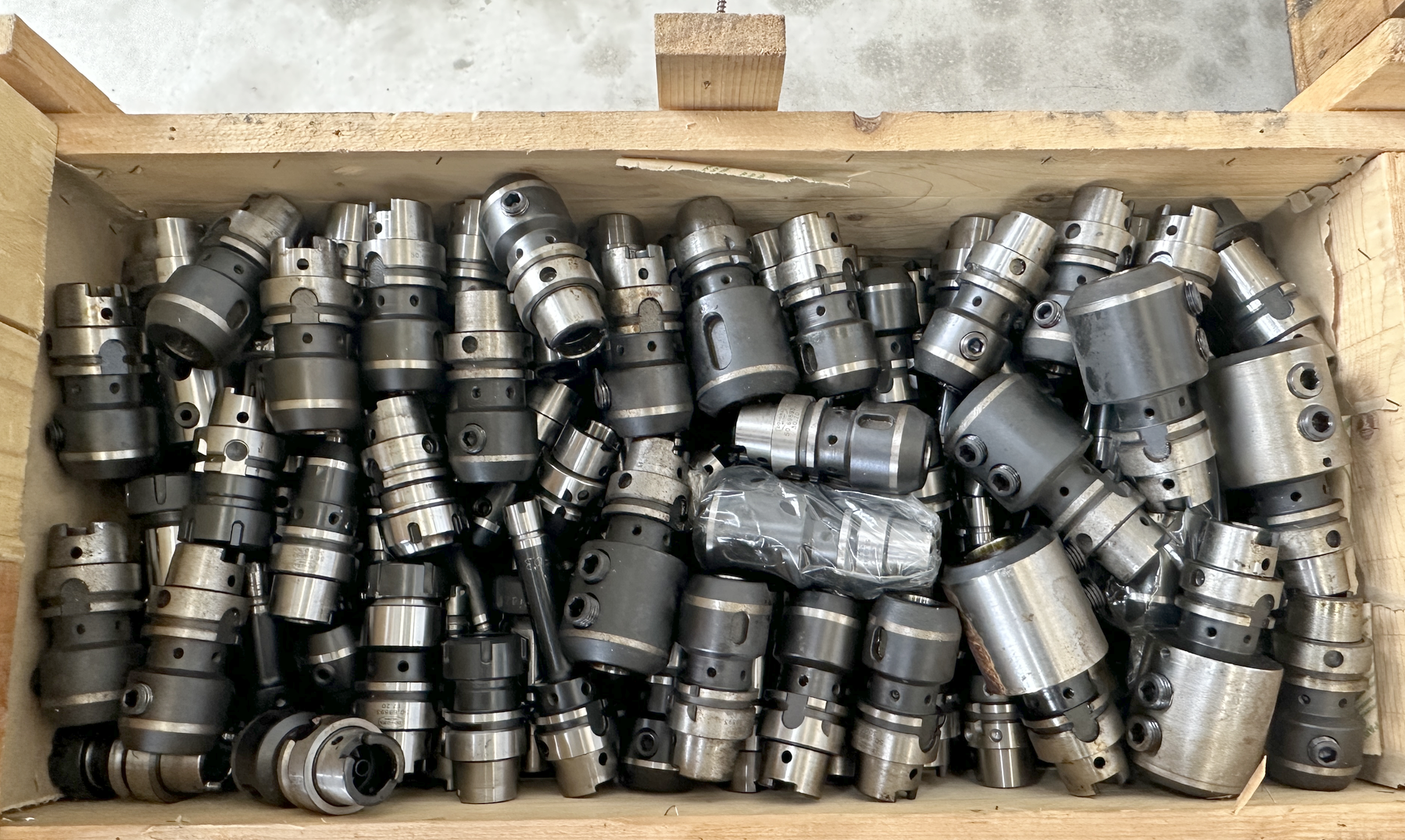

| Set of toolholders | |
| Status light |
