AGATHON 150 SL 20D
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
AGATHON 150 SL 20D is a centreless grinding machine with high precision, accuracy and reliability. Capacities: max Ø10 mm; wheel width 50 mm; new wheel Ø150×50 mm; regulating wheel Ø100×50 mm; bore 40.0 mm; wheel speeds 25–45 m/s (up to 6000 t/min); regulator 6–94 m/s, 20–300 t/min. Specs: 50Hz 3x460V; main motor 2.2 kW; total power 6 kW; weight ≈1000 kg; dims L1400×W1000×H1800 mm. Accessory: vibrating conveyor. Delivers tight tolerances; typical sectors: automotive, watchmaking, machine tools, aerospace, medical.
Technical specifications are subject to change without notice
Only throughfeed grinding
| Min. grinding diameter | mm |
| Max. grinding diameter | 10 mm |
| Width of the grinding wheel | 50 mm |
| Grinding wheel: | |
| diameter new wheel | 150 mm |
| Width | 50 mm |
| Speeds: | |
| up to | 25 - 45 m/s |
| up to | 6000 t/min |
| Regulating spindle: | |
| diameter new wheel | 100 mm |
| Width | 50 mm |
| Bore | 40.0 mm |
| Speeds: | |
| stepless | |
| from | 6 m/s |
| up to | 94 m/s |
| from | 20 t/min |
| up to | 300 t/min |
| Voltage 50 Hz 3x | 460 Volt |
| Main motor | 2.2 kW |
| Total power required | 6 kW |
| Machine's weight about | 1000 kg |
| Overall dimensions machine: | |
| Length | 1400 mm |
| Width | 1000 mm |
| Height | 1800 mm |
| Various accessories: | |

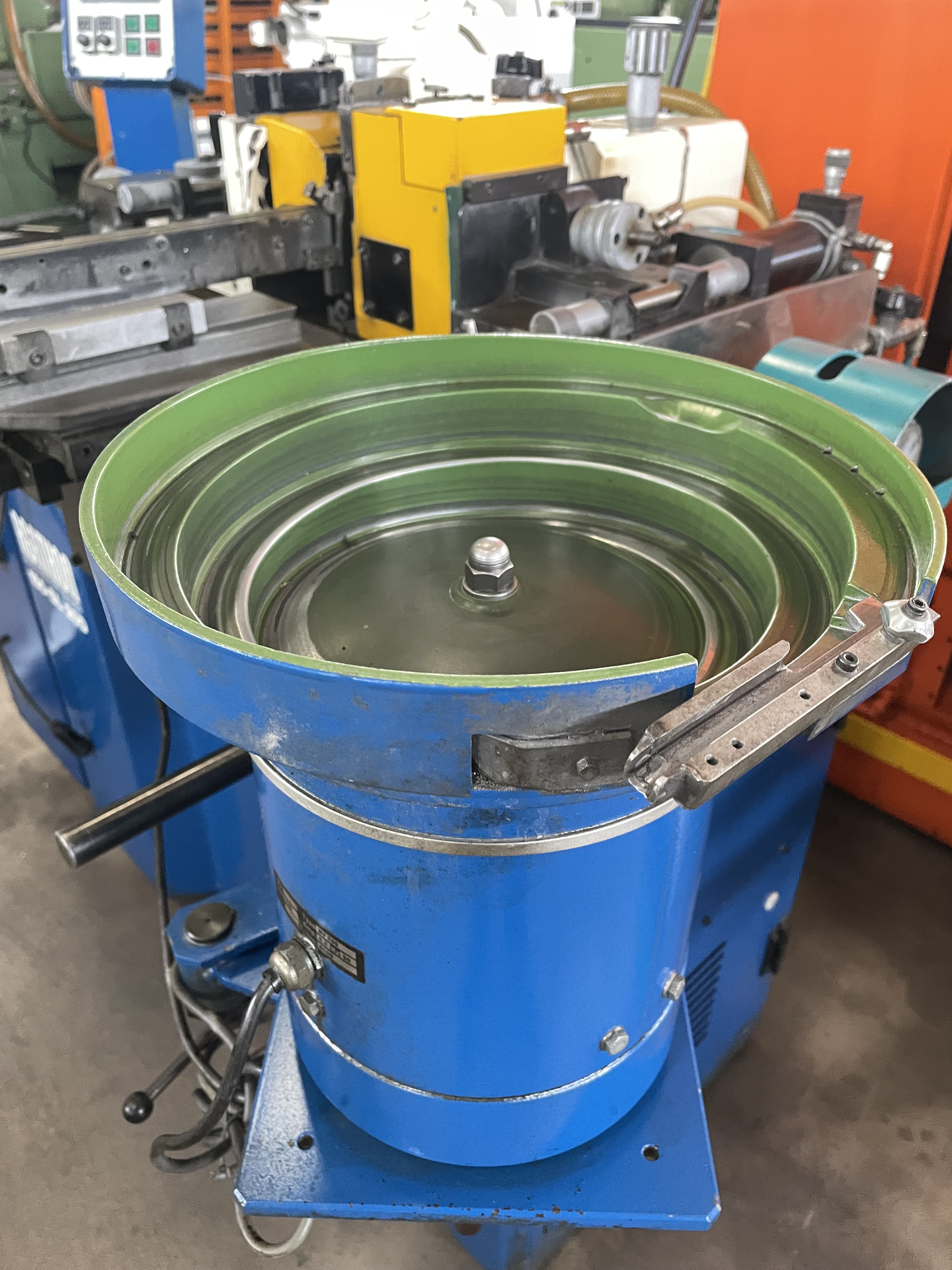

| Vibrating / oscillating conveyor |
