021978 - VOUMARD 5 SLP 1000sp
Download technical sheet (PDF)
Message us on WhatsApp
| Min. internal grinding diameter | 5 mm |
| Max. internal grinding diameter | 200 mm |
| Grinding depth | 250 mm |
| Centre height | 180 mm |
| Max. work piece diameter | 340 mm |
| Max.workpiece length + steady | 1000 mm |
| Workpiece spindle speeds: | |
| number (steps) | 6 |
| from | 140 t/min |
| up to | 1120 t/min |
| Max. angle | 30 ° |
| Spindle hole | 50 mm |
| Grinding table travel: | |
| min. | 3 mm |
| max | 600 mm |
| Table speeds: | |
| stepless | |
| from | m/min |
| up to | 10 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Total power required | 15 kW |
| Machine's weight about | 3000 kg |
| Overall dimensions machine: | |
| Length | 2400 mm |
| Width | 1200 mm |
| Height | 1400 mm |
| Various accessories: | |
| Redressing device | |
| Frontal grinding device | |
| Internal grinding spindle: | |
| numbers | 2 |
| max. speed | 22000 t/min |
| max. speed | 28000 t/min |

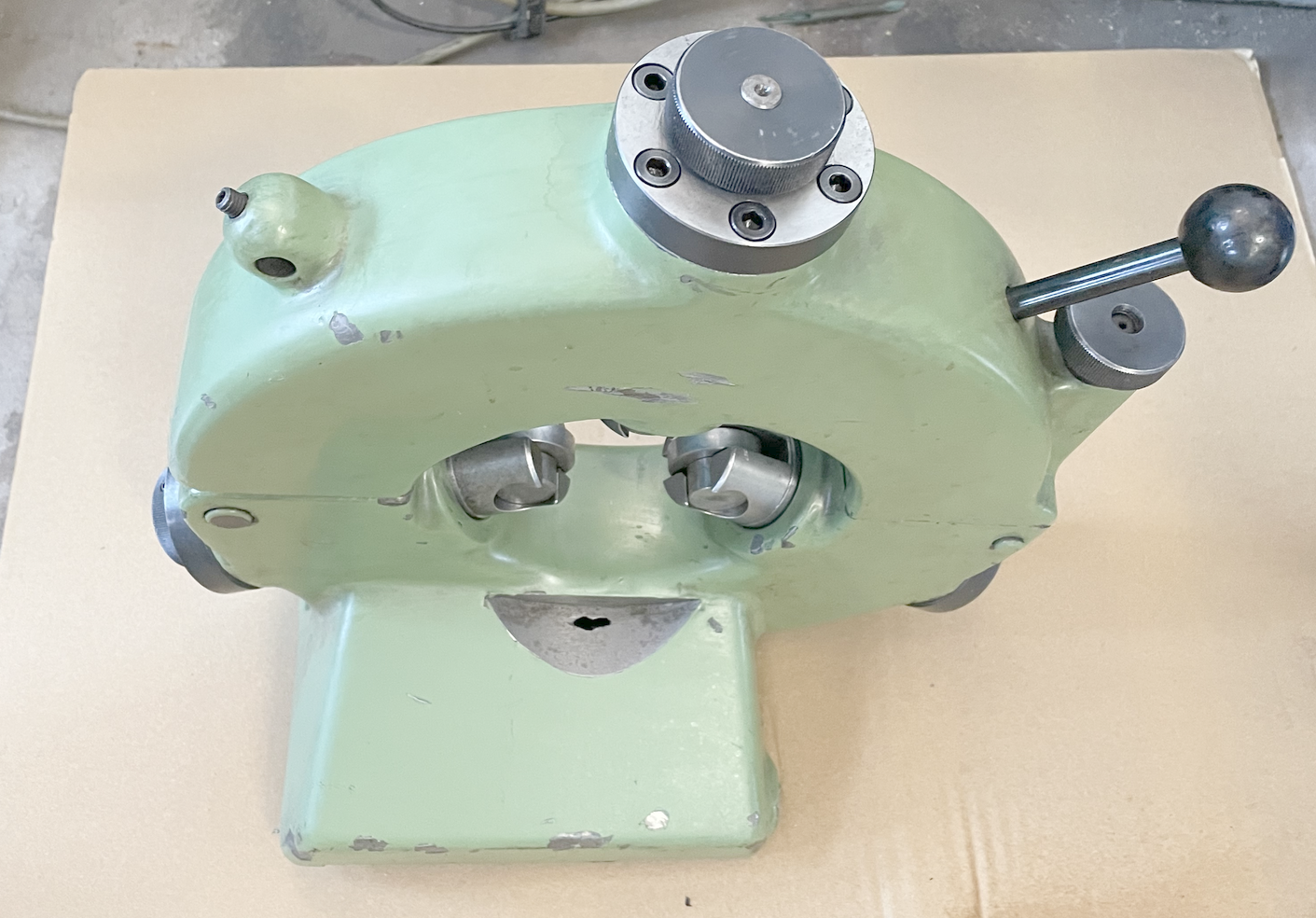

| Steady | |
| Lamp | |
| Protective cover |
