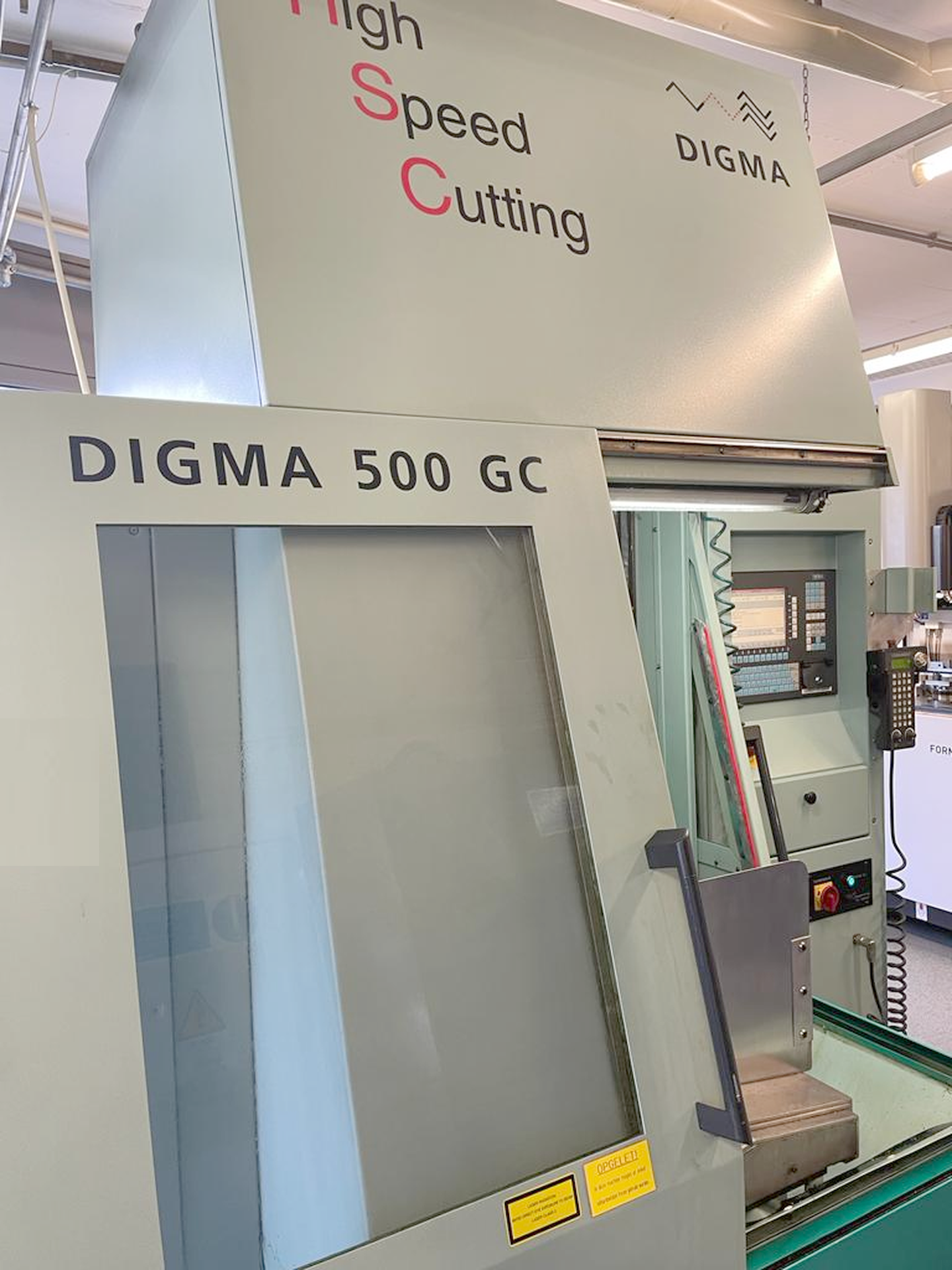

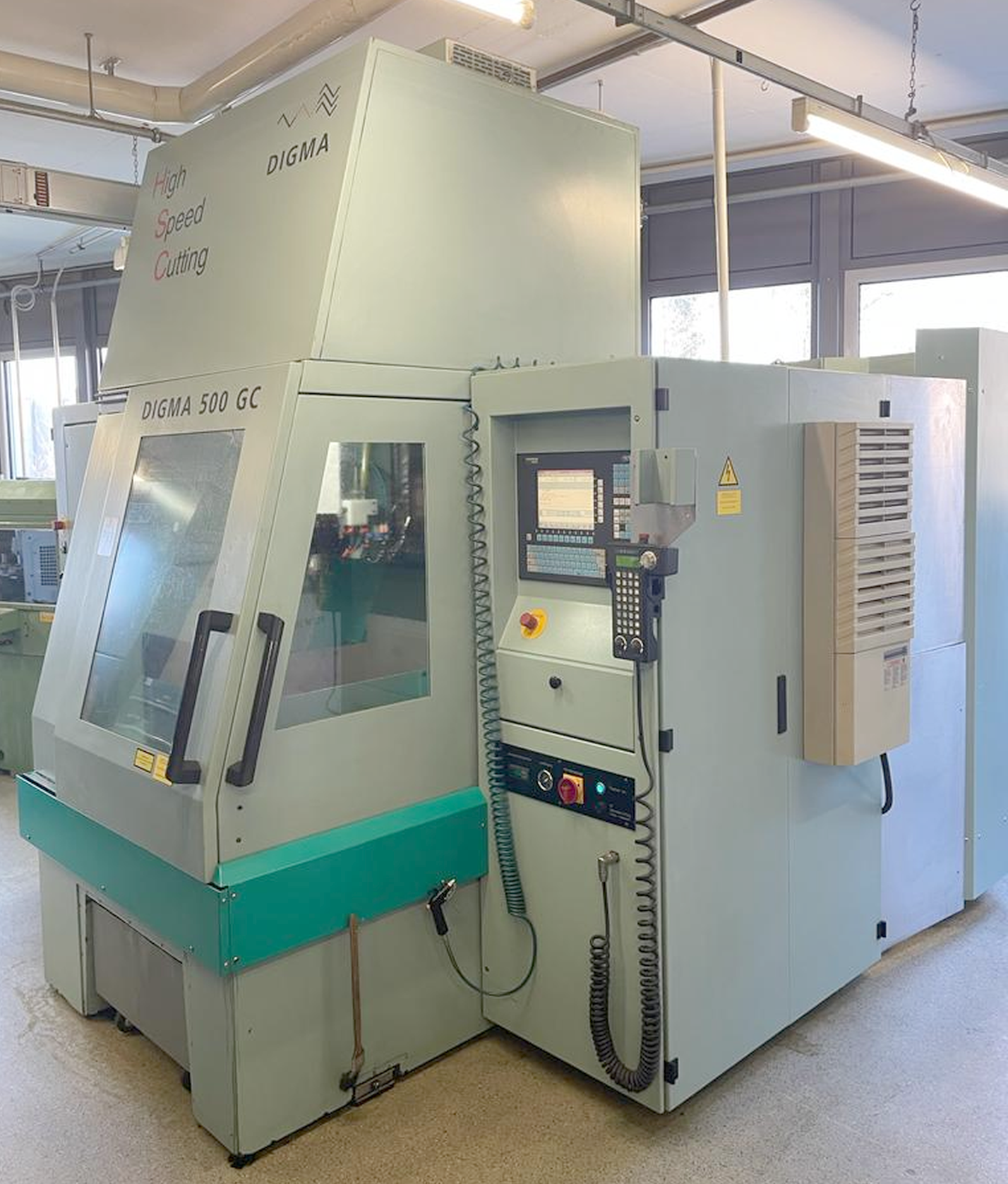

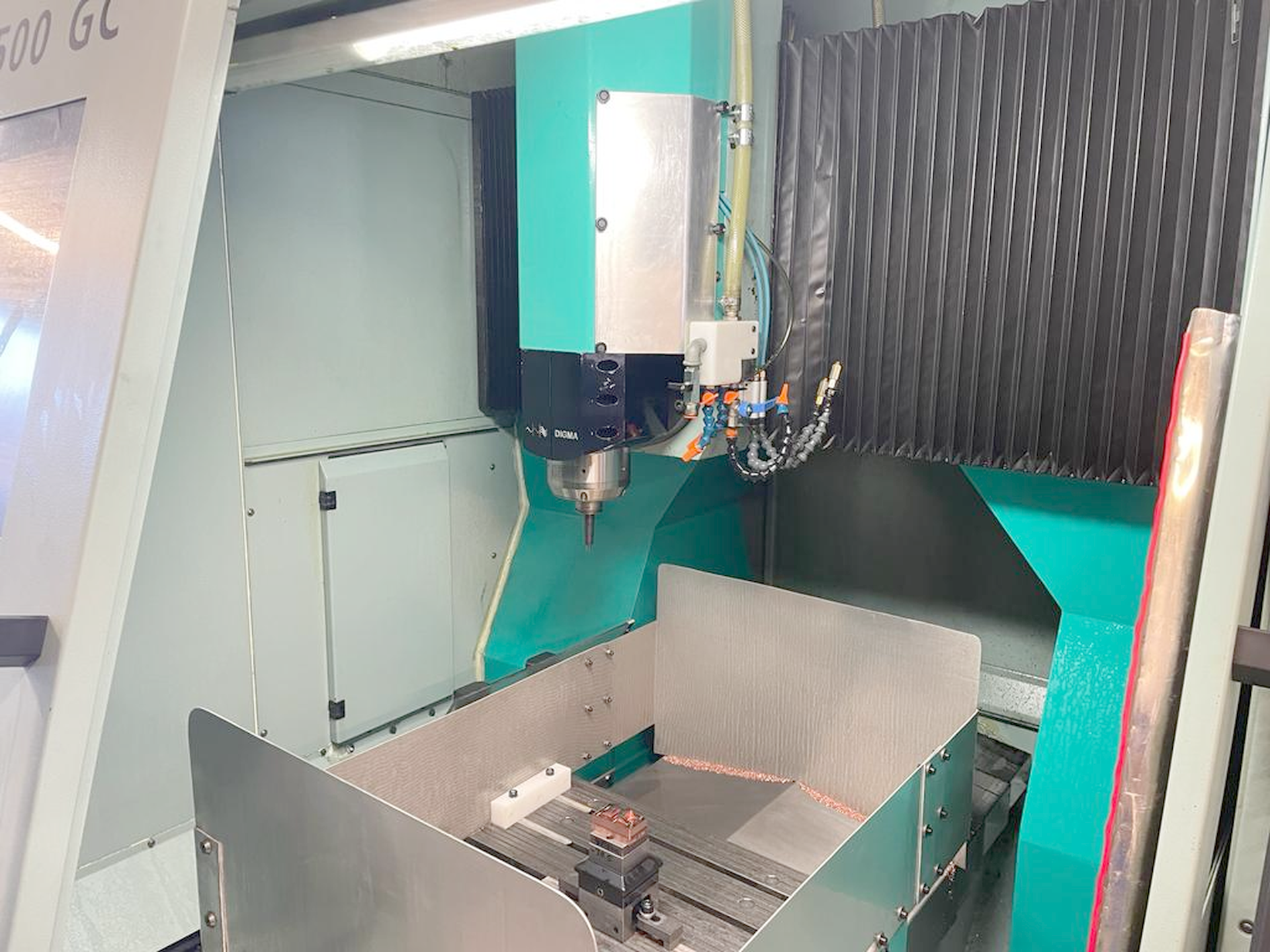

DIGMA 500 GC
Type: 500 GC
Manufacturer: DIGMA
Group: Machining center
Subgroup: 3-axis machining center

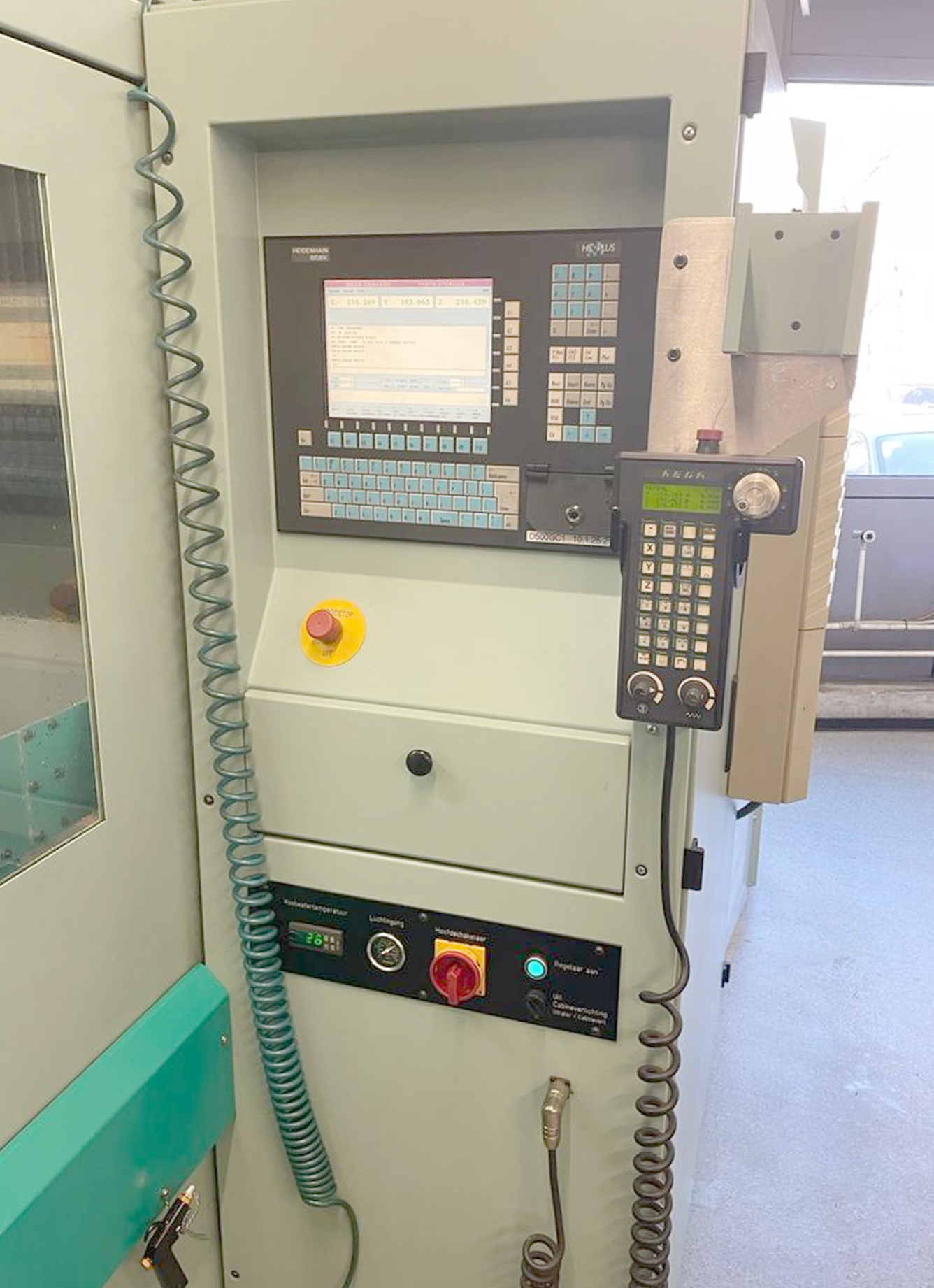

Control: HEIDENHAIN Atek HS Plus
Year: 2000
Stock: 021916
Special Price
CHF 9 500
Special offer machines are sold as-is, without any warranty or inspection from us.
DIGMA 500 GC is a 3-axis machining center engineered for precision, high accuracy and reliability. Working capacities: table 550×450 mm, 5 T‑slots (80/18 mm), travels X500 Y400 Z350 mm, spindle‑to‑table 440 mm, 30 tool positions, EROWA ROBOT X (120 positions). Main specs: spindle 0–42000 t/min, spindle motor 13 kW, feed 2–20000 mm/min, rapid 22 m/min, air 6 bar, 3x400 V, total 16 kVA, weight ≈4350 kg, dims 2700×2200×2800 mm. Accessories: toolholder set, coolant system, electronic handwheel, lamp. Enables tight tolerances; suitable for automotive, aerospace, medical, watchmaking and toolmaking.
| Number of axis total | 3 |

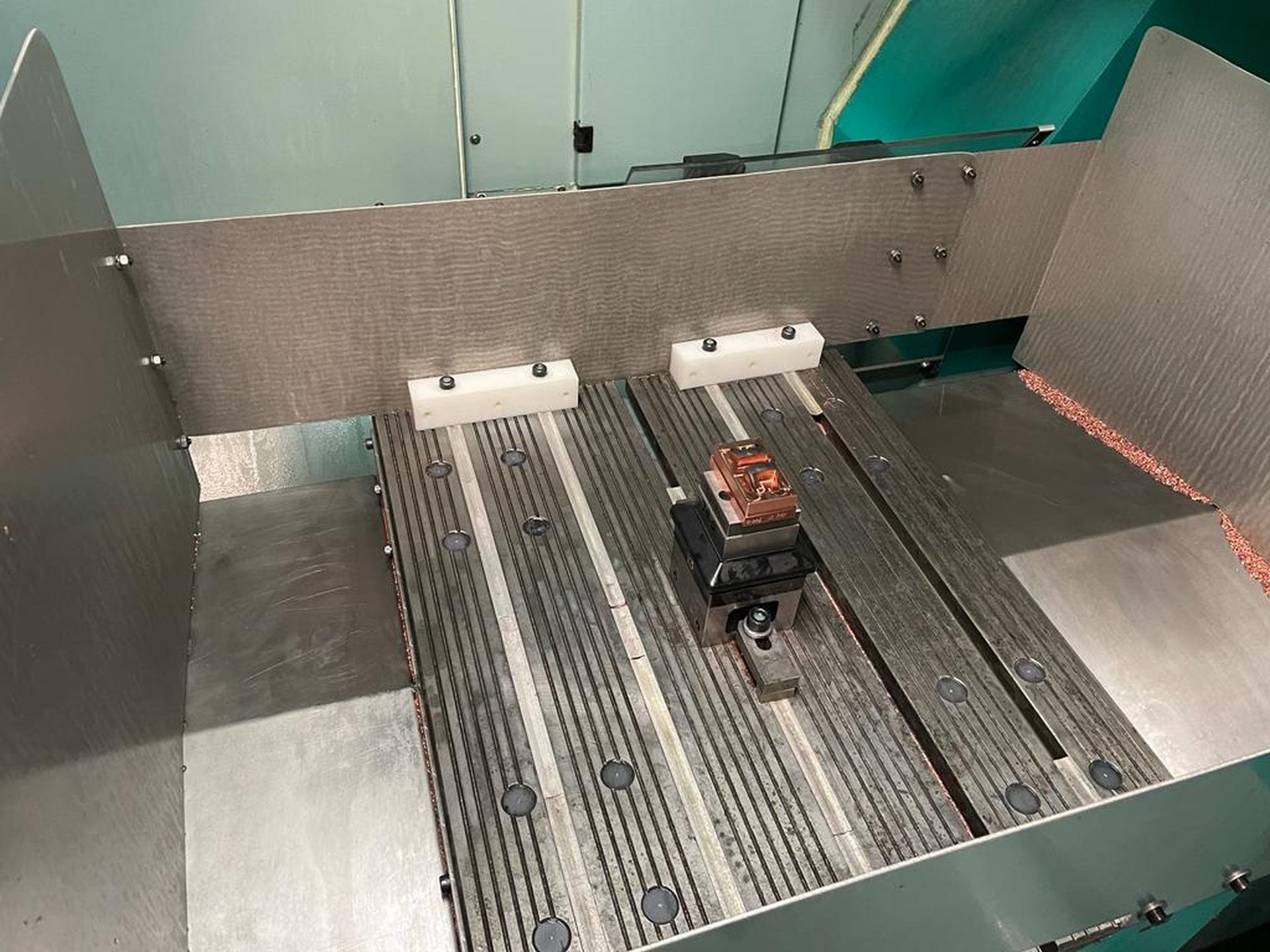

| Table length | 550 mm |
| Table width | 450 mm |
| Number of T-channels | 5 |
| Distance of the T-slots | 80 mm |
| T-channel width | 18 mm |
| Longitudinal travel (X-axis) | 500 mm |
| Transversal travel (y-axis) | 400 mm |
| Vertical travel (z axis) | 350 mm |

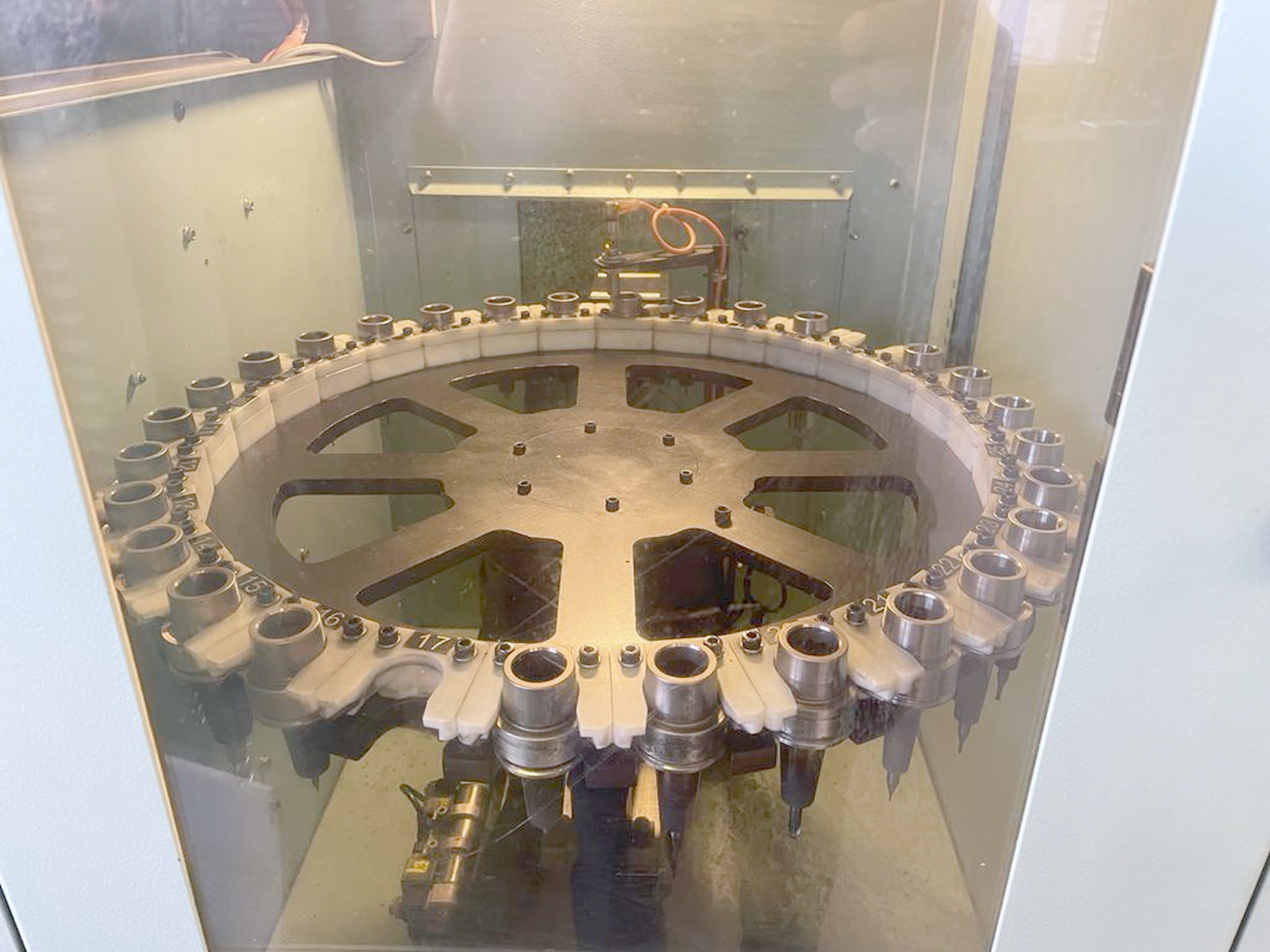

| Tool changer: | |
| Number of tools | 30 |
| Spindle nose: HSK | E40 |
| Distance from vertical | |
| spindle to table | 440 mm |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 42000 t/min |
| Feed range | 2 - 20000 mm/min |
| Rapid traverse: | 22 m/min |
| Air connect | 6 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 13 kW |
| Total power required | 16 kVA |
| Machine's weight about | 4350 kg |
| Overall dimensions machine: | |
| Length | 2700 mm |
| Width | 2200 mm |
| Height | 2800 mm |
| Various accessories: | |

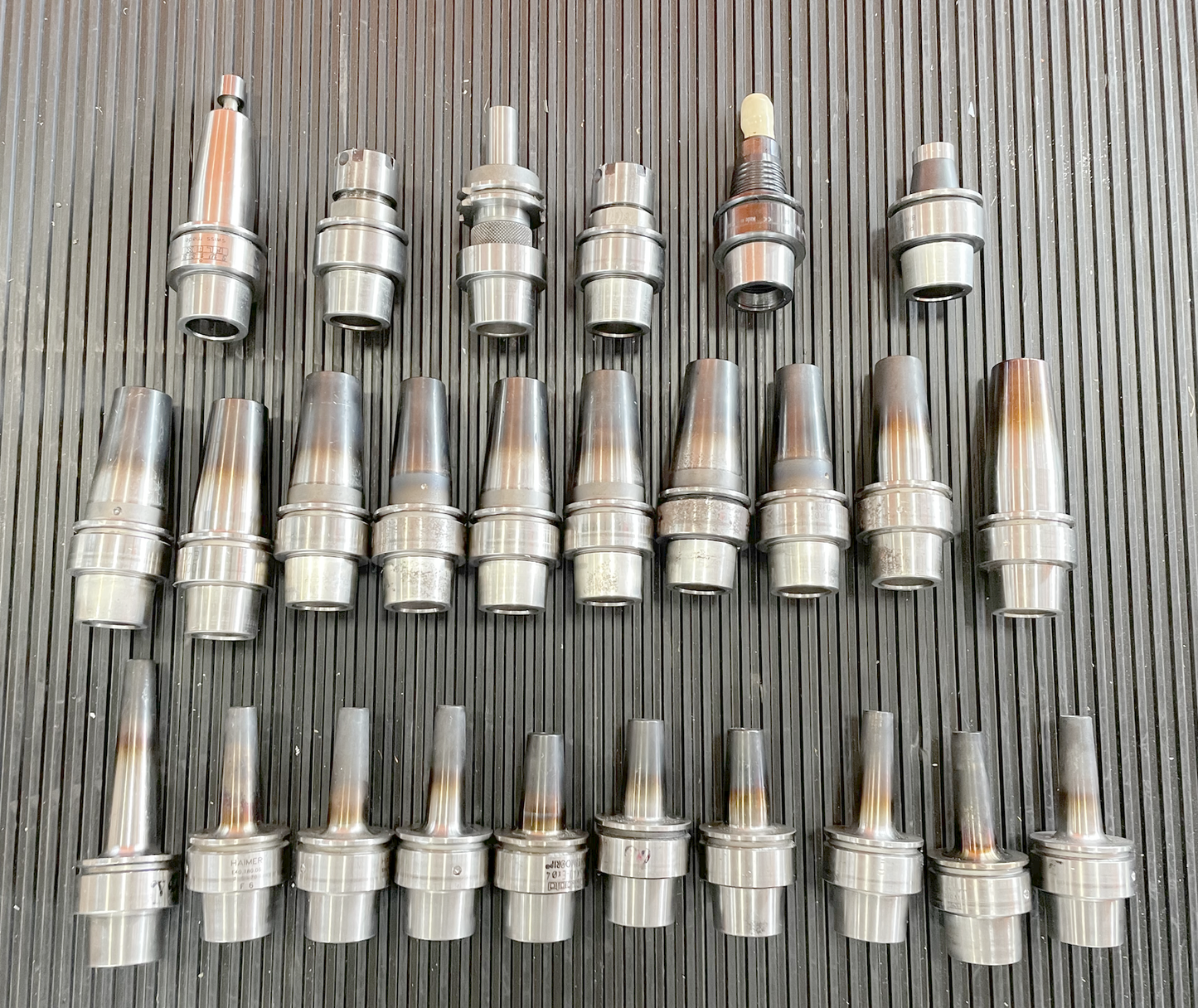

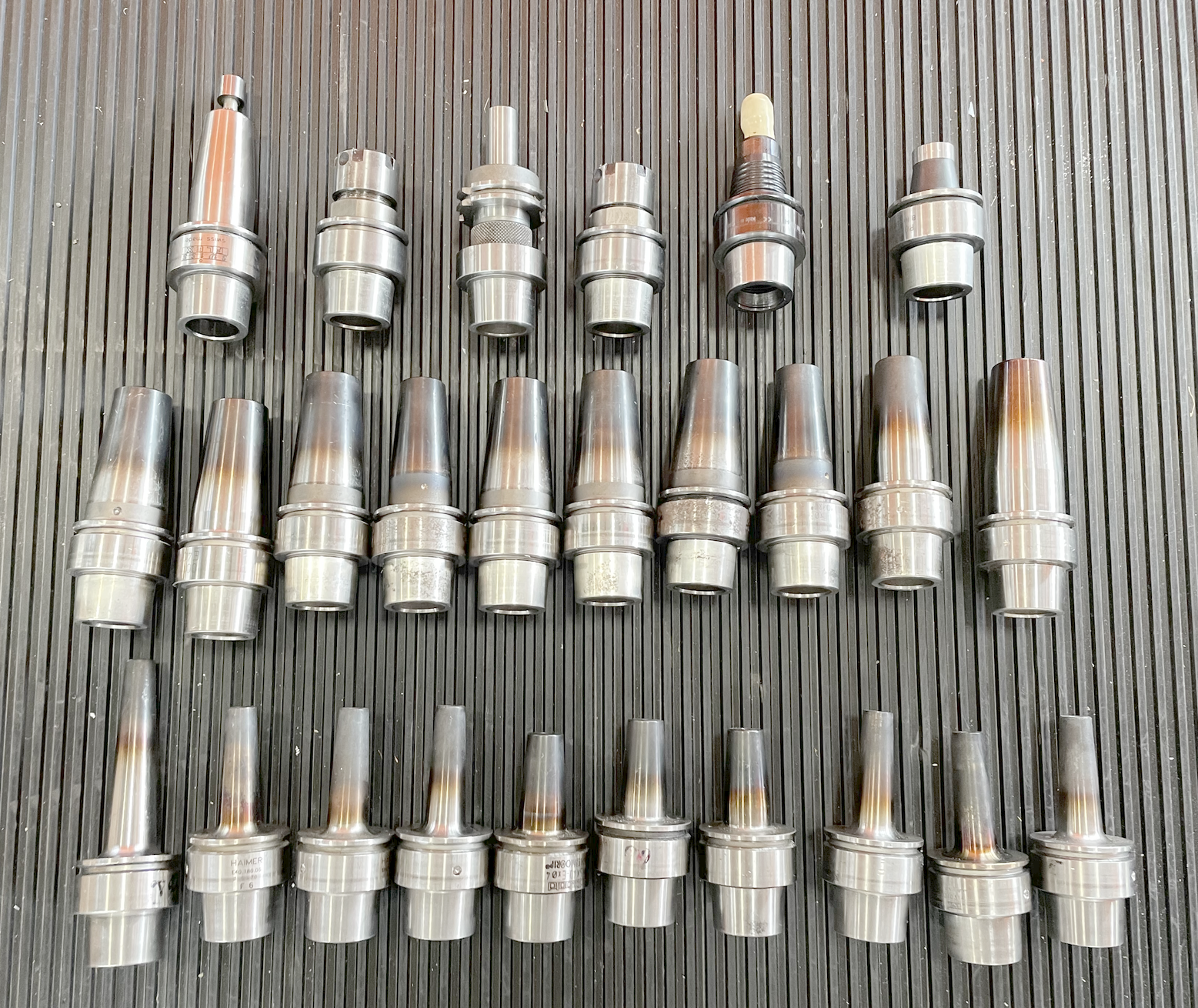

| Set of toolholders | |
| Coolant system | |
| Handwheel electroinic | |
| Lamp | |

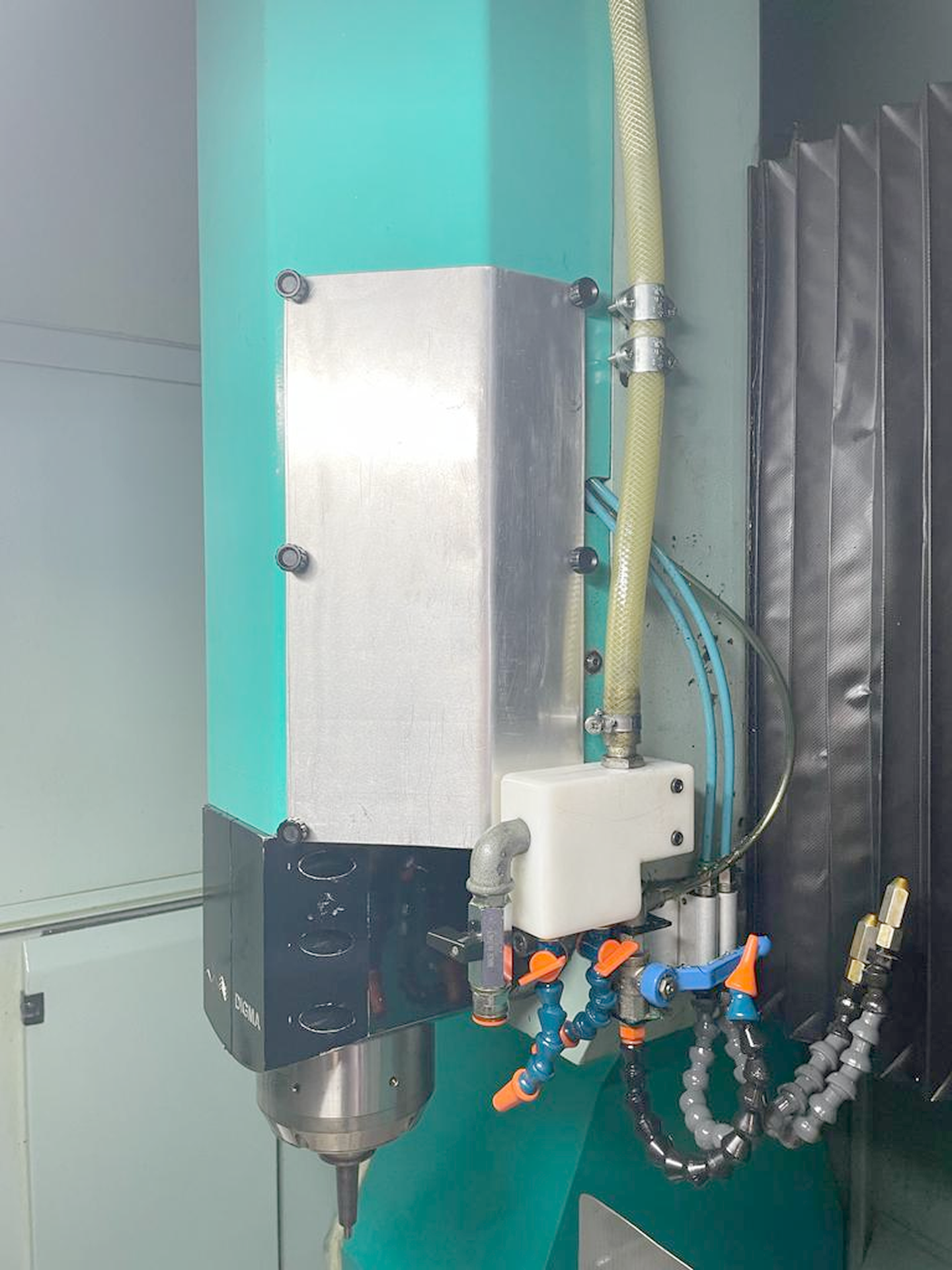

| High frequency spindle | 42000 t/min |

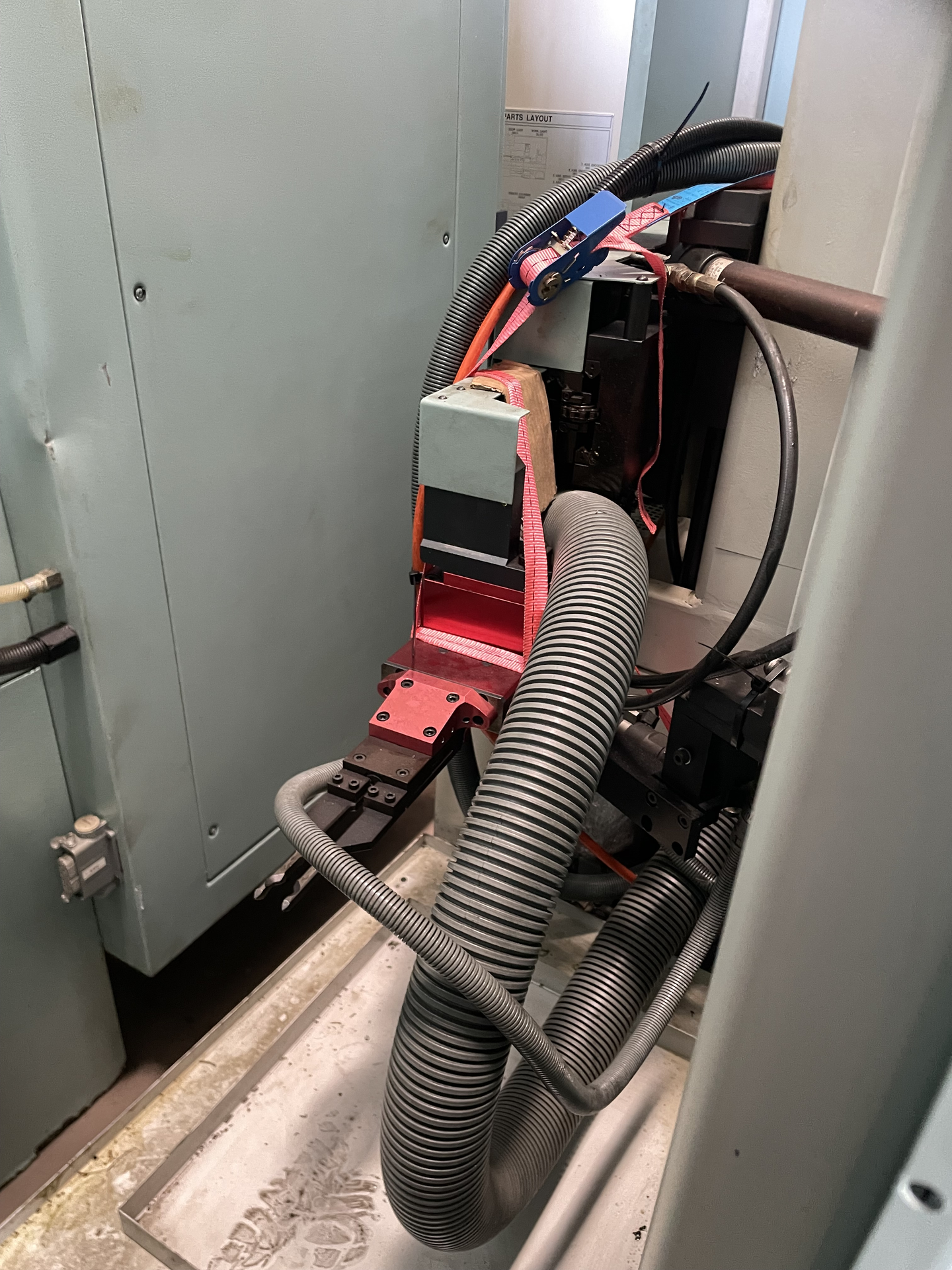

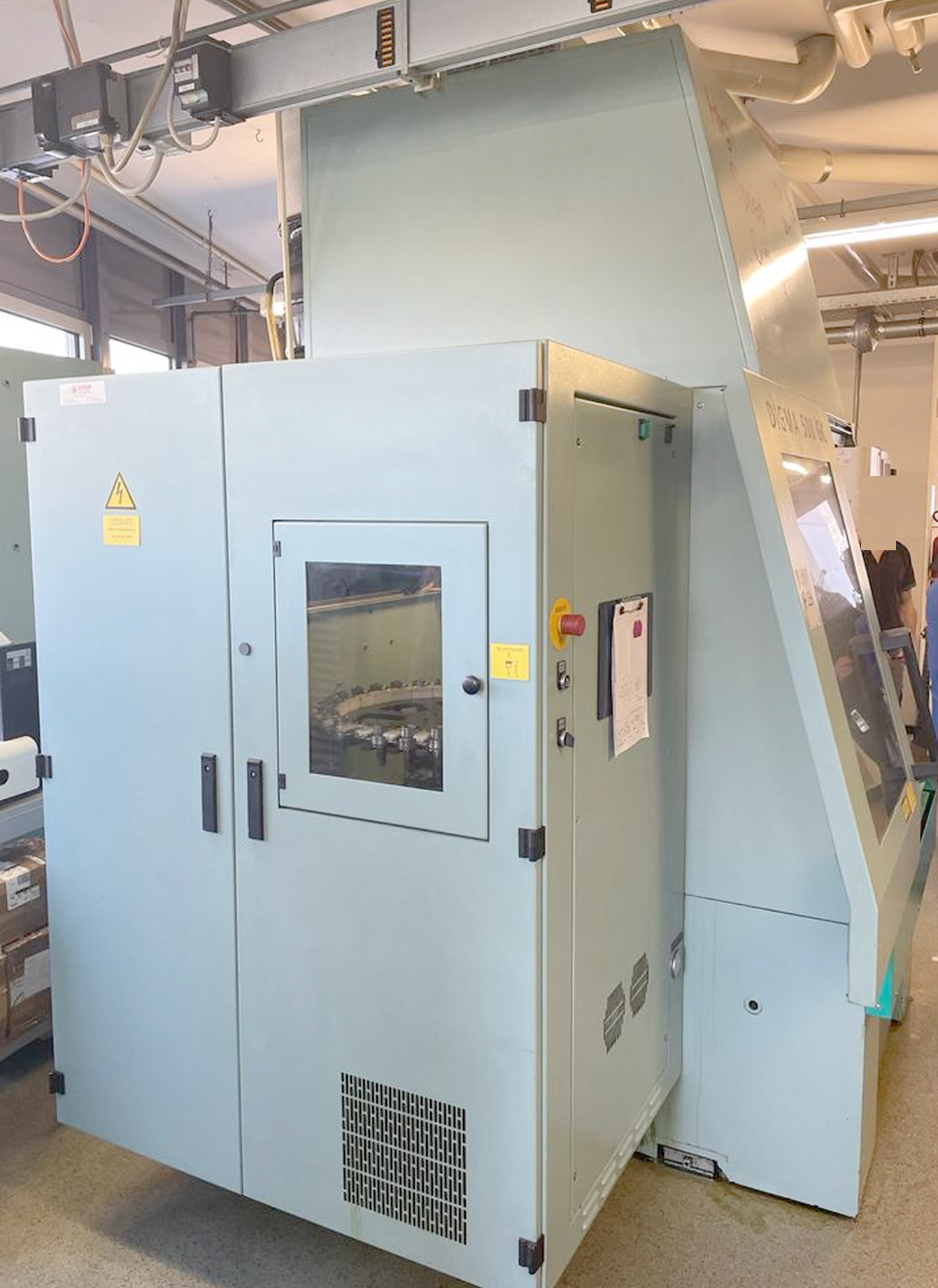

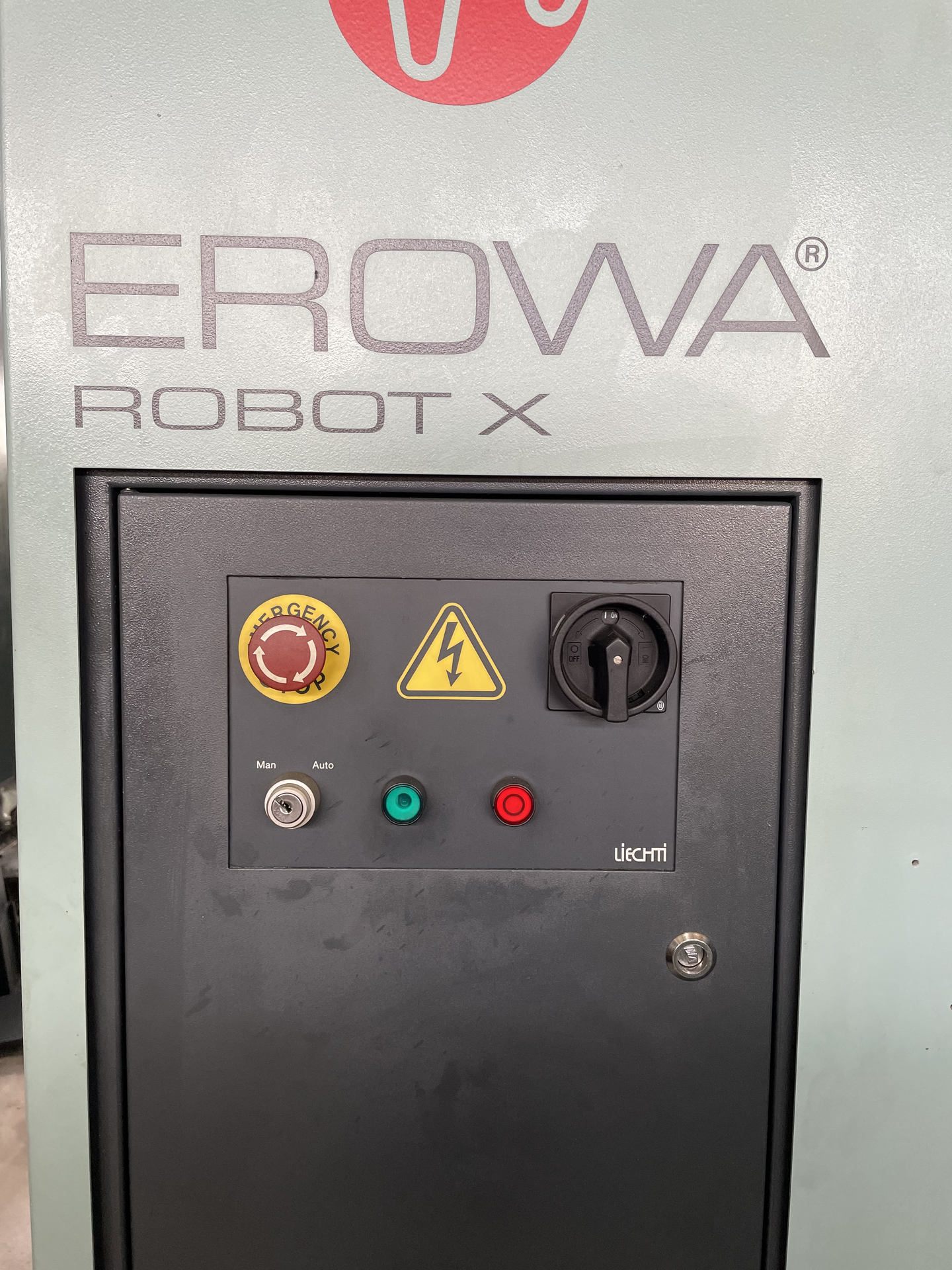

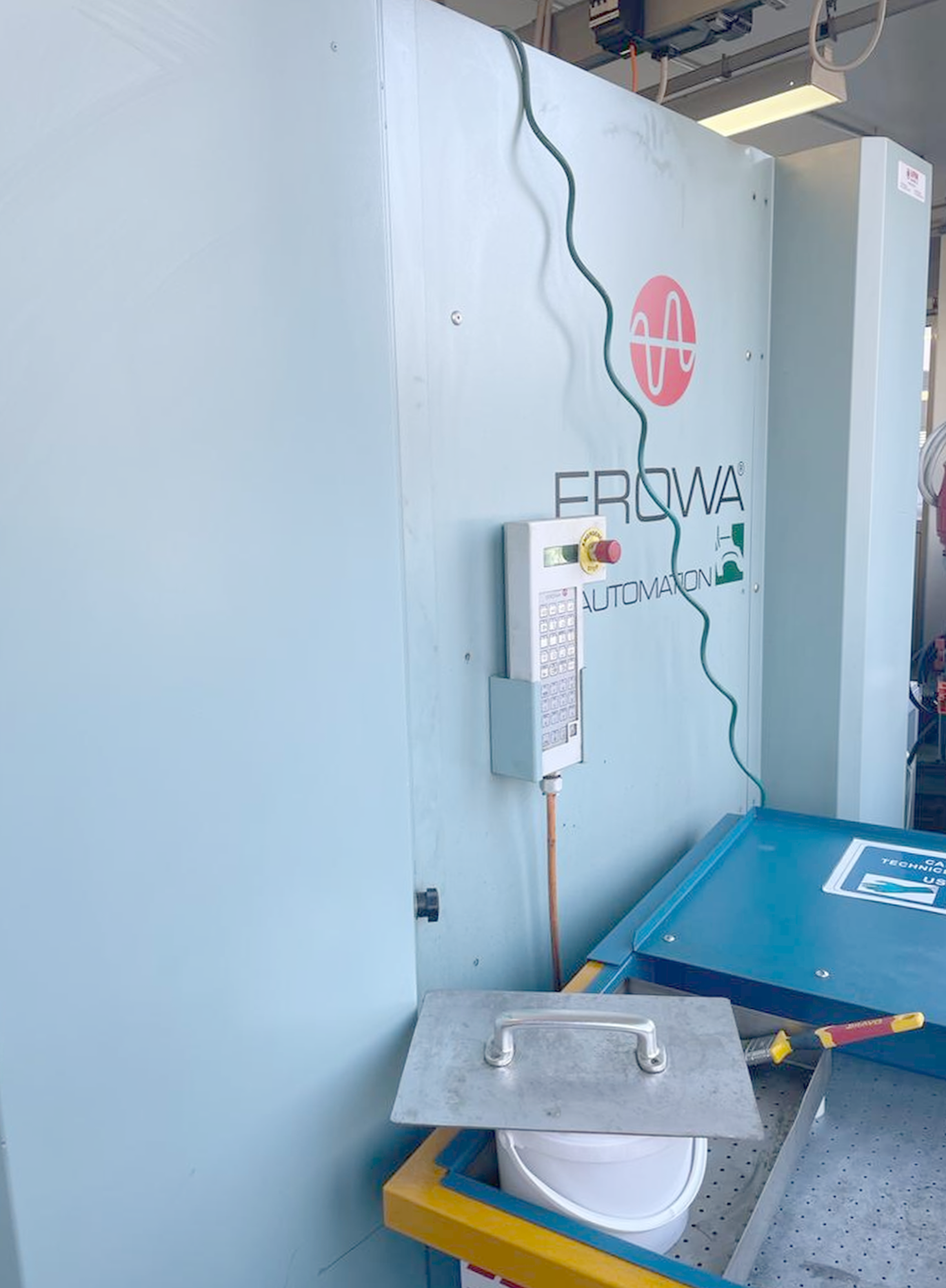

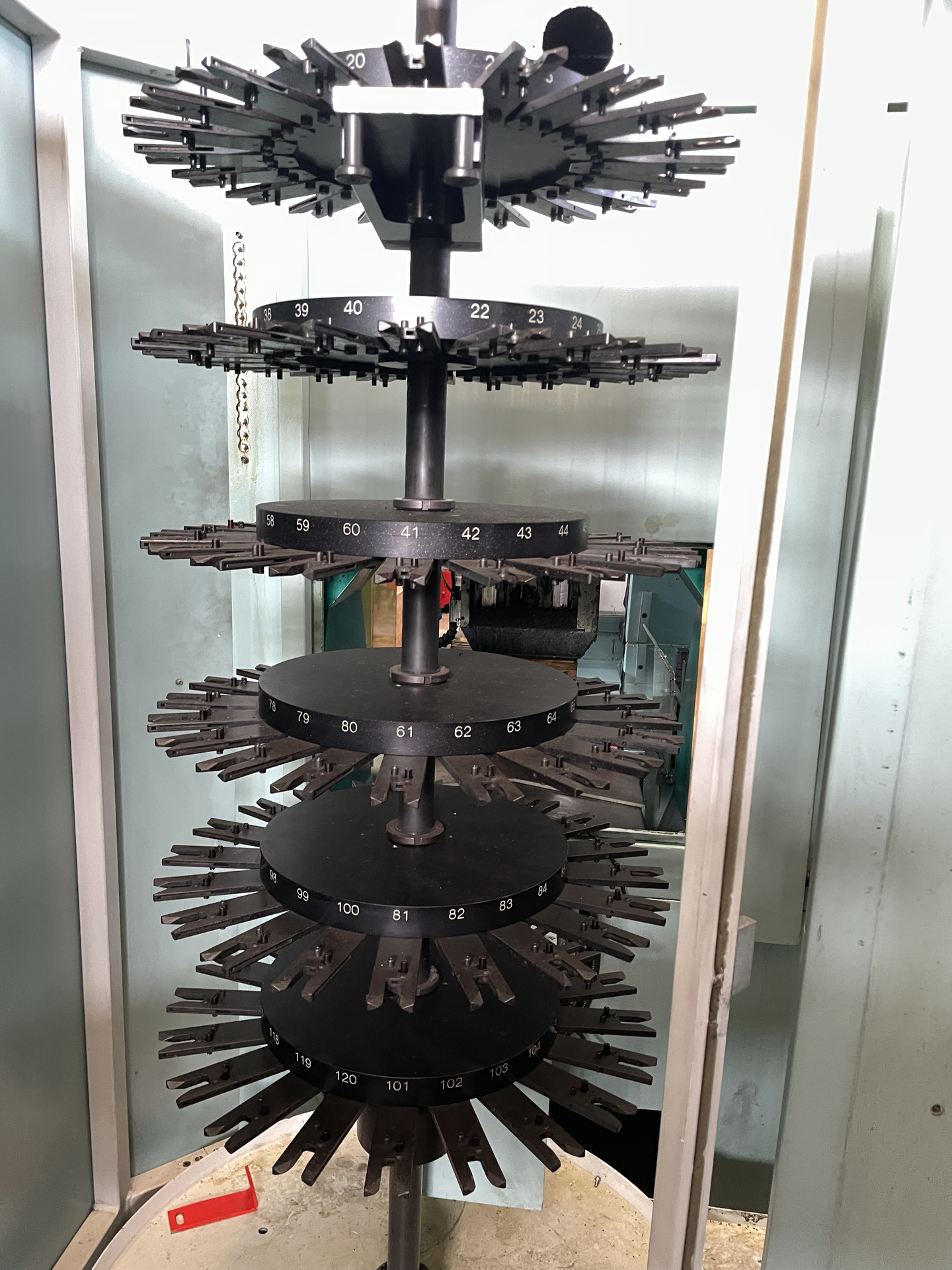

| Workpiece loader | EROWA ROBOT X |
| Number of positions | 120 |

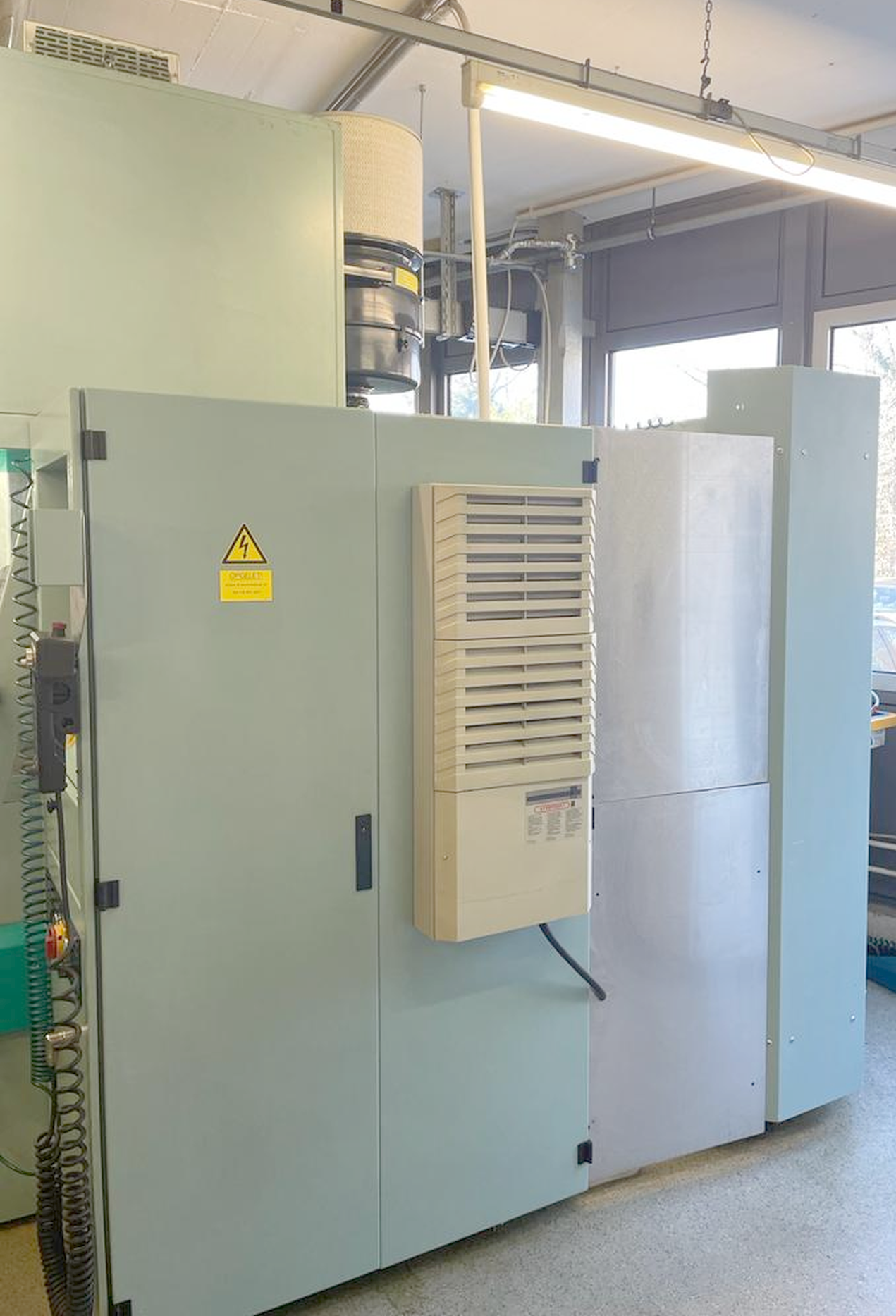

| Switch cabinet Air conditioner | |

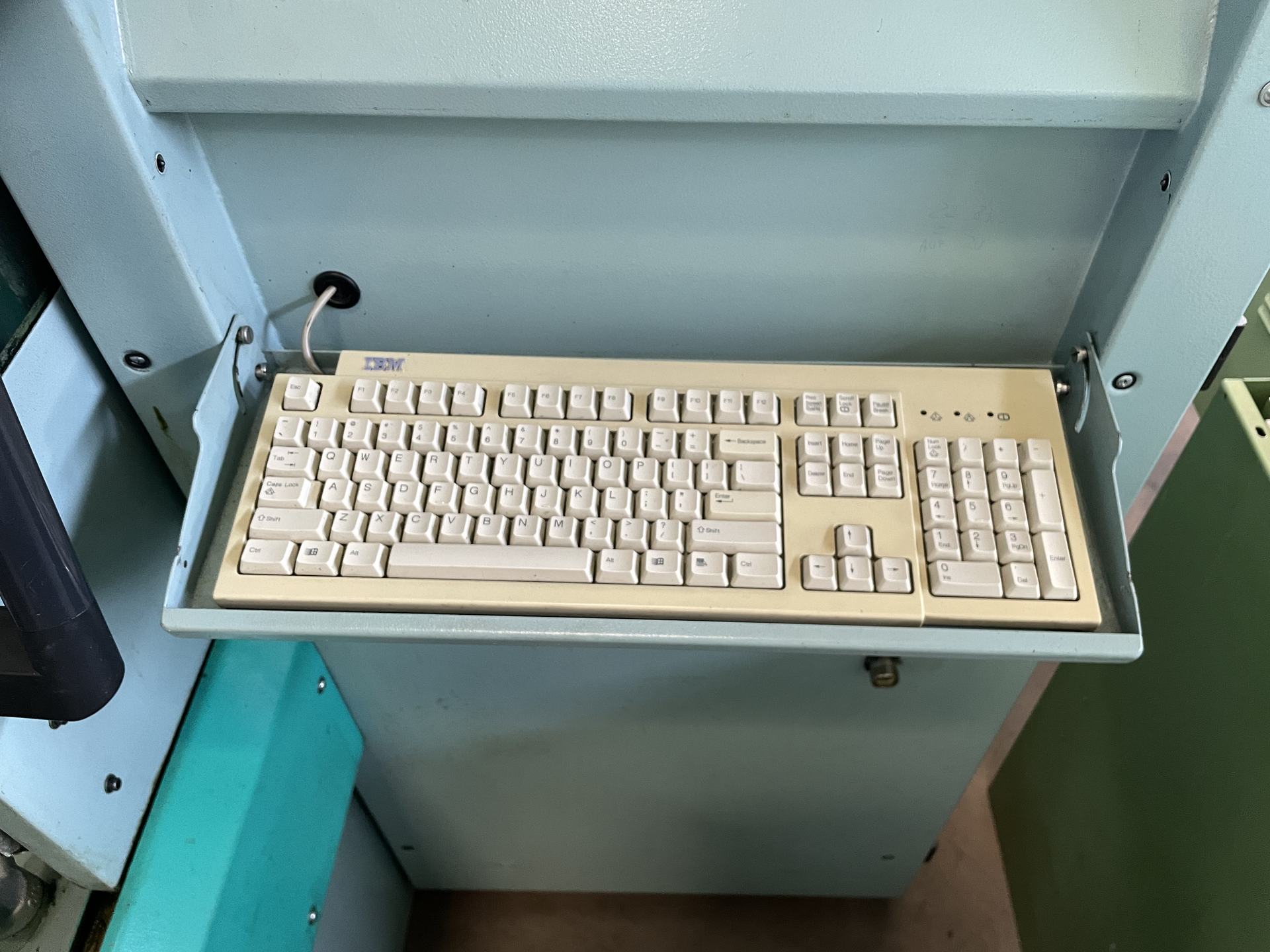

| Keyboard |
