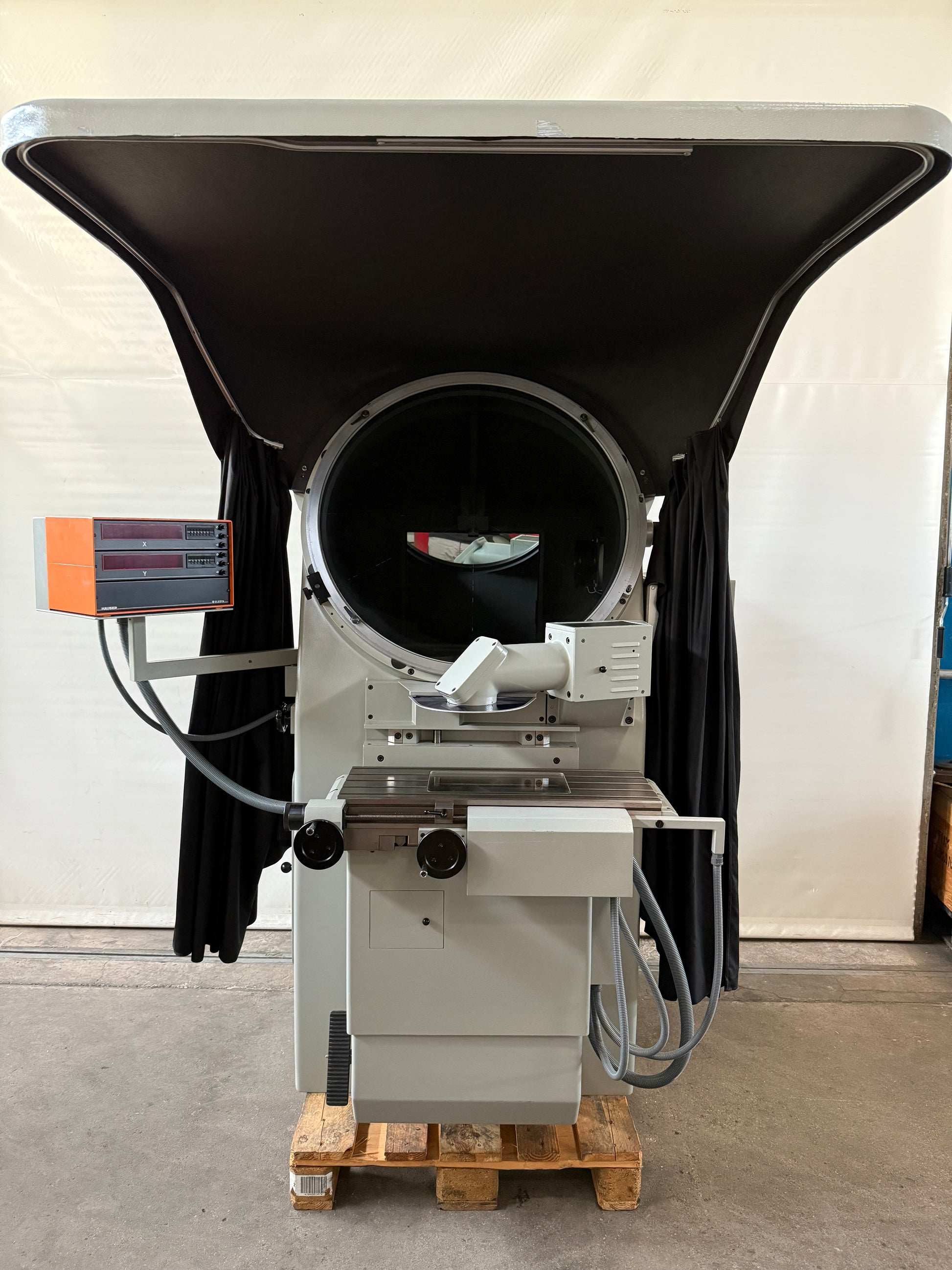

HAUSER P 750-DR is a Profile projector designed for precision, high accuracy and reliability. Capacities: screen Ø750 mm; stage 650×230 mm; longitudinal travel 200 mm; transversal travel 85 mm; magnifications 10×,20×,25×,50×. Specs: 50 Hz 3x 380 V; weight ≈700 kg; dimensions 2000×1400×2000 mm; digital readout 2 axes; manufacturer Elesta/Hauser; fitted with obscuration device and center mounting attachment. Enables tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical.
| Screen diameter | 750 mm |

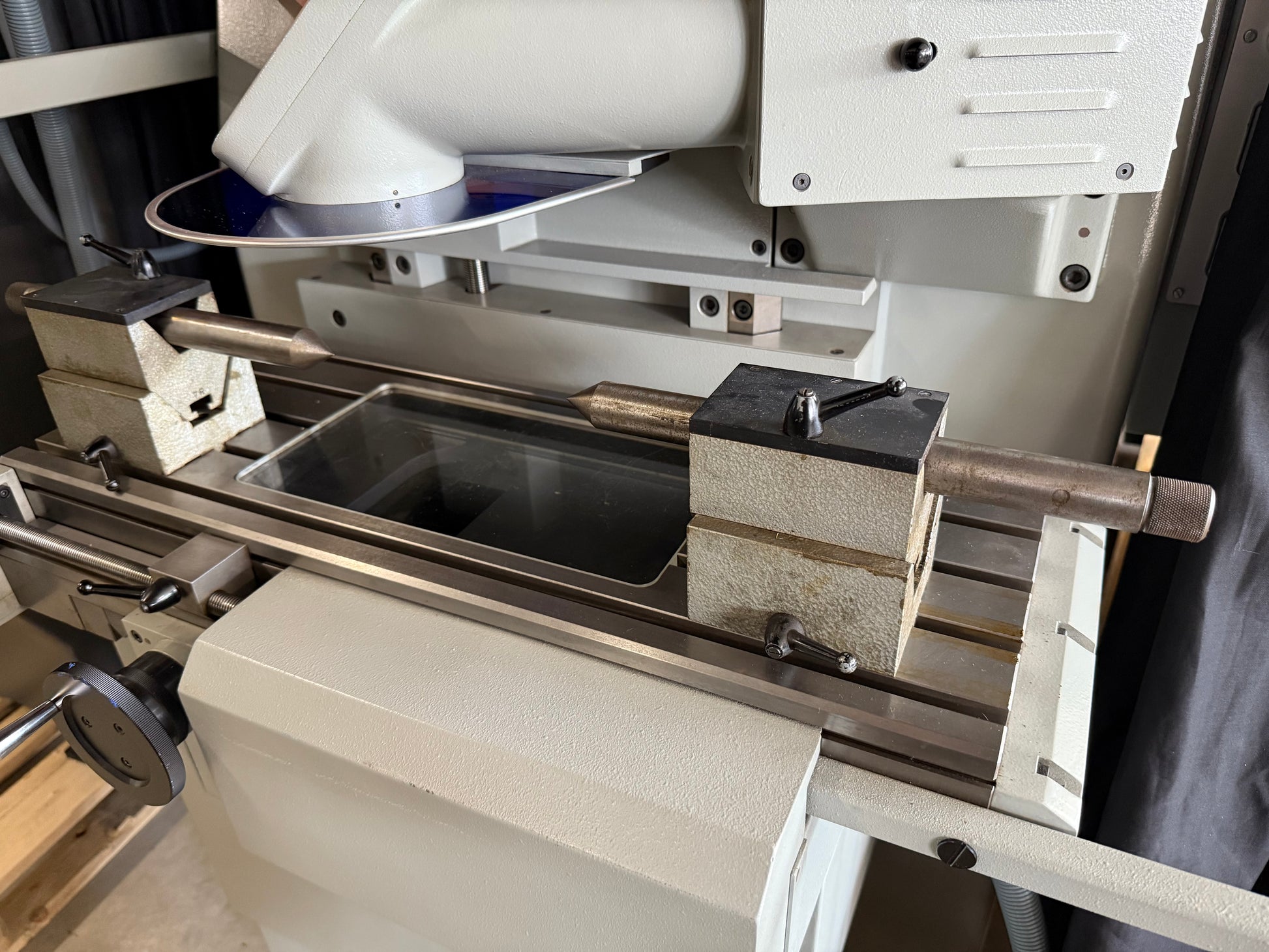

| Microscope stage length | 650 mm |
| Microscope stage width | 230 mm |
| Longitudinal way | 200 mm |
| Transversal way | 85 mm |
| Amplifications: | |
| 10 | 1 x |
| 20 | 1 x |
| 25 | 1 x |
| 50 | 1 x |

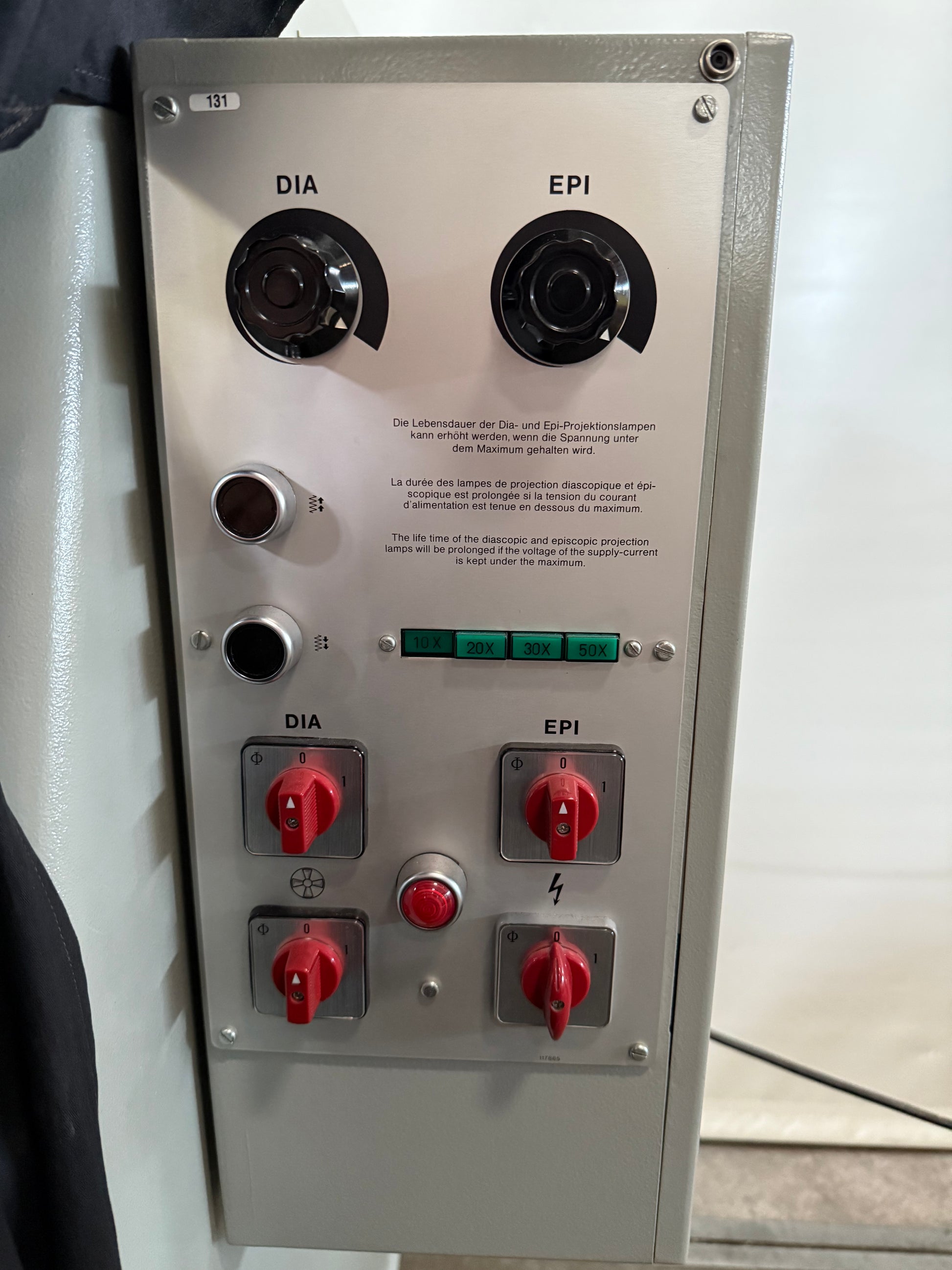

| Lighting: | |
| Diascopy lighting | |
| episcopy | |

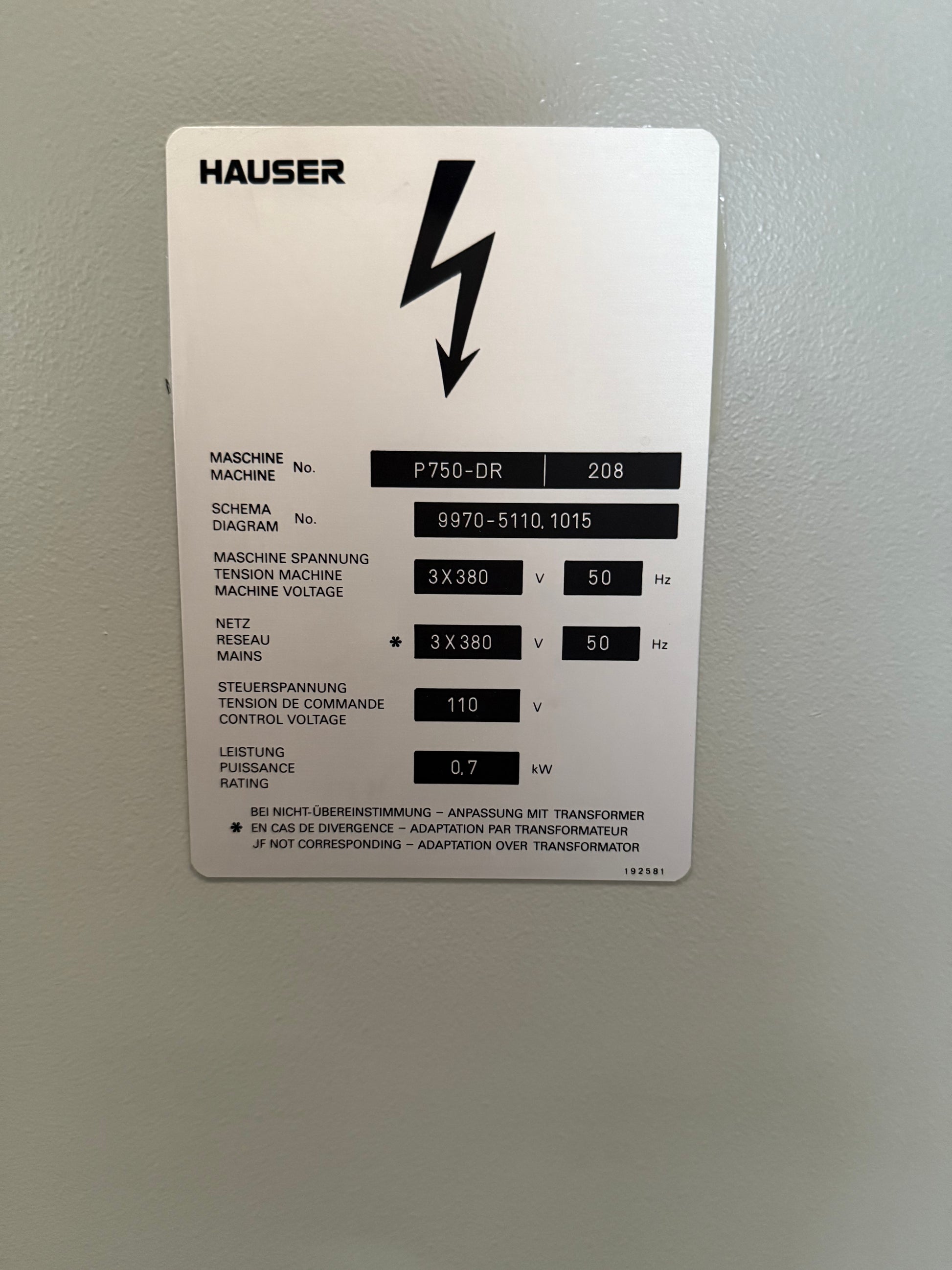

| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 700 kg |
| Overall dimensions machine: | |
| Length | 2000 mm |
| Width | 1400 mm |
| Height | 2000 mm |
| Various accessories: | |

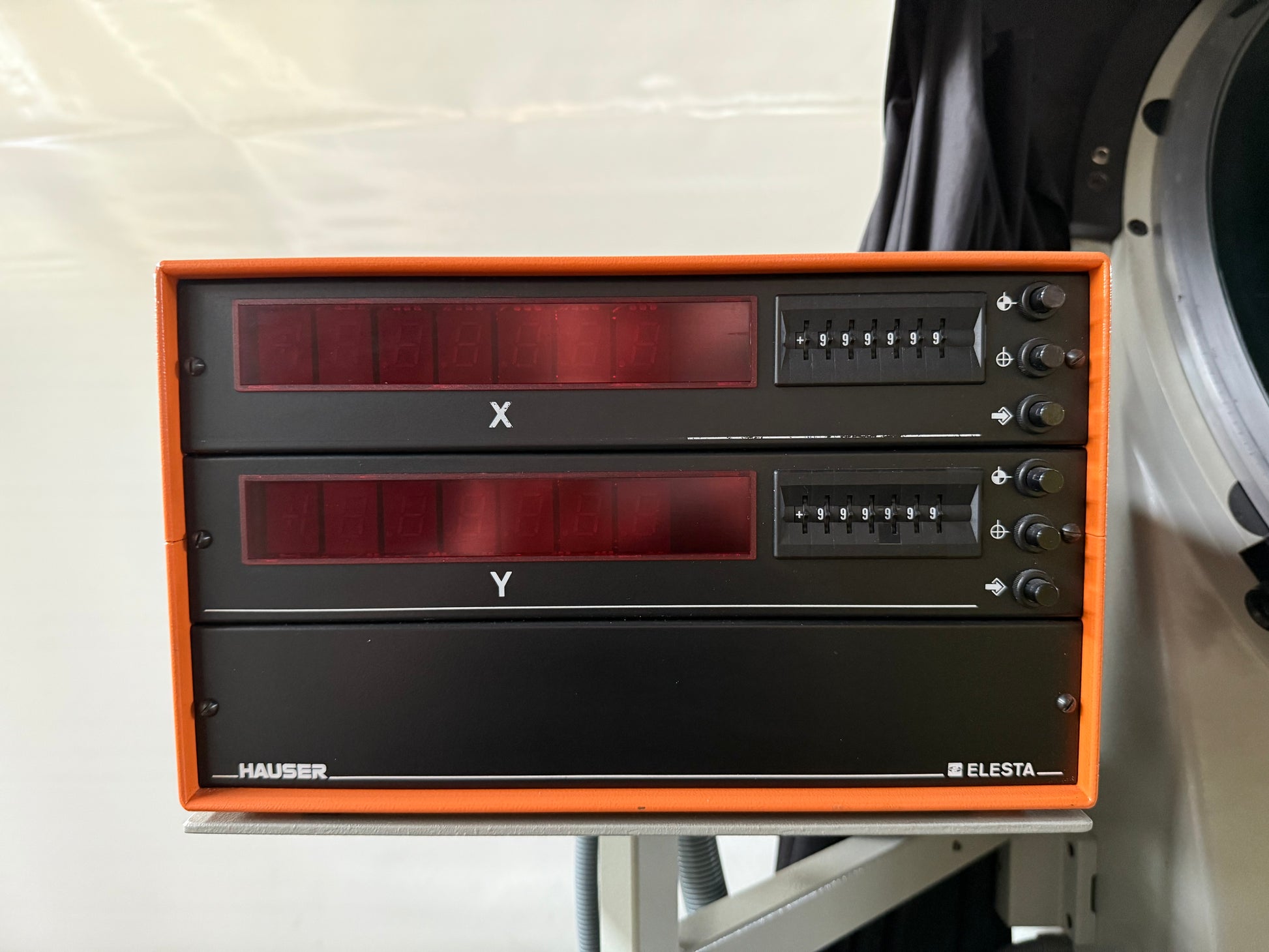

| Digital readout number of axis: | 2 |
| Manufacturer | Elesta / Hauser |
| Obscuration device | |
| Center mounting attachment |
