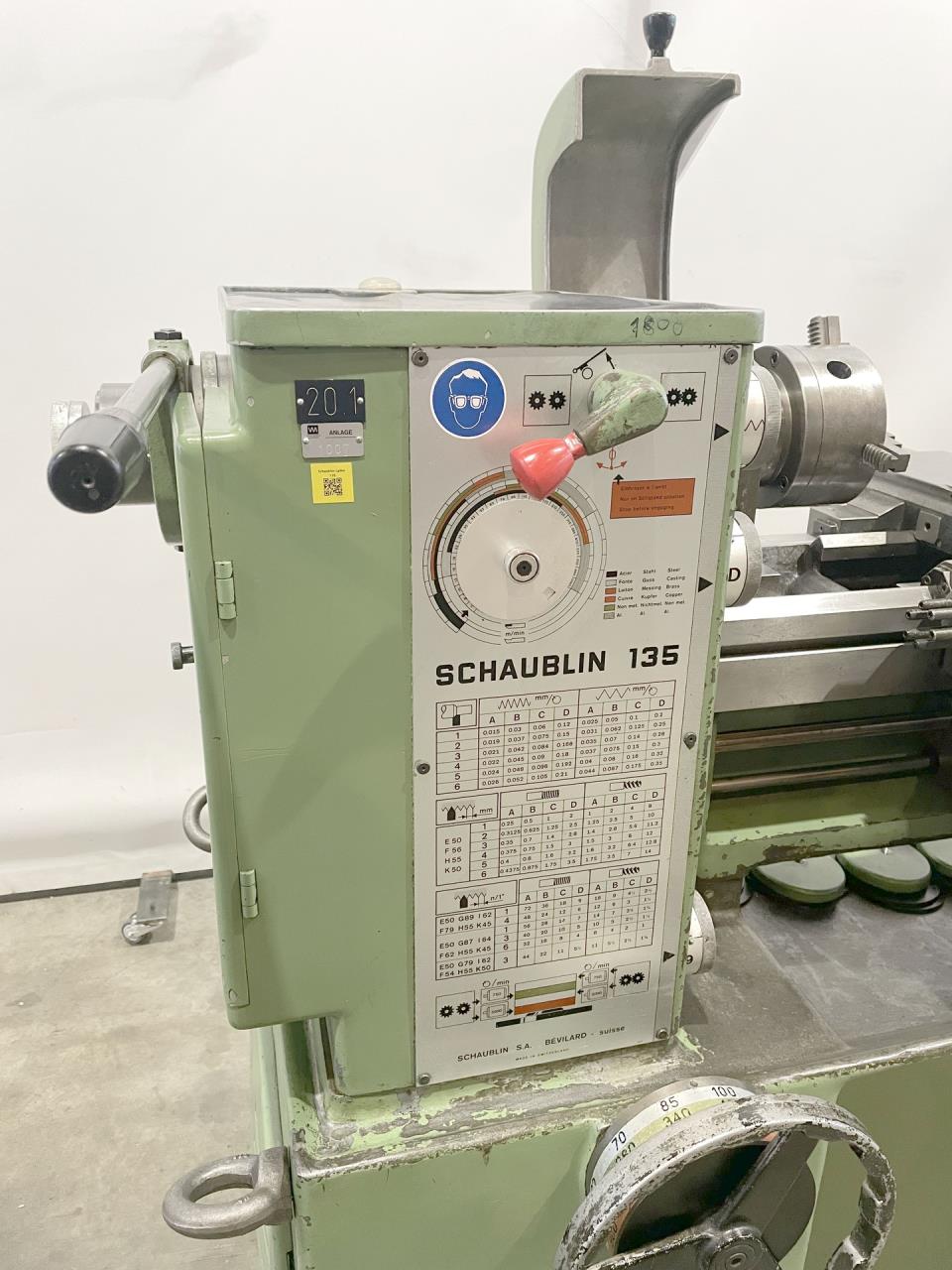

SCHAUBLIN 135 is a Centre lathe for precision, high accuracy and reliable performance. Capacities: centre height 135 mm, between centres 630 mm, swing over cross‑slide 150 mm, over bed 355 mm, spindle bore 40 mm; X1 180, Z1 650, tailstock stroke 120 mm. Specs: MK5, Camlock D1‑4, 55–3000 t/min, 4 CV, 3×380V 50Hz, weight ≈1300 kg, dims 1715×970×1280 mm. Feeds 24 steps from 0.015 mm/rev. Accessories: 3‑jaw chuck, quick clamp, MULTIFIX, drill chuck, tailstock starwheel, chuck guard. Enables tight tolerances; sectors: automotive, watchmaking, toolmaking, aerospace, medical.
| Centre height | 135 mm |
| Distance between centres | 630 mm |
| Swing over cross-slide | 150 mm |
| Swing over bed | 355 mm |
| Spindle hole | 40 mm |
| Travels: | |
| X1 | 180 mm |
| Z1 | 650 mm |
| Taper in spindelstock MK | 5 |
| Taper in spindle: | |
| Camlock | D1-4" |
| Spindle speeds: | |
| stepless | |
| from | 55 t/min |
| up to | 3000 t/min |
| Taper in tailstock: | 3 CM |
| Spindle stroke | 120 mm |
| Feeds: | |
| number (steps) | 24 |
| length: | |
| from | 0.015 mm/t |
| up to | mm/t |
| Frontal: | |
| from | 0.015 mm/t |
| up to | mm/t |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 4 CV |
| Machine's weight about | 1300 kg |
| Overall dimensions machine: | |
| Length | 1715 mm |
| Width | 970 mm |
| Height | 1280 mm |
| Various accessories: | |

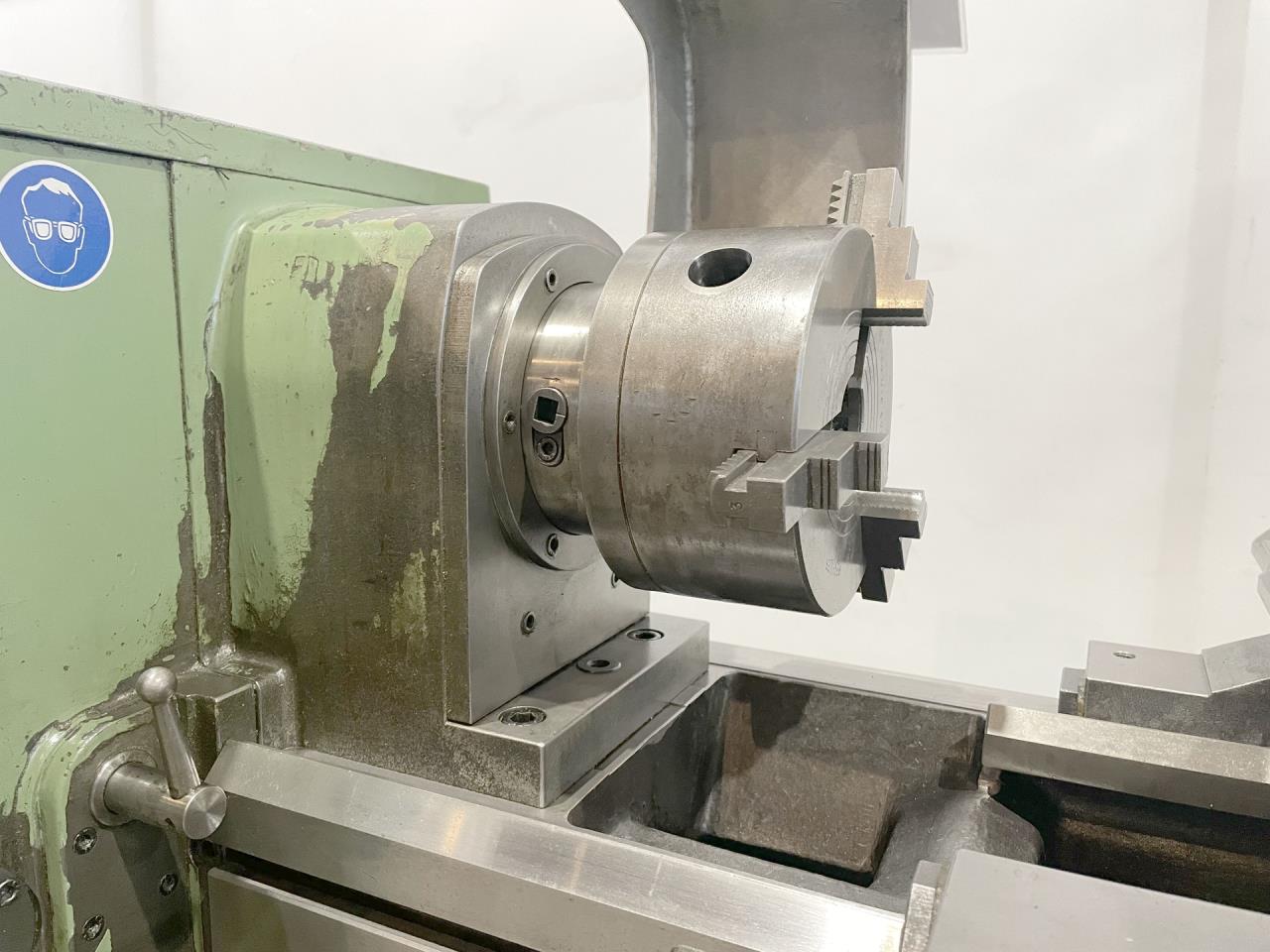

| 3-jaw chuck | |
| Quick closing attachment | |

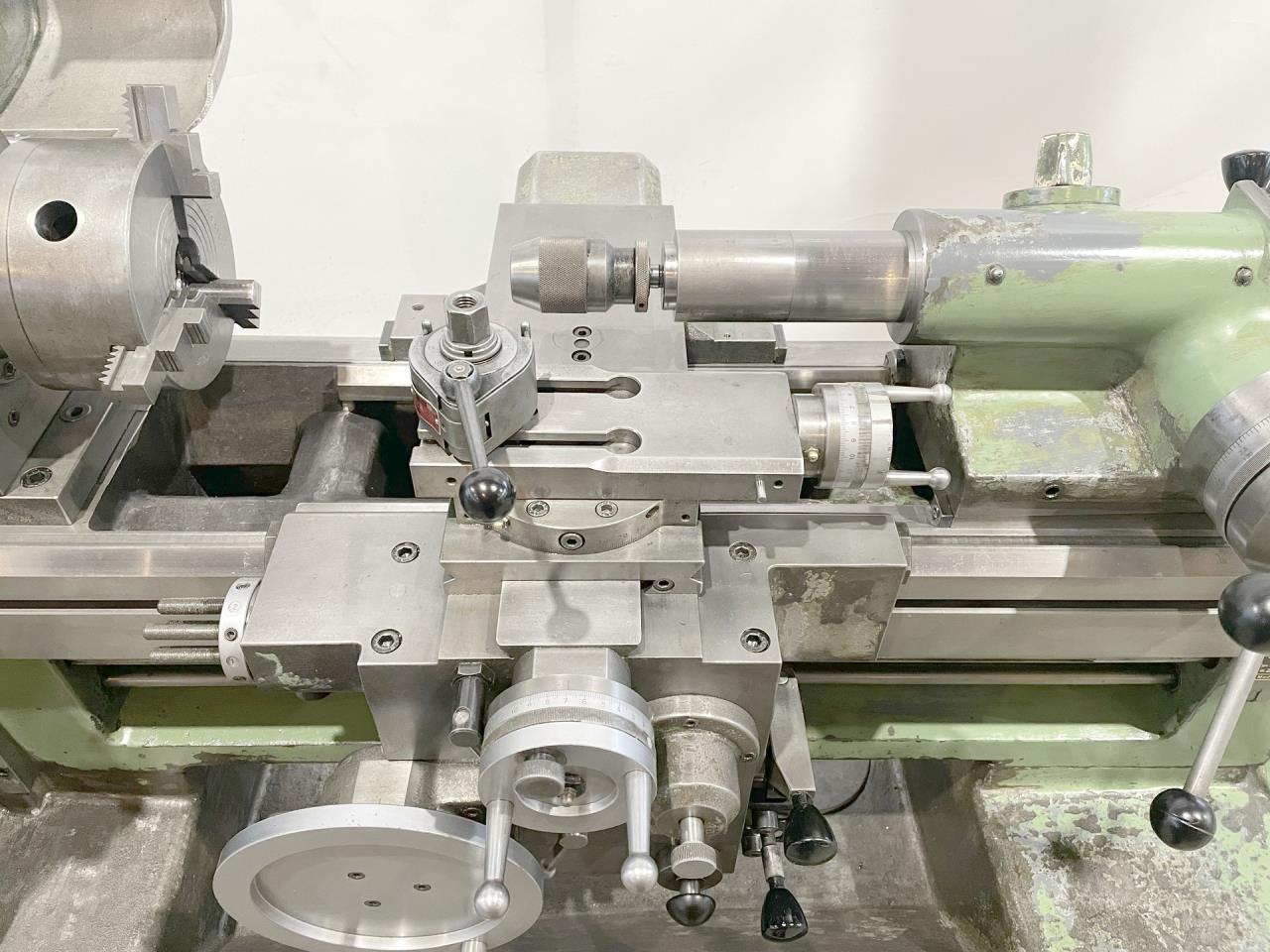

| Quick-change toolholder MULTIFIX | |
| Drill chuck | |

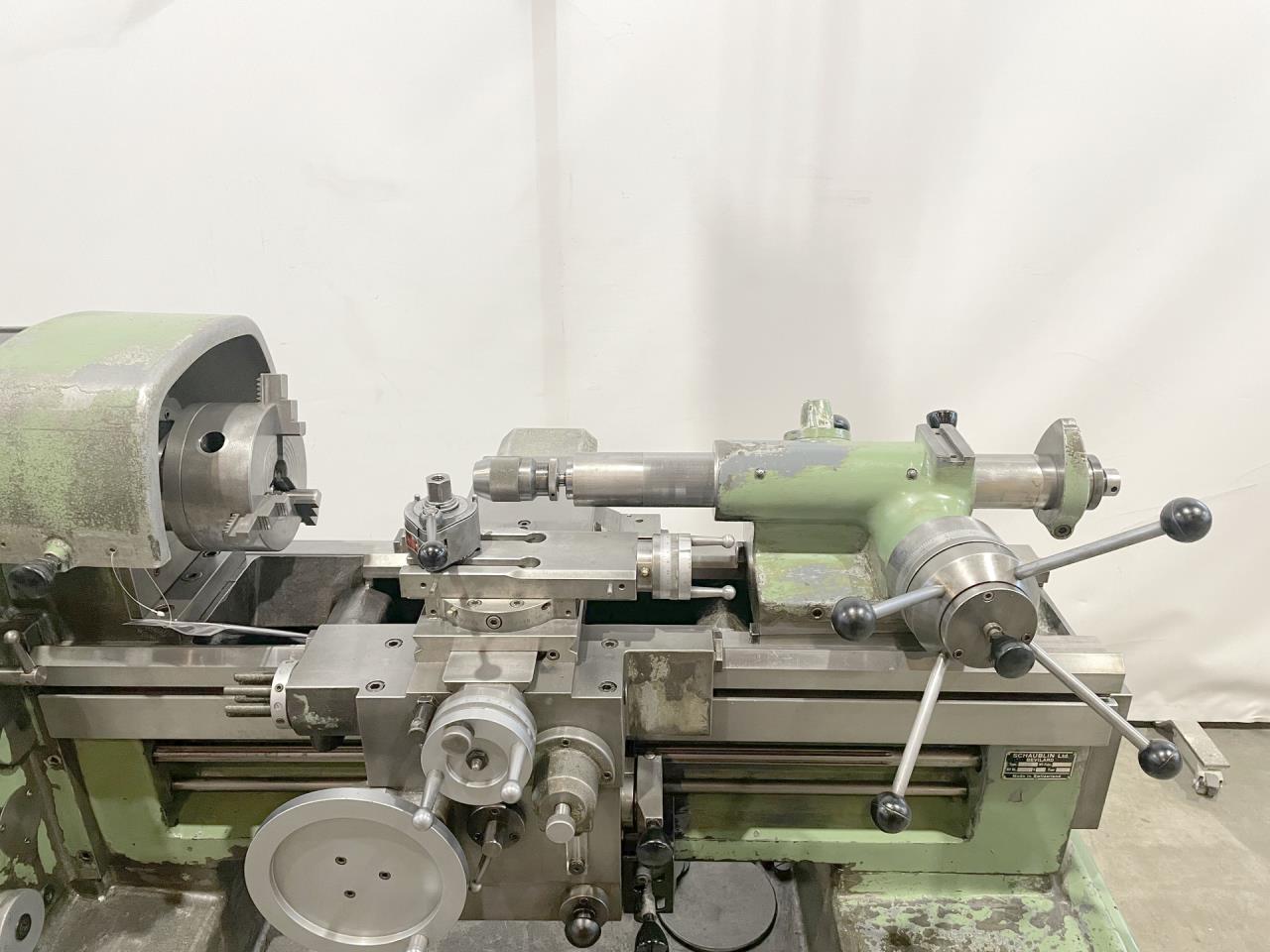

| Starwheel-operatet tailstock | |
| Lathe chuck protection |
