CITIZEN CINCOM R 07 VI
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

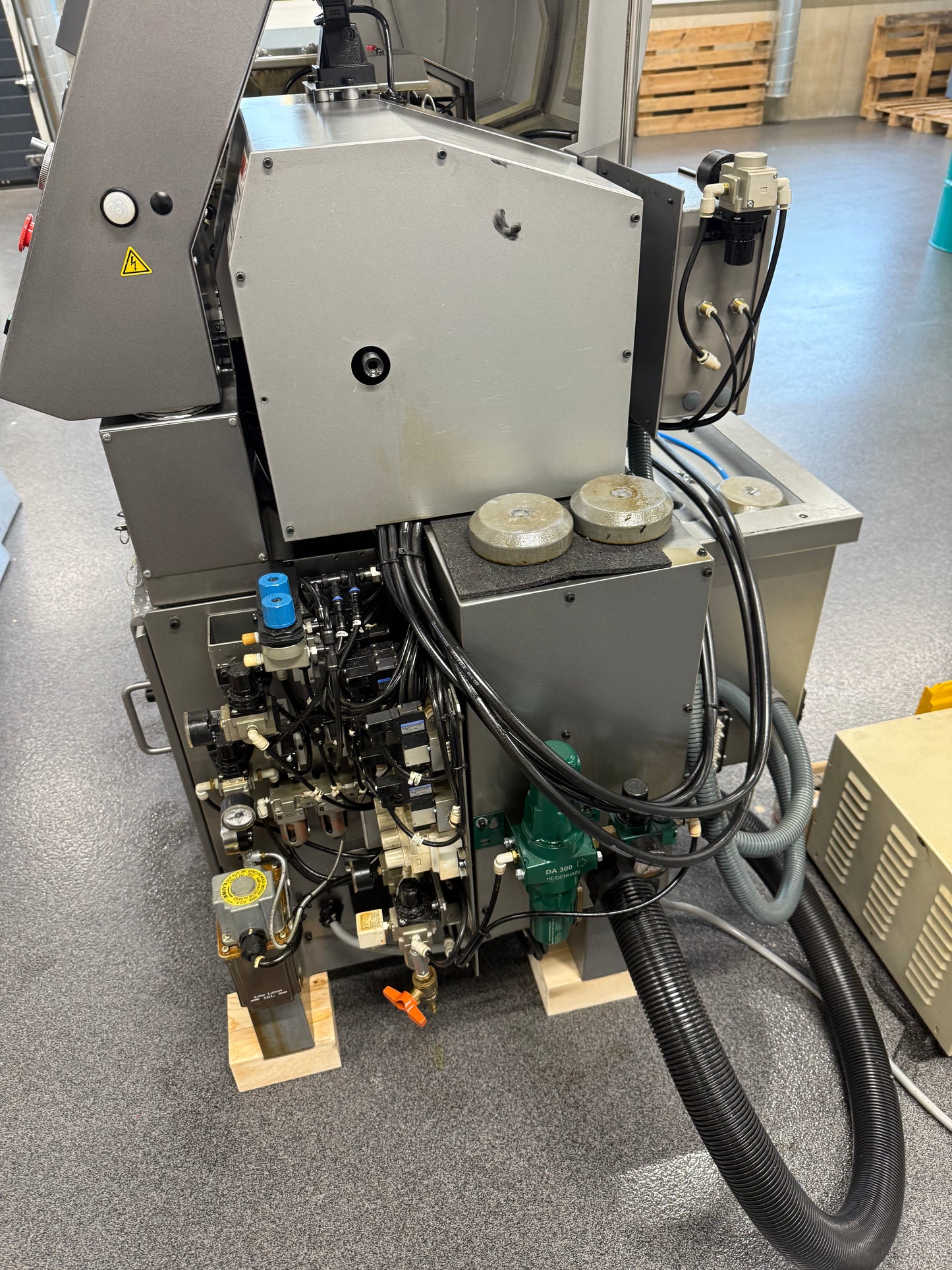

CITIZEN CINCOM R 07 VI is a high-precision CNC automatic lathe (Swiss-type) delivering strong accuracy and reliability. Capacities: 6 axes, 2 spindles; max turning Ø 7 mm, max length 40 mm, spindle bore 12 mm; threading up to Ø4 M, max tapping length 40 mm. Specs: spindle 0–16,000 rpm, 1.1 kW; back spindle up to 10,000 rpm, 0.5 kW; C-axis resolution 1°; supply 3x400 V 50 Hz, total power 4 kVA; weight ~950 kg; footprint 1465×560×1410 mm. Accessories: parts catcher, lamp, bar feeder LNS TRYTON 107, central lubrication, status light. Built to achieve tight tolerances; typical applications include automotive, watchmaking, medical, aerospace, and machine-tool components
| Number of axis total | 6 |
| Number of spindles | 2 |
| Max. turning diameter | 7 mm |
| Maximum turning length | 40 mm |
| Max. threading diameter | 4 M |
| Internal spindle diameter | 12 mm |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 16000 t/min |
| Spindle power | 1.1 kW |
| C axis (spindle,resolution) | ° |
| Back spindle: | |
| speeds: | |
| from | t/min |
| up to | 10000 t/min |
| Max. tapping length | 40 mm |
| C axis (spindle,resolution) | 1 ° |
| Thread drill diameter | 3 M |
| Tool-holder: | |
| numbers | 2 |
| Number of stations | 13 |
| Turning tools | 5 pce |
| Drilling tools | 4 pce |
| Tool shank cross section | 8 mm |
| Counter-operation: | |
| number of tools | 4 |
| Voltage 50 Hz 3x | 400 Volt |
| Power of back spindle | 0.5 kW |
| Total power required | 4 kVA |
| Machine's weight about | 950 kg |
| Overall dimensions machine: | |
| Length | 1465 mm |
| Width | 560 mm |
| Height | 1410 mm |
| Various accessories: | |
| Parts catcher | |
| Lamp | |
| Bar feeder | |
| Manufacturer | LNS |
| Type | TRYTON 107 |
| Central lubrification | |
| Status light |
