TORNOS MS 7 (arrêtage contrôlé)
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
| Diameter of work admitted | 7 mm |
| Max. turning length: | |
| Turning length | mm |
| with flat cames | 60 mm |
| Max. treading diameter | 8 M |
| Number of tool cutters | 6 |
| Spindle speeds: | |
| Number of spindle speeds | 20 |
| from | 1400 t/min |
| up to | 10000 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Total power required | 2 CV |
| Machine's weight about | 520 kg |
| Length | 1200 mm |
| Width | 700 mm |
| Height | 1400 mm |
| Various accessories: | |
| Loader Barboy |

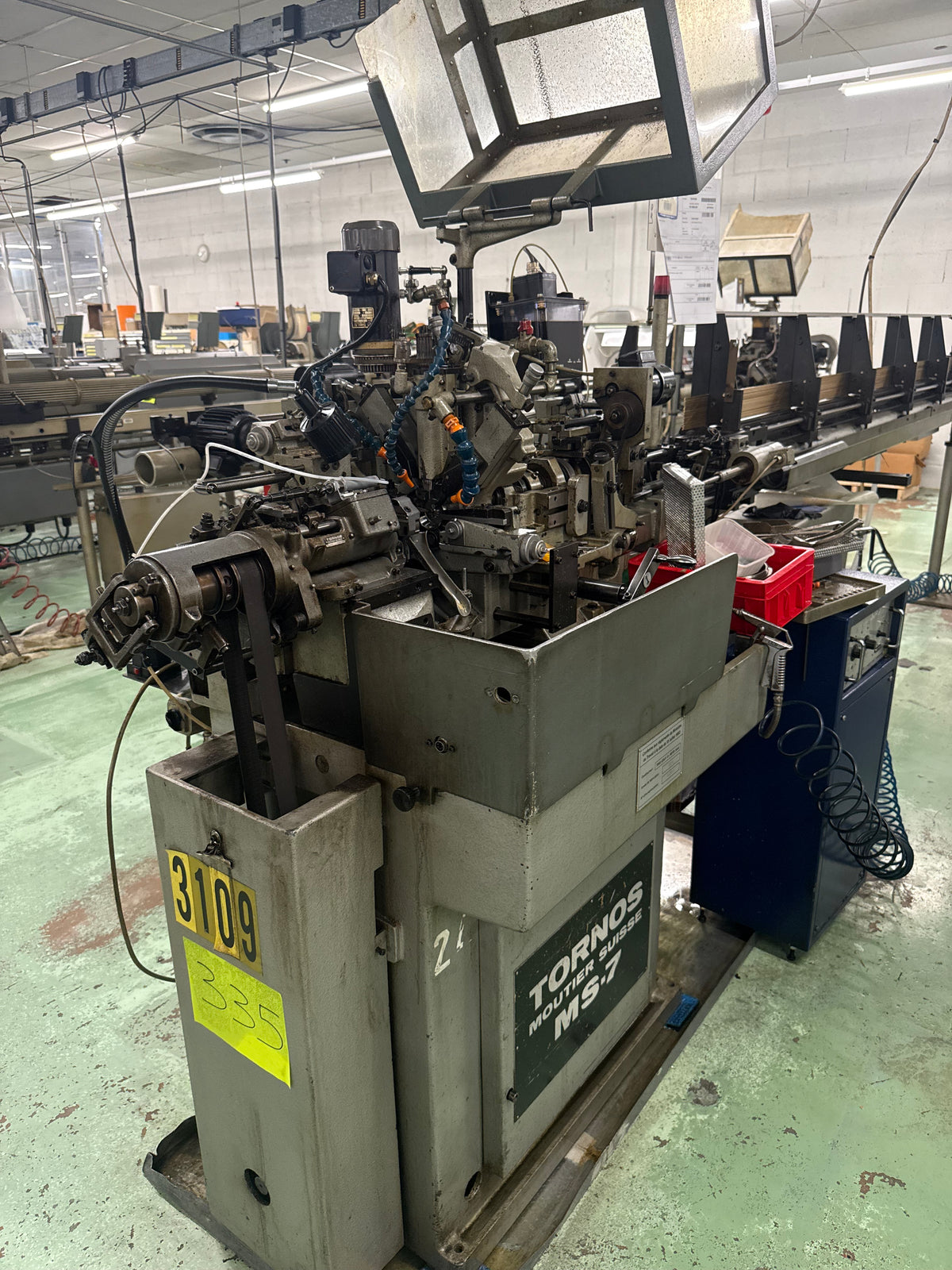

TORNOS MS 7 (arrêtage contrôlé) is an Automatic lathe, designed for precision, high accuracy and reliability. Working capacities: diameter of work admitted 7 mm; with flat cames 60 mm; max. threading diameter 8 M; 6 tool cutters; turning length not specified. Main specs: 20 spindle speeds from 1,400 to 10,000 t/min; voltage 3x380 V 50 Hz; total power 2 CV; dimensions L1200 x W700 x H1400 mm; weight about 520 kg. Accessories: loader Barboy. Delivers tight tolerances; typical applications include automotive, watchmaking, machine tools, aerospace and medical.
Technical specifications are subject to change without notice
