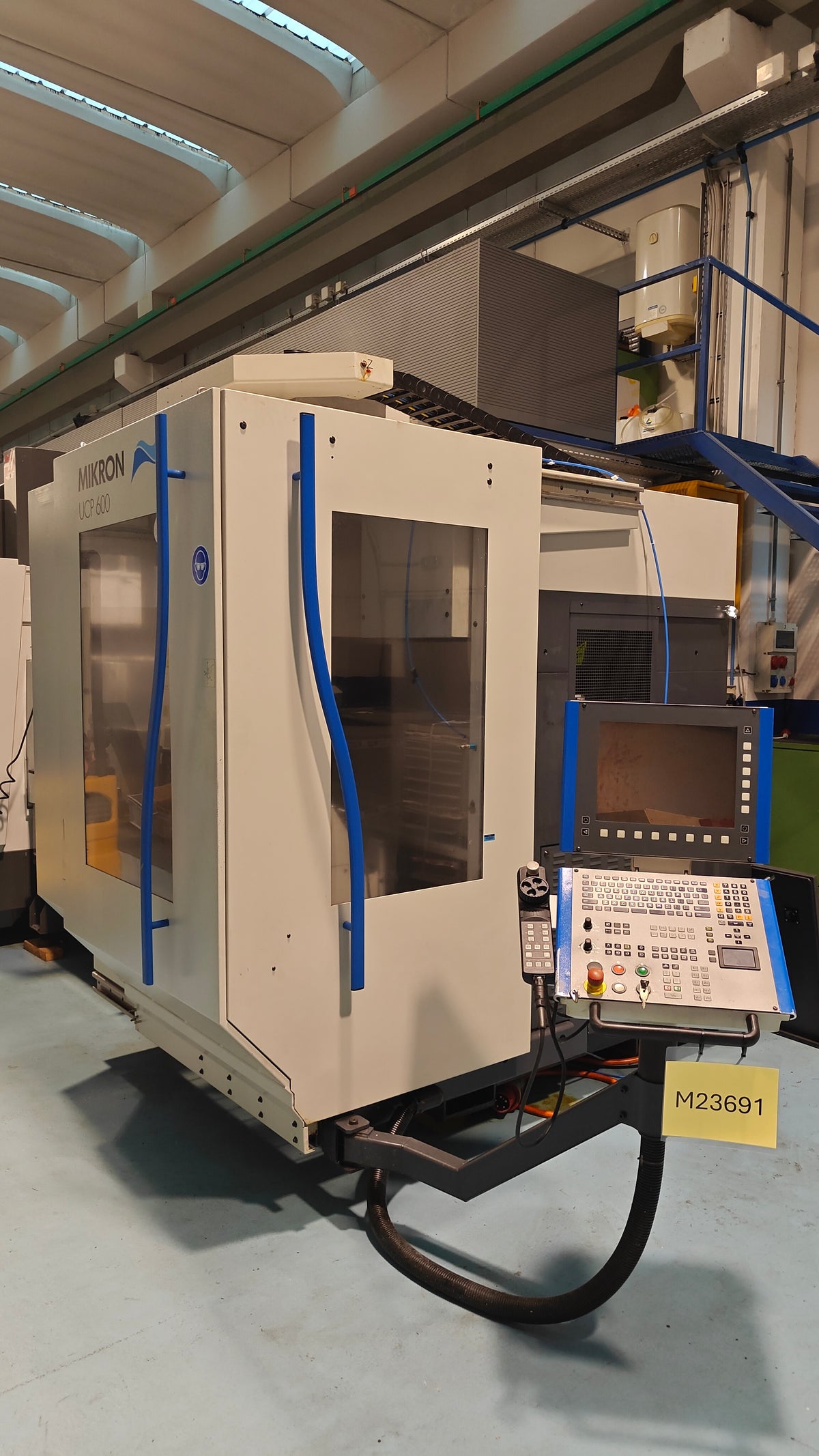

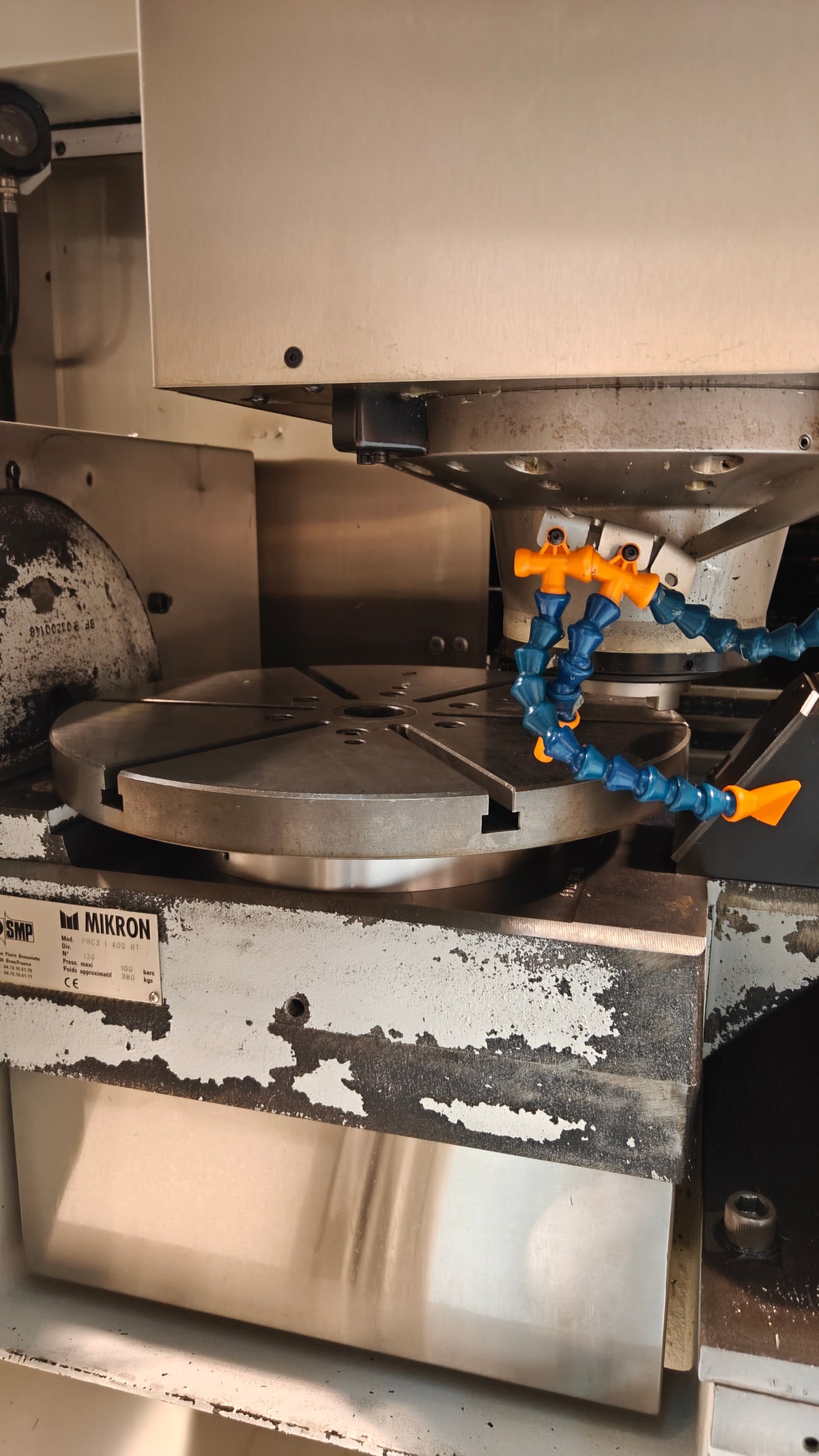

MIKRON UCP 600 is a Vertical machining center engineered for precision work with high accuracy and reliability. It is a 5‑axis machine for 5‑sided machining; rotary table Ø400 mm; travels X 600 mm, Y 450 mm, Z 450 mm; table load max. 400 kg; B axis -115/+30°; C axis 360°. Tool changer TC 30; stepless spindle 50–20,000 t/min; spindle motor 5.5 kW; total power 18 kW; feed 22 mm/min; rapid traverse 22 m/min; power supply 3x400 V 50 Hz; machine weight ≈6500 kg; footprint 2500×1600×2650 mm; noise 75 dB(A). Equipment: coolant system, electronic handheld control, electronic handwheel. Delivers tight tolerances; typical applications: automotive, aerospace, medical, watchmaking, machine tools.
Technical specifications are subject to change without notice
| Number of axis total | 5 |
| 5-sided machining | |

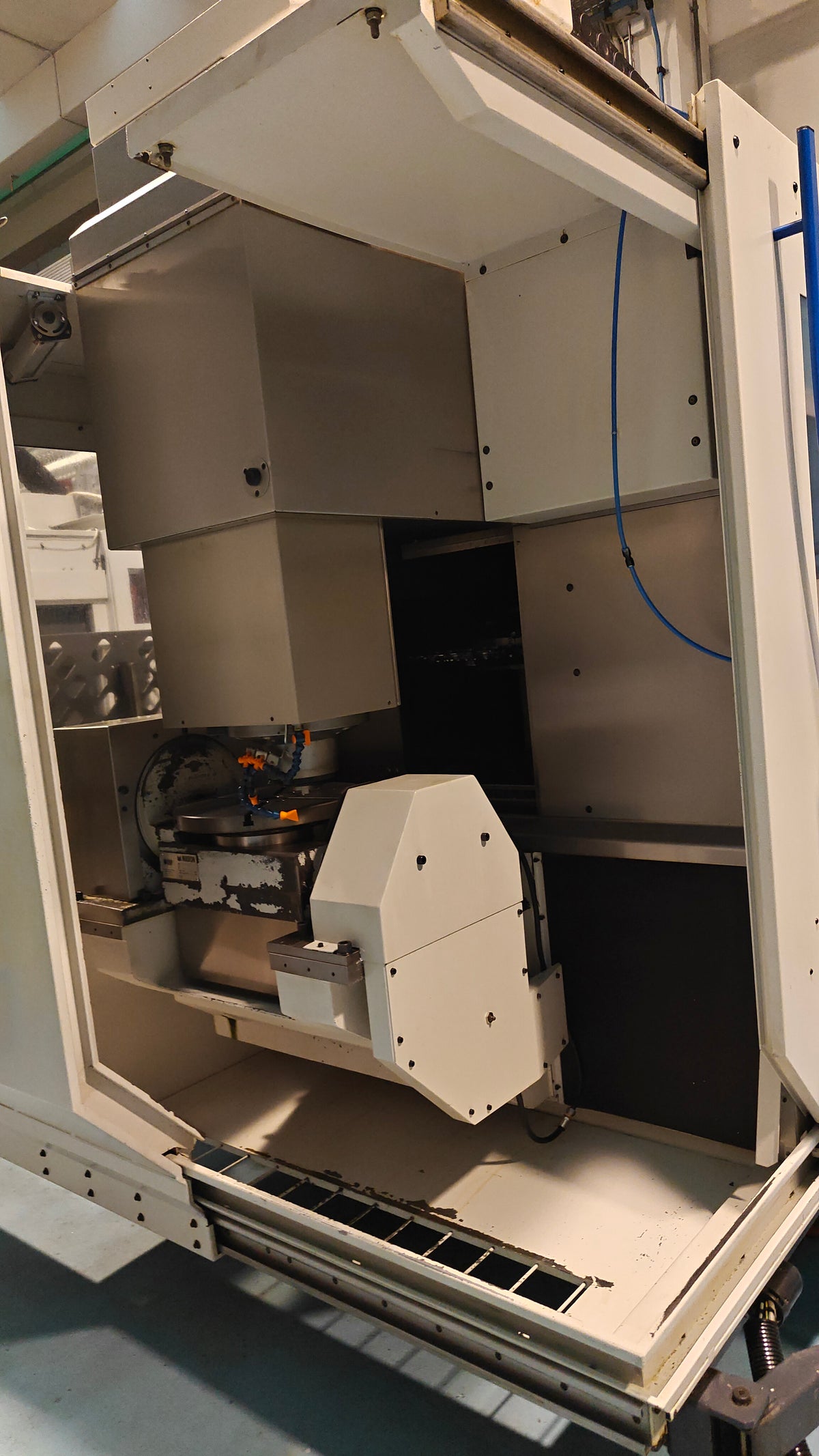

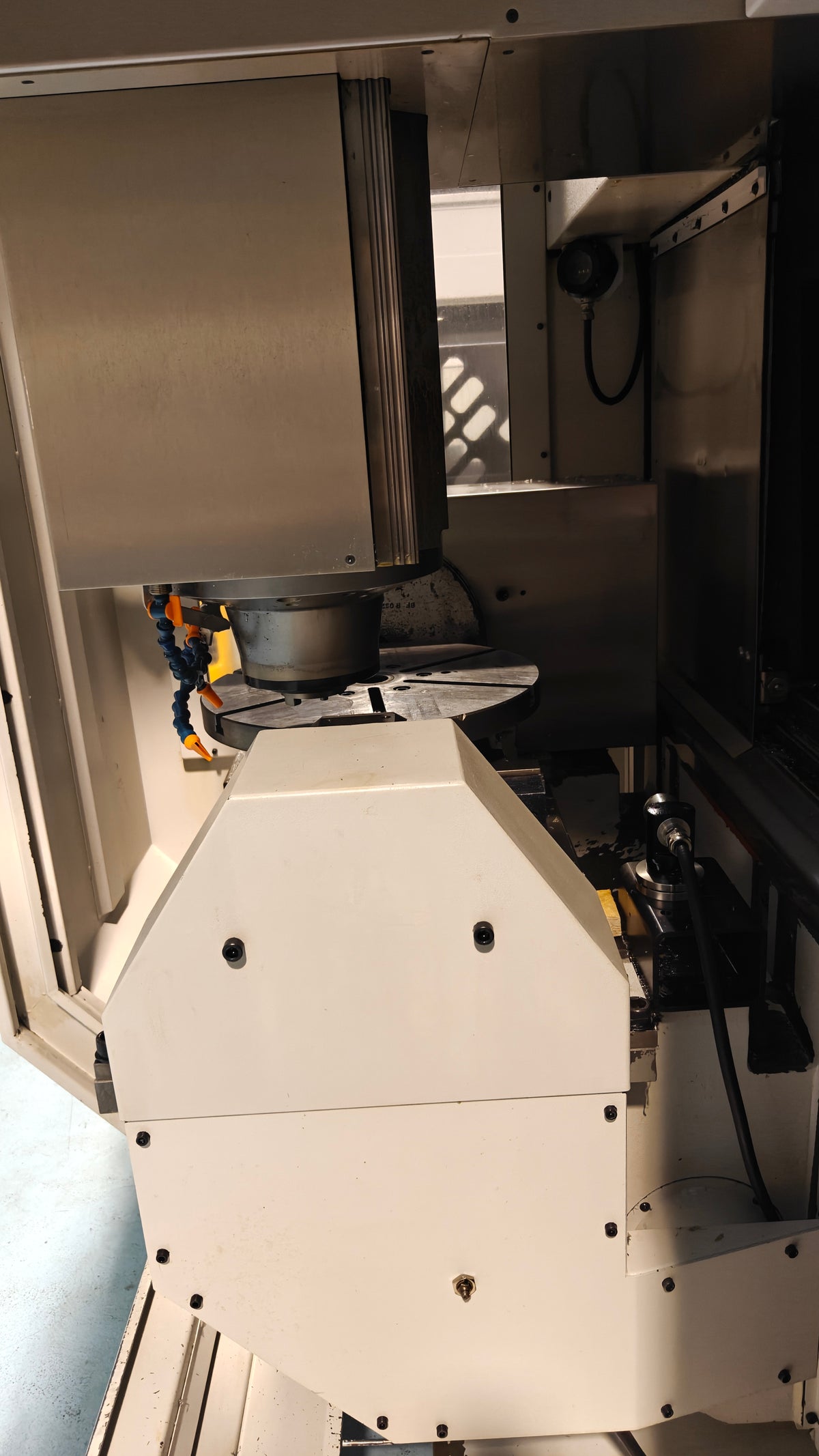

| Rotary table:diameter | 400 mm |
| Longitudinal travel (X-axis) | 600 mm |
| Transversal travel (y-axis) | 450 mm |
| Vertical travel (z axis) | 450 mm |
| Table load max. | 400 kg |
| B axis swivelling range | -115/+30 ° |
| C axis | 360 ° |
| Tool changer: | TC 30 |
| Spindle speeds: | |
| stepless | |
| from | 50 t/min |
| up to | 20000 t/min |
| Feed range | 22 mm/min |
| Rapid traverse: | 22 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 5.5 kW |
| Total power required | 18 kW |
| Noise level | 75 dB (A) |
| Machine's weight about | 6500 kg |
| Length | 2500 mm |
| Width | 1600 mm |
| Height | 2650 mm |
| Various accessories: | |
| Coolant system | |

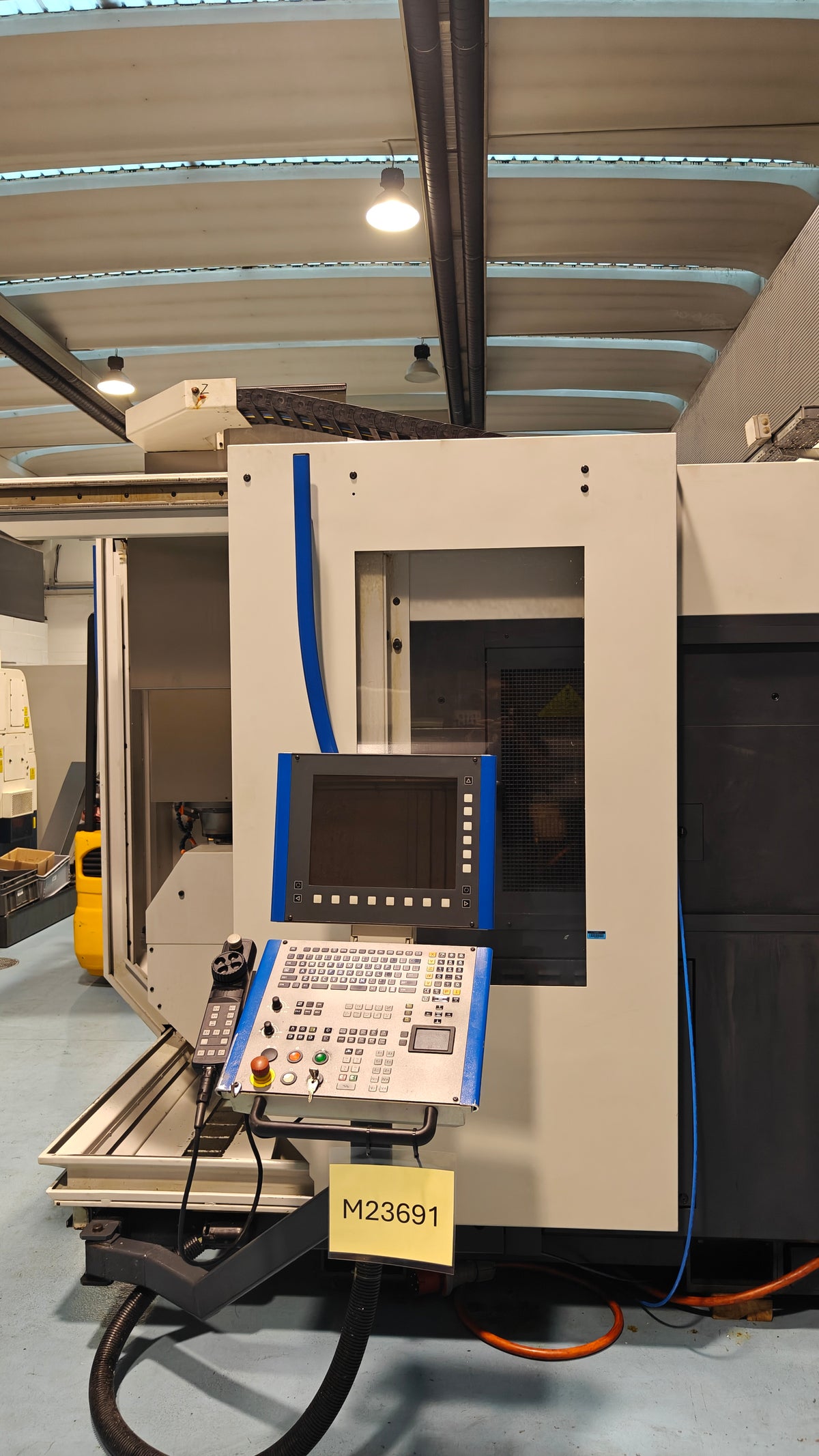

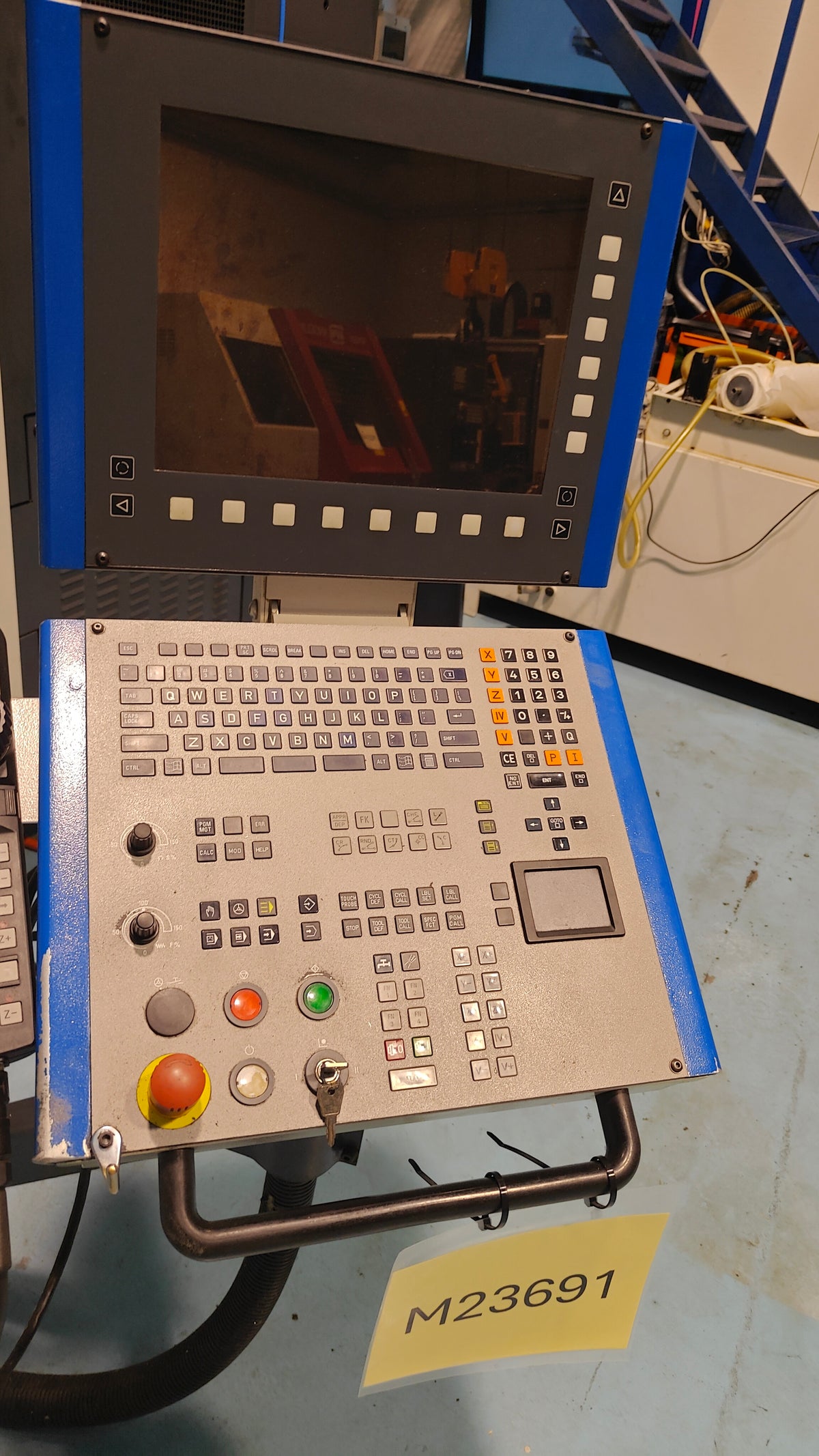

| Electronic hand held control | |
| Handwheel electroinic |
