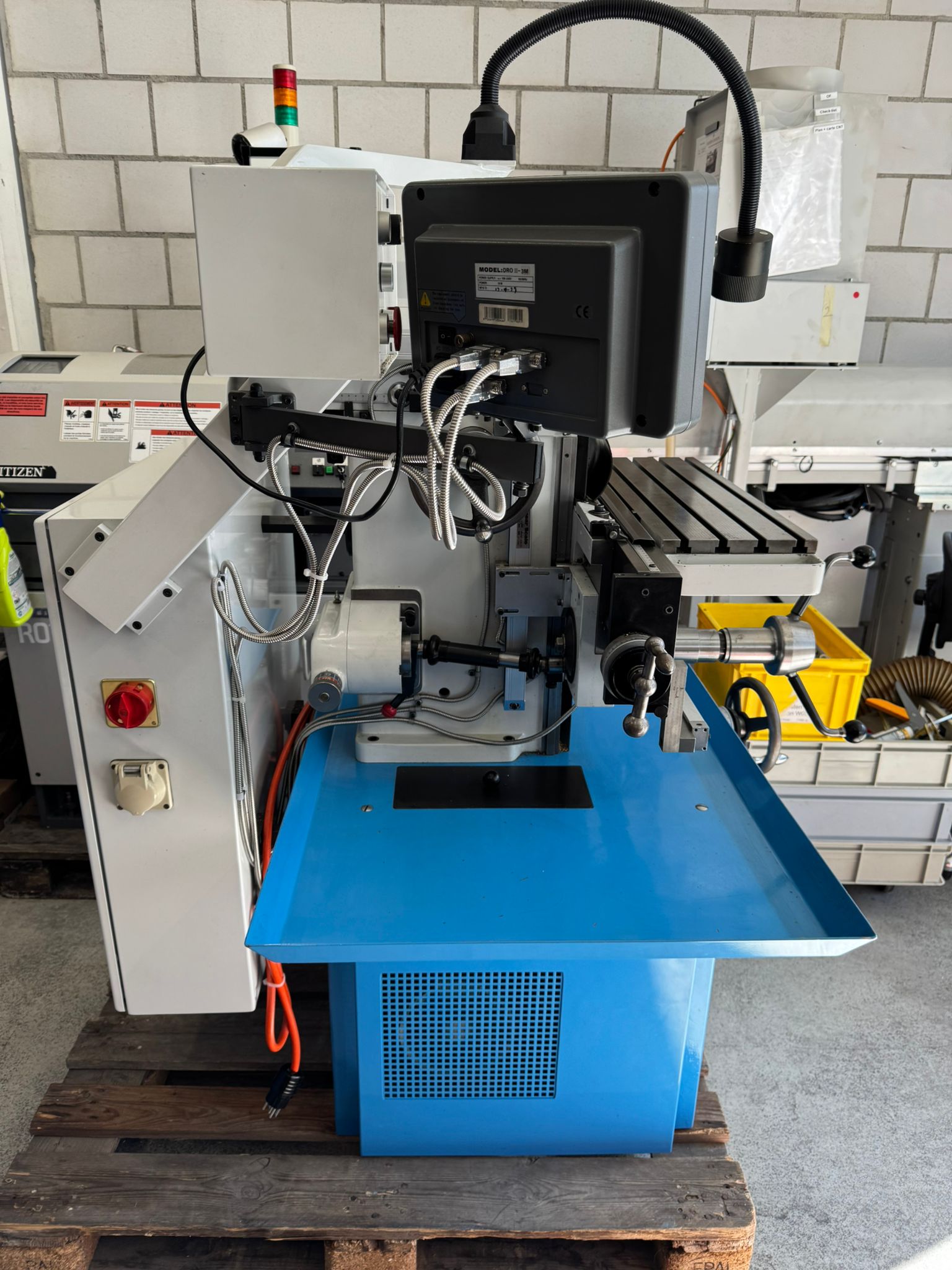

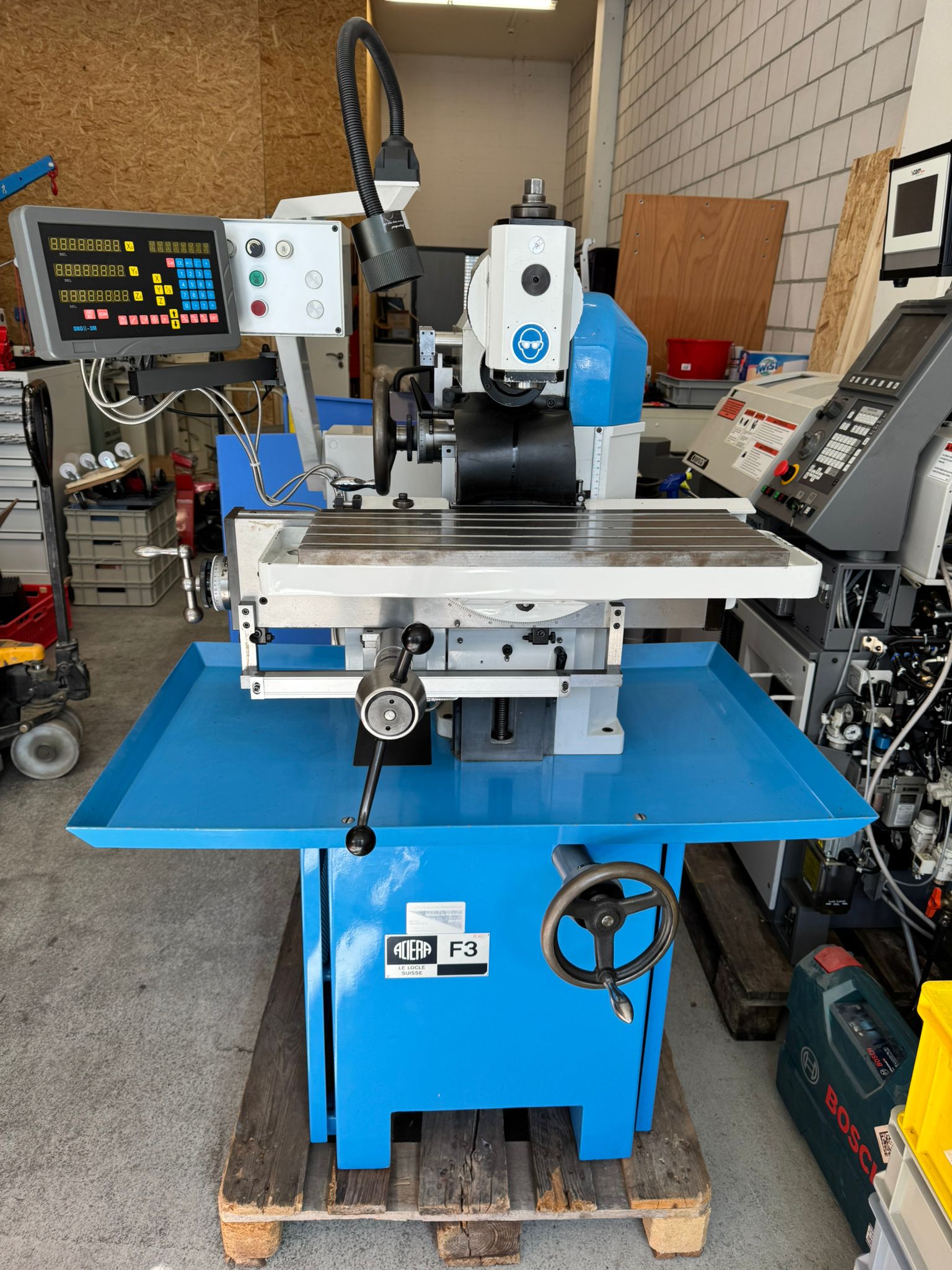

ACIERA F 3 is a Universal milling machine engineered for high-precision machining, delivering excellent accuracy and reliable performance. Working capacity: table 600x190 mm; travels X 300 mm, Y 135 mm, Z 300 mm. Main specs: spindle 8 steps (100–2000 t/min); 8 feed steps, X 12–232 mm/min; supply 3x380 V 50 Hz; motor 2.0 CV; weight ≈620 kg; size 1100x900x1600 mm. Accessories: dividing attachment, vice, rotary base, 3-axis digital readout (DRO II-3M), tool cabinet, LED lamp. Suited to tight tolerances in automotive, watchmaking, machine tools, aerospace and medical sectors.
Technical specifications are subject to change without notice
| Table length | 600 mm |
| Table width | 190 mm |
| Longitudinal travel (X-axis) | 300 mm |
| Transversal travel (y axis) | 135 mm |
| Vertical travel (z axis) | 300 mm |
| Spindle speeds: | |
| number (steps) | 8 |
| from | 100 t/min |
| up to | 2000 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor output | 2.0 CV |
| Machine's weight about | 620 kg |
| Overall dimensions machine: | |
| Length | 1100 mm |
| Width | 900 mm |
| Height | 1600 mm |
| Various accessories: | |

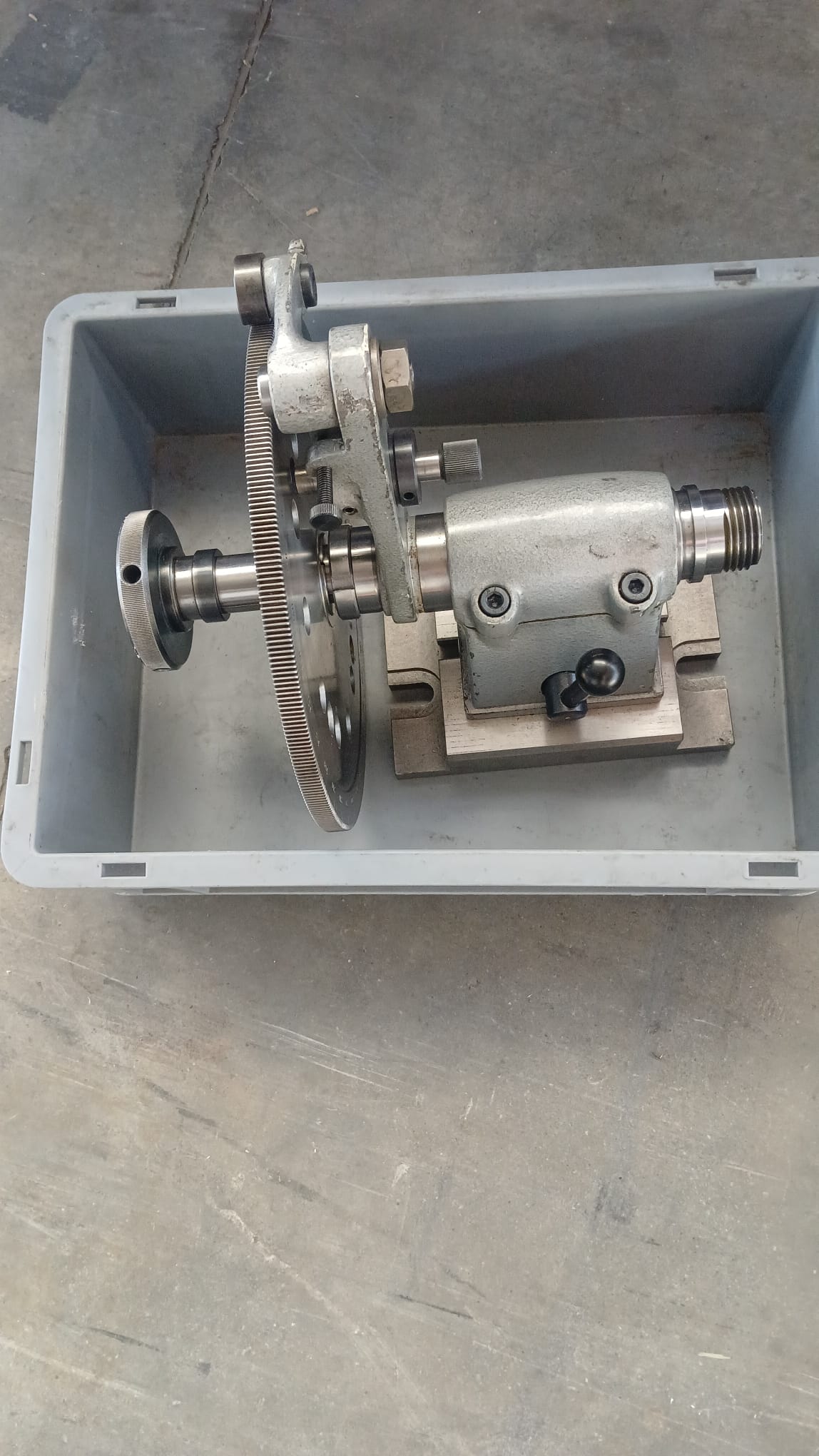

| Dividing attachment | |

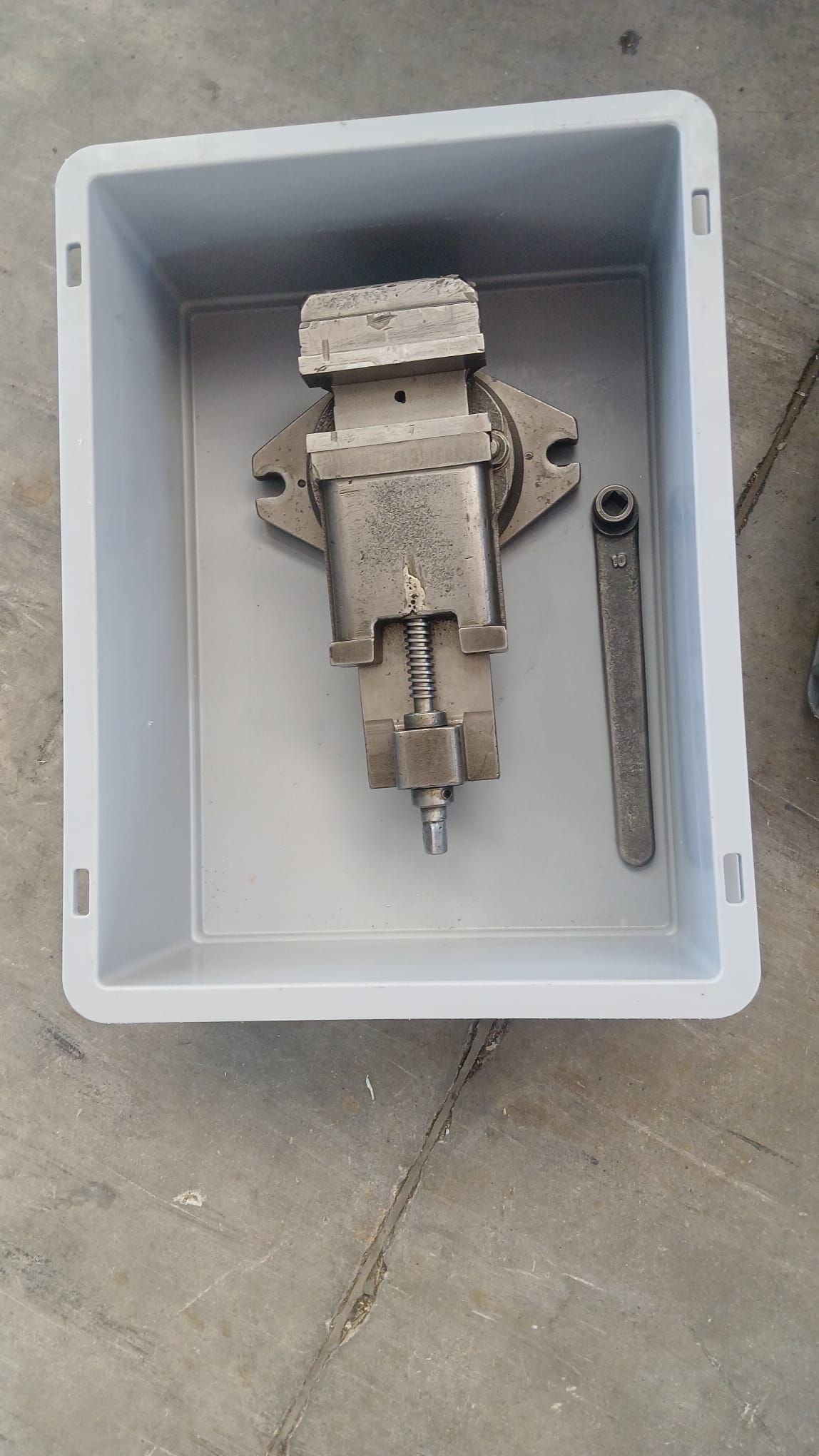

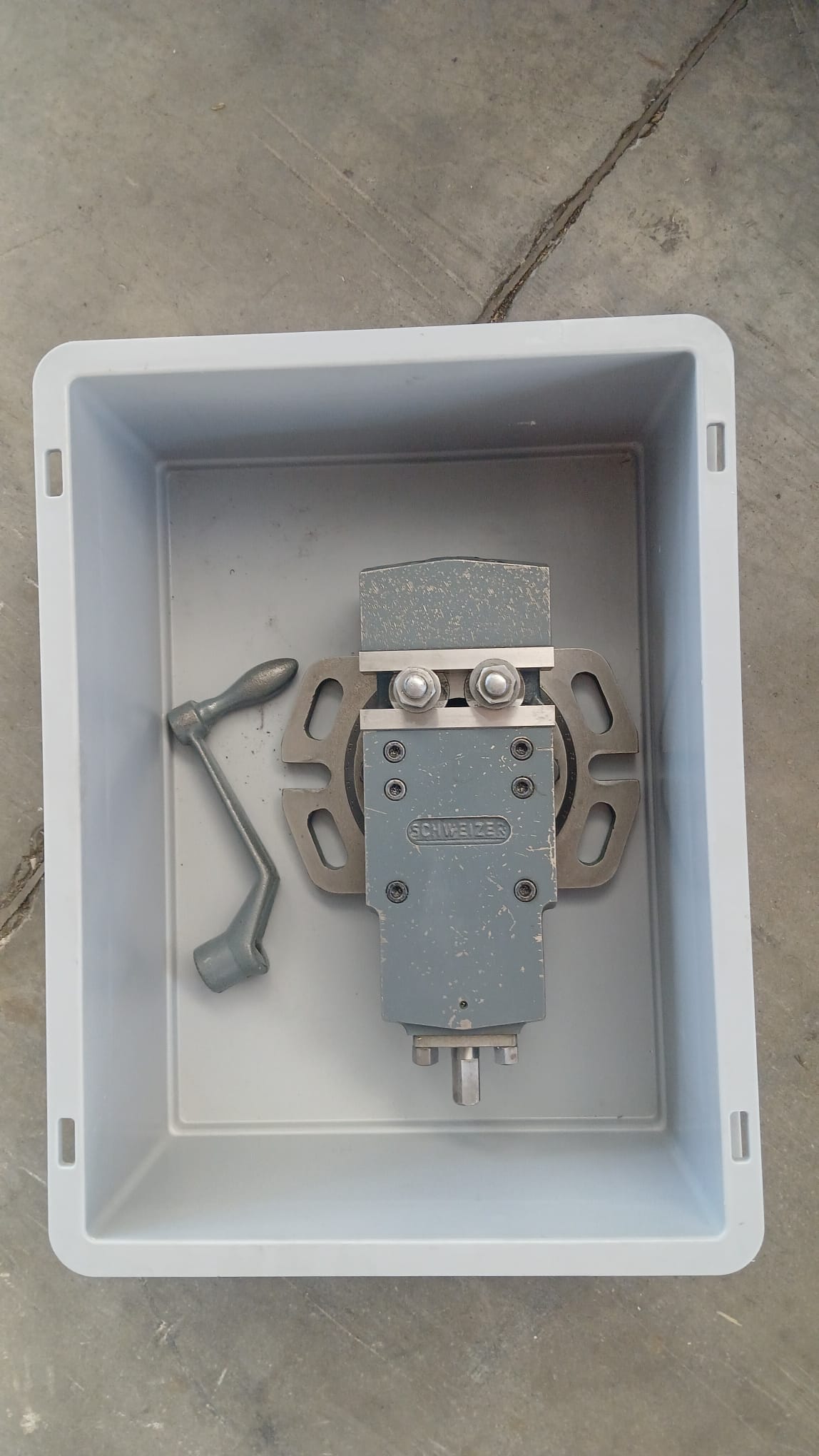

| Vice | |
| avec base tournante | |

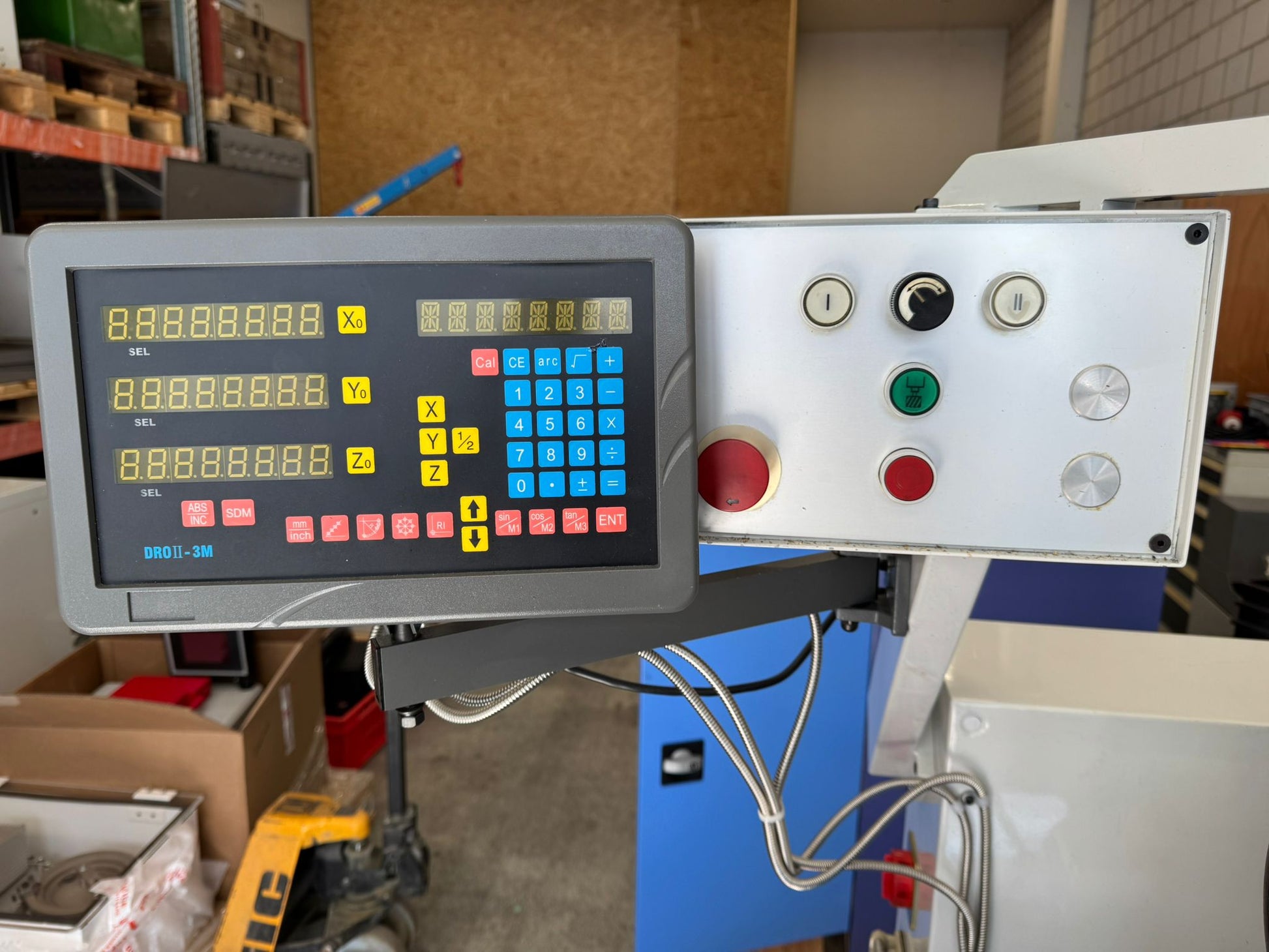

| Digital readout number of axis: | 3 |
| Manufacturer | DRO II-3M |

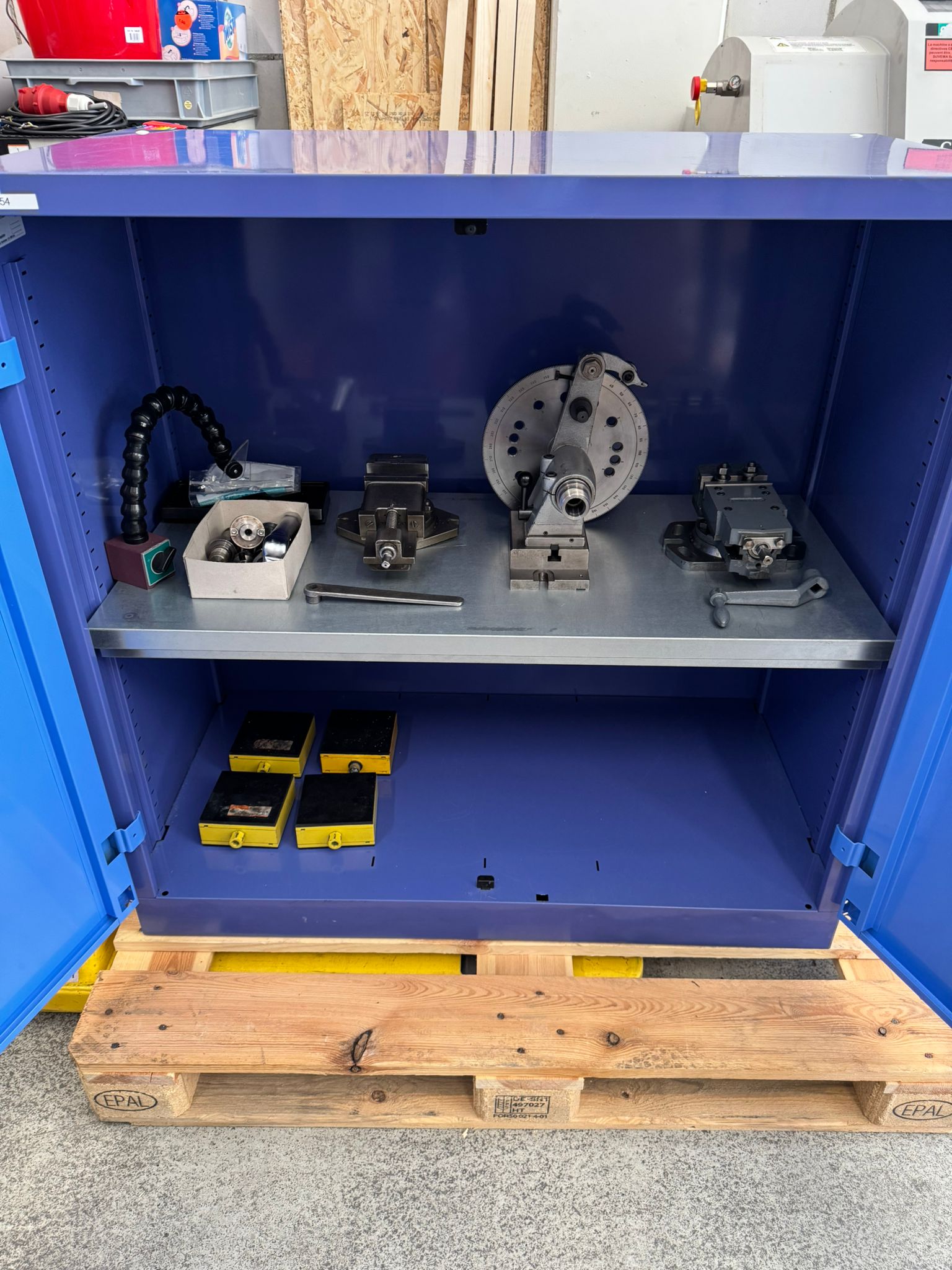

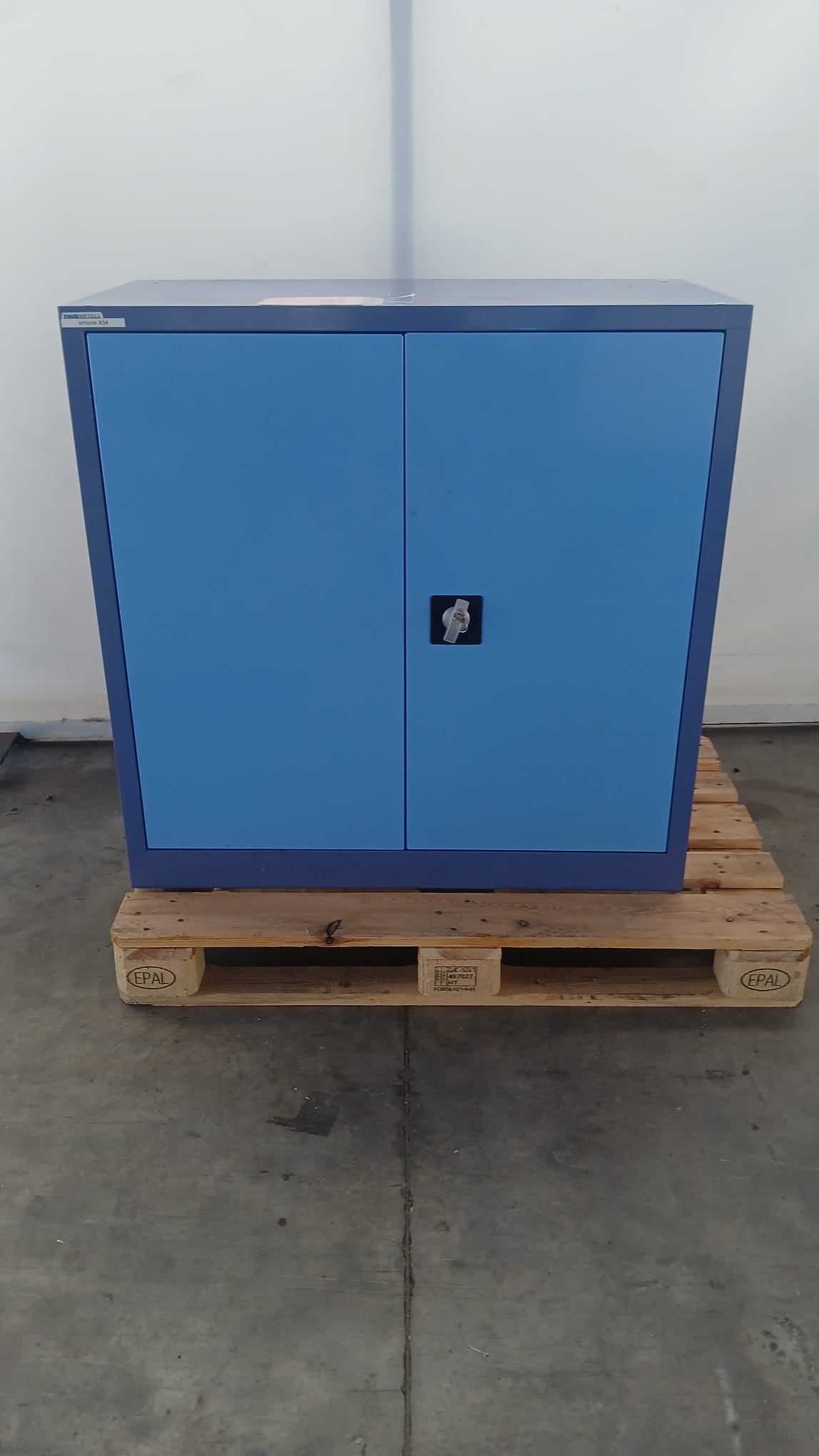

| Tool cabinet | |
| LED Lamp |
