DMG DMU 125 P is a Universal machining center, built for precision, high accuracy and reliability. Capacities: table Ø1250×1000 mm, 9 T‑slots at 100 mm, table load 2000 kg; travels X1250/Y880/Z800 mm; 60 tools. Specs: spindle nose SK40, spindle 20–12,000 t/min, table 8 t/min; feeds 0.02–10 m/min per axis, rapid 24 m/min; resolution 1 µm; weight ~12,500 kg; footprint 4600×3480×3070 mm. Accessories: universal head, high‑pressure coolant 40 bar, probe Heidenhain TS 631, tool break control, chip conveyor, electronic handwheel, oil mist extractor, rinsing gun. Delivers tight tolerances; typical sectors: automotive, aerospace, medical, watchmaking, machine tools.
Technical specifications are subject to change without notice
| Circulary table diameter | 1250 mm |
| Table width | 1000 mm |
| Number of T-channels | 9 |
| Distance of the T-slots | 100 mm |
| T-channel width | 18 H7 mm |
| Table load max. | 2000 kg |
| Longitudinal travel (X-axis) | 1250 mm |
| Transversal travel (y-axis) | 880 mm |
| Vertical travel (z axis) | 800 mm |
| B axis | |
| Table speed | 8 t/min |
| Tool changer: | |
| with double gripper | |
| Number of tools | 60 |
| Spindle nose SK | 40 |
| Spindle speeds: | |
| stepless | |
| from | 20 t/min |
| up to | 12000 t/min |
| Feeds: | |
| X axis | 0.02 - 10 m/min |
| Y axis | 0.02 - 10 m/min |
| Z axis | 0.02 - 10 m/min |
| Rapid traverse: | 24 m/min |
| Measurement system: | |
| Resolution | 1 µm |
| Input resolution | 1 µm |
| Machine's weight about | 12500 kg |
| Overall dimensions machine: | |
| Length | 4600 mm |
| Width | 3480 mm |
| Height | 3070 mm |
| Various accessories: | |
| Universal head | |

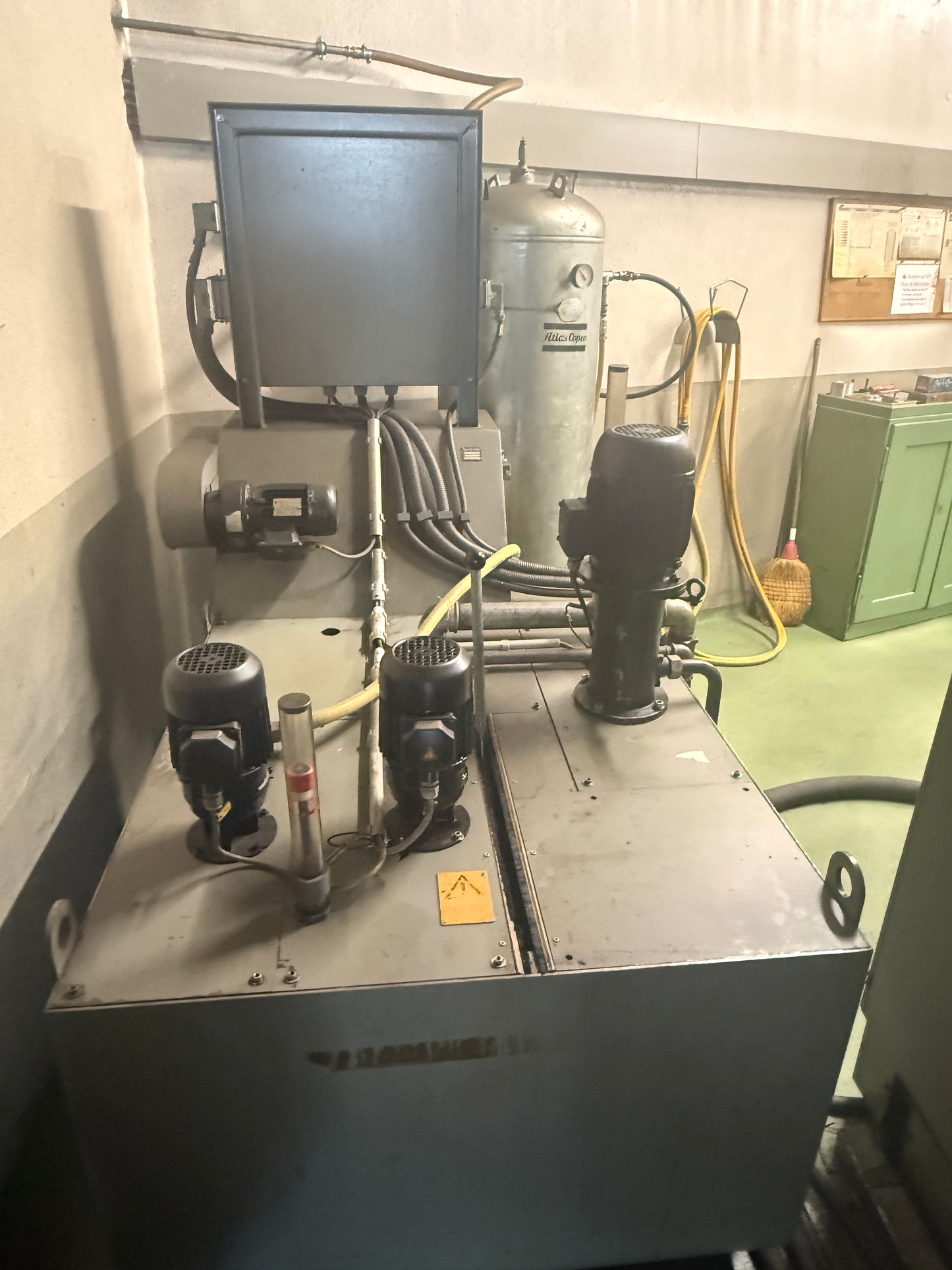

| High pression colant device | 40 bar |
| Tracer, feeler | Heidenhain TS 631 |
| Tool break control | |
| Chip conveyor | |
| Handwheel electroinic | |
| Oil mist extractor | |
| Rinsing Guns | |
| Time under power | 53729 Heures |
| Operating time | 51668 Heures |
| Working time | 14565 Heures |
