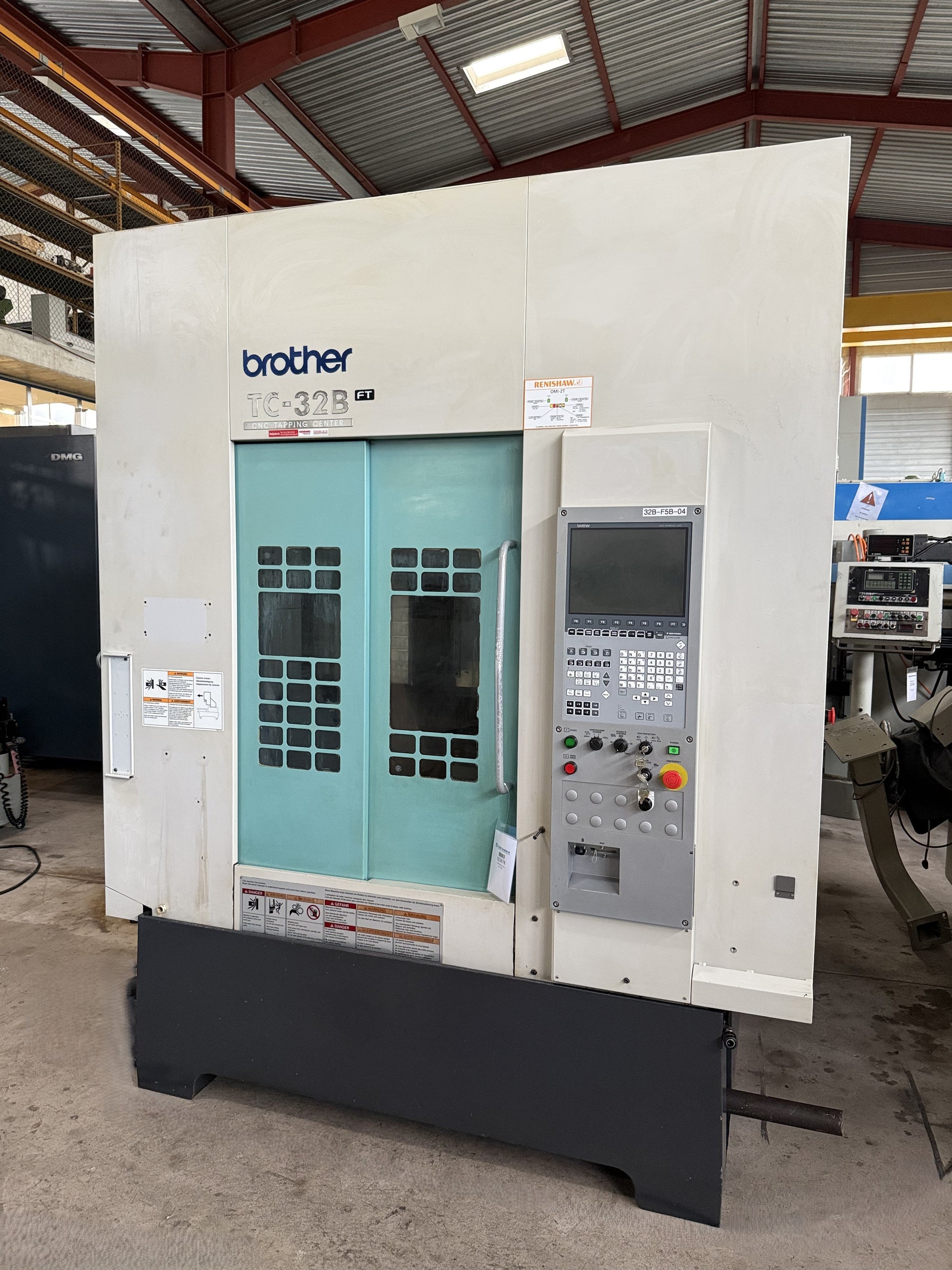

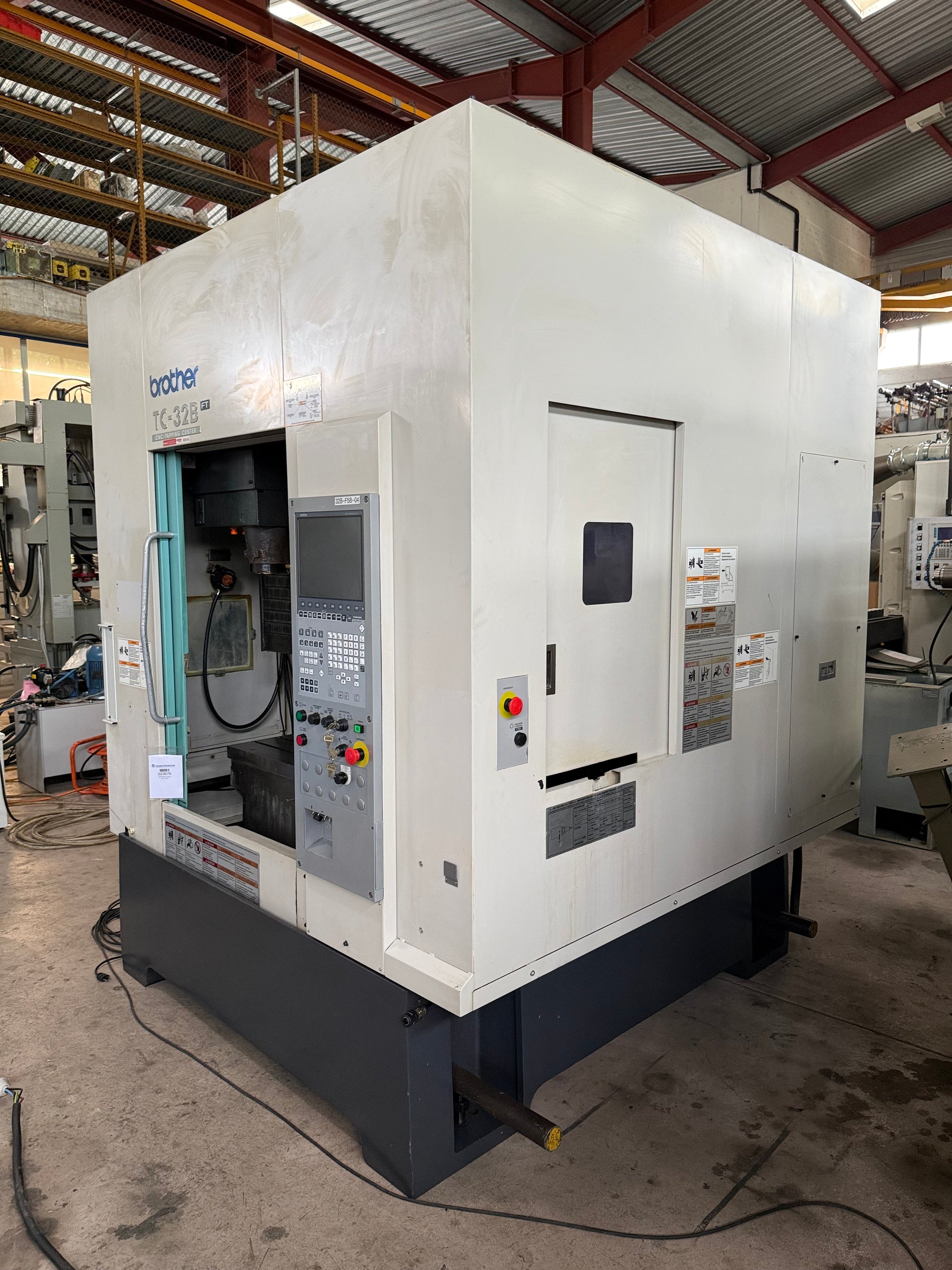

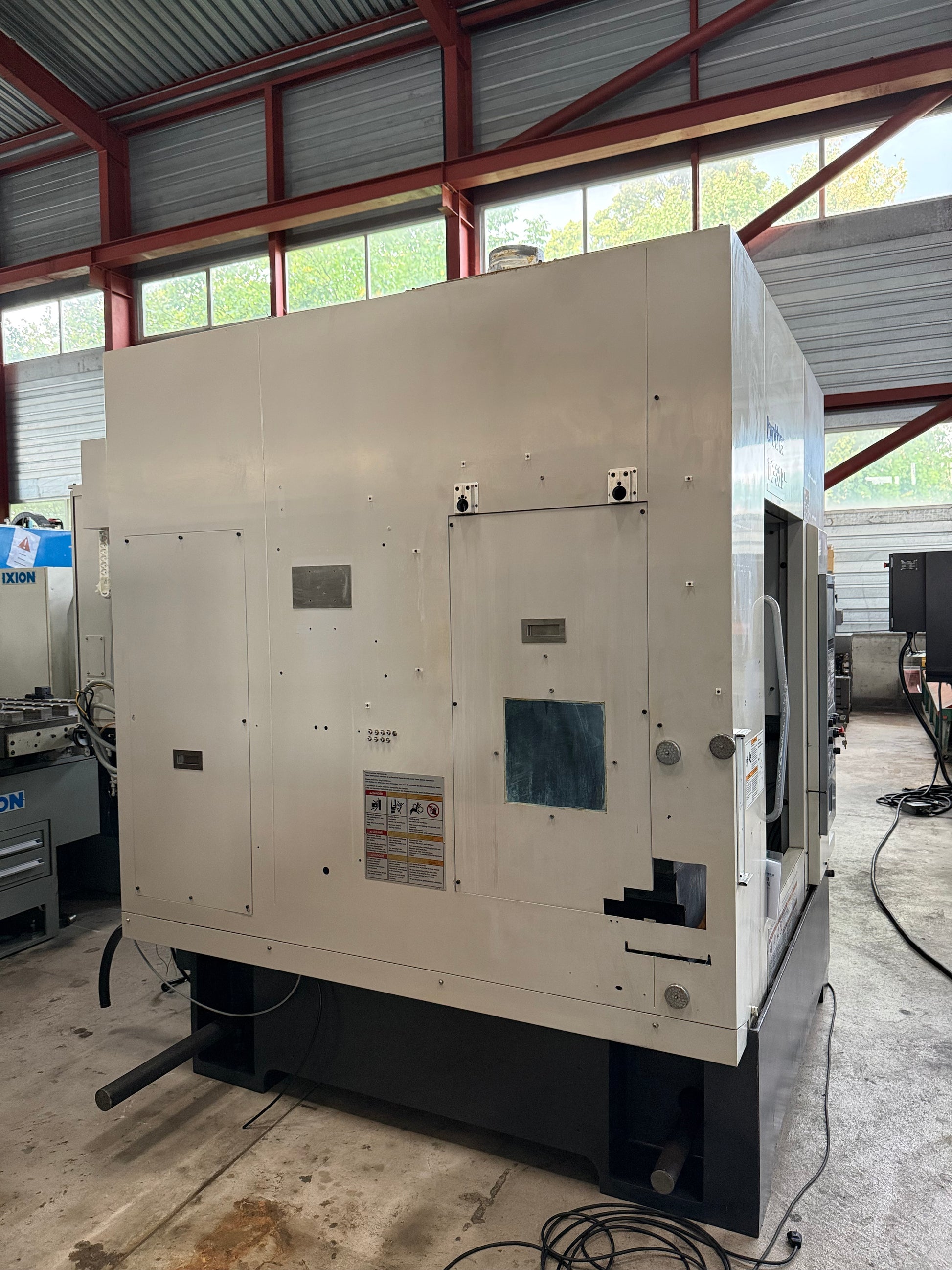

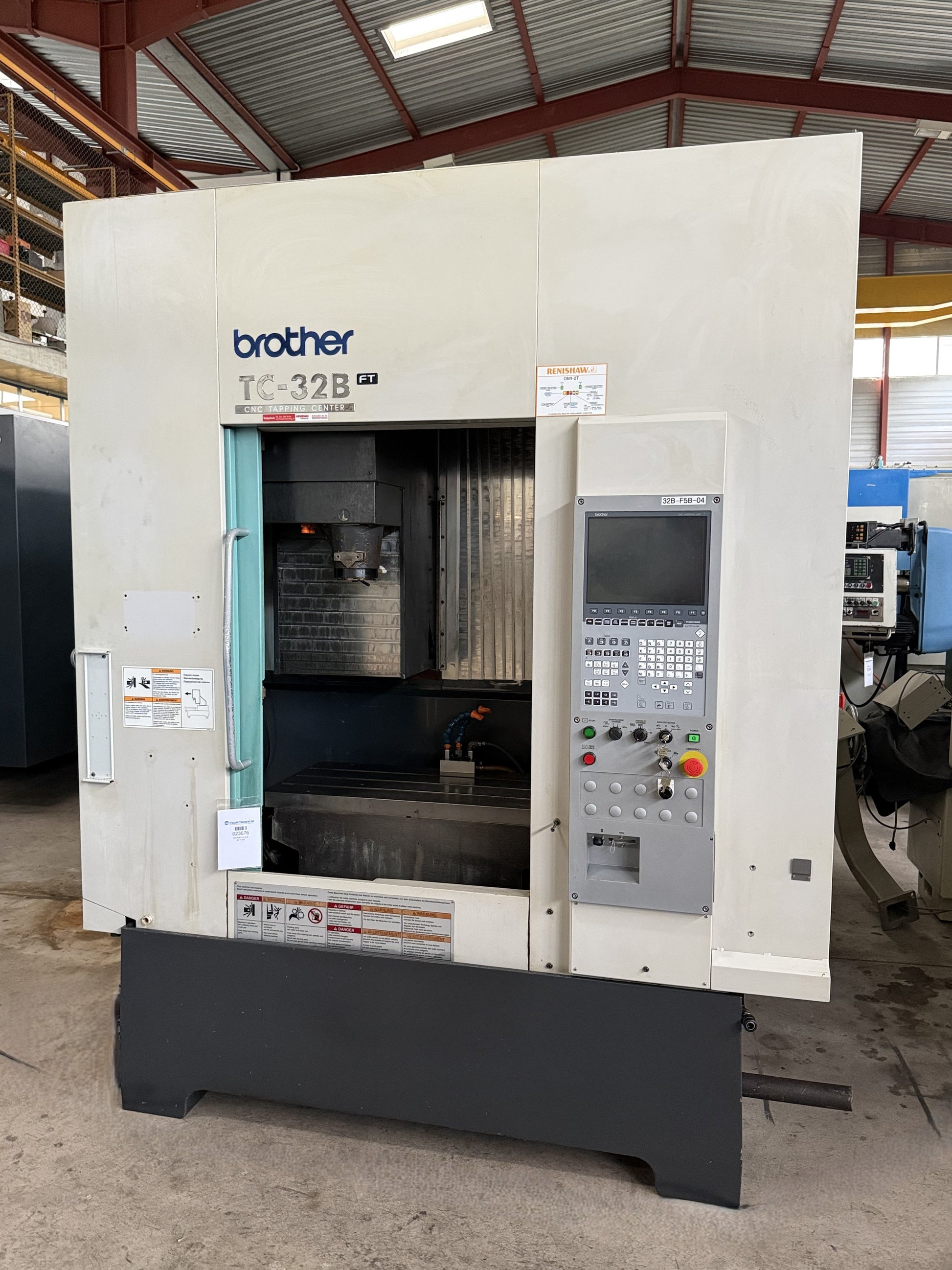

BROTHER TC-32 B is a 3-axis machining center designed for precision, high accuracy and reliability. Table 800×400 mm, table load max 600 kg; travels X 550 mm, Y 400 mm, Z 415 mm; tool magazine 26 places, tool Ø max 30 mm, length 200 mm, max tool weight 3.5 kg, tool change 0.9 s. Spindle BT30 up to 12000 t/min; spindle motor 7.3 kW; feeds 0.001–20 m/min per axis; rapid traverse 70 m/min; voltage 3x380 V 50 Hz; total power 18 kVA; machine weight ~4300 kg; dimensions L1890×W3700×H2400 mm. Equipment: coolant system, tool break control, 3D measuring probe RENISHAW, electronic hand held remote and lamp. Achieves tight tolerances; suitable for automotive, watchmaking, tooling, aerospace and medical sectors.
Technical specifications are subject to change without notice
| Number of axis total | 3 |

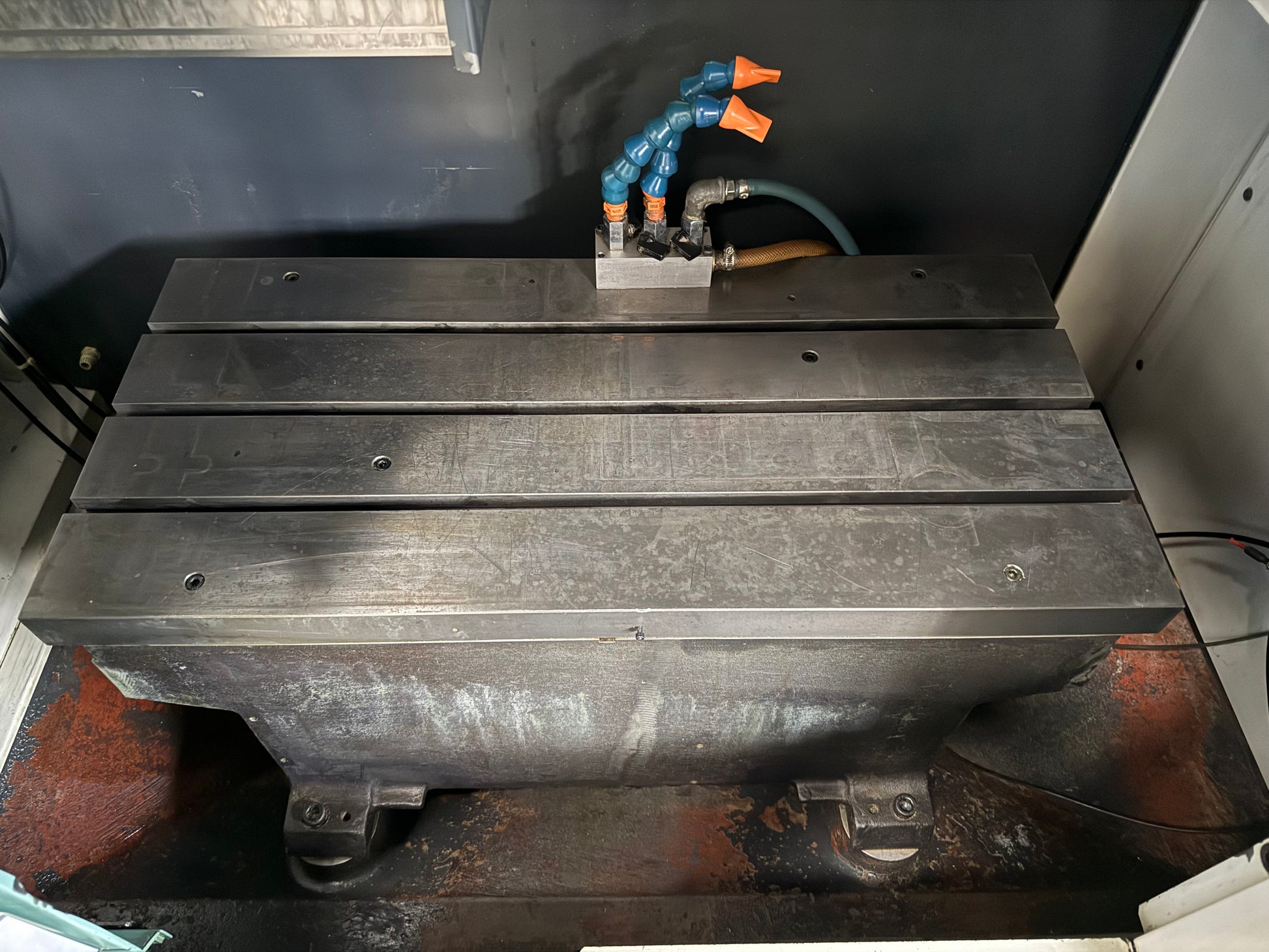

| Table length | 800 mm |
| Table width | 400 mm |
| Table load max. | 600 kg |
| Longitudinal travel (X-axis) | 550 mm |
| Transversal travel (y-axis) | 400 mm |
| Vertical travel (z axis) | 415 mm |
| Tool changer: | |
| Tool magazine number of tool places | 26 |
| Tool diameter max. | 30 mm |
| Tool lenght | 200 mm |
| Max. tool-weight | 3.5 kg |
| Time of tool changing | 0.9 s |

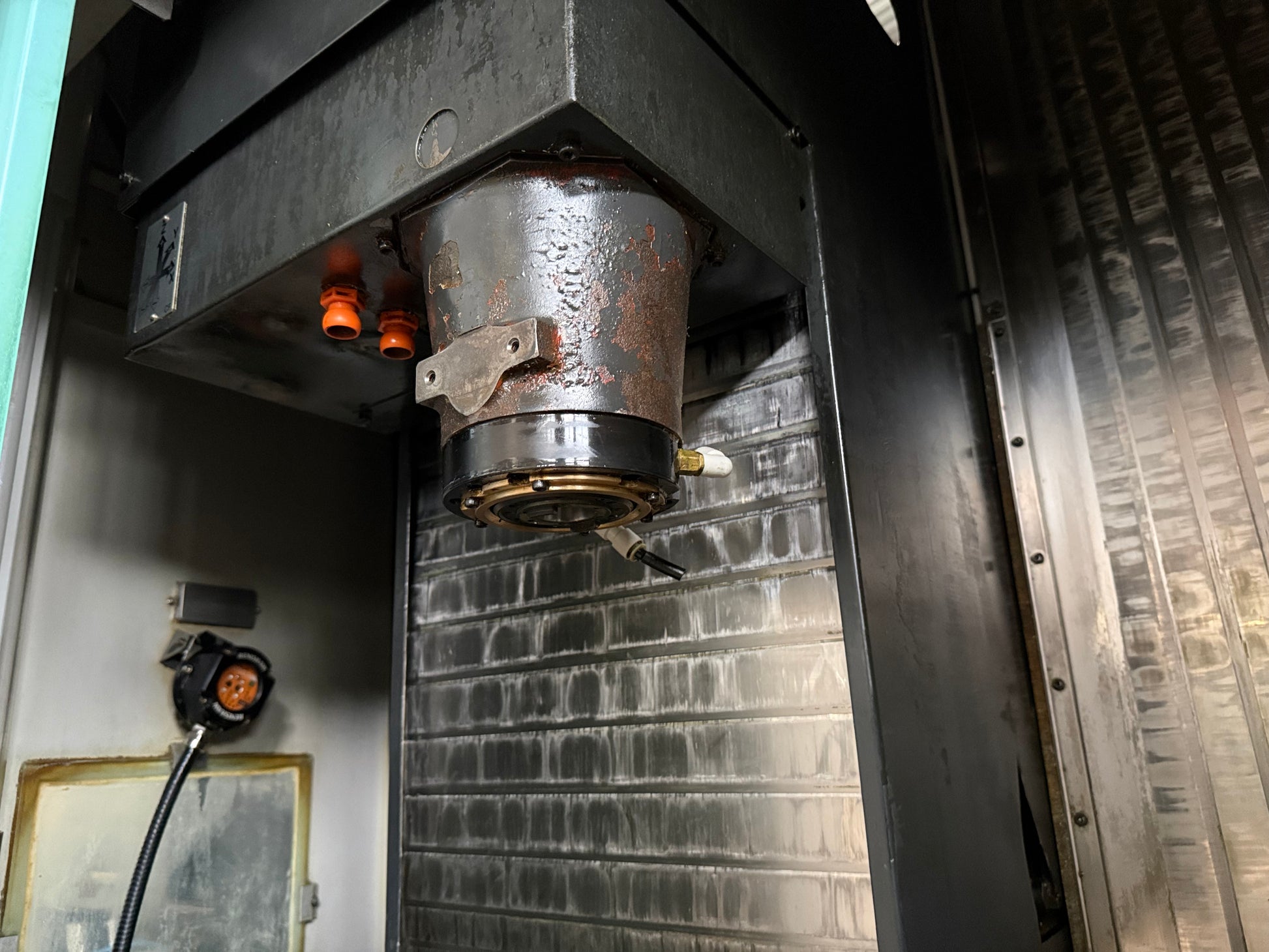

| Spindle nose: BT | 30 |
| Spindle speeds: | |
| up to | 12000 t/min |
| Feeds: | |
| X axis | 0.001 - 20 m/min |
| Y axis | 0.001 - 20 m/min |
| Z axis | 0.001 - 20 m/min |
| Rapid traverse: | 70 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 7.3 kW |
| Total power required | 18 kVA |
| Machine's weight about | 4300 kg |
| Overall dimensions machine: | |
| Length | 1890 mm |
| Width | 3700 mm |
| Height | 2400 mm |
| Various accessories: | |
| Coolant system | |
| Tool break control | |

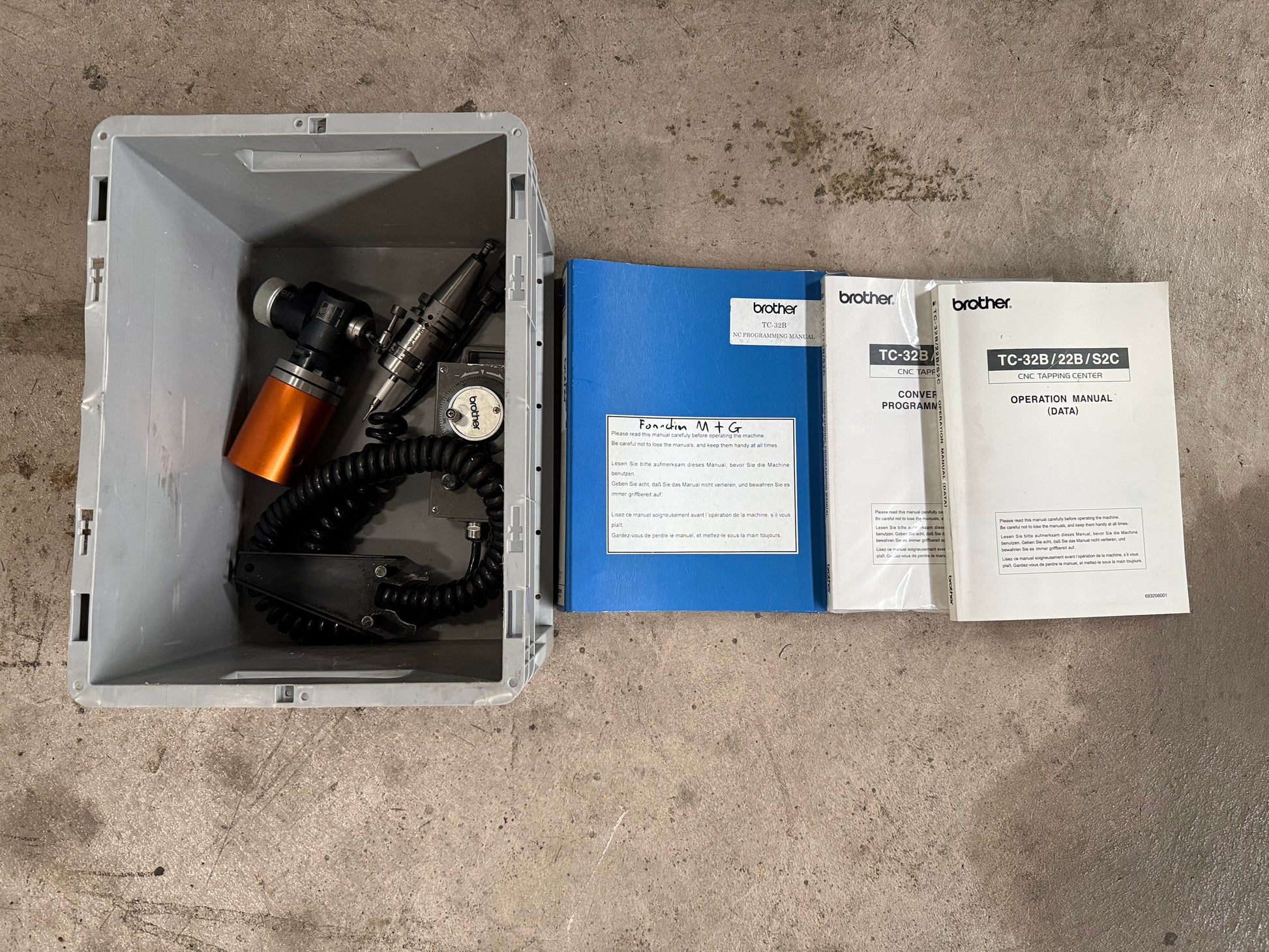

| 3D measuring feeler gauge | RENISHAW |
| Electronic hand held remote control | |
| Lamp |
