EMCO F 3 is a universal milling machine delivering high precision, superior accuracy and reliable operation. Capacities: table 600×200 mm, travels X300 Y200 Z350 mm, quill travel 45 mm. Specs: spindle SK30, 8 steps 80–2200 t/min, 50Hz 3×380V, 3‑axis digital readout (ELESTA VISULESTA 4). Accessories: vice, collet holder and set, lamp. Achieves tight tolerances; suitable for automotive, watchmaking, machine tools, aerospace and medical.
Technical specifications are subject to change without notice
| Table length | 600 mm |
| Table width | 200 mm |
| Longitudinal travel (X-axis) | 300 mm |
| Transversal travel (y axis) | 200 mm |
| Vertical travel (z axis) | 350 mm |
| Spindle speeds: | |
| number (steps) | 8 |
| from | 80 t/min |
| up to | 2200 t/min |
| Taper in spindle: | SK 30 |
| Vertical quill travel | 45 mm |
| Voltage 50 Hz 3x | 380 Volt |
| Various accessories: | |
| Vice | |
| Digital readout number of axis: | 3 |
| Manufacturer | ELESTA VISULESTA 4 |
| Collet holder | |

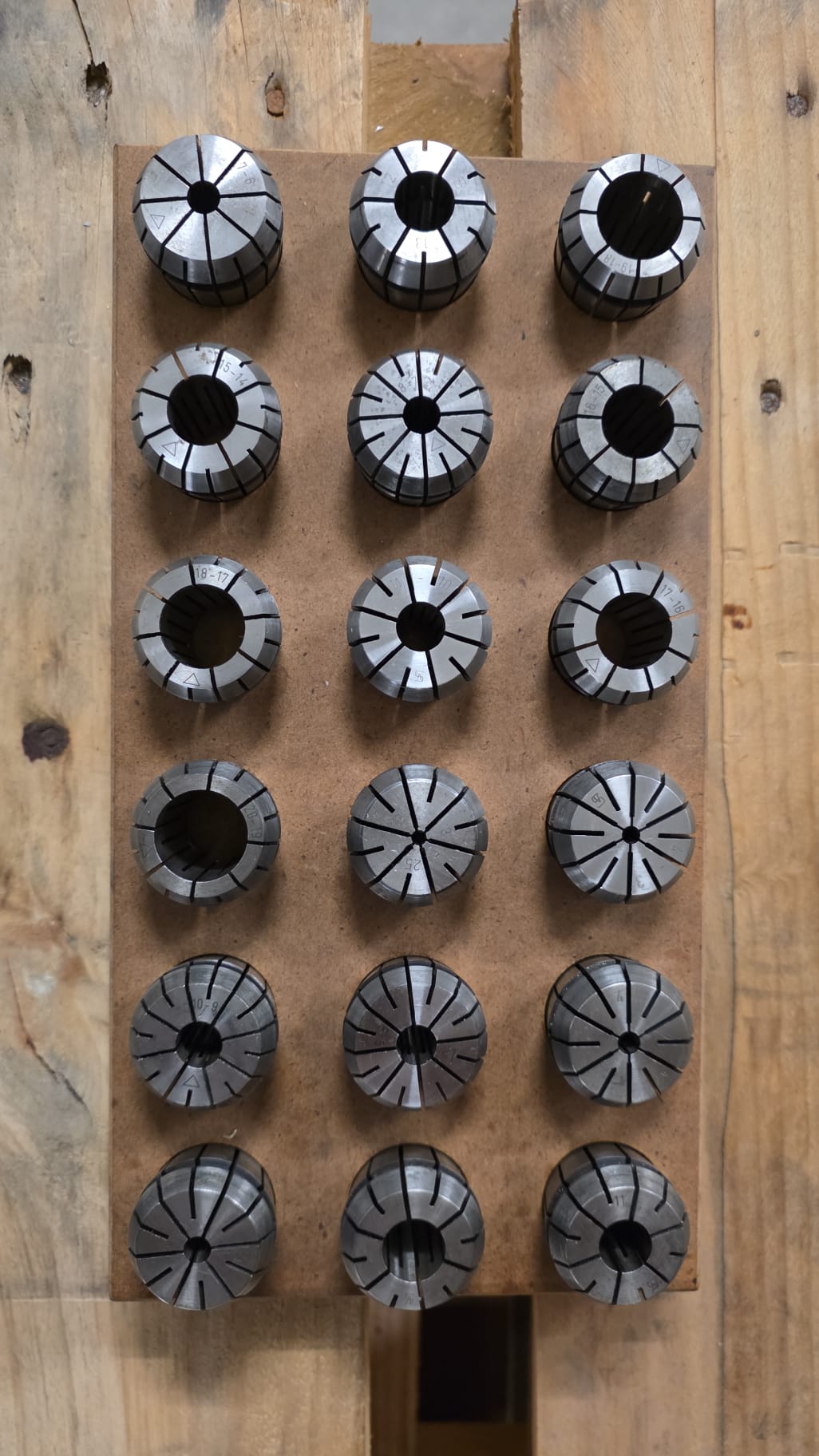

| Set of collets | |
| Lamp |
