SPINNER TC 32-MC
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

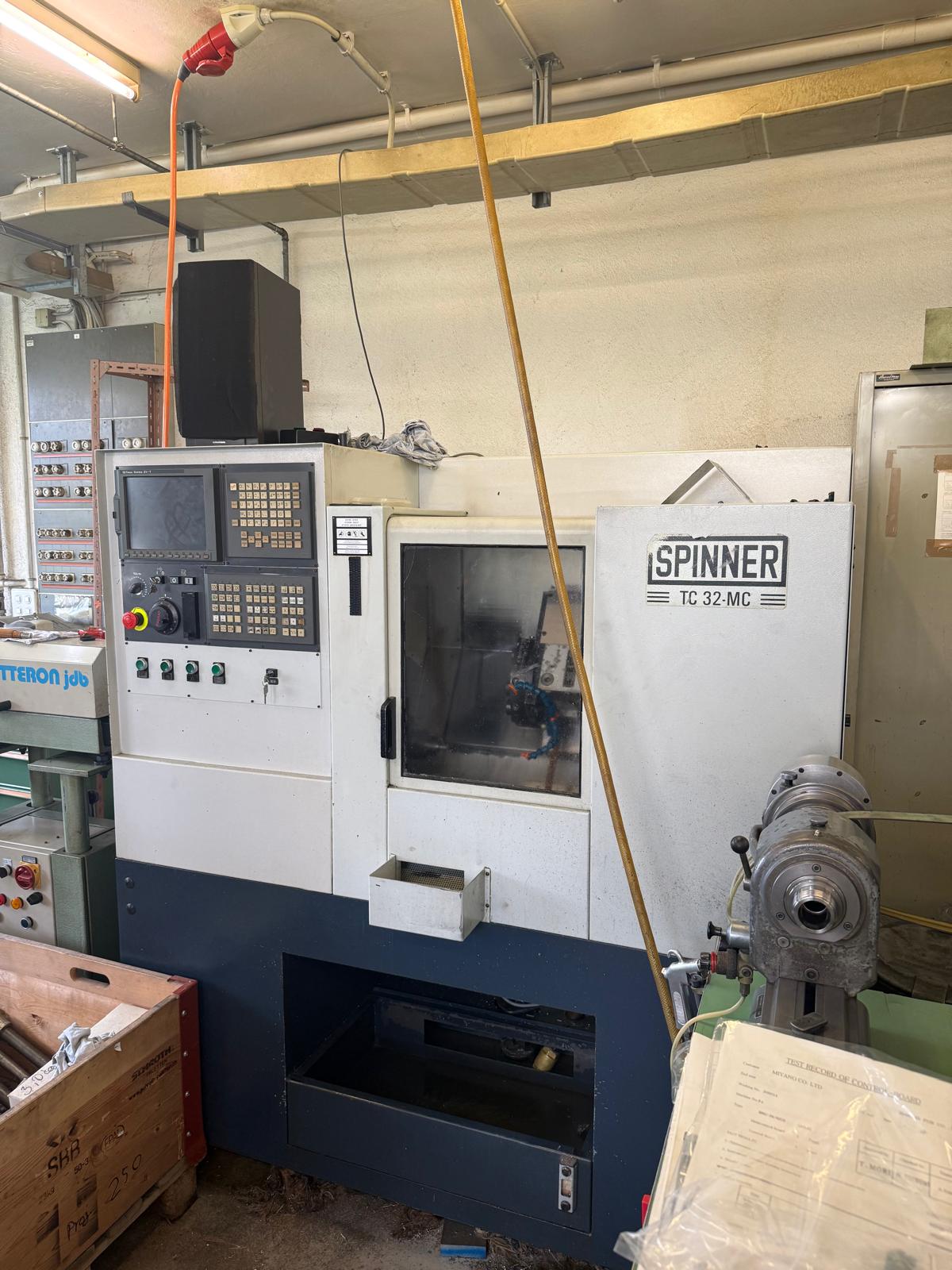

SPINNER TC 32-MC is a CNC turning lathe providing precision, high accuracy and reliable performance for turning operations. Working capacities: total 3 axes, swing over bed 290 mm, max turning length 245 mm, max turning diameter 120 mm, internal spindle diameter 32 mm; 12-position turret with 6 fixed and 6 driven tools; travels X 96 mm, Z 245 mm. Main specifications: spindle speeds up to 6000 t/min, voltage 50 Hz 3x 400 V, machine weight approx. 1400 kg, overall dimensions L 1750 x W 1100 x H 1730 mm. Accessories: bar feeder type Botteron jdb. Enables tight tolerances; typical applications include automotive, aerospace, medical and machine tool manufacturing
Technical specifications are subject to change without notice
| Number of axis total | 3 |
| Swing diameter over bed | 290 mm |
| Maximum turning length | 245 mm |
| Max. turning diameter | 120 mm |

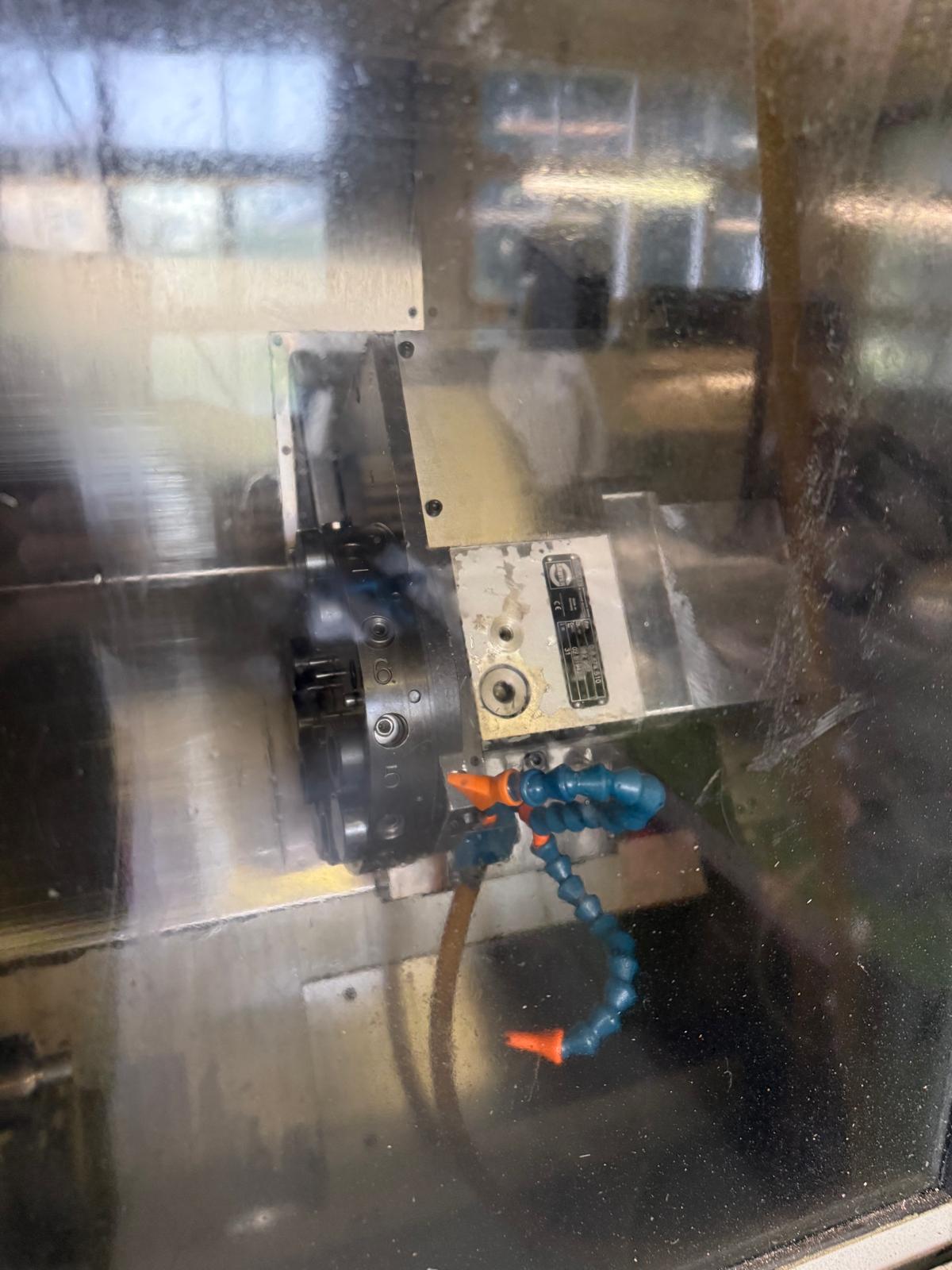

| Turret slide: | |
| Number of positions | 12 |
| Fixed tools turret | 6 |
| Driven tools turret | 6 |
| Internal spindle diameter | 32 mm |
| C axis | |
| Spindle speeds: | |
| up to | 6000 t/min |
| Travels: | |
| X axis | 96 mm |
| Z axis | 245 mm |
| Voltage 50 Hz 3x | 400 Volt |
| Machine's weight about | 1400 kg |
| Overall dimensions machine: | |
| Length | 1750 mm |
| Width | 1100 mm |
| Height | 1730 mm |
| Various accessories: | |

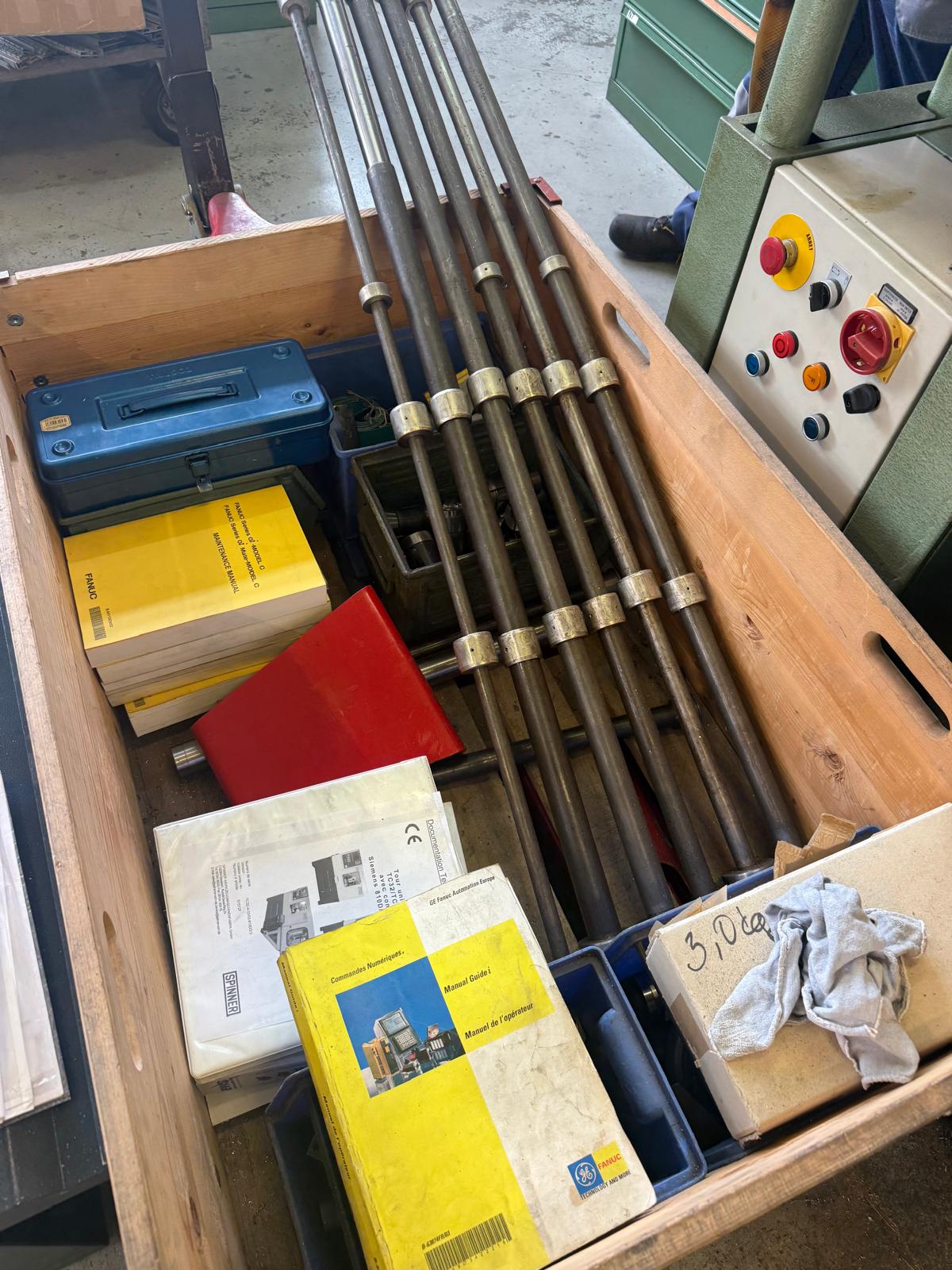

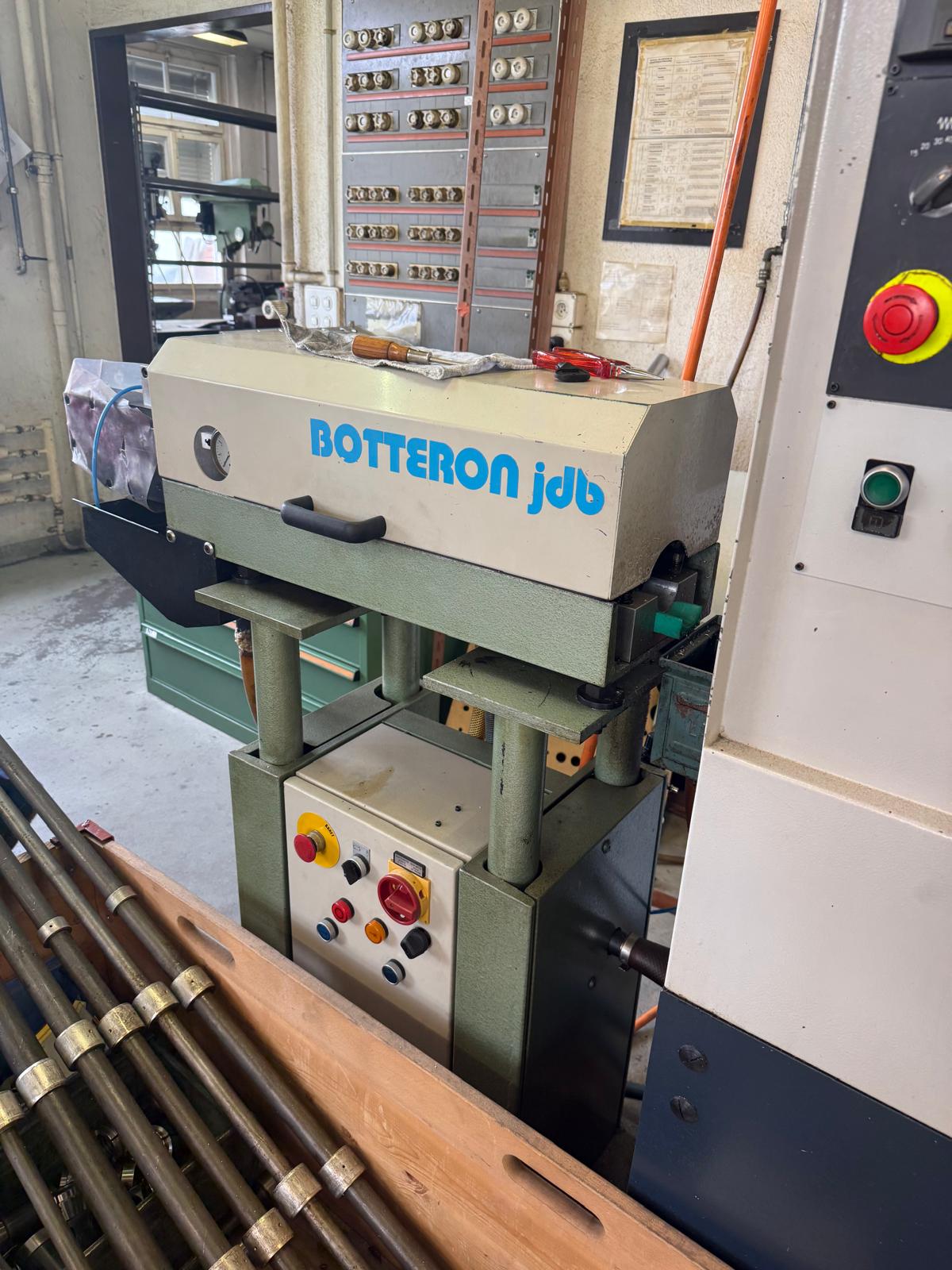

| Bar feeder | |
| Type | Botteron jdb |
