| Drill capacity in steel | 10 mm |
| Table length | 300 mm |
| Table width | 230 mm |
| Depth of throat | 200 mm |
| Spindle stroke | 100 mm |
| Spindle speeds: | |
| number (steps) | 12 |
| from | 200 t/min |
| up to | 5000 t/min |
| Distance from table to spindle nose: | |
| min. | 30 mm |
| max | 330 mm |
| Voltage 50 Hz 3x | 380 Volt |
| Power | 1 CV |
| Machine's weight about | 110 kg |
| Overall dimensions machine: | |
| Length | 800 mm |
| Width | 550 mm |
| Height | 600 mm |

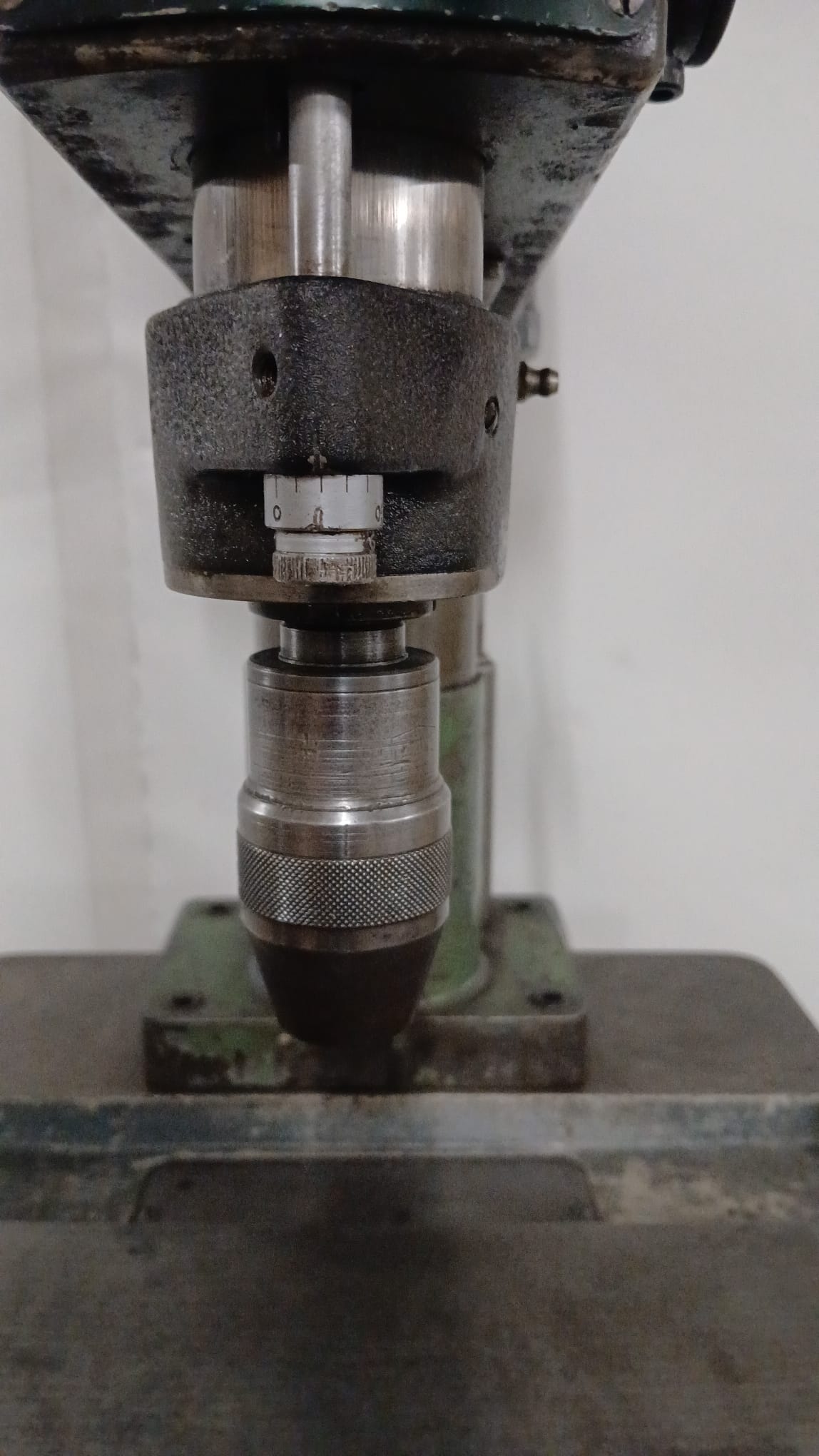

ACIERA 10 T is a Bench drill, engineered for precision drilling with high accuracy and reliability. Drill capacity in steel: 10 mm; table 300×230 mm; depth of throat 200 mm; spindle stroke 100 mm; distance table to spindle nose 30–330 mm. Spindle speeds: 12 steps from 200 to 5000 t/min; voltage 3x 380 V 50 Hz; power 1 CV; weight approx. 110 kg; overall dimensions L800×W550×H600 mm. Delivers tight tolerances; suitable for sectors requiring high precision such as automotive, watchmaking, machine tool building, aerospace and medical
Technical specifications are subject to change without notice
