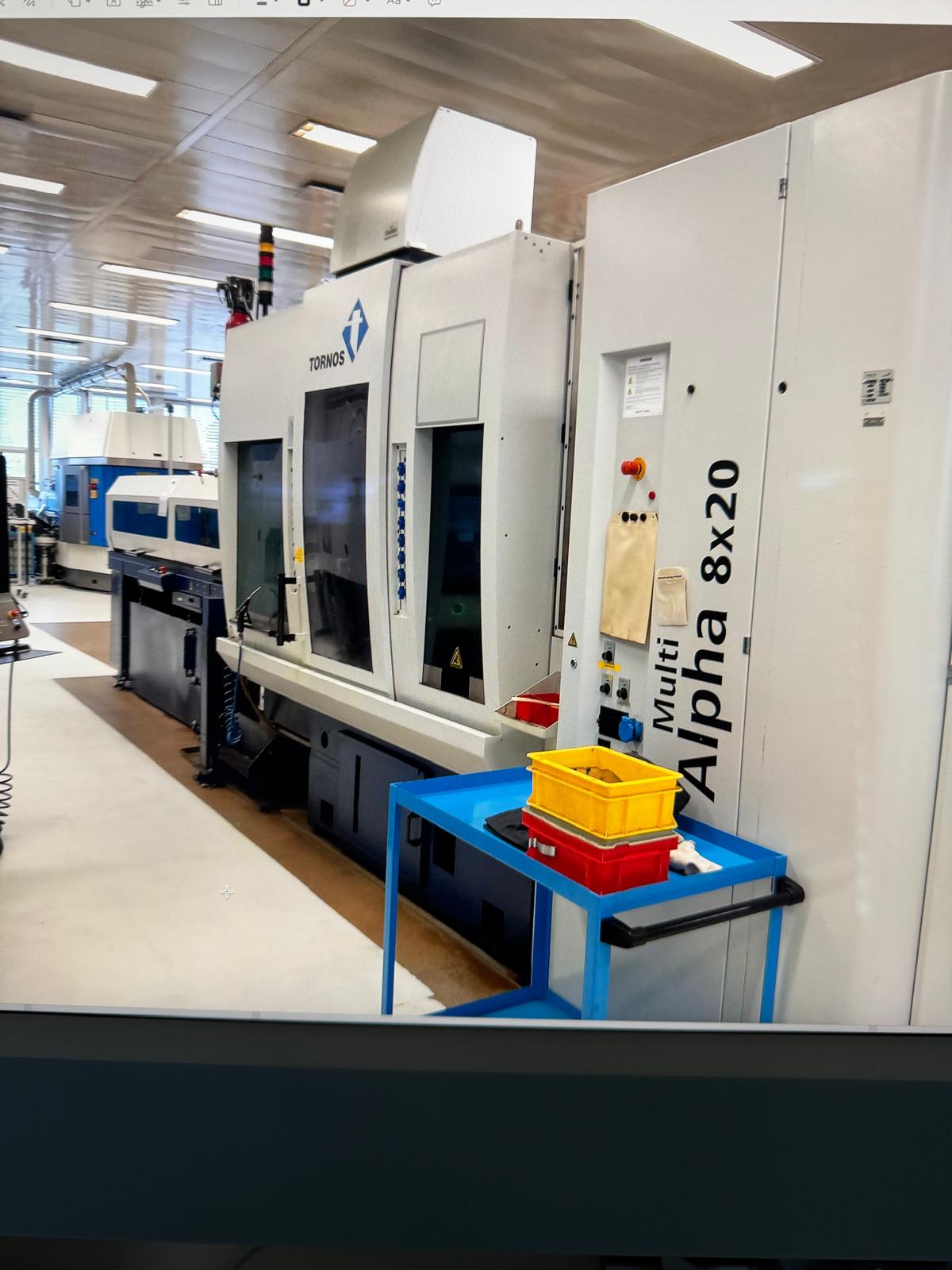

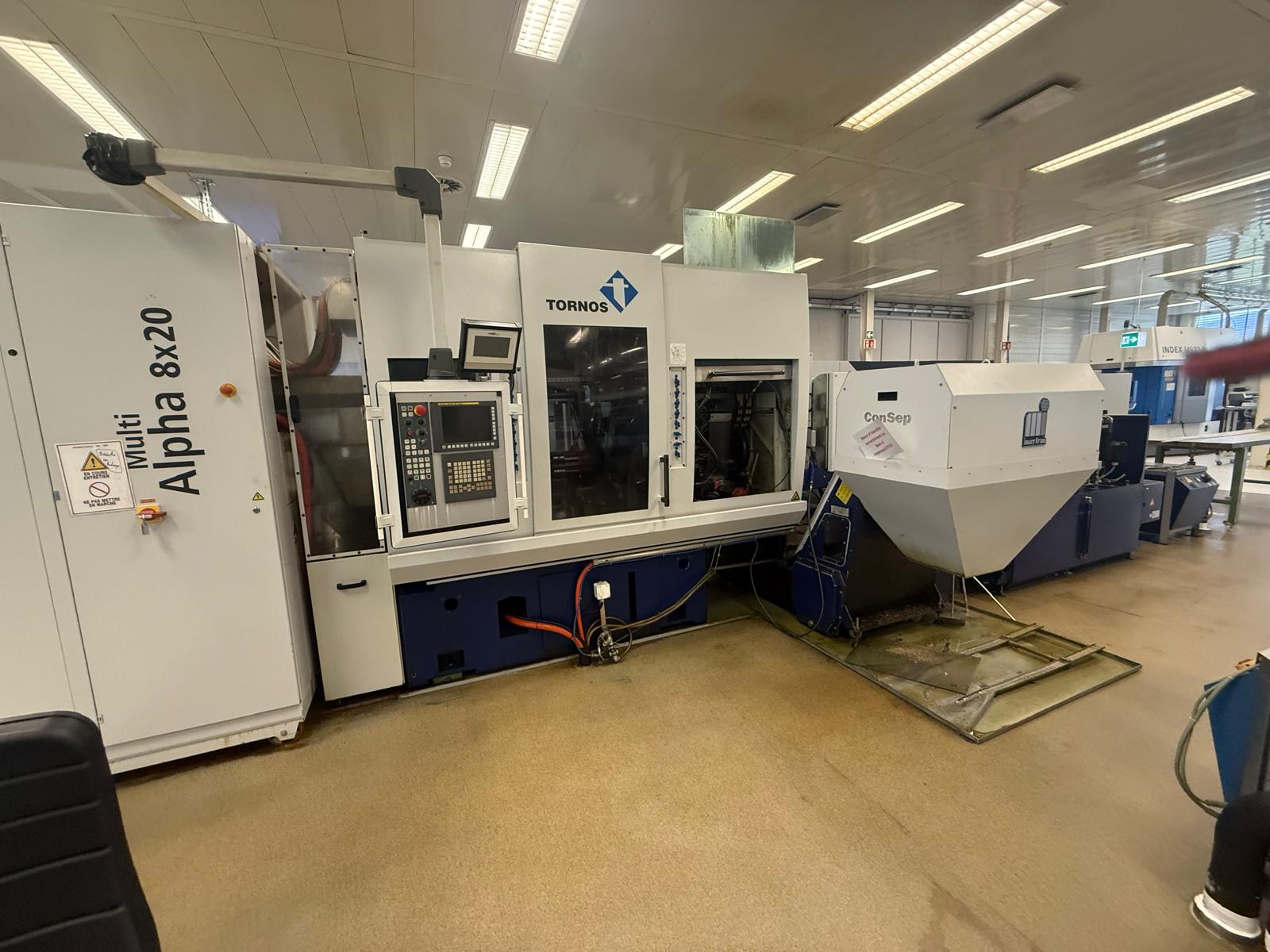

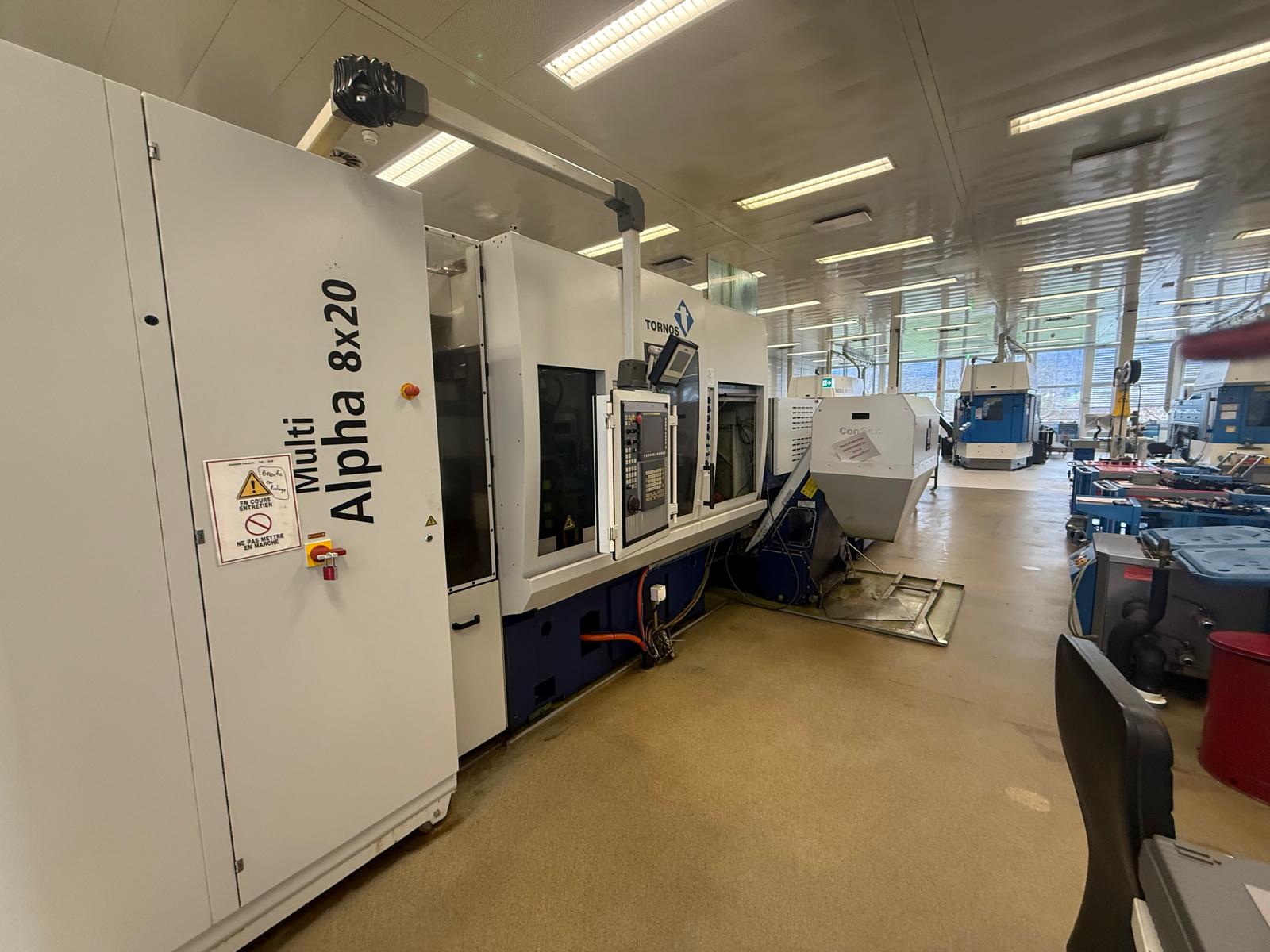

TORNOS Multi Alpha - 8x20
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
TORNOS Multi Alpha - 8x20 is a CNC multi-spindle turning lathe designed for precision, high accuracy and reliability. Capacities: bar capacity 22 mm, workpiece length max 100 mm; longitudinal travel 80 mm, cross travel 50 mm; 8 spindles, 2 back spindles, 37 axes. Specs: 0–8000 rpm (back spindles 8000 rpm), 3x400 V 50 Hz, 11.2 kW, weight ~12000 kg, dimensions 9104×1740×2625 mm. Accessories: automatic bar loader, coolant system, chip conveyor, spindle cooling, lamp. Achieves tight tolerances; typical sectors: automotive, watchmaking, machine tools, aerospace, medical.
Technical specifications are subject to change without notice
| Number of axis total | 37 |
| Number of cross slides | 6 |
| Plain turning slide number | 8 |
| Number of spindles | 8 |
| Number back spindle | 2 |
| Spindles with independent speed | |
| Number of tools max. back spindle | 10 |
| Capacity round bar | 22 mm |
| Workpiece length max. | 100 mm |
| Longitudinal carriage way | 80 mm |
| Transversal slide: | |
| Cross way | 50 mm |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 8000 t/min |
| Back spindle: | |
| Spindle speeds | 8000 t/min |
| Voltage 50 Hz 3x | 400 Volt |
| Power | 11.2 kW |
| Machine's weight about | 12000 kg |
| Overall dimensions machine: | |
| Length | 9104 mm |
| Width | 1740 mm |
| Height | 2625 mm |
| Various accessories: | |

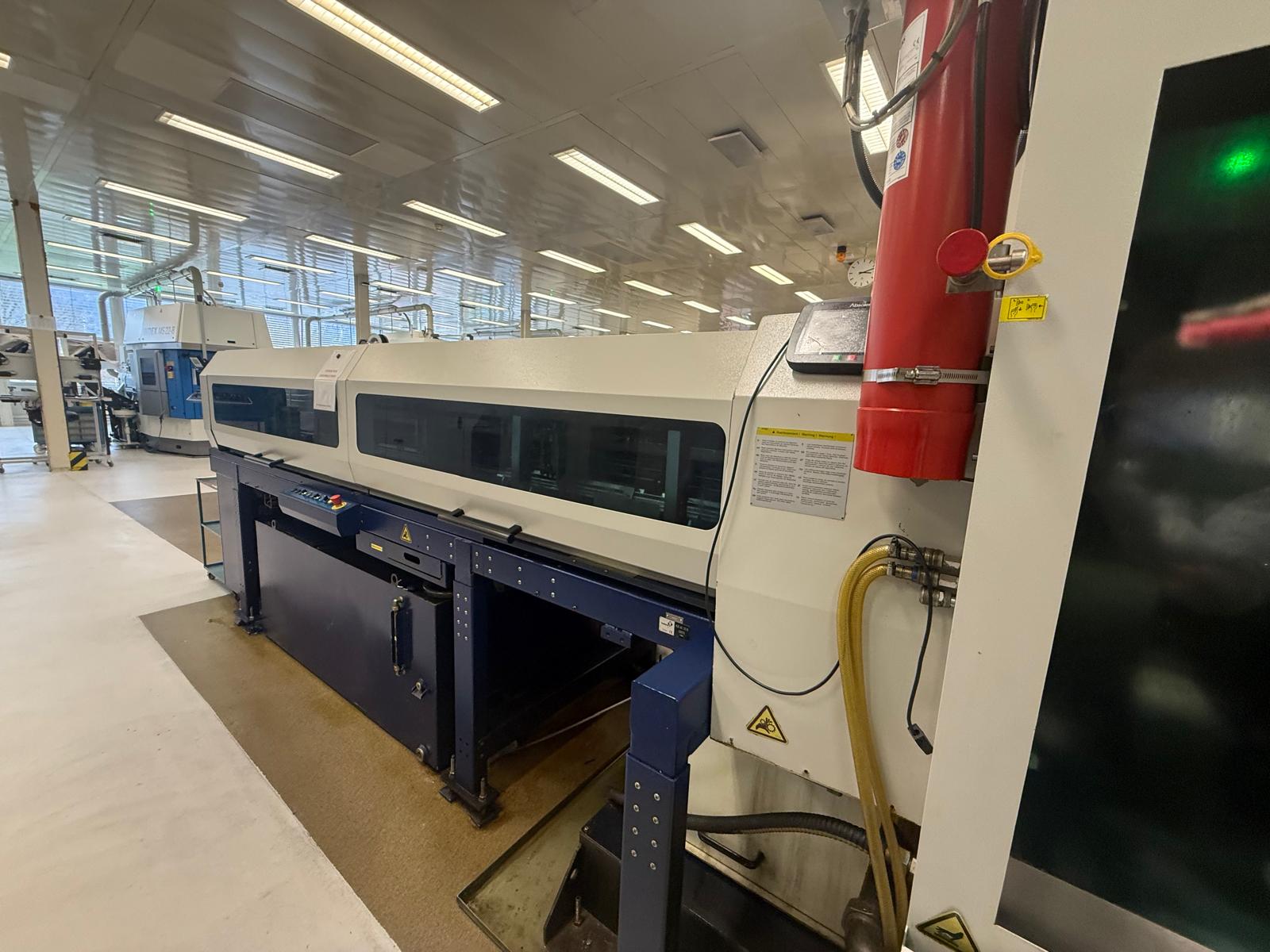

| Automatic bar loader (num. bars) | |

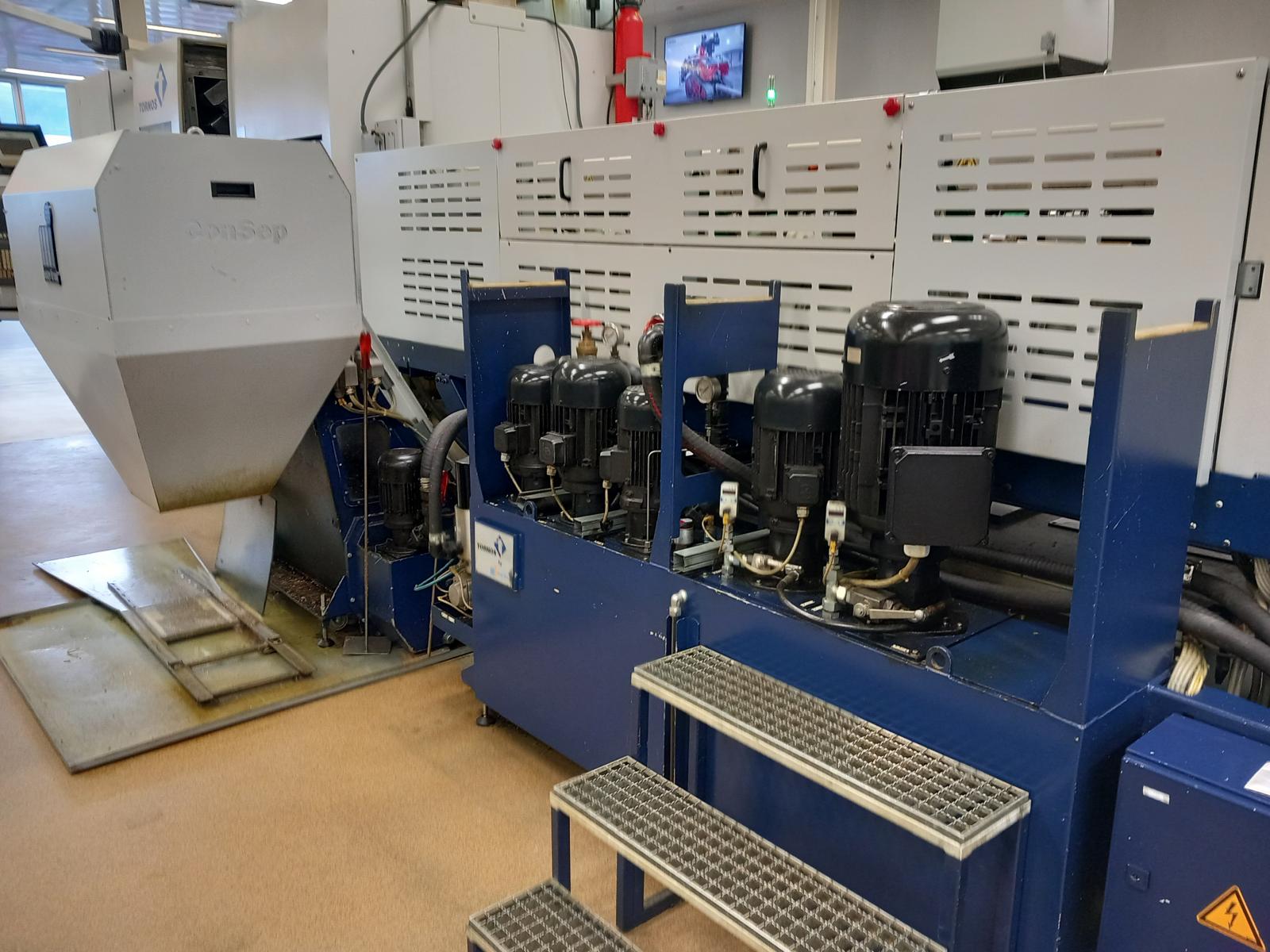

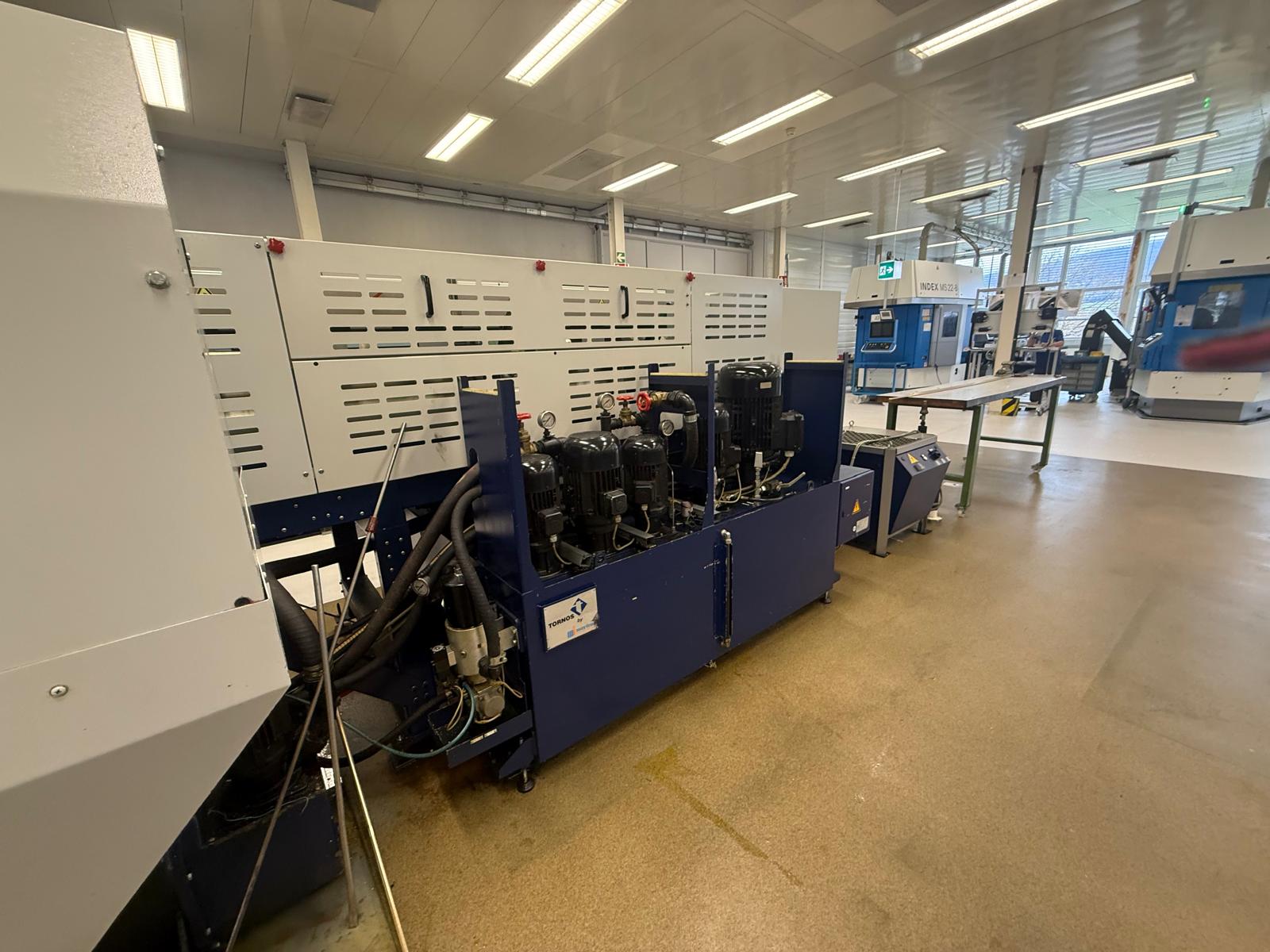

| Coolant system | |
| Chip conveyor | |

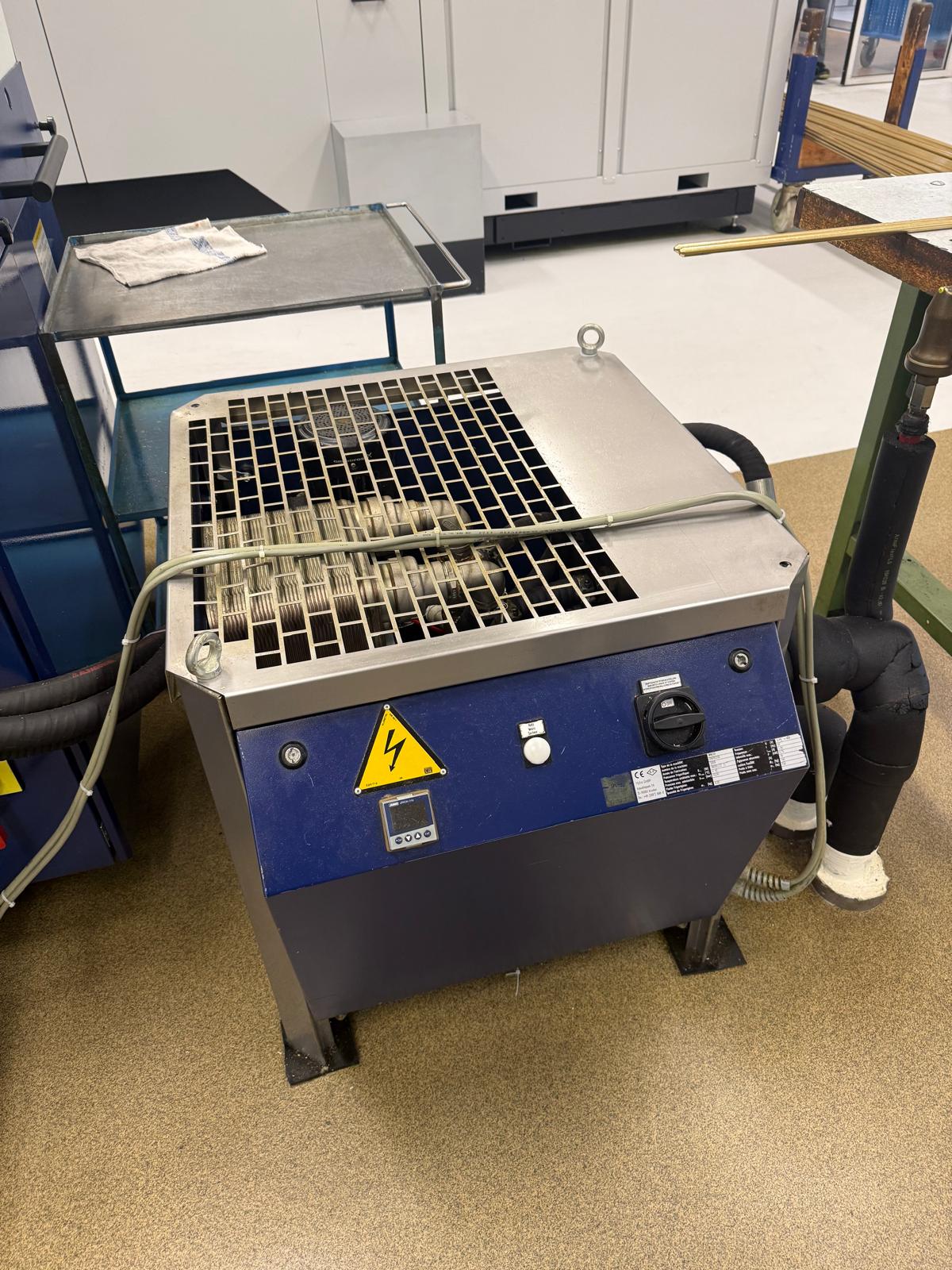

| Spindlecooling | |
| Lamp |
