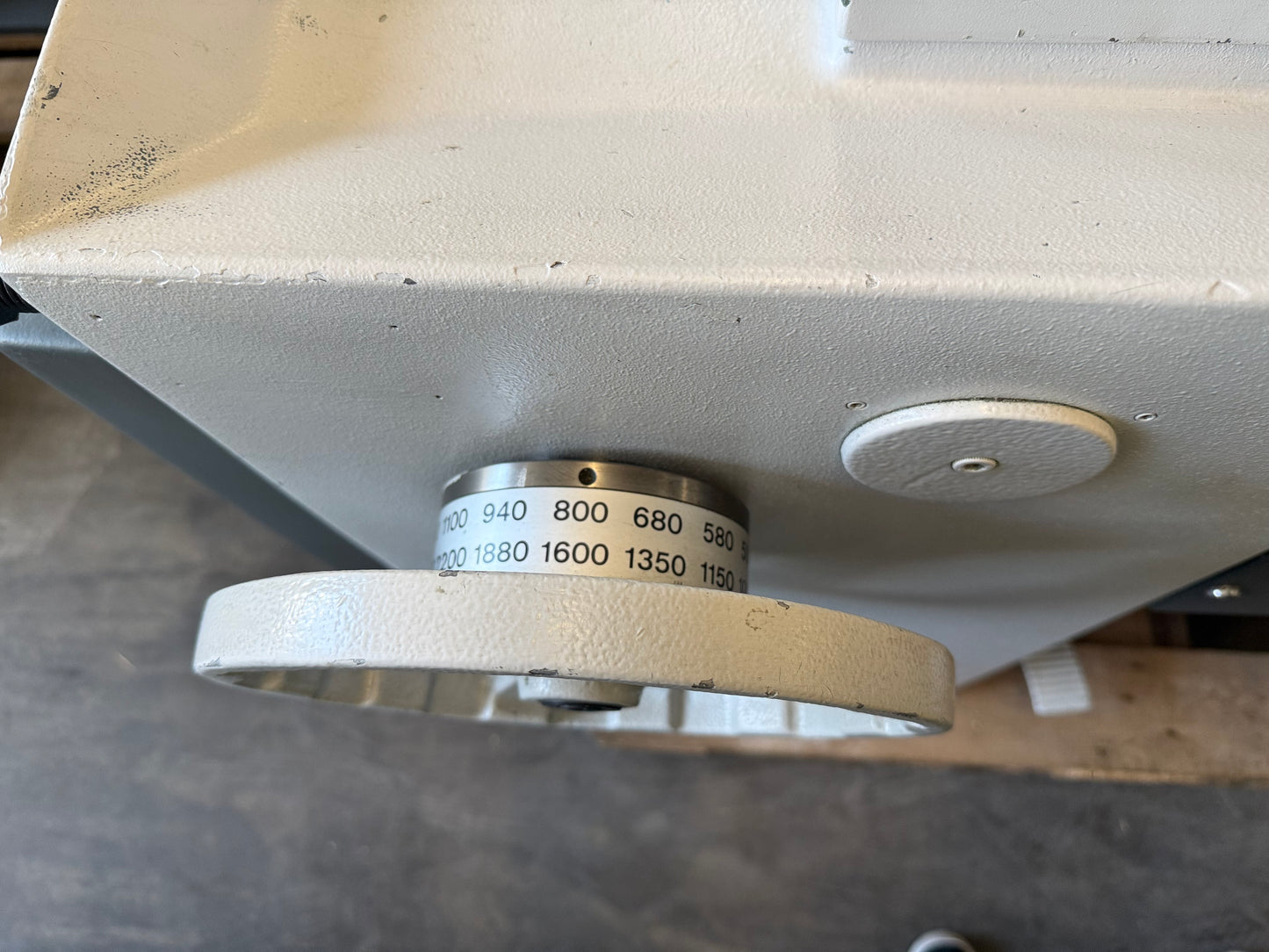

SCHAUBLIN 102 N-80 is a Toolmakers lathe combining precision, high accuracy and reliability. Main capacities: centre height 102 mm; distance between centres 375 mm; swing over cross-slide 120 mm; swing over bed 200 mm. Technical specifications: spindle speeds from 40 t/min; taper in tailstock 2 CM; voltage 50 Hz 3x380 V; spindle motor 1.5 CV; total power required 2 CV; machine weight about 500 kg; overall dimensions L1200 × W600 × H1300 mm. Enables achievement of tight tolerances; typical sectors: watchmaking, automotive, aerospace, medical and machine-tool building.

Technical specifications are subject to change without notice
