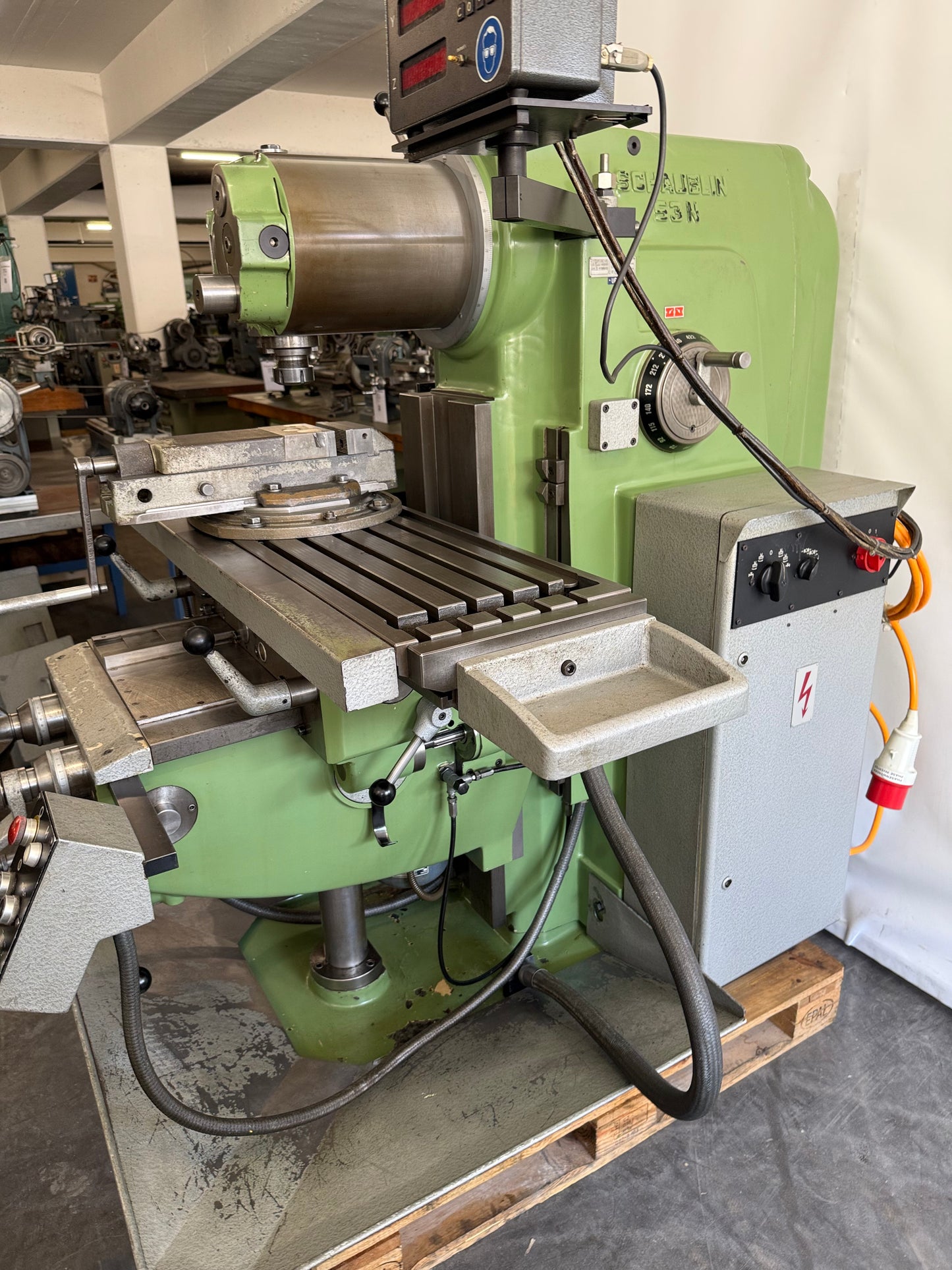

SCHAUBLIN 53 N is a universal milling machine delivering high precision, excellent accuracy and proven reliability. Working capacities: table 1100x305 mm; travels X 700 mm, Y 250 mm, Z 490 mm. Key specs: ISO40 spindle with 18 steps up to 1510 rpm; 18 feed steps (X 12–105 mm/min, Y 12–105 mm/min, Z 6–525 mm/min); rapid traverse X/Y 3.5 m/min, Z 1.7 m/min; mains 3x380 V 50 Hz; total installed power 5.1 kW; weight ~2100 kg; footprint 2250x1920x1720 mm. Equipment: vice, 3-axis digital readout, coolant system, universal milling head. Suited to tight-tolerance work for automotive, watchmaking, machine tools, aerospace and medical sectors.
Technical specifications are subject to change without notice
| Table length | 1100 mm |
| Table width | 305 mm |
| Longitudinal travel (X-axis) | 700 mm |
| Transversal travel (y axis) | 250 mm |
| Vertical travel (z axis) | 490 mm |
| Spindle speeds: | |
| number (steps) | 18 |
| up to | 1510 t/min |
| Taper in spindle | 40 ISO |
| Feeds steps: | 18 |
| longitudinal from | 12 mm/min |
| up to | 105 mm/min |
| transversal from | 12 mm/min |
| up to | 105 mm/min |
| vertical from | 6 mm/min |
| up to | 525 mm/min |
| Rapid traverse: | |
| longitudinal | 3.5 m/min |
| transversal | 3.5 m/min |
| vertical | 1.7 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor output | CV |
| Total power required | 5.1 kW |
| Machine's weight about | 2100 kg |
| Overall dimensions machine: | |
| Length | 2250 mm |
| Width | 1920 mm |
| Height | 1720 mm |
| Various accessories: | |
| Vice | |
| Digital readout number of axis: | 3 |
| Coolant system | |
| Universal milling head |
