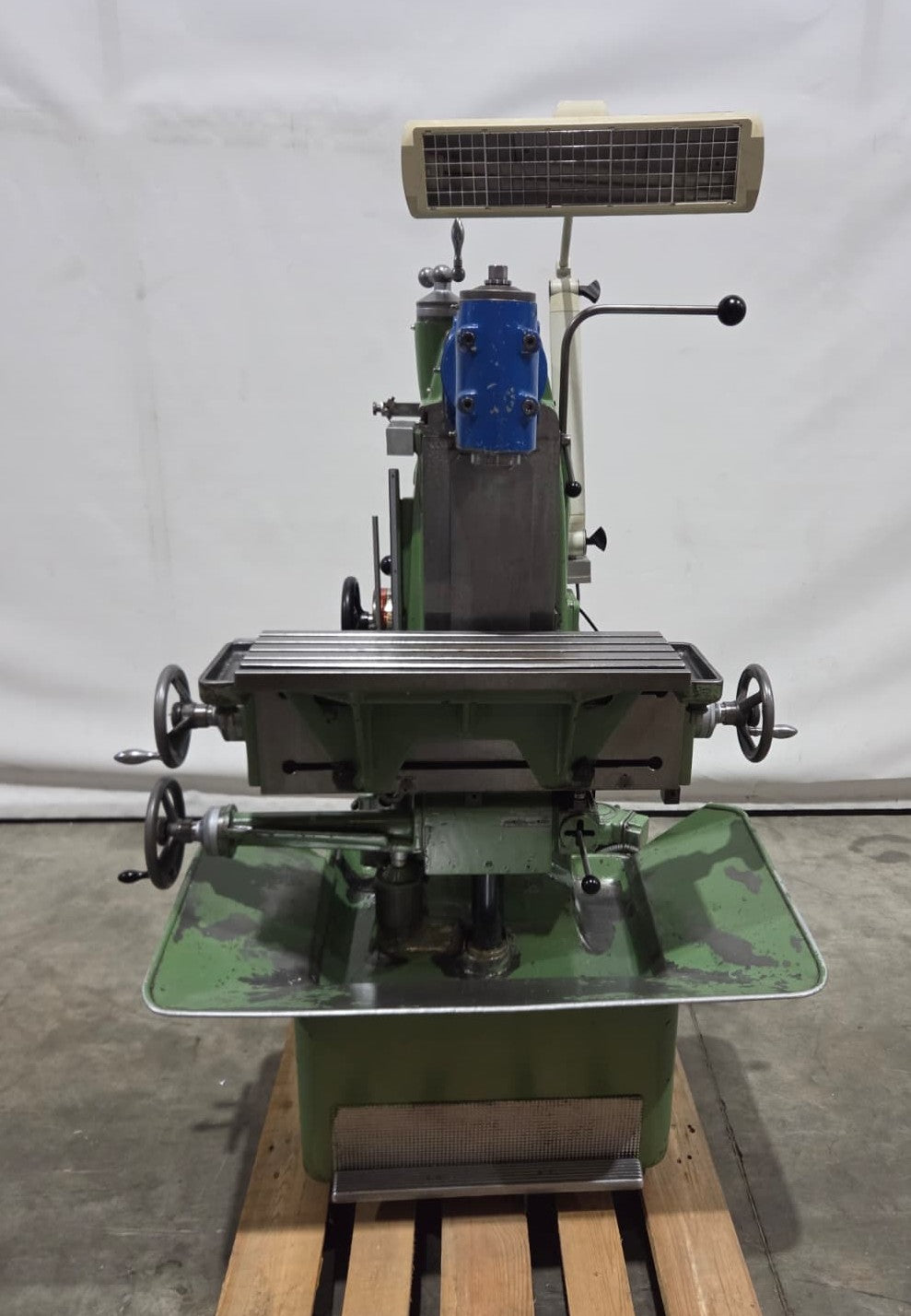

SCHAUBLIN 13 is a Universal milling machine engineered for precision, high accuracy and dependable reliability. Working capacities: table 600x210 mm, travels X 260 mm, Y 150 mm, Z 310 mm; spindle-to-table distances vert. 310 mm, horiz. 410 mm. Specs: 30 ISO spindle taper, stepless speeds 58–2000 rpm, 10 feed steps 12–400 mm/min (long./vert.), rapid traverse 1.2 m/min (long./trans.); supply 3x380 V 50 Hz, motor 2.0 CV, total power 3 CV; weight ~700 kg, footprint 1100x1000x1550 mm. Enables tight tolerances; typical sectors: automotive, watchmaking, toolmaking, aerospace, medical.
Technical specifications are subject to change without notice
| Table length | 600 mm |
| Table width | 210 mm |
| Longitudinal travel (X-axis) | 260 mm |
| Transversal travel (y axis) | 150 mm |
| Vertical travel (z axis) | 310 mm |
| Distance from vertical spindle to table | 310 mm |
| Distance from horizontal spindle to table | 410 mm |
| Spindle speeds: | |
| stepless | |
| from | 58 t/min |
| up to | 2000 t/min |
| Taper in spindle | 30 ISO |
| Feeds steps: | 10 |
| longitudinal from | 12 mm/min |
| up to | 400 mm/min |
| vertical from | 12 mm/min |
| up to | 400 mm/min |
| Rapid traverse: | |
| longitudinal | 1.2 m/min |
| transversal | 1.2 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor output | 2.0 CV |
| Total power required | 3 CV |
| Machine's weight about | 700 kg |
| Overall dimensions machine: | |
| Length | 1100 mm |
| Width | 1000 mm |
| Height | 1550 mm |
