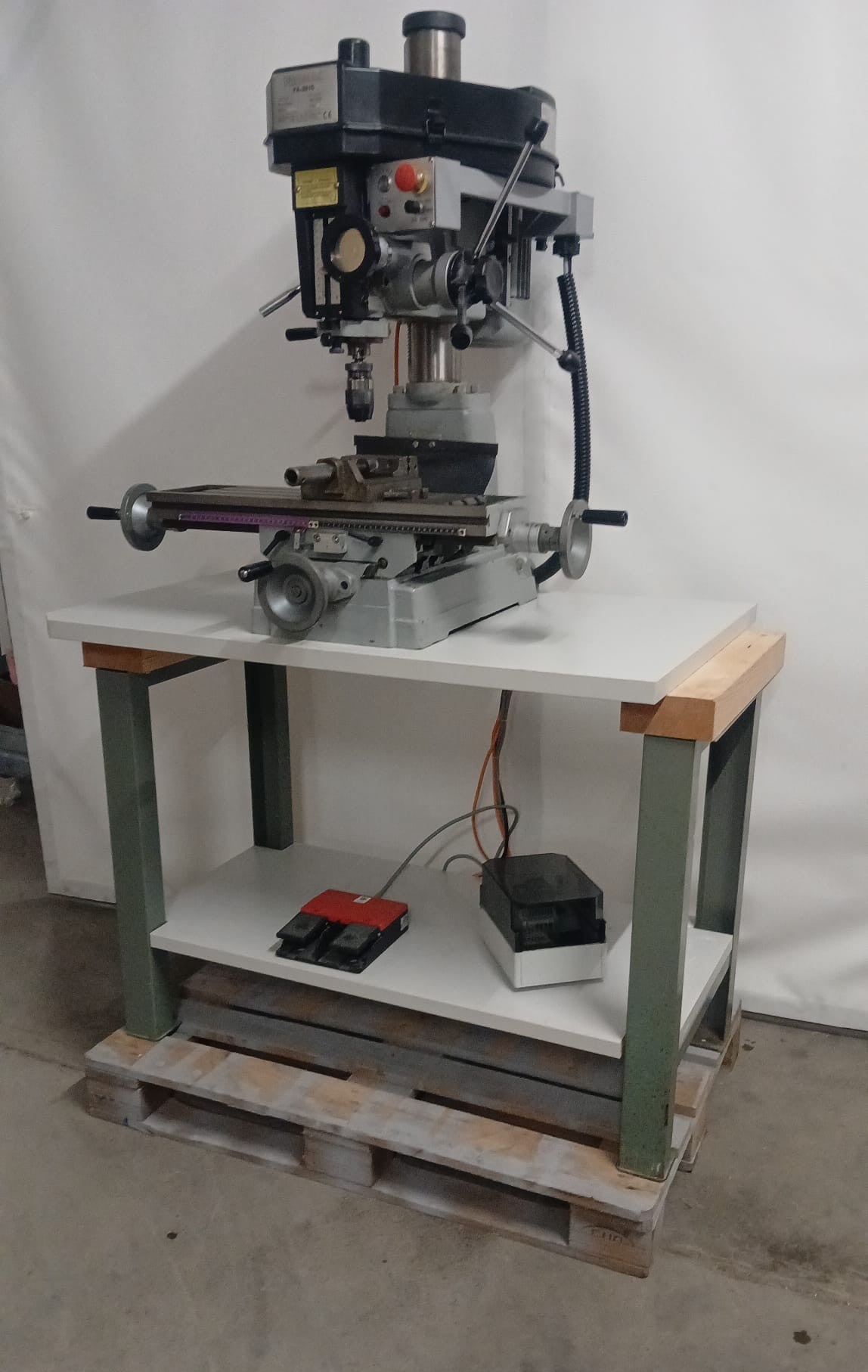

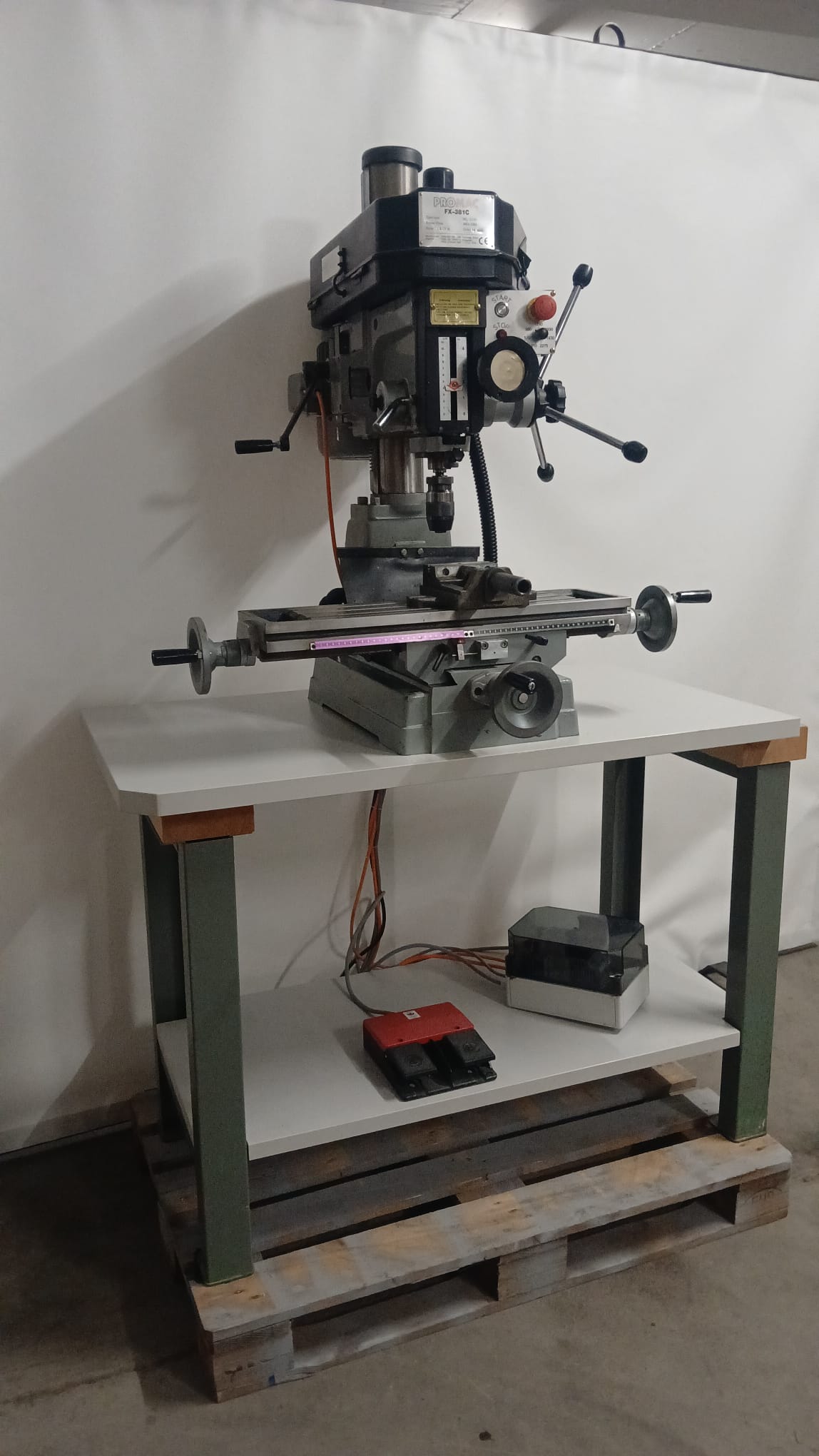

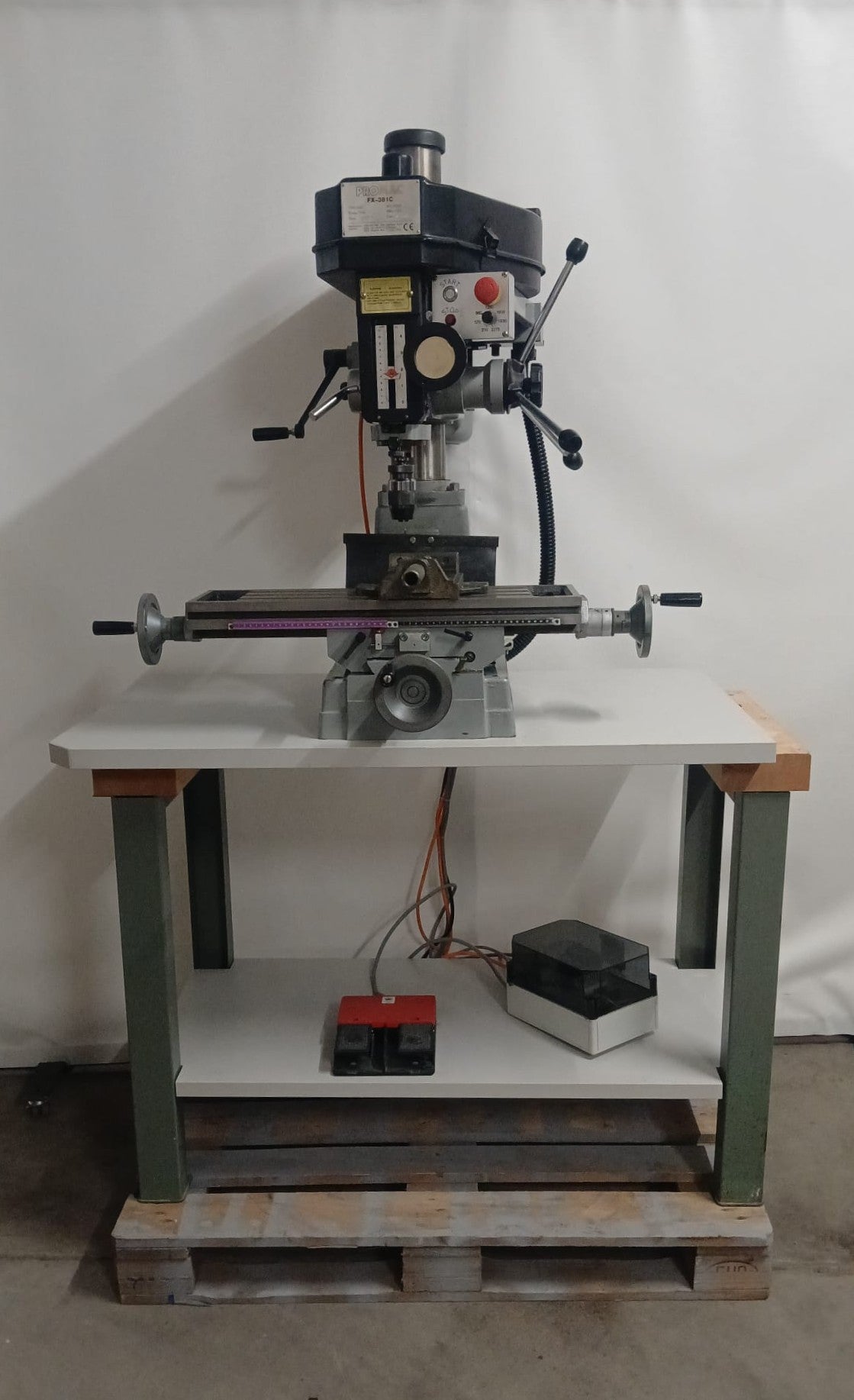

PROMAC FX 381 C is a Drill-/Milling machine for precision work, offering high accuracy and reliability. Table 660×190 mm; drill capacity in steel 25 mm; drill depth 110 mm; travels X360 Y160 mm. Spindle taper MT3; 12 speeds 90–2150 t/min; spindle motor 0.75 kW; 50Hz 3×230V; weight 205 kg; dims 980×880×1060 mm. Accessory: drill chuck. Achieves tight tolerances; typical sectors: automotive, aerospace, medical, watchmaking, machine tools.

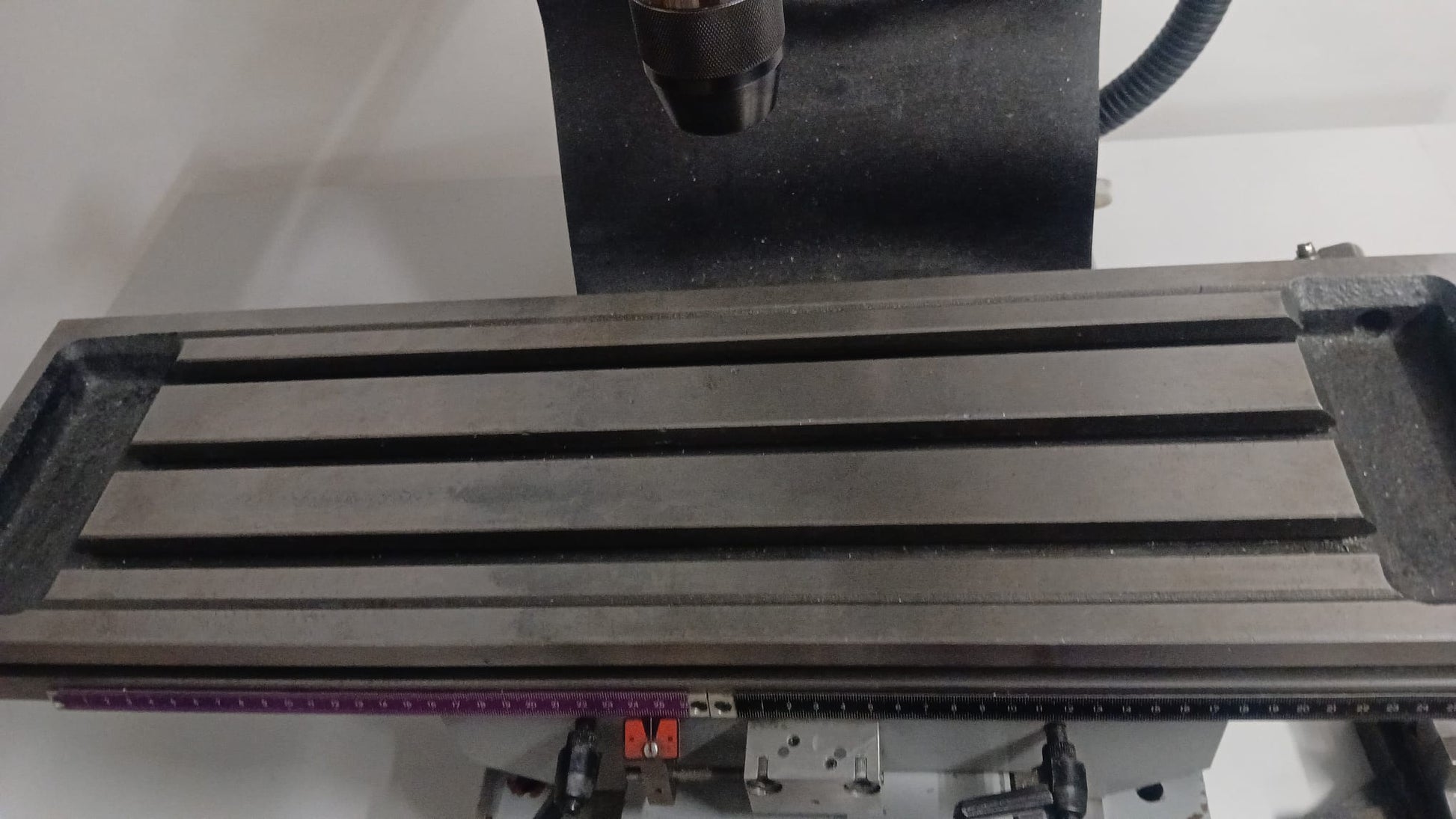

| Table length | 660 mm |
| Table width | 190 mm |
| Drill capacity in steel | 25 mm |
| Taper in spindle: MT | 3 |
| Drill depth (spindle stroke) | 110 mm |
| Table travels: | |
| Longitudinal travel (X-axis) | 360 mm |
| Transversal travel (y-axis) | 160 mm |
| Spindle speeds: | |
| number (steps) | 12 |
| from | 90 t/min |
| up to | 2150 t/min |
| Voltage 50 Hz 3x | 230 Volt |
| Spindle motor | 0.75 kW |
| Machine's weight about | 205 kg |
| Overall dimensions machine: | |
| Length | 980 mm |
| Width | 880 mm |
| Height | 1060 mm |
| Various accessories: | |

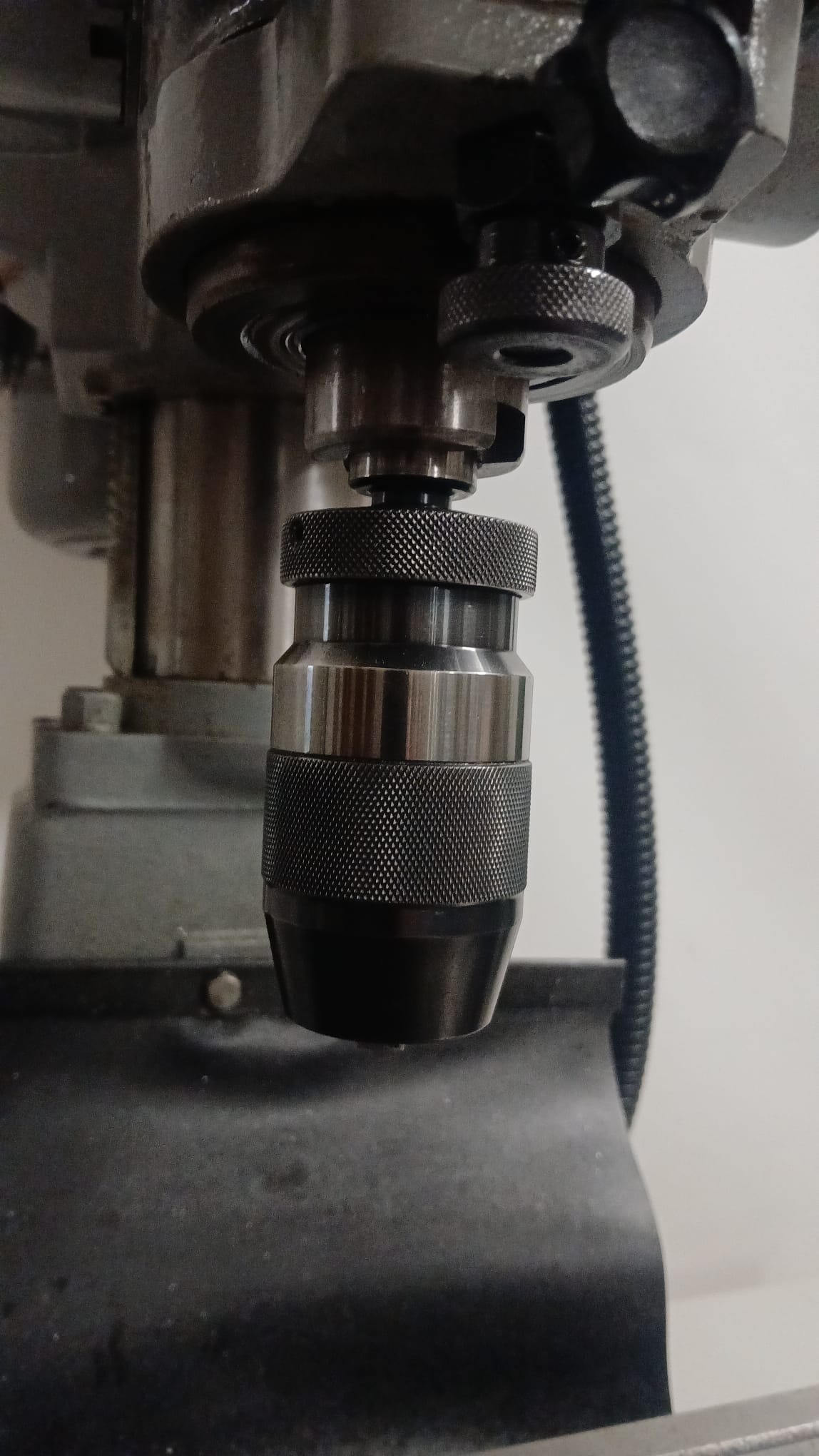

| Drill chuck |
