WAHLI MULTI 76 is a Toolmakers lathe engineered for precision, high accuracy and reliable performance. Centre height 125 mm, distance between centres 550 mm, swing over bed 70–230 mm, spindle hole 20.0 mm, collet type W20. Spindle 12 steps 50–3000 t/min; spindle motor 0.5/0.9 CV; tailstock taper 2 CM; longitudinal feeds up to 1 mm/t; voltage 3x380 V 50 Hz; weight approx. 440 kg; dimensions L1590×W785×H1575 mm. Equipment: 5 drawers, magnetic chuck Ø100 mm, set of collets W20, fixed steady. Built to achieve tight tolerances; suitable for watchmaking, tooling, automotive, aerospace and medical sectors.
Technical specifications are subject to change without notice
| Centre height | 125 mm |
| Distance between centres | 550 mm |
| Swing over bed | 70-230 mm |
| Spindle hole | 20.0 mm |
| Inner taper type | 20 W |
| Taper spindle threaded | |
| Spindle speeds: | |
| number (steps) | 12 |
| from | 50 t/min |
| up to | 3000 t/min |
| Taper in tailstock: | 2 CM |
| Feeds: | |
| longitudinal: | |
| from | mm/t |
| up to | 1 mm/t |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 0.5/0.9 CV |
| Machine's weight about | 440 kg |
| Overall dimensions machine: | |
| Length | 1590 mm |
| Width | 785 mm |
| Height | 1575 mm |

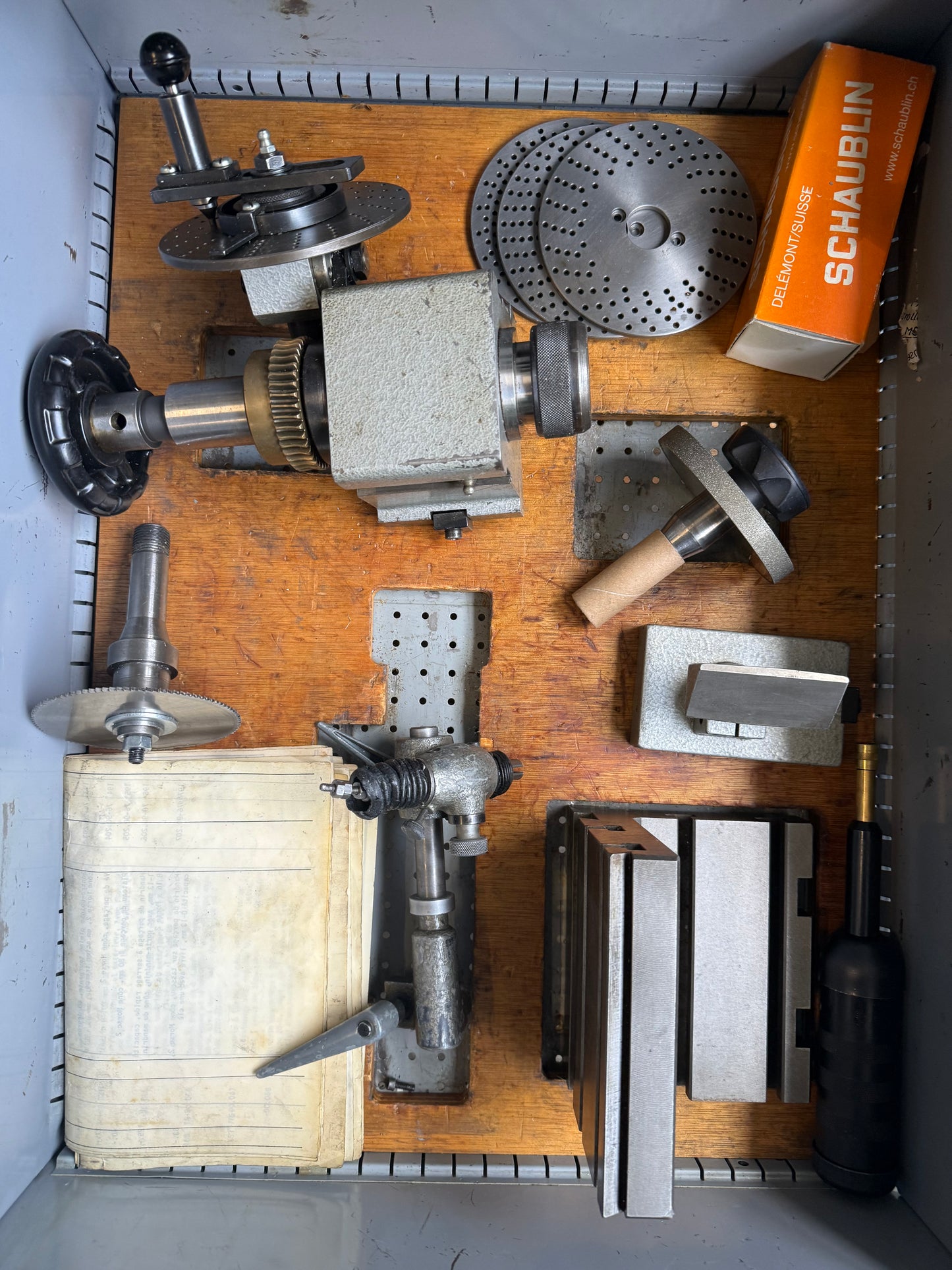

| Various accessories: | |
| Drawer(s) | 5 |
| Coolant system | |
| Macnetic chuck diameter | 100 mm |
| Set of collets | W 20 |
| Set of centres | |
| Fixed steady |
