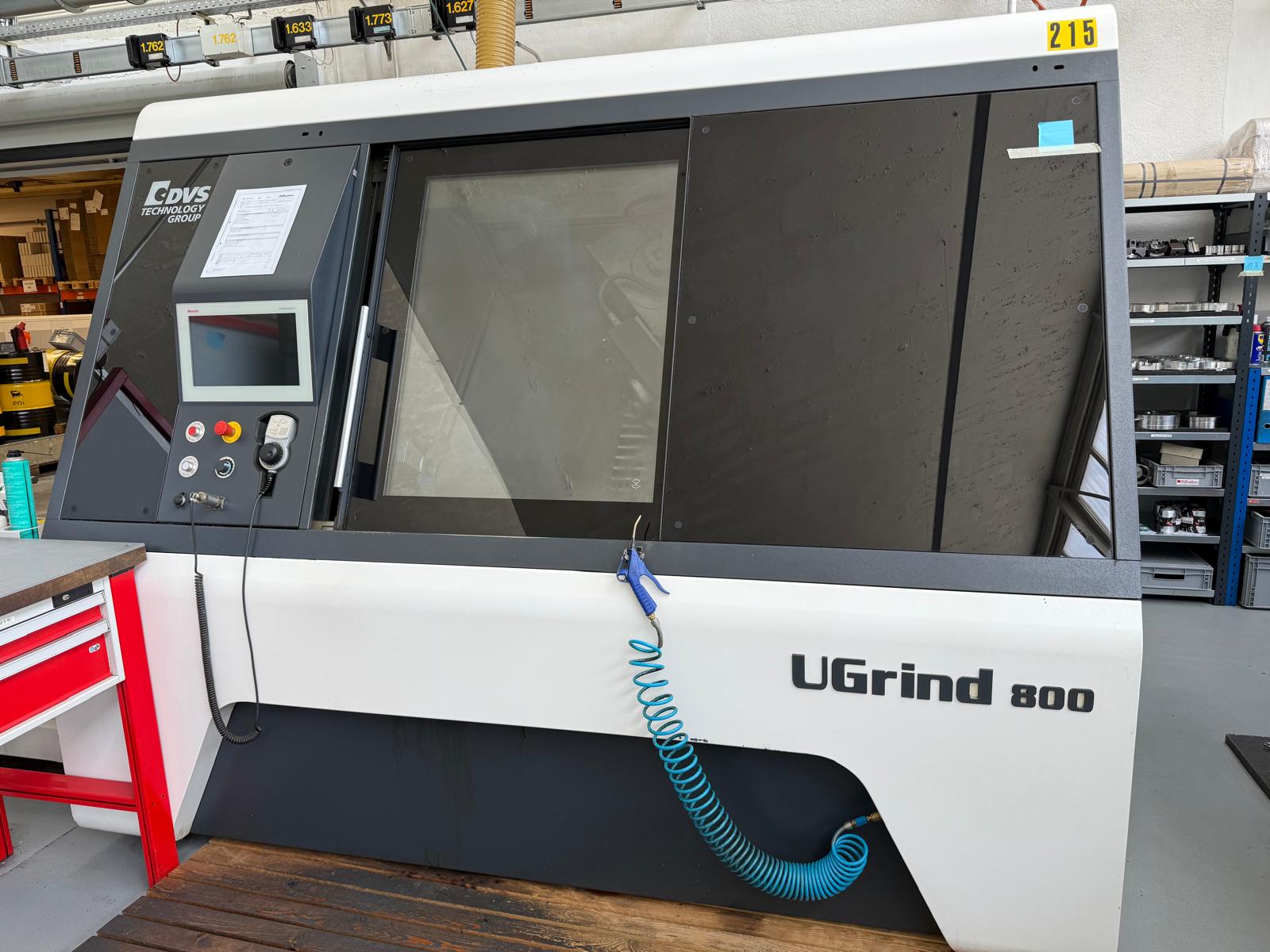

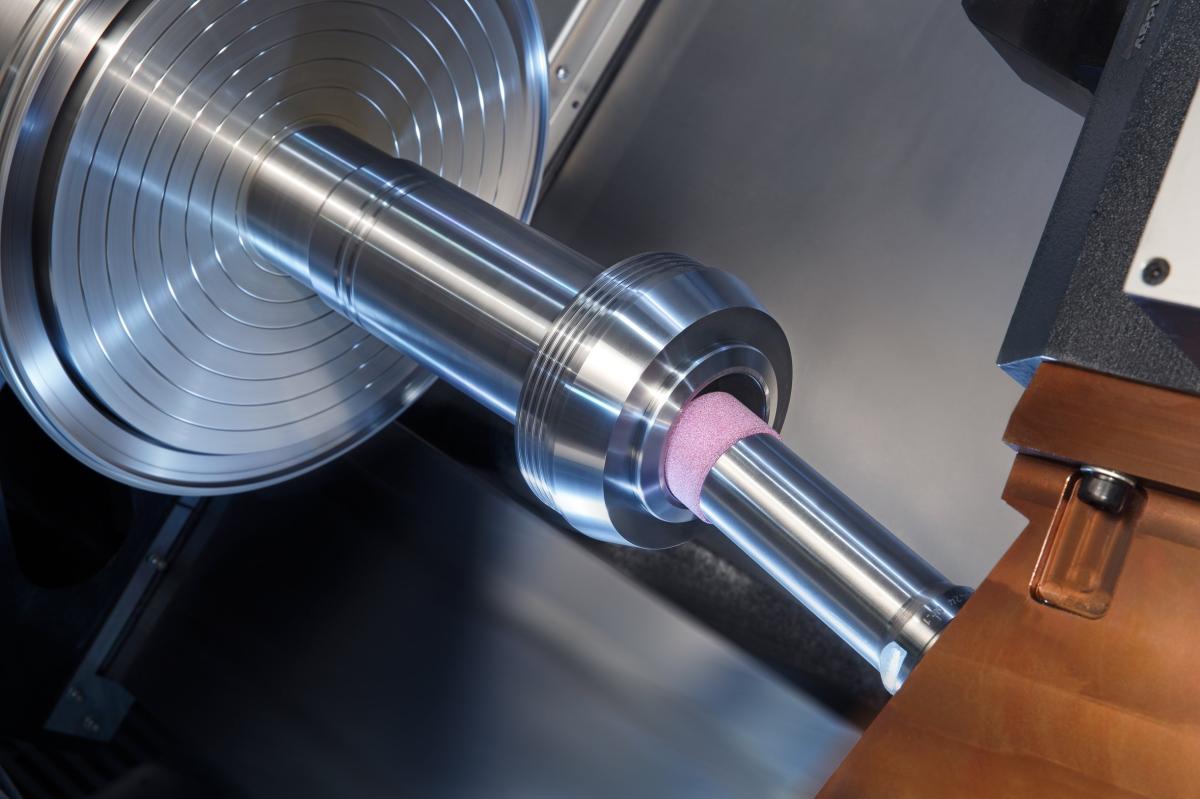

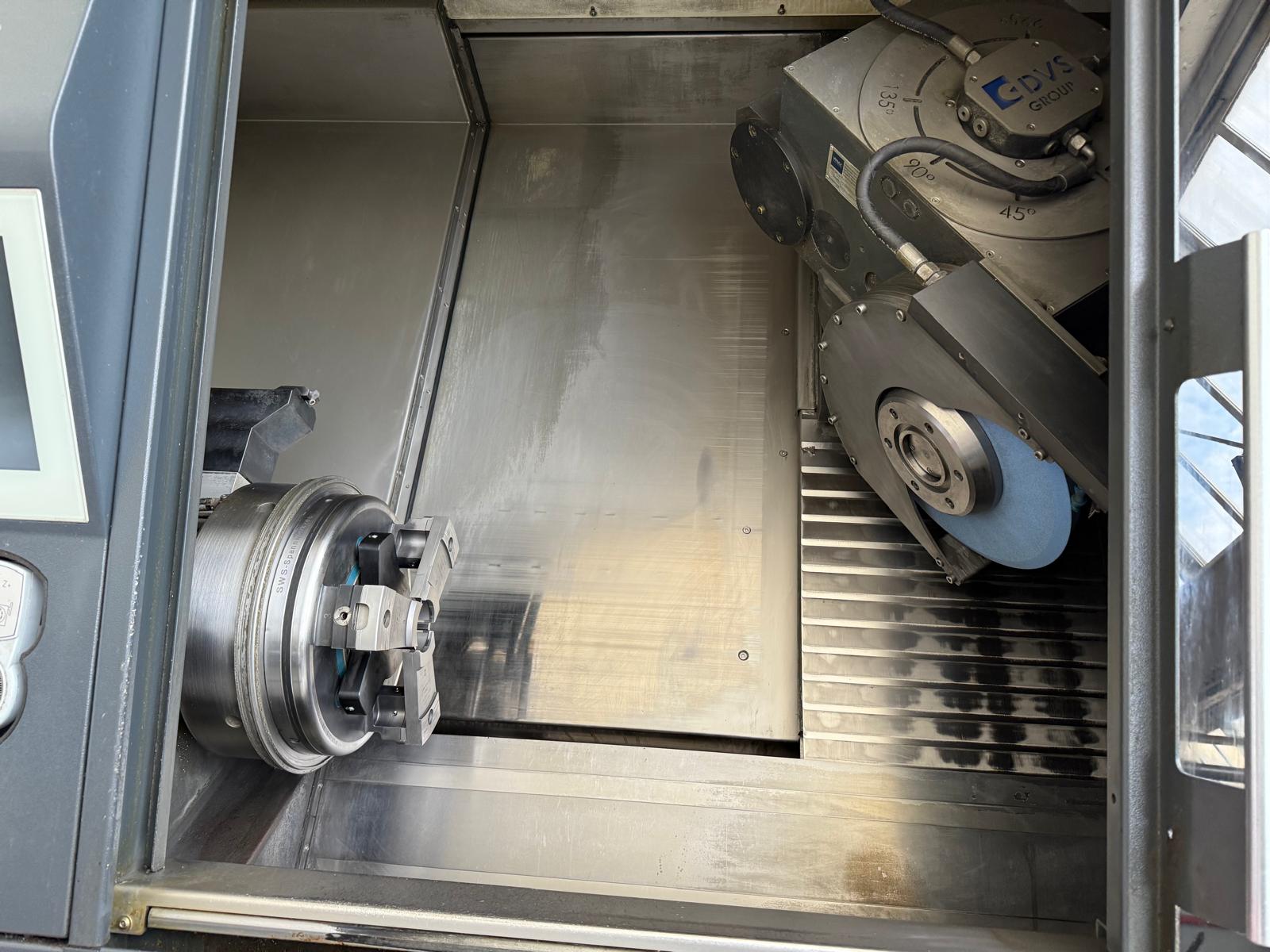

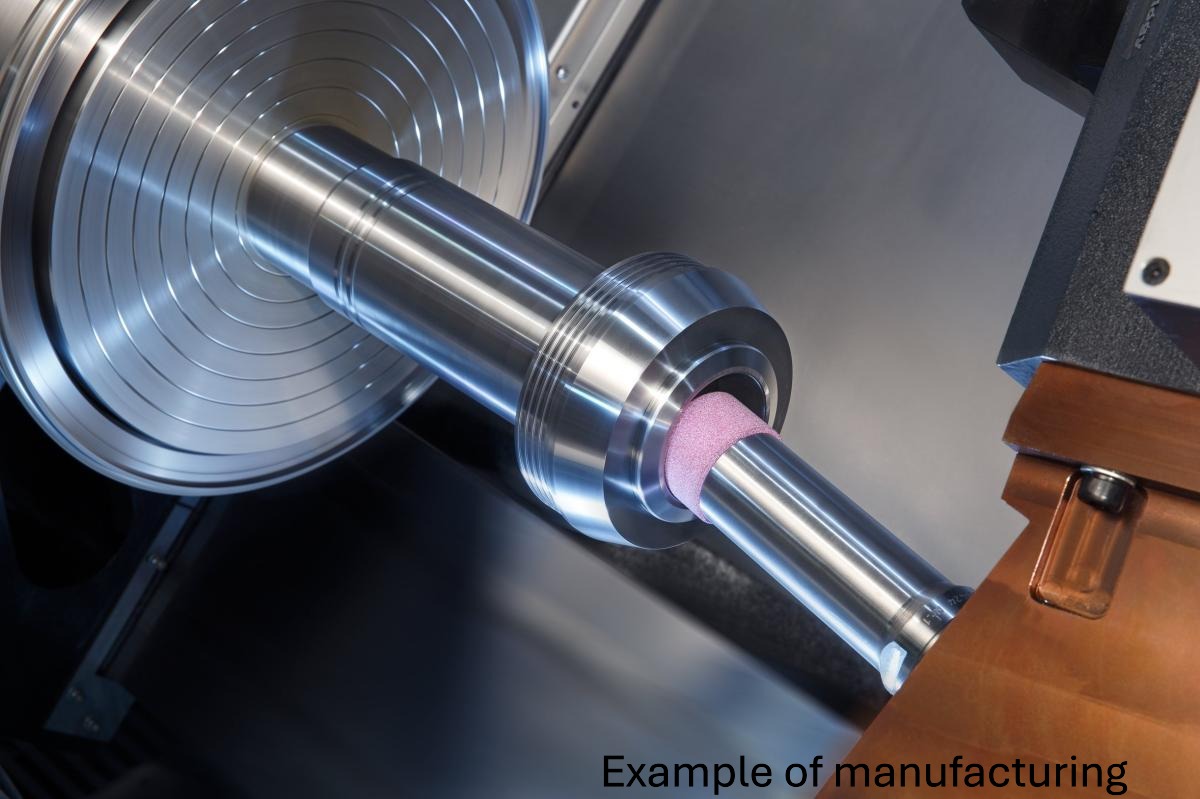

DVS UGRIND 800 is a CNC external and internal grinder, engineered for precision, high accuracy and reliability. Handles workpieces Ø 130–500 mm; Z axis 1200 mm, X axis 250 mm. Grinding spindle 25 kW; workpiece spindle motor 24 kW; speeds 0–500 t/min stepless; supply 50 Hz 3x 400 V; weight ~7000 kg; L2850×W2490×H2290 mm; operating time 12000 Heures. Accessories: coolant system, coolant filter system, measuring feeler gauge, set of flanges for internal grinding, set of flanges, lamp, tool cabinet, electronic handwheel. Capable of achieving tight tolerances; typical applications: automotive, machine tools, aerospace, medical, watchmaking.
| Distance between centres | 1200 mm |
| Max. grinding diameter | 350 mm |
| Travels: | |
| Z axis | 800 mm |
| X axis | 500 mm |
| B axis resolution max. | 0.0002 ° |

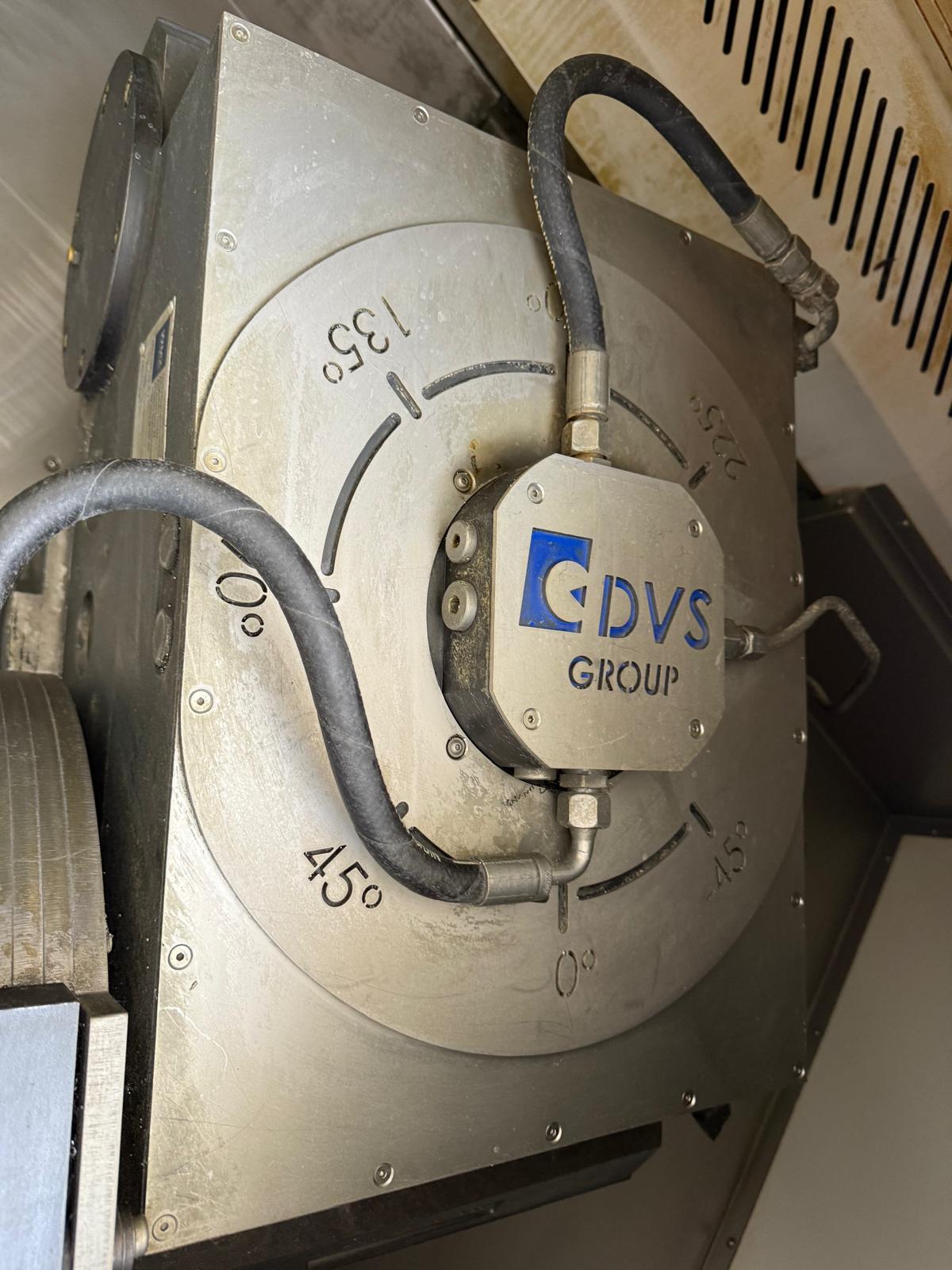

| B axis swivelling range | -45 / +225 ° |

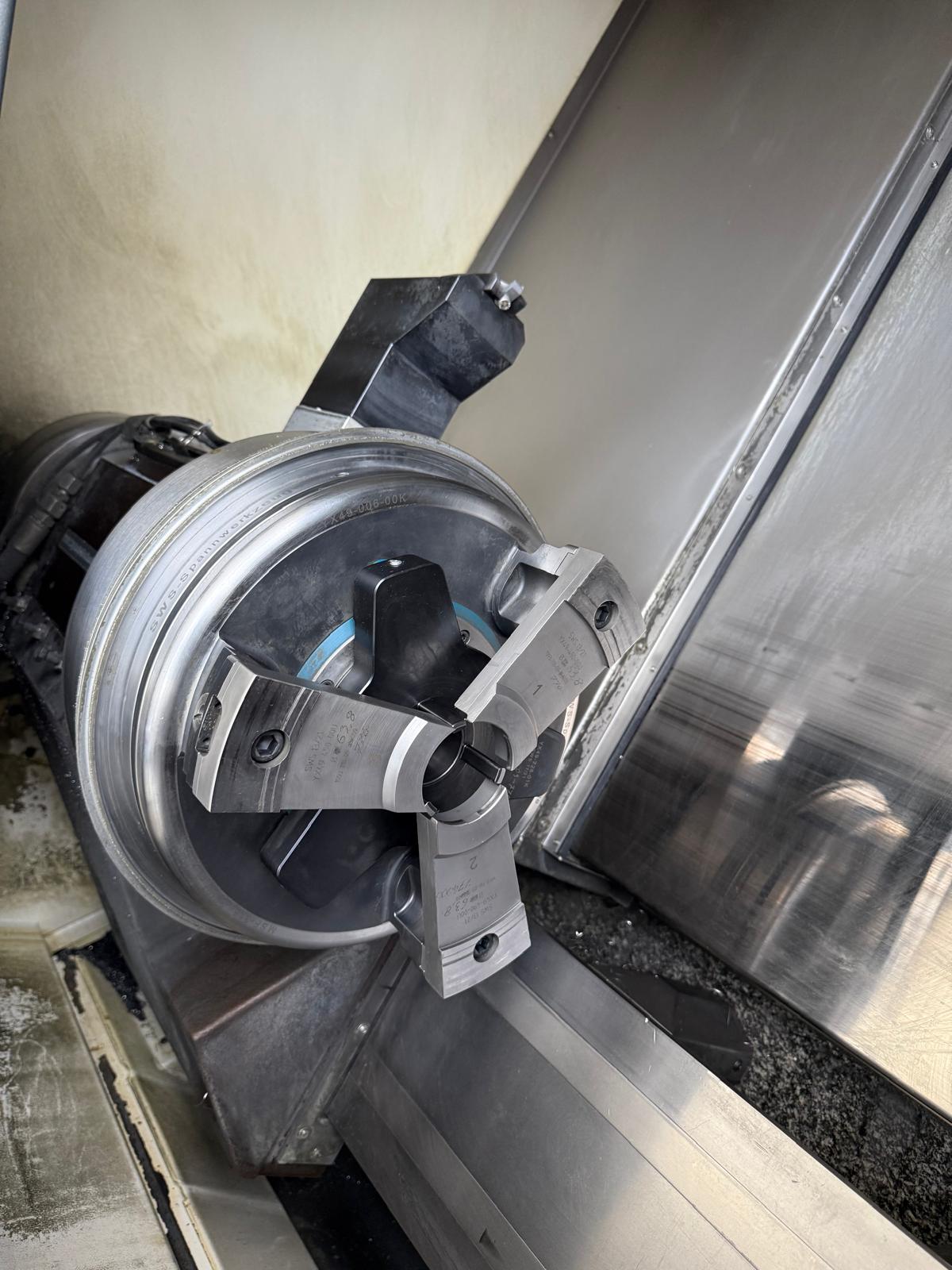

| Work piece spindle head: | |
| speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 1500 t/min |
| C axis | |
| Operating time | 12000 Heures |
| Air connect | 5 bar |
| Voltage 50 Hz 3x | 400 Volt |

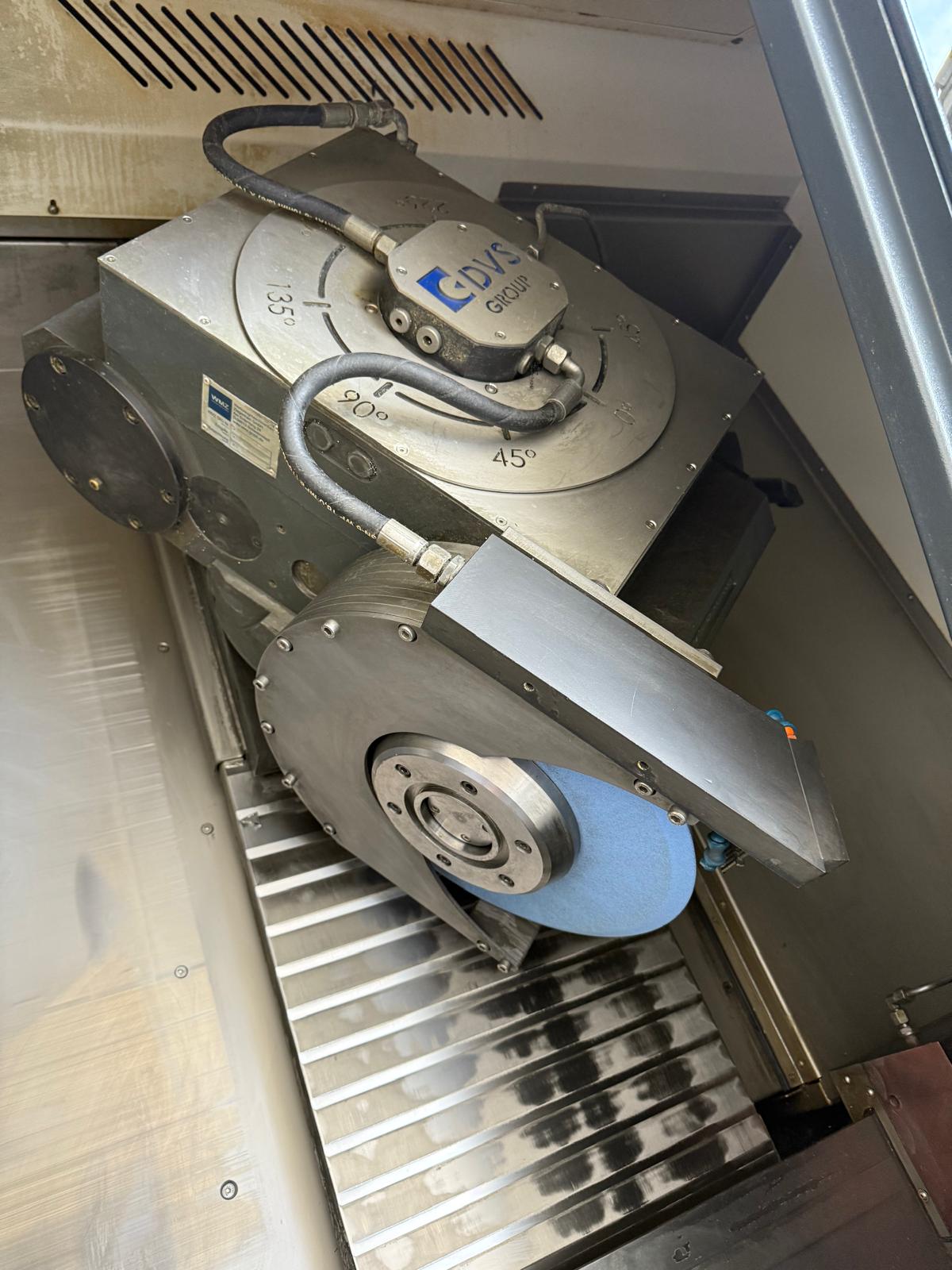

| Grinding spindle motor | kW |
| Workpiece spindle motor | kW |
| Total power required | 40 kW |
| Machine's weight about | 7000 kg |
| Overall dimensions machine: | |
| Length | 2850 mm |
| Width | 2490 mm |
| Height | 2290 mm |
| Various accessories: | |

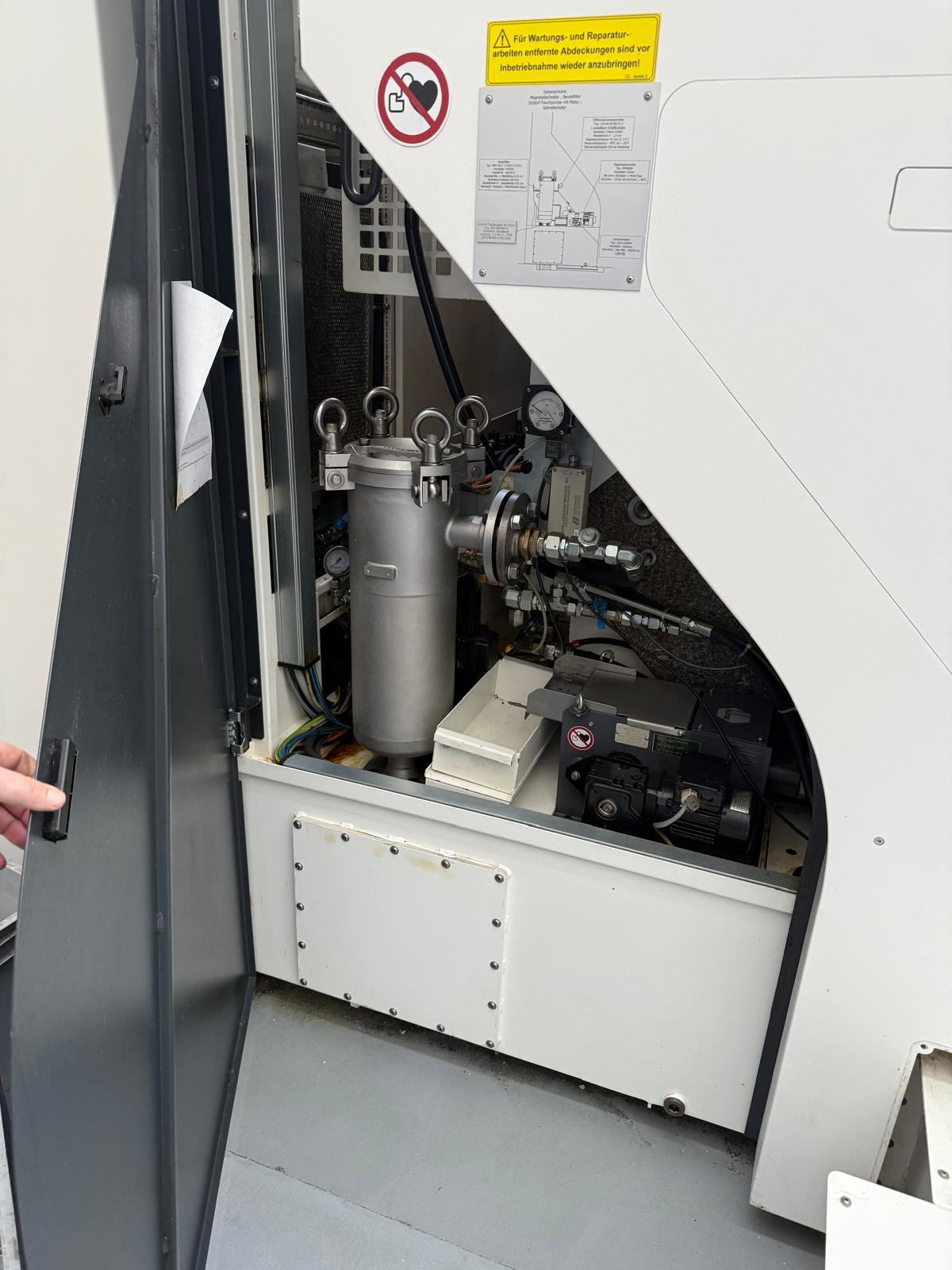

| Coolant system | |

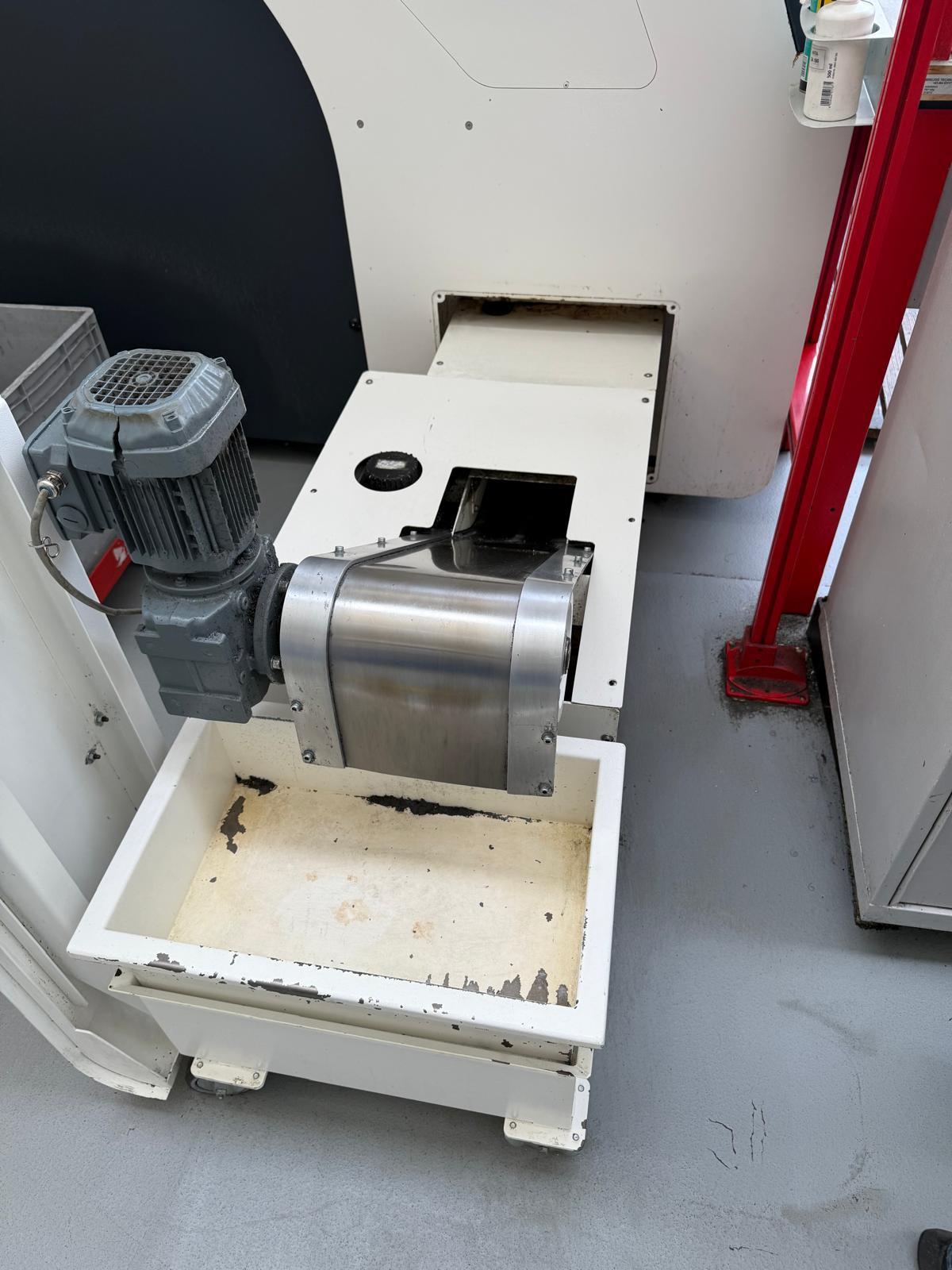

| Coolant filter system | |
| Measuring feeler gauge | |

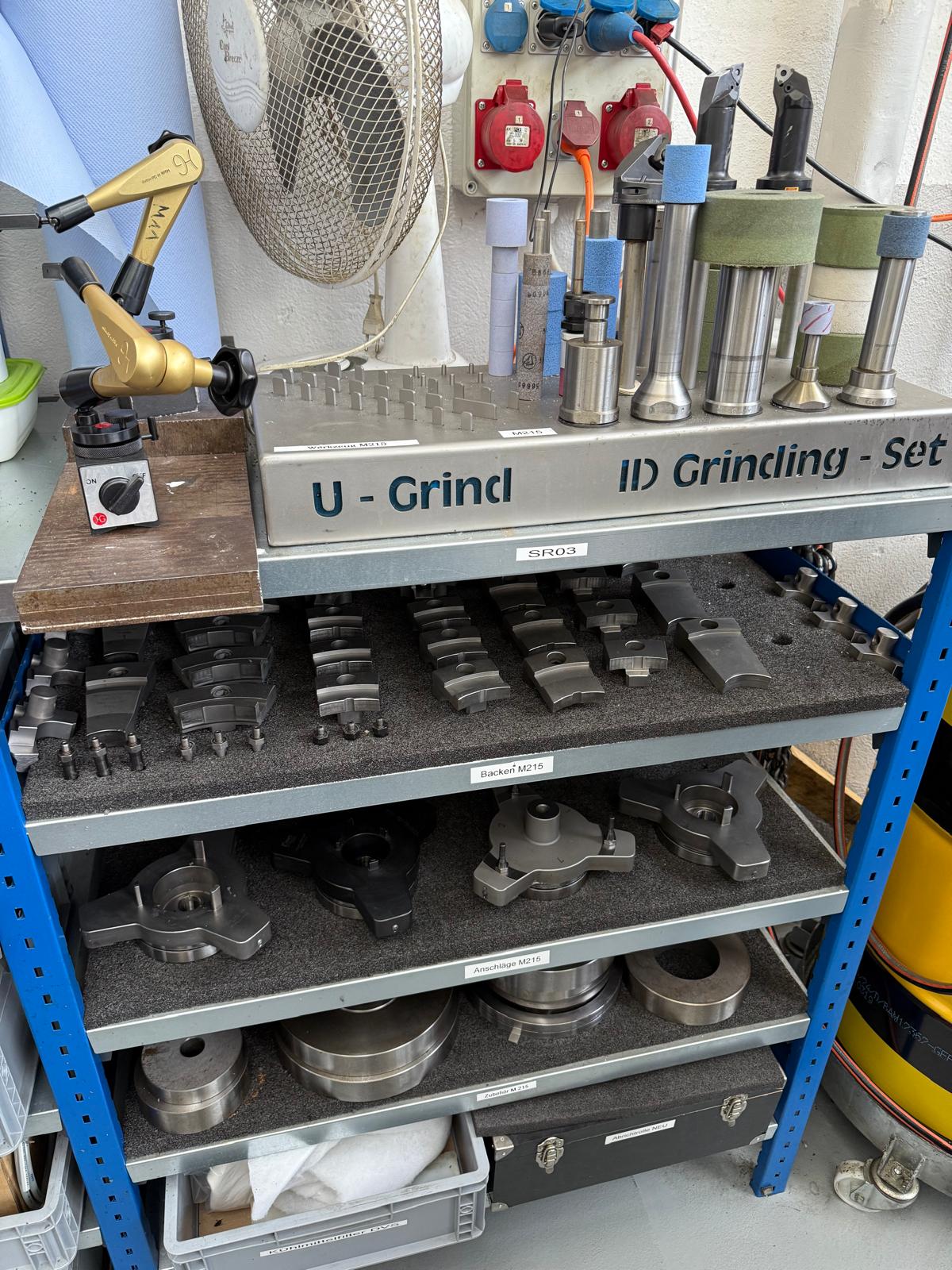

| Set of flanges for internal grinding | |

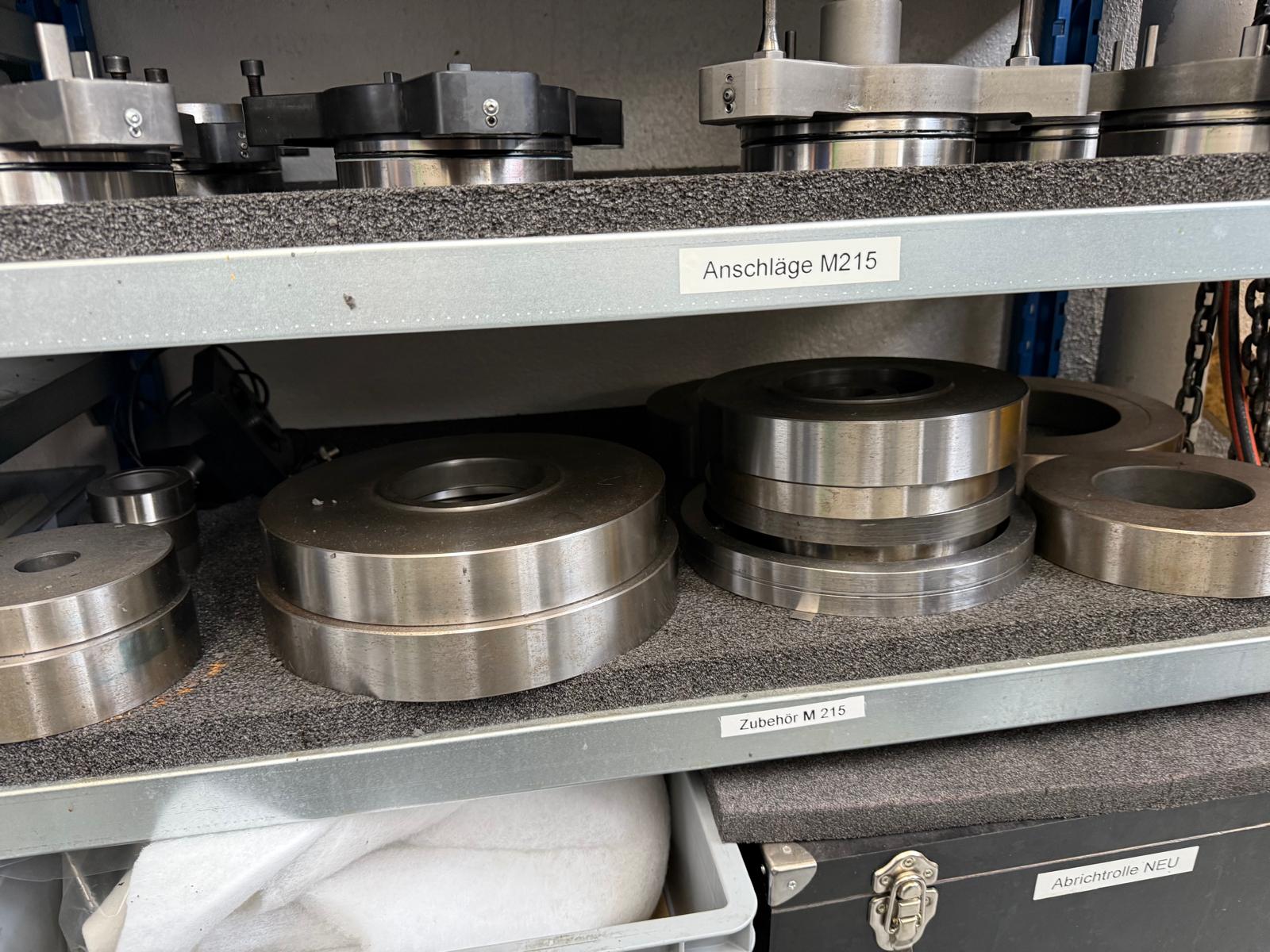

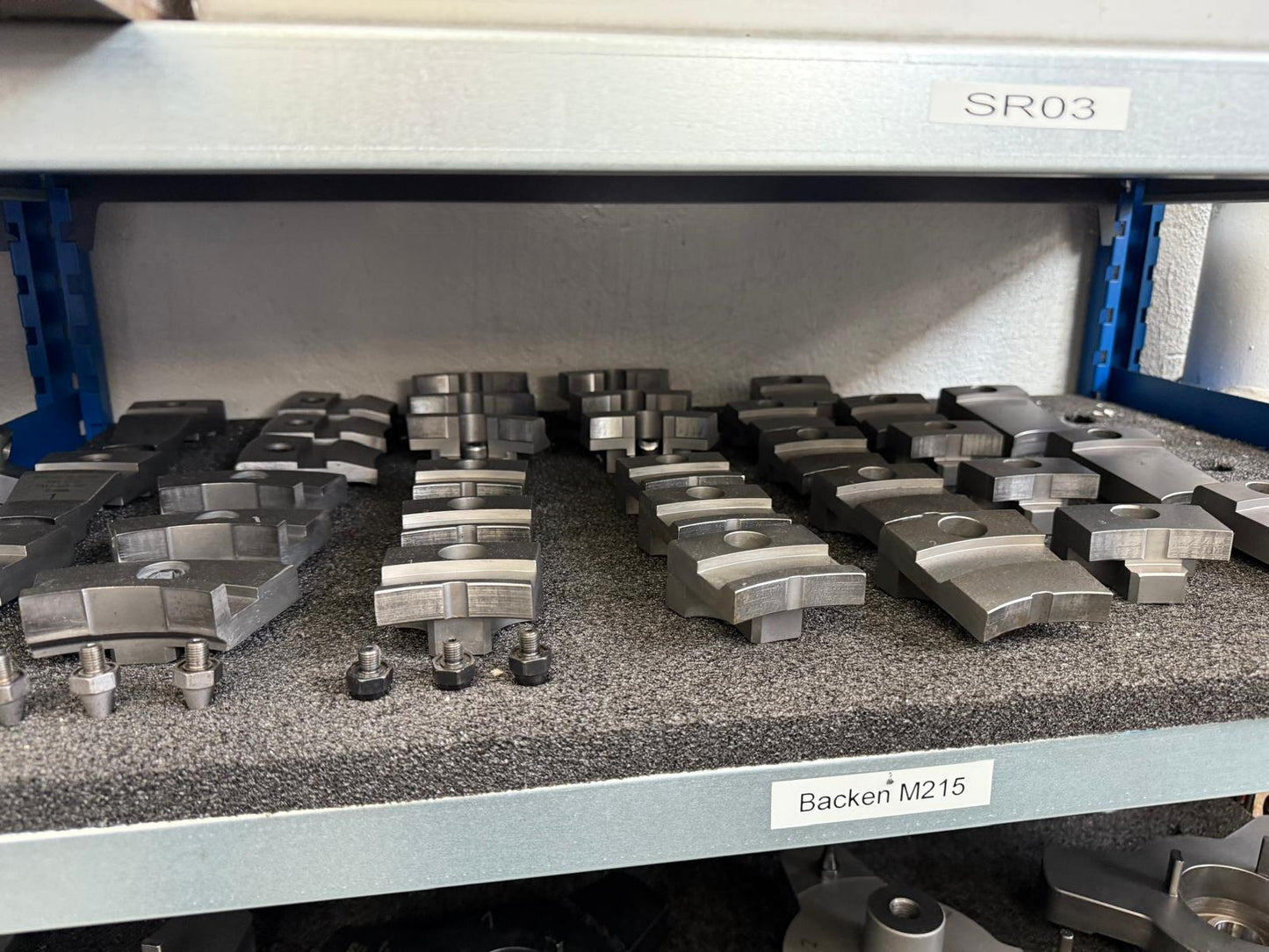

| Set of flanges | |
| Lamp | |
| Tool cabinet | |
| Steady for diameter | 20 - 150 mm |
| Redressing device | |

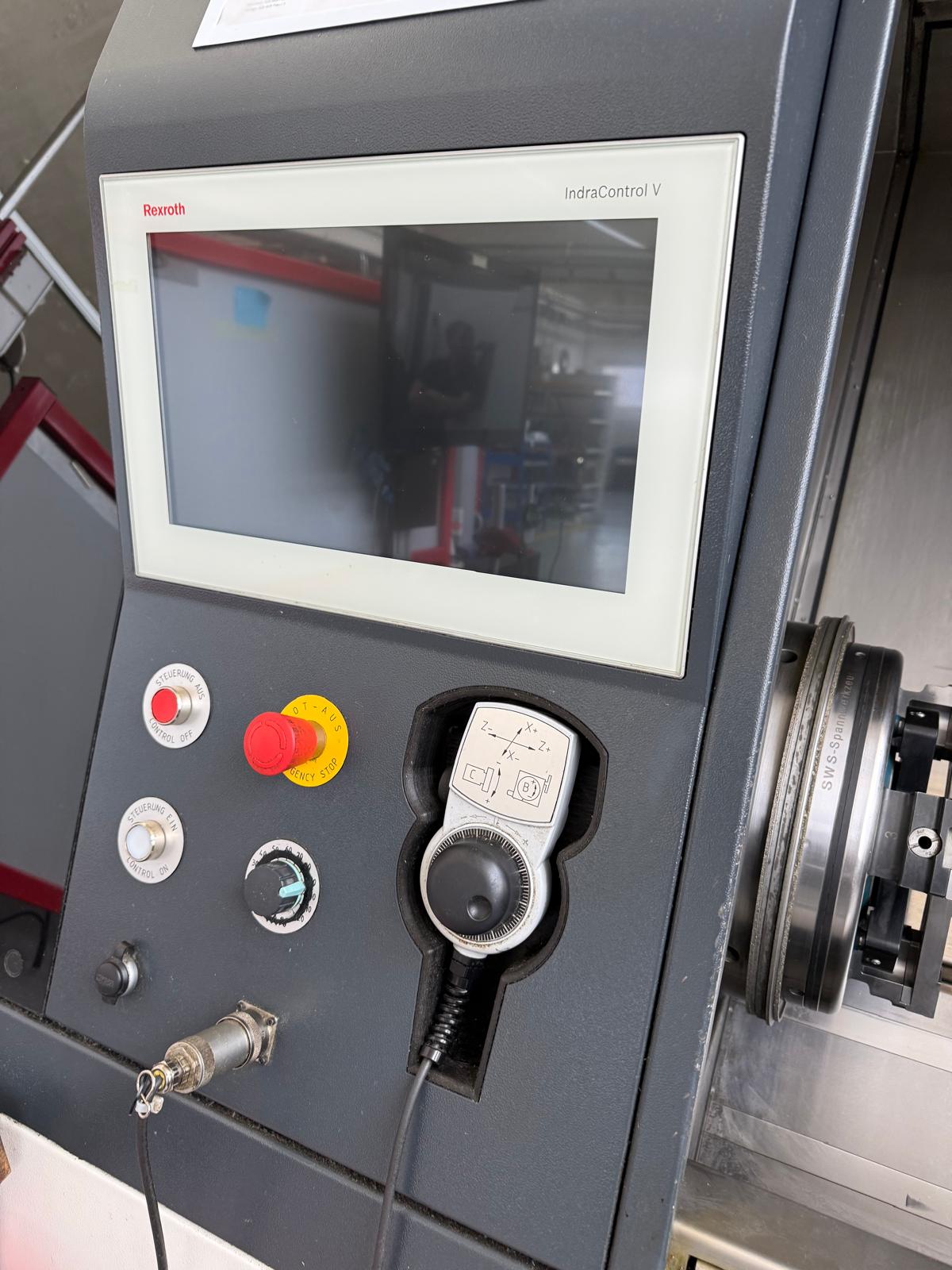

| Handwheel electroinic |
