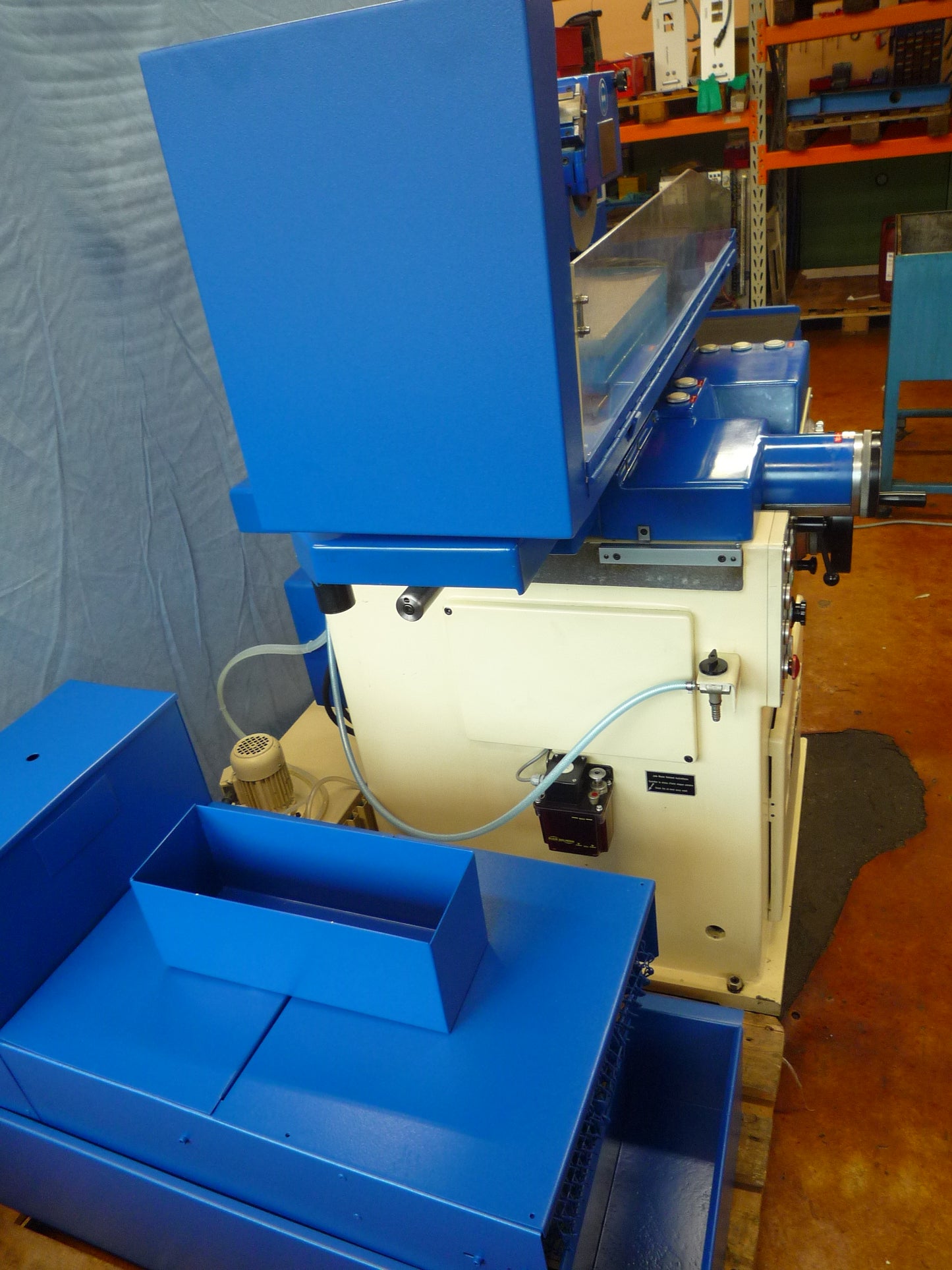

TRIPET MHPE 500 is a Surface grinder designed for precision, high accuracy and reliable performance. Working capacities: table 600×200 mm, grinding 500×200 mm, grinding height 300 mm; travels X 530 mm, Y 220 mm. Key specs: table speed stepless up to 21 m/min, automatic cross-feed stepless up to 9 m/min, creep feed 0.5–8000 mm/min; wheel Ø225×25 mm, 1,000–2,700 rpm; spindle motor 1.8 kW; voltage 3×380 V 50 Hz; weight ≈800 kg; machine 1000×700×1500 mm, control 800×600×1500 mm. Accessories: hydro-electric cabinet, paper filtration, magnetic plate 500×200 mm, central lubrication. Achieves tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical.
Technical specifications are subject to change without notice
| Table length | 600 mm |
| Table width | 200 mm |
| Grinding length | 500 mm |
| Grinding width | 200 mm |
| Grinding height | 300 mm |
| Longitudinal travel (X-axis) | 530 mm |
| Transversal travel (y axis) | 220 mm |
| Automatic cross-feed: | |
| stepless | |
| up to | 9 m/min |
| Table speeds: | |
| stepless | |
| up to | 21 m/min |
| Creep feed: | |
| from | 0.5 mm/min |
| up to | 8000 mm/min |
| Automatic vertical feed: | |
| Diameter of grinding wheel | 225 mm |
| Width of the grinding wheel | 25 mm |
| Grinding wheel speeds: | |
| from | 1000 t/min |
| up to | 2700 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Grinding spindle motor | 1.8 kW |
| Machine's weight about | 800 kg |
| Overall dimensions machine: | |
| Length | 1000 mm |
| Width | 700 mm |
| Height | 1500 mm |
| Dimensions of the control: | |
| Length | 800 mm |
| Width | 600 mm |
| Height | 1500 mm |
| Various accessories: | |
| Hydro-electric cabinet | |
| Paper filtration system | |
| Magnetic plate: | |
| Length | 500 mm |
| Width | 200 mm |
| Central lubrification |
