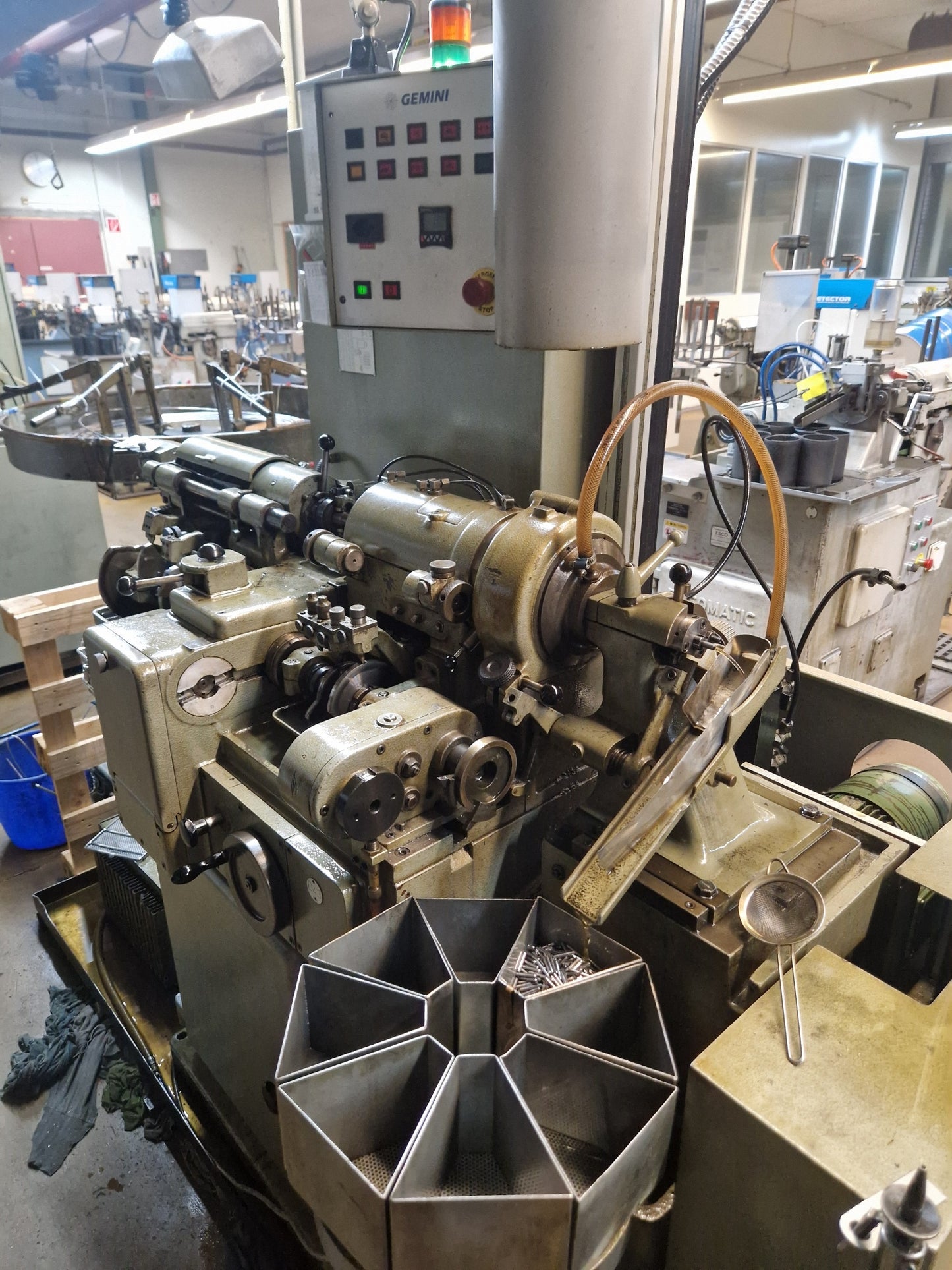

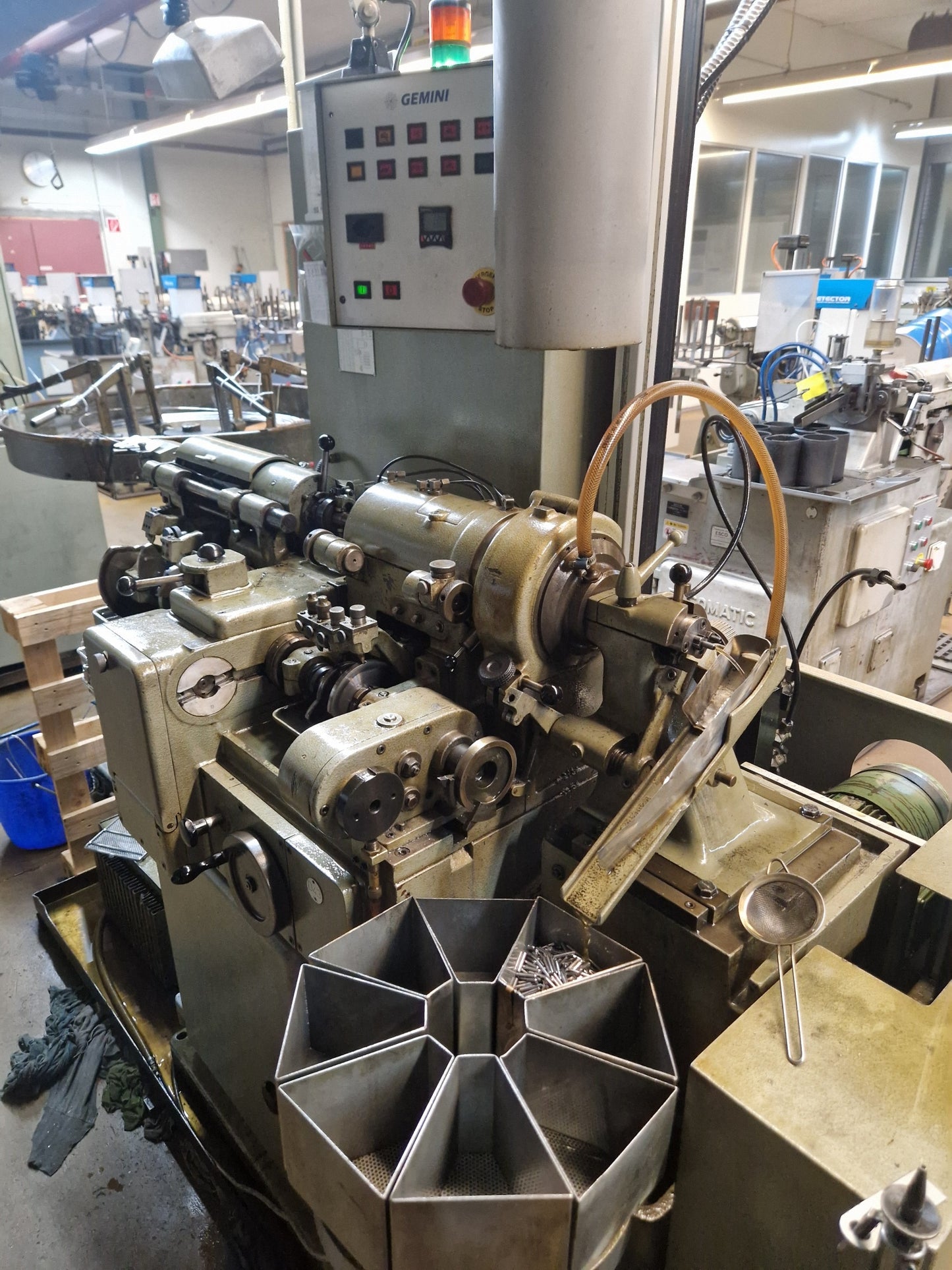

ESCO ESCOMATIC D 6 S
Type: ESCOMATIC D 6 S
Manufacturer: ESCO
Group: Automatic lathe
Subgroup: Automatic lathe
Stock: 023481
ESCO ESCOMATIC D 6 S is an automatic lathe designed for precision, high accuracy and reliable operation. Working capacities: work diameter admitted 6 mm (62 mm with flat cames), spindle hole 6 mm, number of tool cutters 3. Main technical specifications: 3 spindle speeds from 2400 to 6000 t/min, voltage 60 Hz 220/440 V, total power 2.5 CV, machine weight about 1150 kg, overall dimensions L1500 × W1000 mm. Achieves tight tolerances and is suitable for automotive, watchmaking, machine tool, aerospace and medical sectors.
| Diameter of work admitted | 6 mm |
| with flat cames | 62 mm |
| Spindle hole | 6 mm |
| Number of tool cutters | 3 |
| Spindle speeds: | |
| Number of spindle speeds | 3 |
| from | 2400 t/min |
| up to | 6000 t/min |
| Voltage | 60 Hz 220/440 Volt |
| Total power required | 2.5 CV |
| Machine's weight about | 1150 kg |
| Overall dimensions machine: | |
| Length | 1500 mm |
| Width | 1000 mm |
