ESCO ESCOMATIC D 6 SR
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

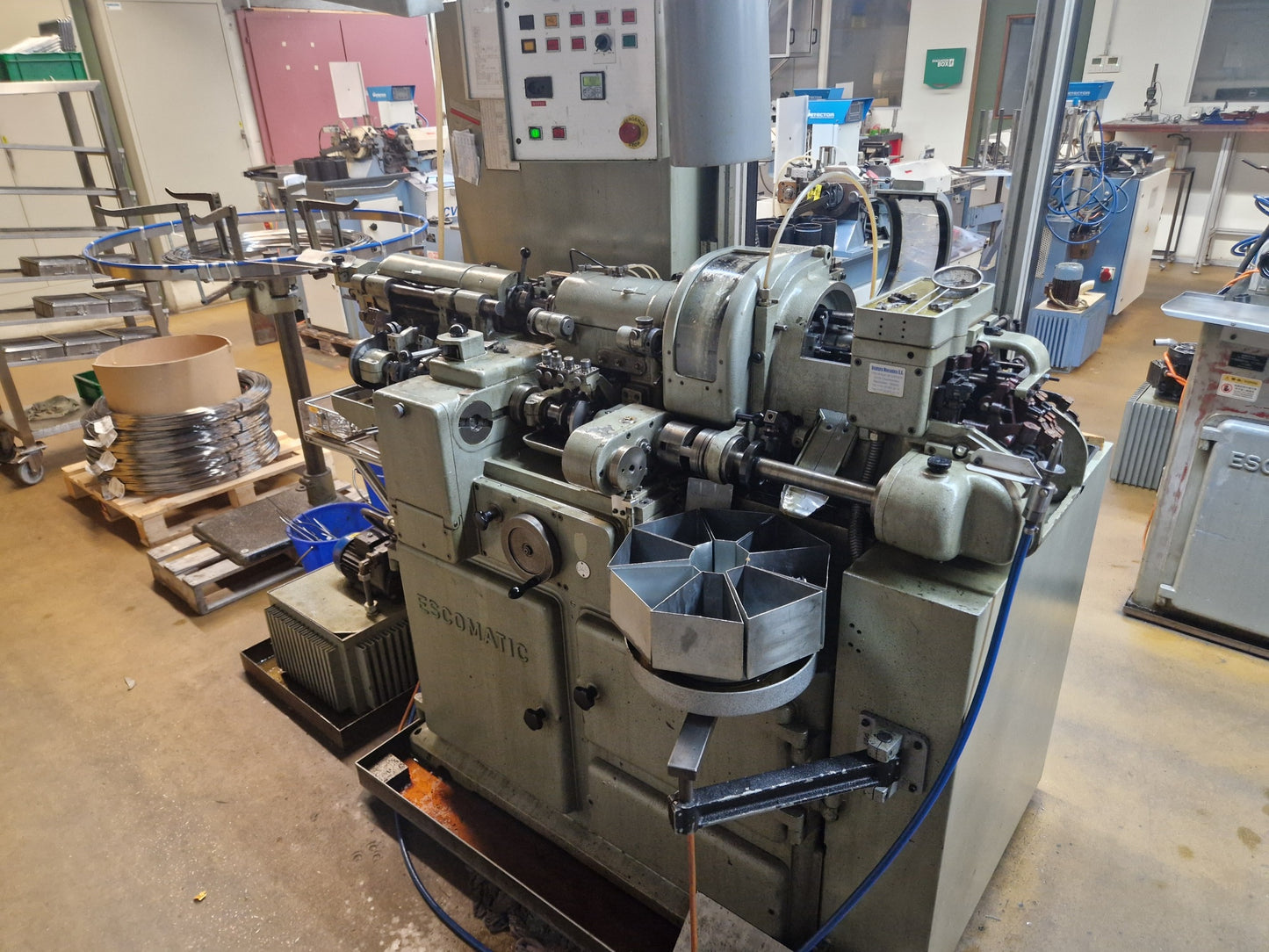

ESCO ESCOMATIC D 6 SR is an automatic lathe engineered for precision, high accuracy and reliability. Capacities: max work diameter 6 mm; with flat cames turning length 62 mm; spindle hole 6 mm. Specs: 3 spindle speeds 2400–6000 rpm; 3 tool cutters; turret 1a (D6-8-Mp 103/a) with 4 tools; voltage 220/440 (60Hz); total power 2.5 CV; weight ~1150 kg; footprint L1500×W1000 mm. Equipment: revolver turret. Achieves tight tolerances; suited to automotive, watchmaking, machine tools, aerospace and medical sectors.
| Diameter of work admitted | 6 mm |
| Max. turning length: | |
| with flat cames | 62 mm |
| Spindle hole | 6 mm |
| Number of tool cutters | 3 |
| Spindle speeds: | |
| Number of spindle speeds | 3 |
| from | 2400 t/min |
| up to | 6000 t/min |
| Turret slide: | 1a (D6-8-Mp 103/a) |
| number of tools | 4 |
| Voltage | 220/440 (60Hz) Volt |
| Total power required | 2.5 CV |
| Machine's weight about | 1150 kg |
| Overall dimensions machine: | |
| Length | 1500 mm |
| Width | 1000 mm |
