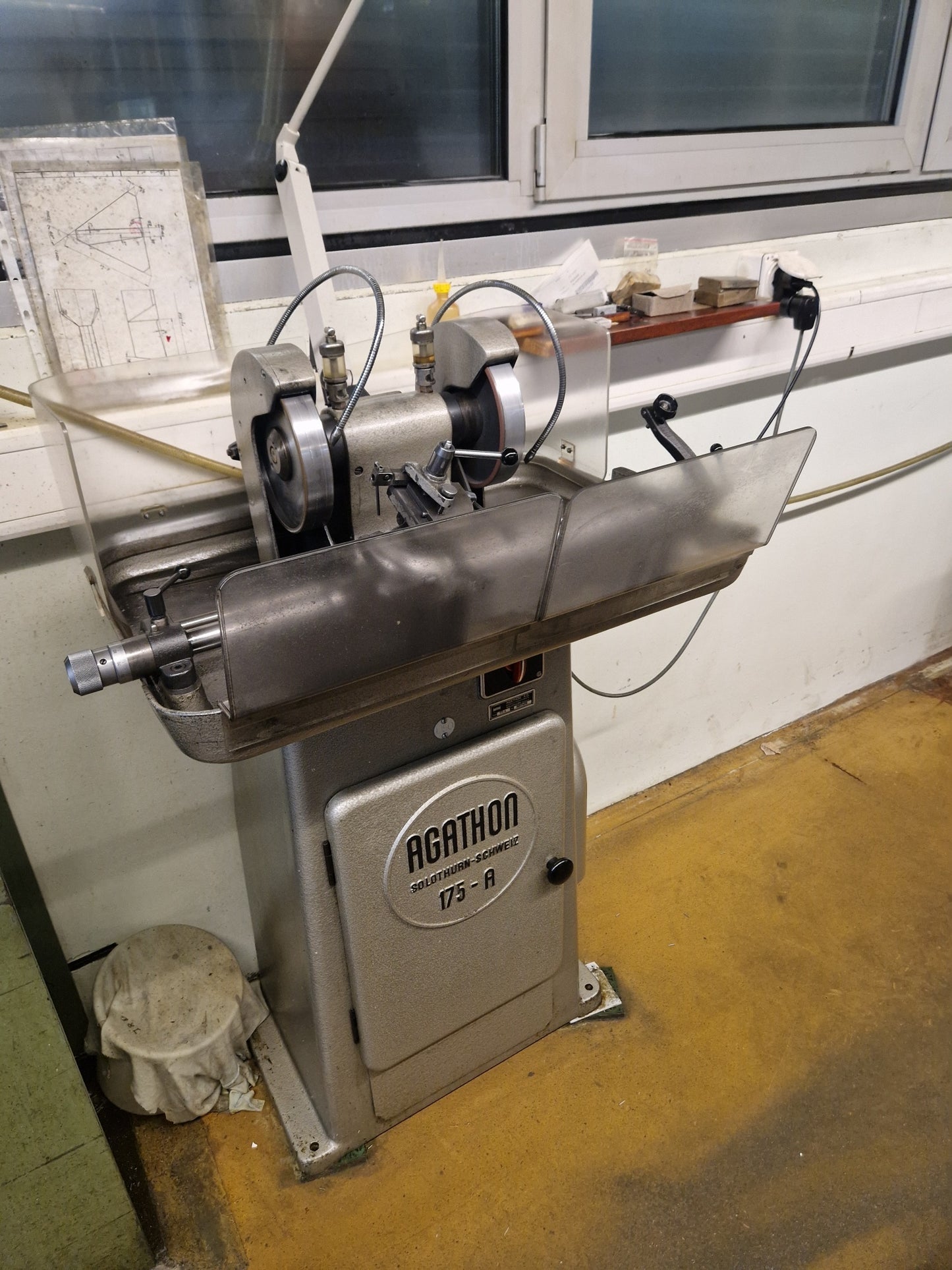

AGATHON 175 is a Tool and cutter grinder delivering precision, high accuracy and reliable operation. Working capacities (diameters, modules, lengths, travels) are not provided. Technical specifications (spindle speeds, feeds, power, dimensions, weight) are not provided. Capable of achieving tight tolerances and suited to automotive, watchmaking, machine tool, aerospace and medical sectors.
Technical specifications are subject to change without notice
| Grinding wheels: | |
| Diameter | 175 mm |
| Width | 20 mm |
| Bore | 20 mm |
| Spindle speeds: | |
| up to | 2800 t/min |
| Tool orthogonal clearance | |
| max. | 26 ° |
| Clamping range of the tools: | |
| Width | 32 mm |
| Height | 32 mm |
| Voltage 50 Hz 3x | 380 Volt |
| Power | 1.0 CV |
| Machine's weight about | 300 kg |
| Overall dimensions machine: | |
| Length | 820 mm |
| Width | 565 mm |
| Height | 1215 mm |
| Various accessories: | |
| Inclinable tool holder | |
| Coolant system | |
| Lamp |
