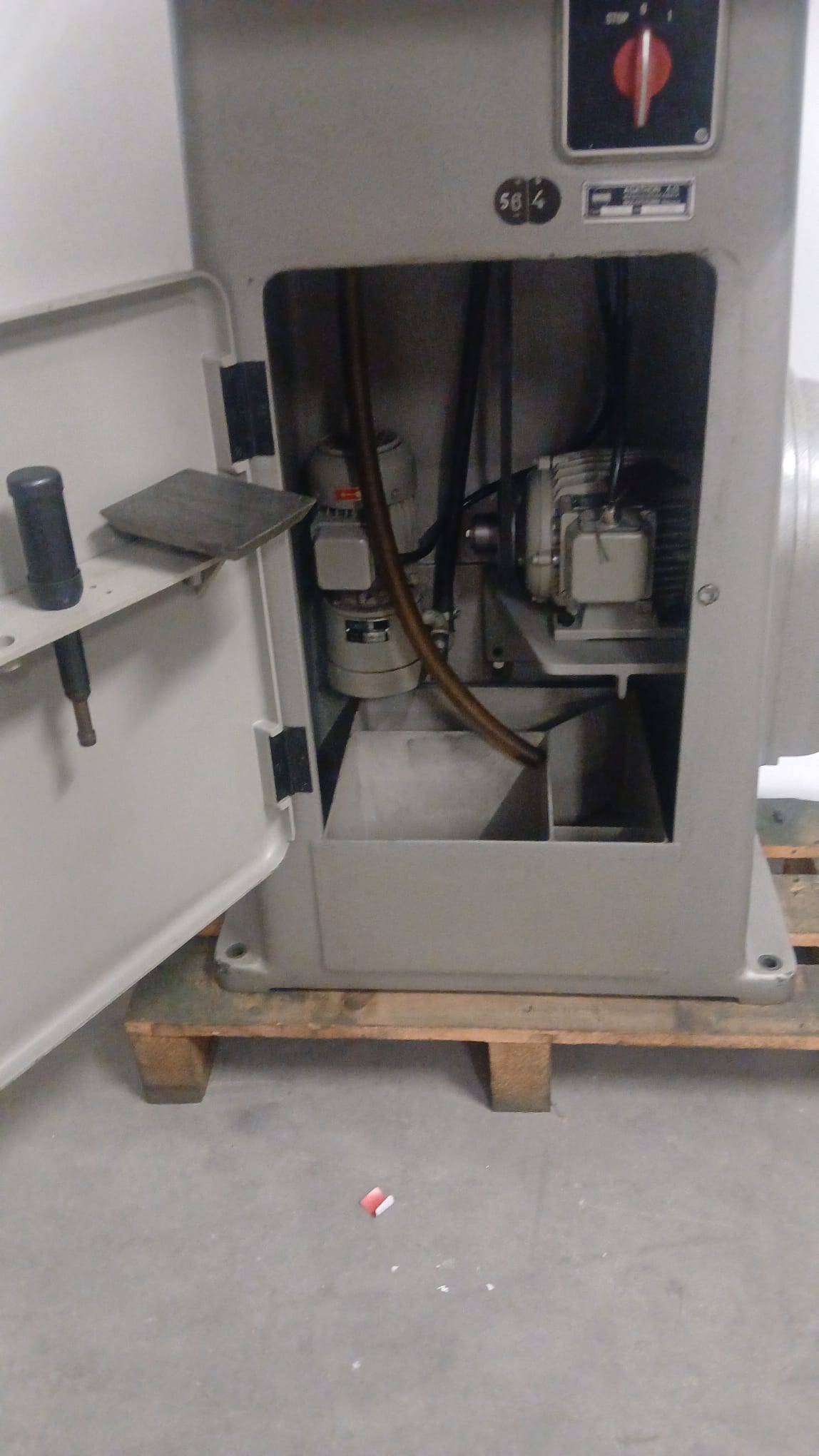

AGATHON 175 A is a tool grinding machine of high precision, providing accuracy and reliability. Capacity: grinding wheel Ø175×20 mm (bore 20 mm); tooling up to 32×32 mm; clearance angle max 26°. Specs: spindle up to 2800 rpm; 3×380 V 50 Hz, 1.0 CV; weight ~300 kg; size 820×564×1215 mm. Accessories: inclinable tool holder, coolant system. Achieves tight tolerances; typical sectors: automotive, watchmaking, tooling, aerospace, medical.
| Grinding wheels: | |
| Diameter | 175 mm |
| Width | 20 mm |
| Bore | 20 mm |
| Spindle speeds: | |
| up to | 2800 t/min |
| Tool orthogonal clearance | |
| max. | 26 ° |
| Clamping range of the tools: | |
| Width | 32 mm |
| Height | 32 mm |
| Voltage 50 Hz 3x | 380 Volt |
| Power | 1.0 CV |
| Machine's weight about | 300 kg |
| Overall dimensions machine: | |
| Length | 820 mm |
| Width | 564 mm |
| Height | 1215 mm |
| Various accessories: | |
| Inclinable tool holder | |
| Coolant system |
