WILLEMIN MACODEL W 401 PA
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

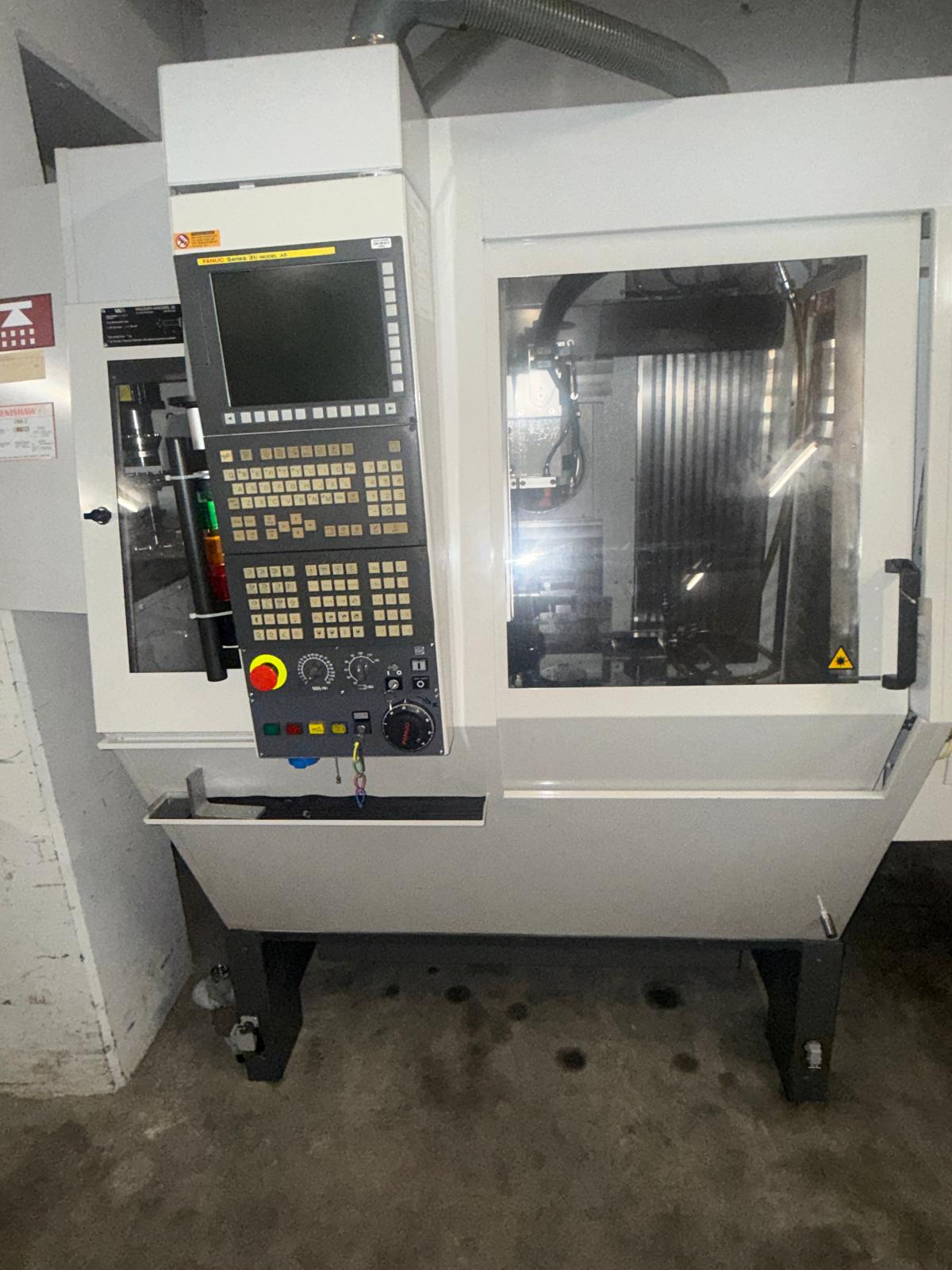

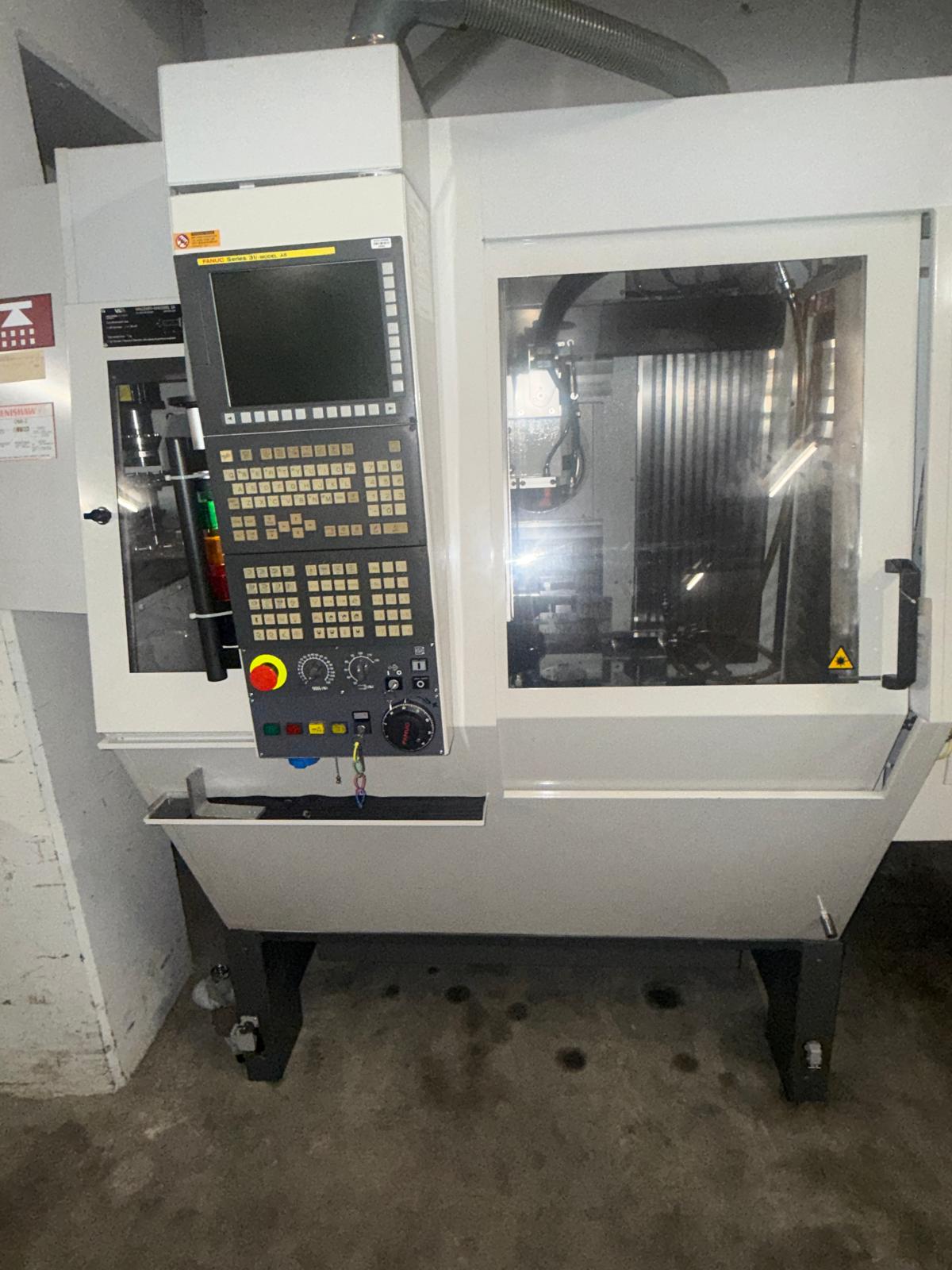

WILLEMIN MACODEL W 401 PA is a Vertical machining center of high precision, engineered for excellent accuracy and reliability. Longitudinal travel 250 mm, transversal 200 mm, vertical 300 mm; 16 tools; spindle nose ISO 25. Horizontal spindle speeds 50–12,000 (6,000) t/min; vertical spindle 50–6,000 t/min. Rapid traverse: long. 20 m/min, transversal 20 m/min, vertical 10 m/min. Total power required 10 kW. Footprint L1400 x W1800 x H2300 mm; machine weight about 1,500 kg. Delivers tight tolerances; suitable for automotive, watchmaking, machine tools, aerospace and medical sectors.
| Longitudinal travel (X-axis) | 250 mm |
| Transversal travel (y-axis) | 200 mm |
| Vertical travel (z axis) | 300 mm |
| Number of tools | 16 |
| Spindle nose: ISO | 25 |
| Distance from vertical | |
| Horizontal spindle speeds: | 4 x (4x) |
| stepless | |
| from | 50 t/min |
| up to | 12000 (6000) t/min |
| Vertical spindle speeds: | 8x |
| stepless | |
| from | 50 t/min |
| up to | 6000 t/min |
| Feeds: | |
| Rapid traverse: | m/min |
| Rapid traverse: long. | 20 m/min |
| Rapid traverse: transversal | 20 m/min |
| Rapid traverse: vertical | 10 m/min |
| Total power required | 10 kW |
| Machine's weight about | 1500 kg |
| Overall dimensions machine: | |
| Length | 1400 mm |
| Width | 1800 mm |
| Height | 2300 mm |
