WILLEMIN MACODEL W 401 PA
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

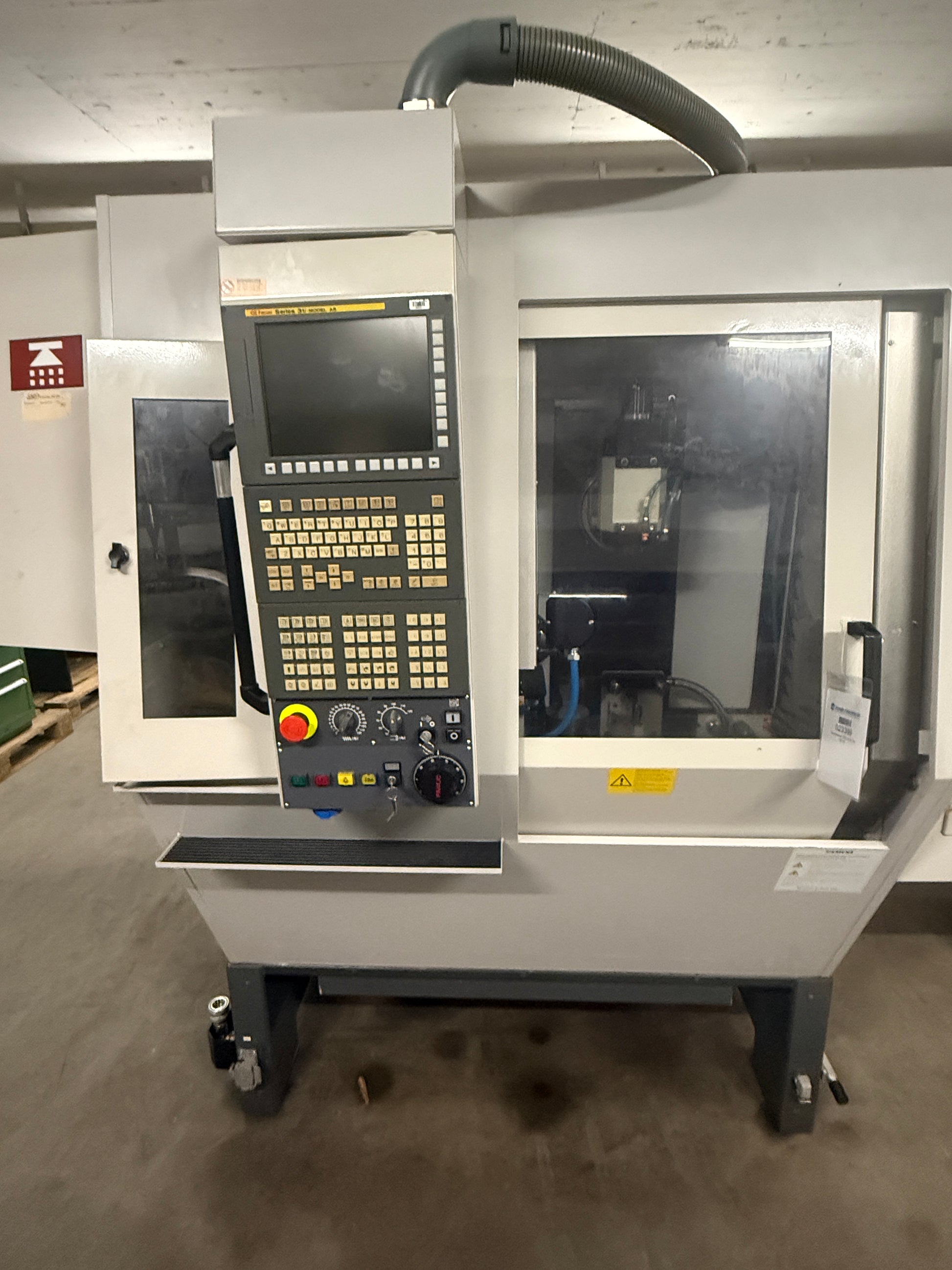

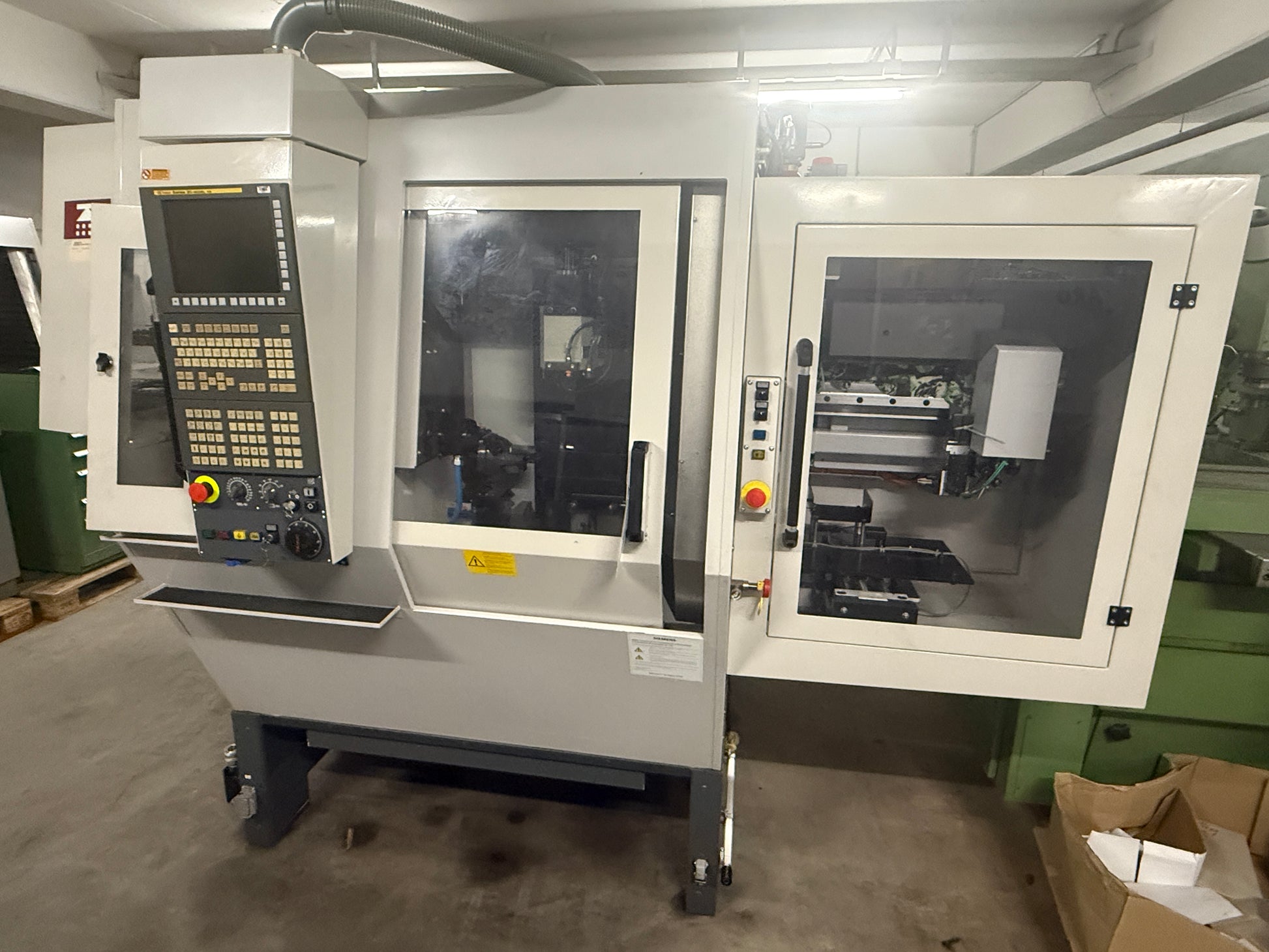

WILLEMIN MACODEL W 401 PA is a Vertical machining center designed for precision, high accuracy and reliable performance. Travels X 250 mm, Y 200 mm, Z 300 mm; 16 tools; spindle nose ISO 25. Horizontal spindle speeds 50–12000 rpm (6000 noted), 4-step; Vertical spindle 50–6000 rpm, 8-step; rapid traverse X/Y 20 m/min, Z 10 m/min; total power 10 kW; weight ~1500 kg; dims L1400×W1800×H2300 mm. Capable of tight tolerances; typical applications: watchmaking, automotive, tooling, aerospace, medical.
Technical specifications are subject to change without notice
| Longitudinal travel (X-axis) | 250 mm |
| Transversal travel (y-axis) | 200 mm |
| Vertical travel (z axis) | 300 mm |

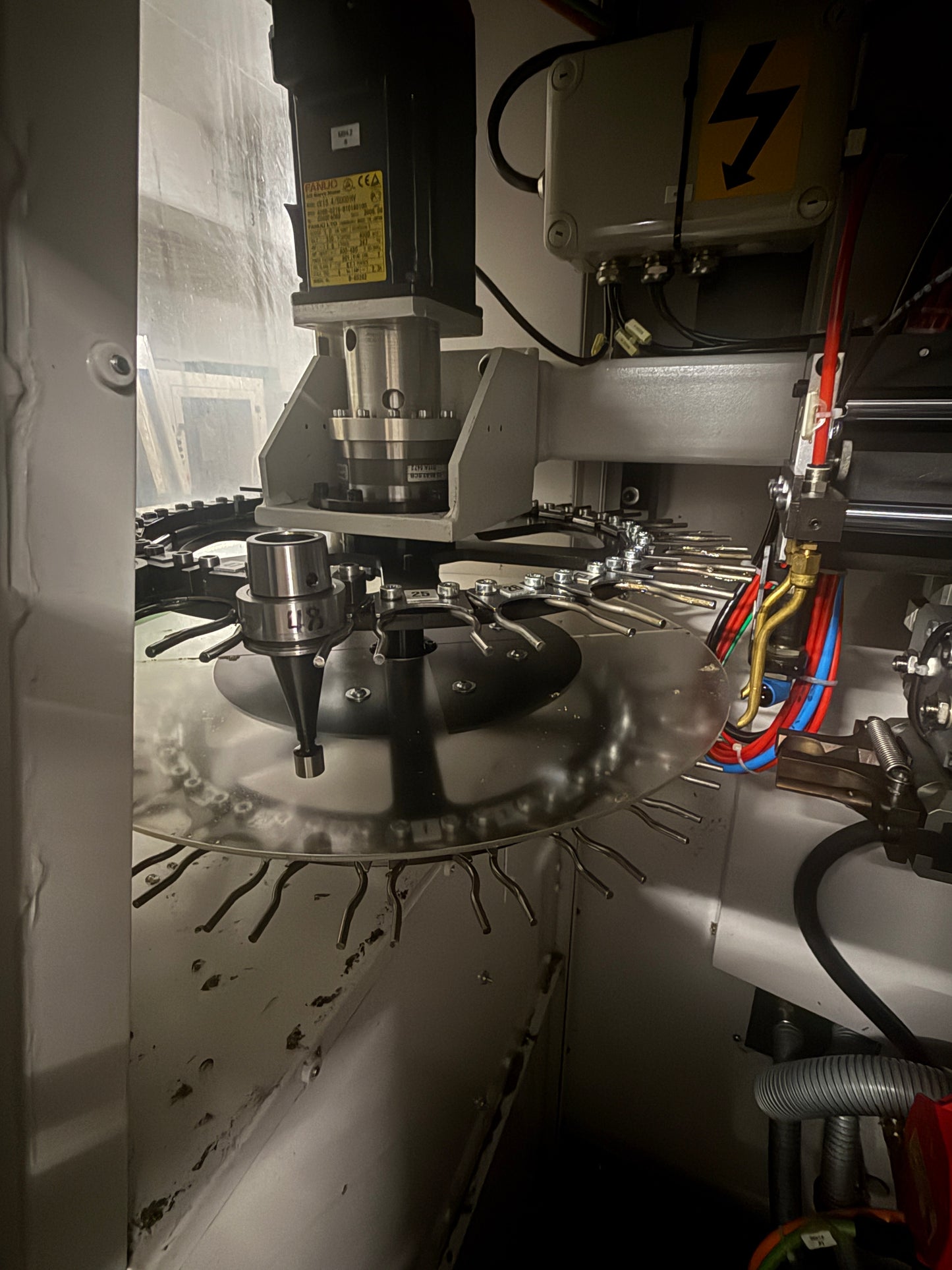

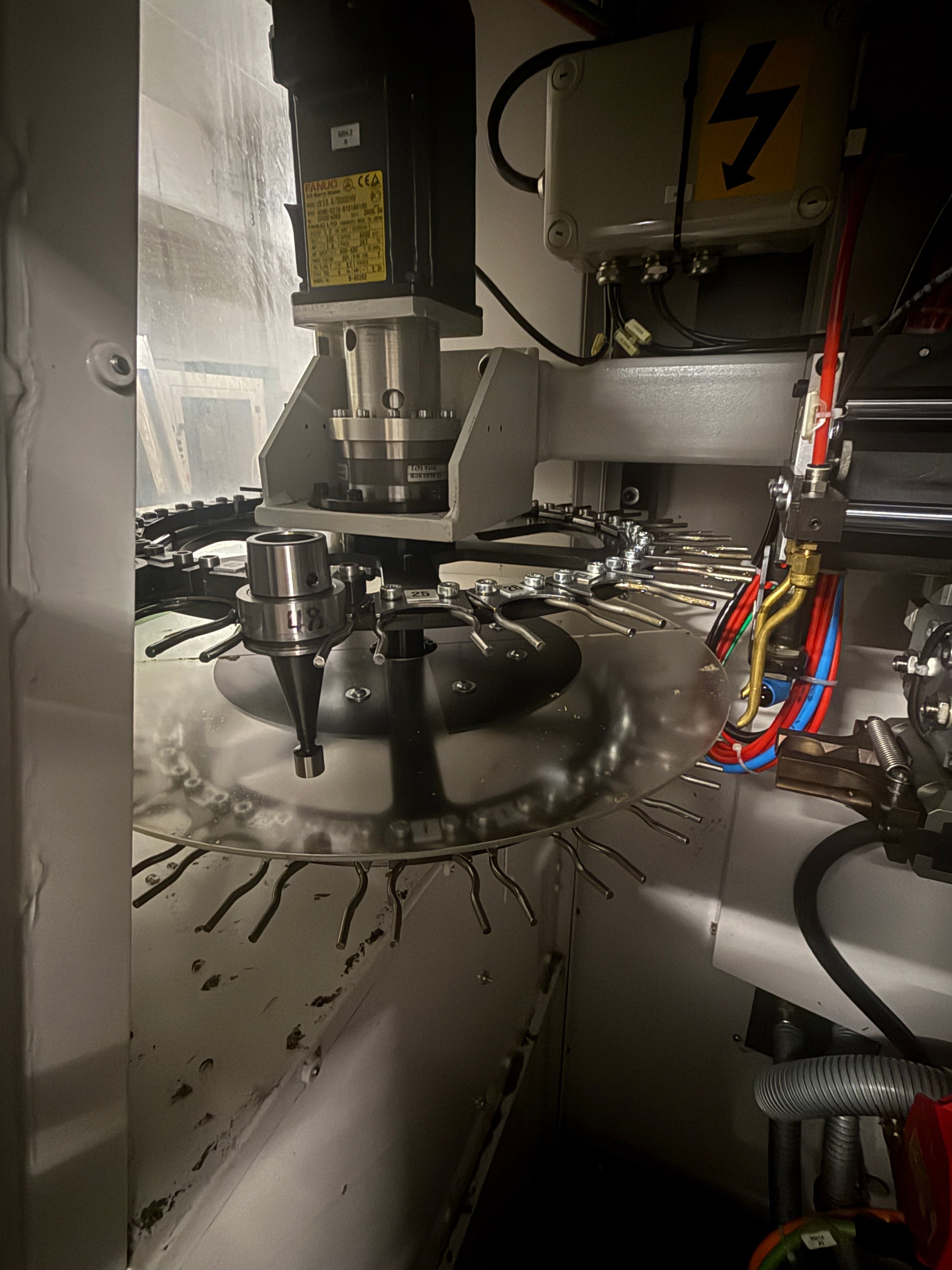

| Number of tools | 16 |
| Spindle nose: ISO | 25 |
| Distance from vertical | |
| Horizontal spindle speeds: | 4 x (4x) |
| stepless | |
| from | 50 t/min |
| up to | 12000 (6000) t/min |
| Vertical spindle speeds: | 8x |
| stepless | |
| from | 50 t/min |
| up to | 6000 t/min |
| Feeds: | |
| Rapid traverse: | m/min |
| Rapid traverse: long. | 20 m/min |
| Rapid traverse: transversal | 20 m/min |
| Rapid traverse: vertical | 10 m/min |
| Total power required | 10 kW |
| Machine's weight about | 1500 kg |
| Overall dimensions machine: | |
| Length | 1400 mm |
| Width | 1800 mm |
| Height | 2300 mm |
